M2-USB-C-NVME-SATA

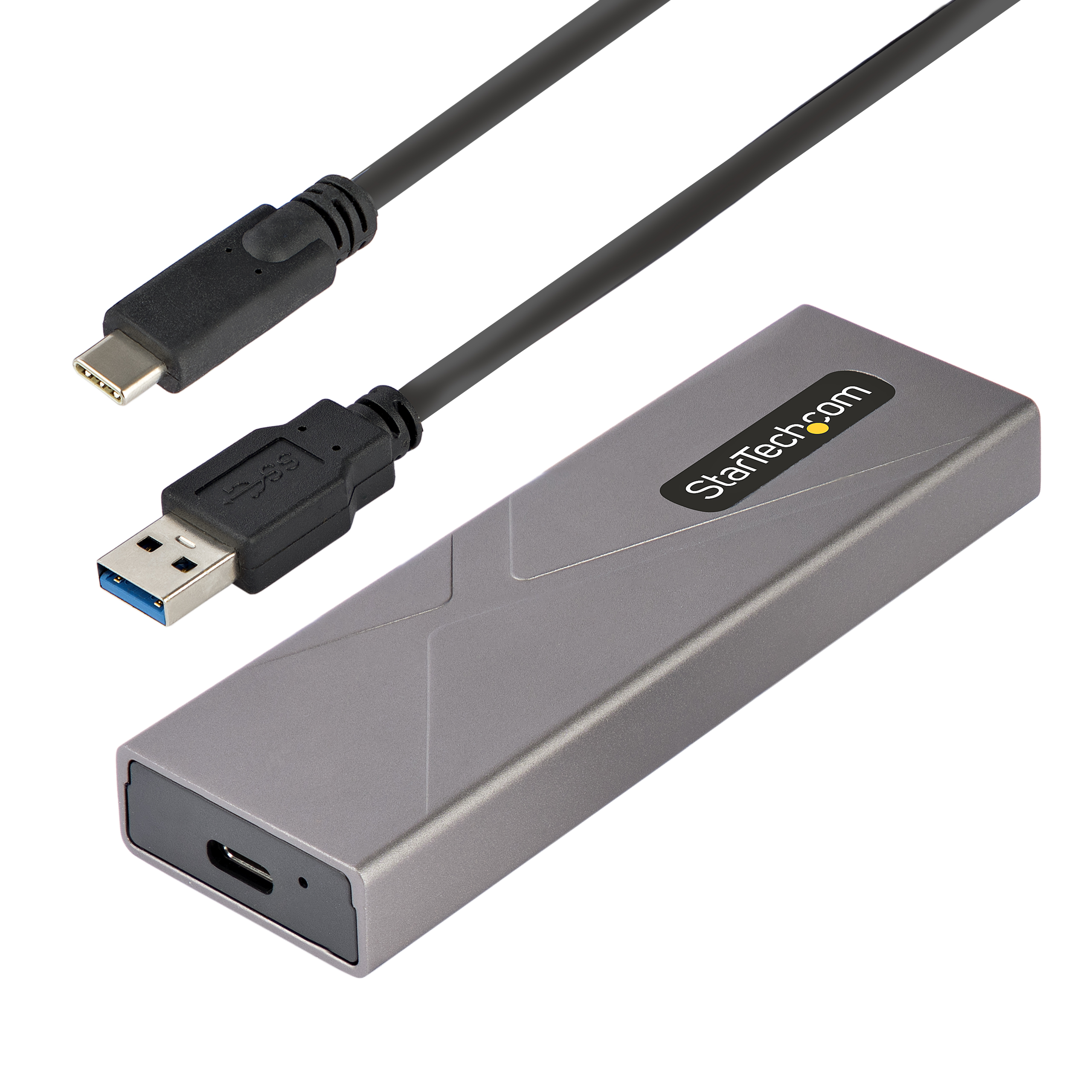

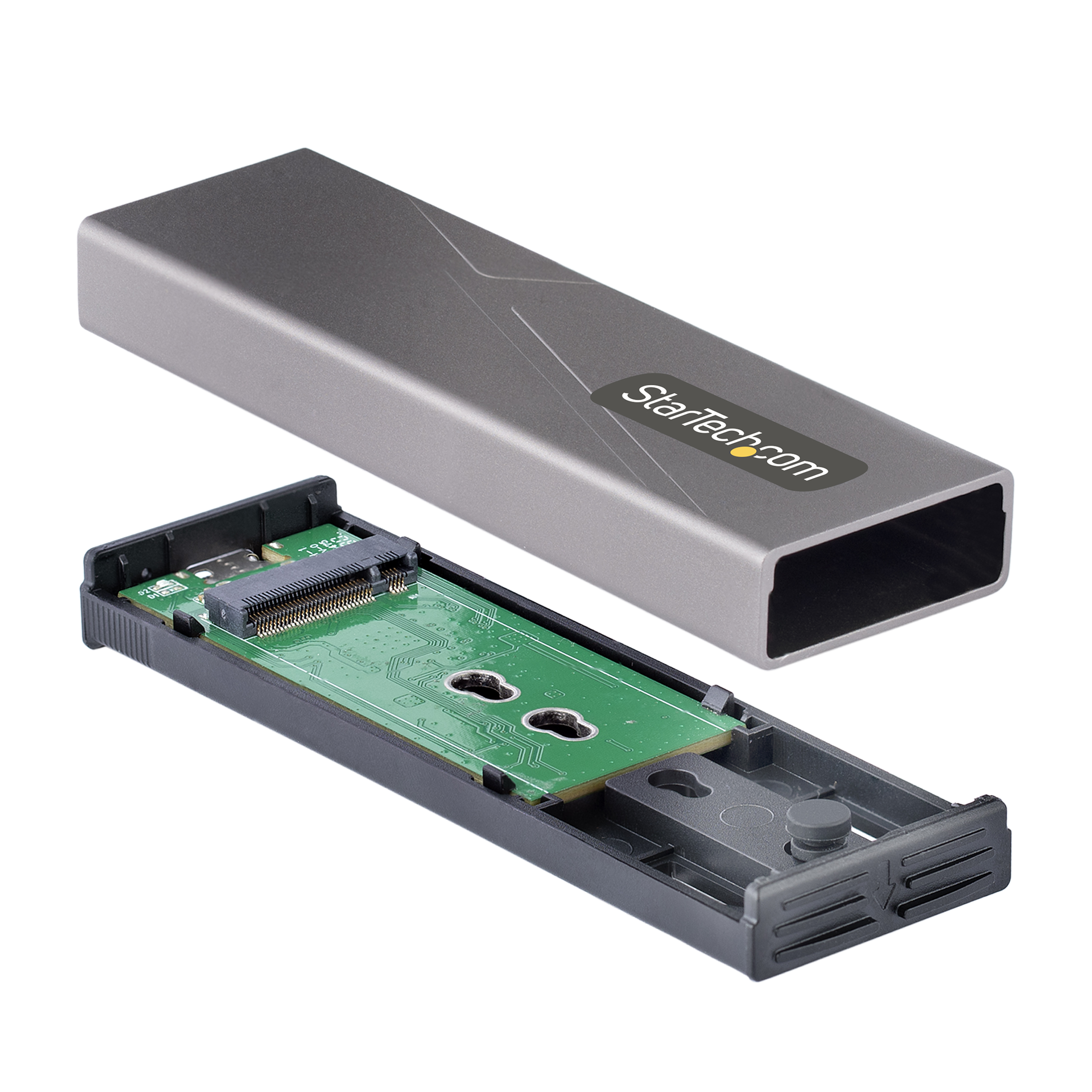

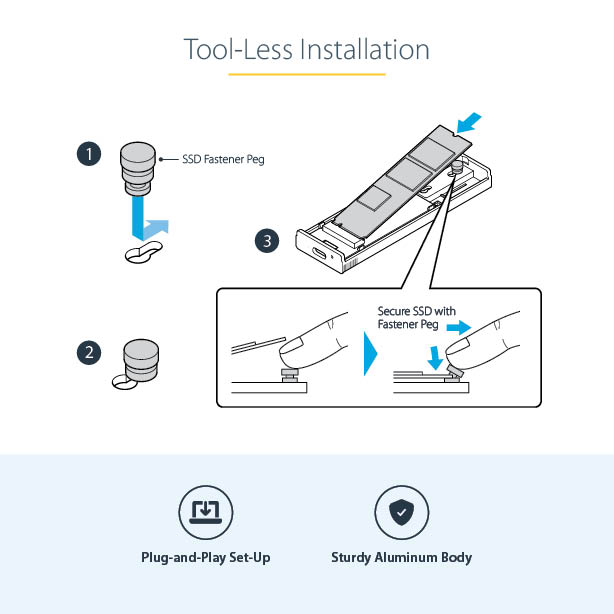

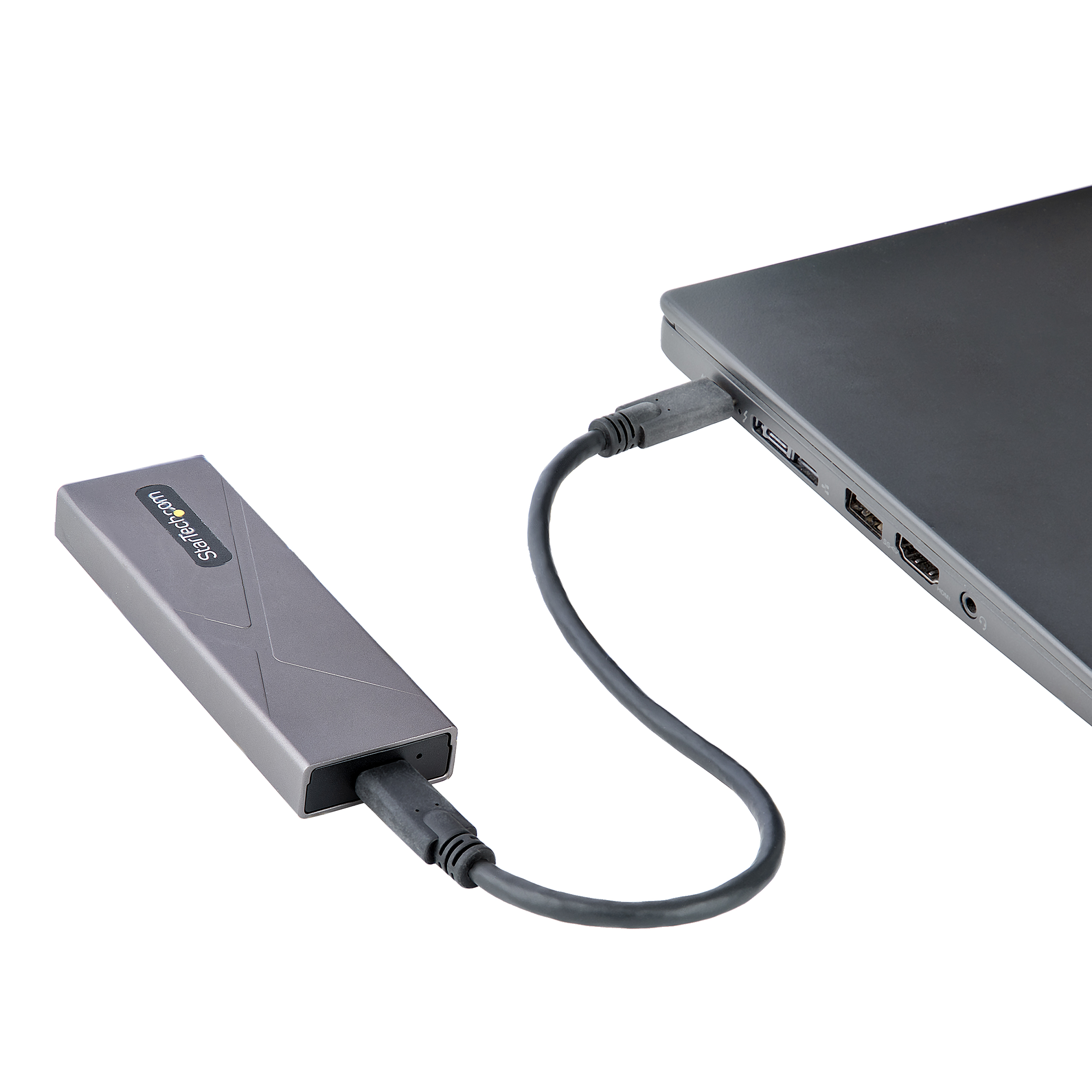

Tool less USB 10Gbps to M 2 SATA or NVMe SSD Enclosure
Works with Both PCIe and SATA Based M.2 Drives | Supports 2230/2242/2260/2280 Drive Heights | Tool-less Drive Installation | USB-C and USB-A Host Cables Included
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name Tool less USB 10Gbps to M 2 SATA or NVMe SSD Enclosure Product Number M2-USB-C-NVME-SATA UPC 065030894975 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 NVMe Enclosures - USB-C 10Gbps Family M.2 NVMe Enclosure - USB-C 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) PCIE/SATA M.2 Case Product Title (Short) M.2 PCIe NVMe/M.2 SATA SSD USB Enclosure Product Title (Medium) USB-C 10Gbps M.2 PCIe NVMe or M.2 SATA SSD Enclosure, Tool-free Aluminum M2 Case Product Title (Standard) USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure, Tool-free M.2 PCIe/SATA SSD Aluminum Enclosure, USB-C & USB-A Host Cables Product Title (Long) USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure - Tool-free External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C&A Host Cables - Supports 2230/2242/2260/2280 Product Title (AMZ) USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure - Tool-free External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C&A Host Cables - Supports 2230/2242/2260/2280 (M2-USB-C-NVME-SATA) Title Ingram (Part 1) USB-C 10Gbps M.2 PCIe NVMe or Title Ingram (Part 2) M.2 SATA SSD Enclosure, Toolfree Website Product Headline Works with Both PCIe and SATA Based M.2 Drives | Supports 2230/2242/2260/2280 Drive Heights | Tool-less Drive Installation | USB-C and USB-A Host Cables Included Bullet 1 HIGH PERFORMANCE: External USB-C or USB-A NGFF storage solution for your PCIe M.2 NVMe or SATA M.2 AHCI SSD; This enclosure features USB 3.2 Gen 2 (10Gbps) with UASP support & PCI Express 3.0; Compatible with thunderbolt 3/4 host computers Bullet 2 COMPATIBILITY: M.2 SATA or M.2 NVMe SSD enclosure comes with two separate 12in (30 cm) USB host cables to provide support for both USB Type-A and USB Type-C; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up) Bullet 3 TOOL-LESS INSTALLATION: The M2 SATA or M.2 NVMe SSD (solid state drive) adapter features driverless plug-and-play setup and a tool-less case design for hassle free drive installation Bullet 4 M.2 COMPATIBILITY: Works w/M.2 PCIe NVMe (M-Key) & M.2 SATA (B+M-Key) based drives: 2230/2242/2260/2280 SSDs incl Samsung 850/860/870/950/960/970, Kingston, Seagate, Western Digital, HP & Intel; PCIe 4.0 SSDs (reduced speed); NOT COMPATIBLE W/22110mm Bullet 5 LIGHTWEIGHT & PORTABLE: Compact aluminum housing (4.1x.14x0.5 in / 105x35x14 mm) protects the SSD & acts as a large heatsink for heat dissipation, ensuring consistency at peak performance levels Bullets (Compact) USB-A/USB-C to M.2 SSD Enclosure for NVMe & SATA M.2 SSDs - USB 3.2 Gen 2 10Gbps; UASP; 2230/2242/2260/2280 - Incl. USB Type-C/USB Type-A cables - Tool-less drive install; Aluminum housing - Windows, Mac, Chrome, Linux, Ubuntu, iOS (iPhone 15 and up) Bullets (Consolidated) - USB-A/USB-C to M.2 SSD Enclosure compatible w/PCIe M.2 NVMe, SATA AHCI M.2 SSDs - USB 3.2 Gen 2 10Gbps; UASP support; PCI Express 3.0 w/4.0 compatibility - For PCIe (M-Key), SATA (B+M-Key) drives sized 2230/2242/2260/2280; Not compatible w/22110mm - USB Type-C, USB Type-A cables; Tool-less drive installation; Works with Windows, Mac, Chrome, Linux, Ubuntu, iOS (iPhone 15 [Plus/Pro/Max] and up) - Portable M2 NGFF SSD Case Adapter w/aluminum housing protects SSD and provides heat dissipation Marketing Copy Applications - Create a portable, high-performance storage solution
- Access your NVMe or SATA drive externally with ultra-fast transfer speeds
- Superior speeds are ideal for data-migration related tasks
Website Search Keyword - hard drive enclosure
- m 2 2242 enclosure
- m 2 2280 ssd enclosure
- m 2 nvme ssd enclosure
- m 2 ssd enclosure
- M.2 Enclosure
- M.2 NVMe Enclosure
- M.2 SATA enclosure
- M.2 sata ssd enclosure
- m.2 ssd enclosure
- m2 sata ssd to usb adapter
- m2 ssd enclosure
- ngff case
- NVMe Enclosure
- nvme enclosure usb c
- nvme ssd enclosure
- nvme usb adapter
- pci express ssd enclosure
- pcie nvme m 2 external enclosure
- PCIe NVMe M.2 SSD
- portable nvme enclosure
- ssd external enclosure
- thunderbolt 3 m 2 ssd enclosure
- thunderbolt 3 nvme enclosure
- usb 3.1 gen 2 ssd enclosure
- usb c ssd enclosure
- usb m2 adapter
- usb type c ssd enclosure
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB storage devices. Accessory Products - USB31AC50CM
- USB31AC1M
- USB31CC50CM
- USB31CC1M
Related Products - U2M2E125
- PEX4SFF8643
- PEX4SFF8639
- PEXM2SAT32N1
- M2E4SFF8643
- PEX4M2E1
- SM2NGFFMBU33
- SM21BMU31C3
- SM22BU31C3R
- M2E1BMU31C
- SM2E1BMU31C

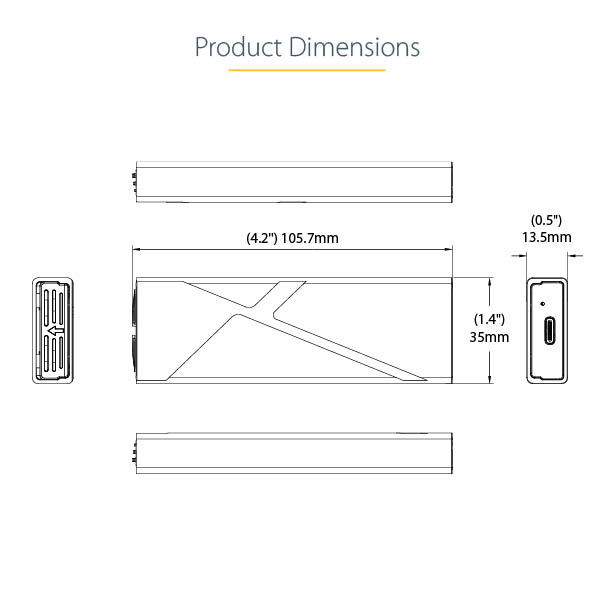

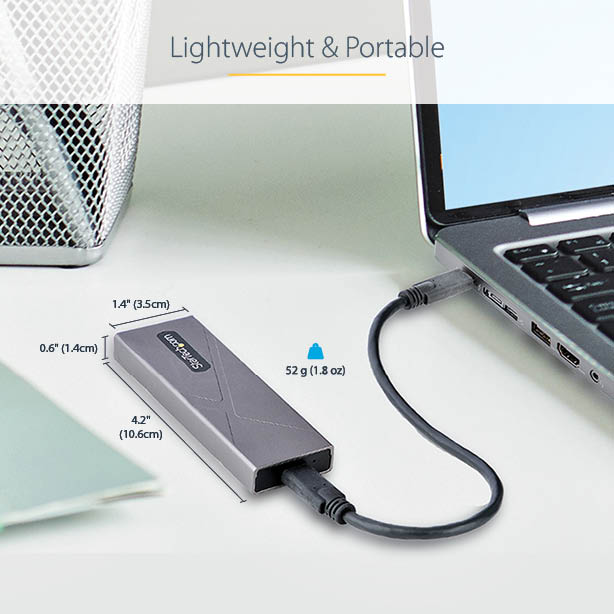

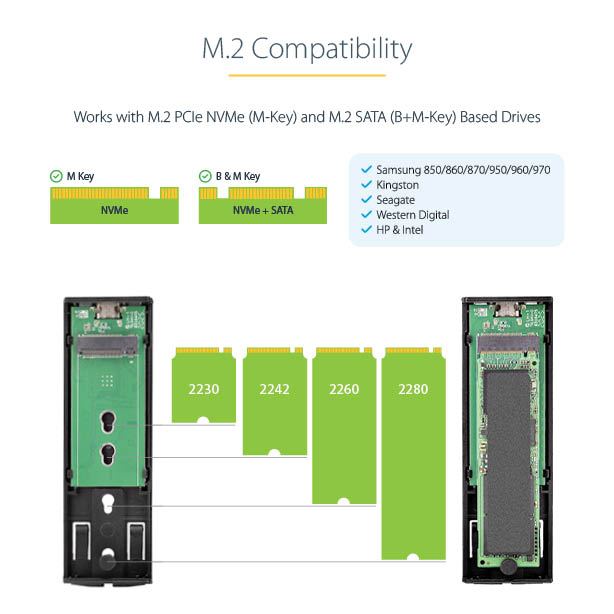

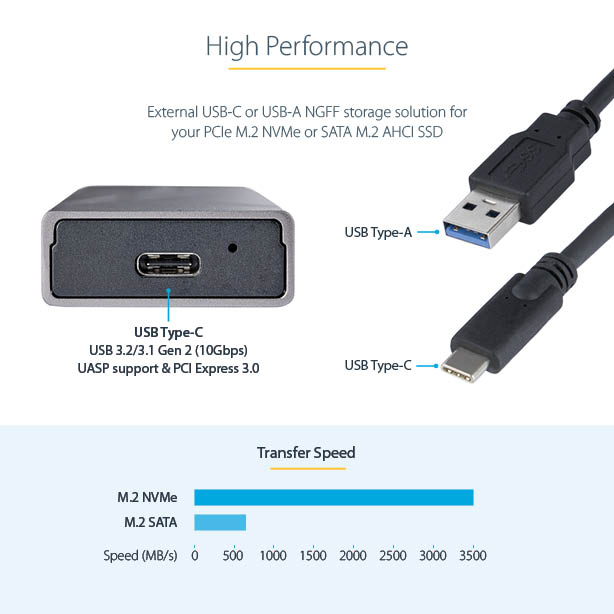

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 320 Color Space Gray Humidity Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 105.000 Product Width (mm) 35.000 Product Height (mm) 14.000 Product Weight (g) 52.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes General Specifications Fully compatible with M.2 SATA, AHCI and PCIe NVMe based drives Insertion Rating Maximum Data Transfer Rate 10 Gbps MTBF (hours) 112,000 Hours OS Compatibility OS Independent SATA Type and Rate NVMe (PCIe Gen 3) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 10Gbps Chipset ID Realtek - RTL9210B Compatible Drive Types - M.2 (PCIe, NVMe, M-Key, NGFF)
- M.2 (SATA, B+M-Key, NGFF)
Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

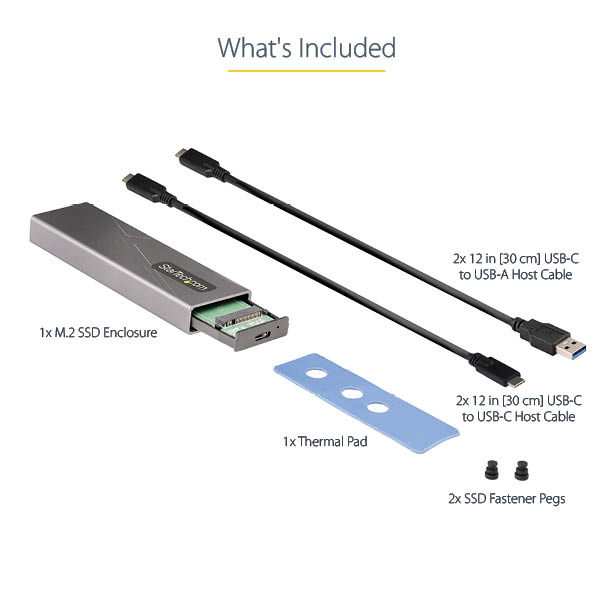

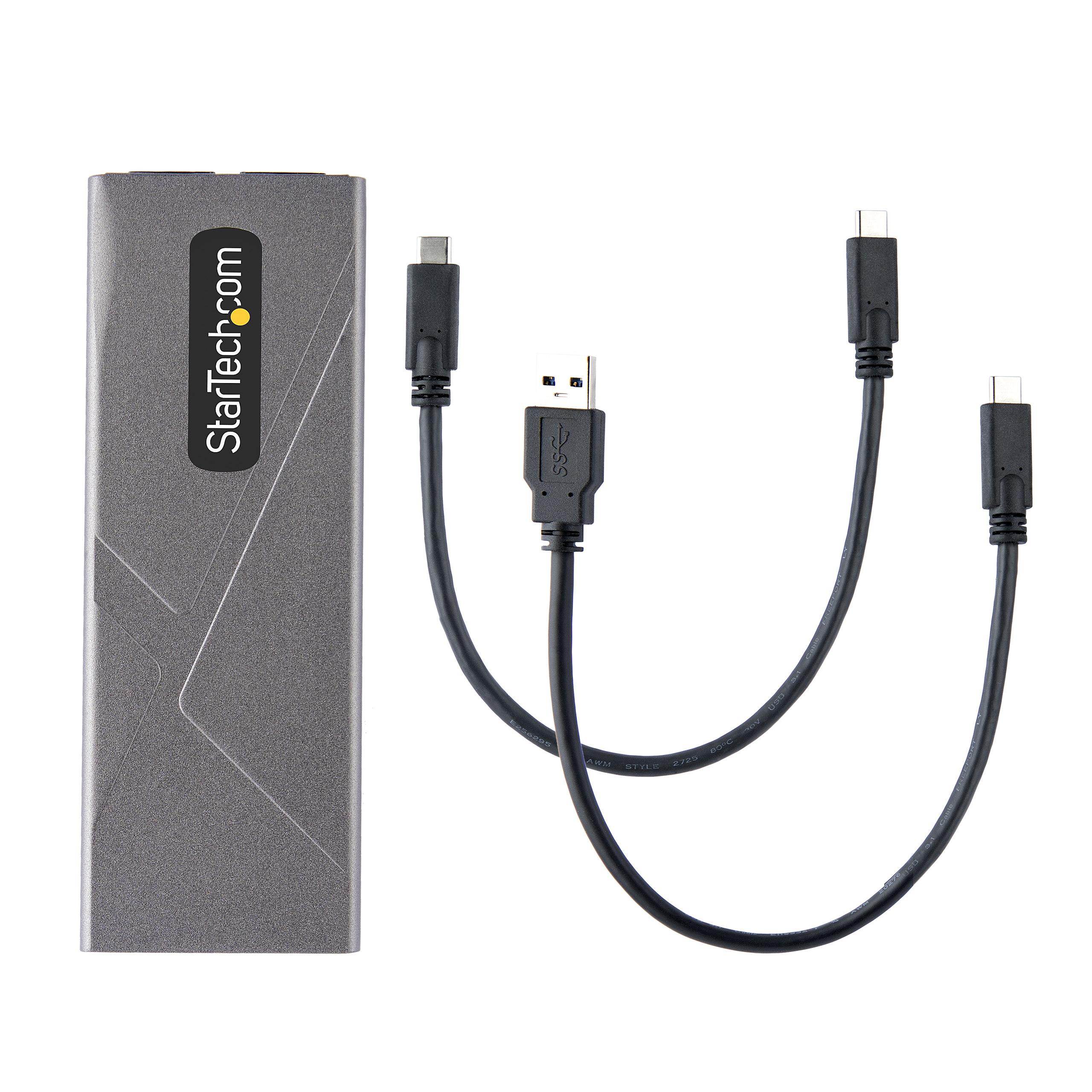

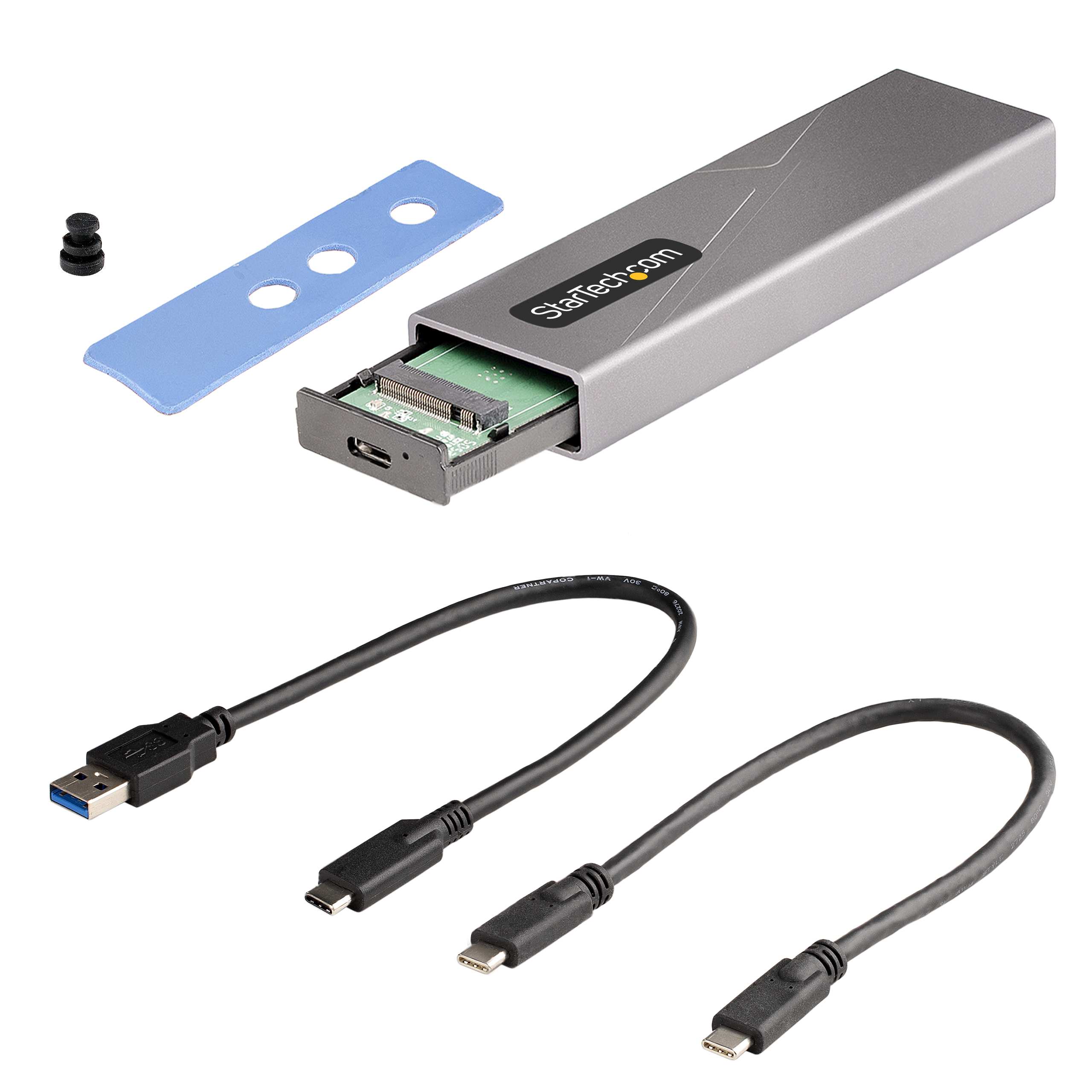

Carton Depth (mm) 369 Carton Height (mm) 333 Carton Quantity 40 Carton Weight Gross (g) 7724 Included in Package - 1 - M.2 SSD Enclosure

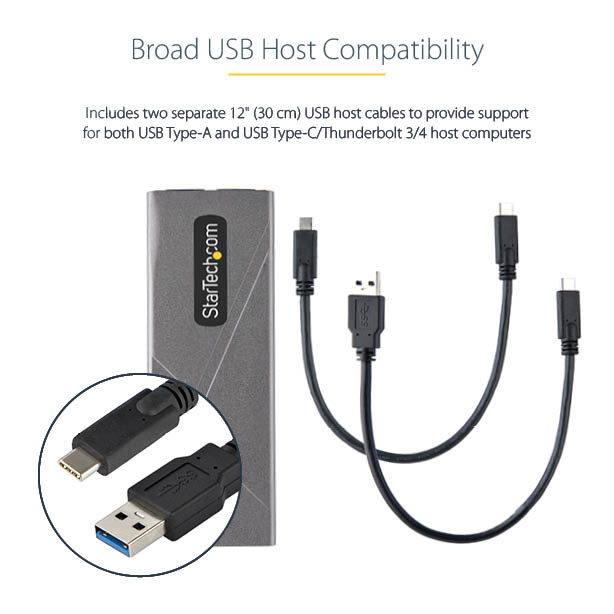

- 1 - 12 in [30 cm] USB-C to USB-C Host Cable
- 1 - Thermal Pad
- 2 - SSD Fastener Pegs
- 1 - Quick-Start Guide
- 1 - 12 in [30 cm] USB-C to USB-A Host Cable
Included In Package for Label - 2 - USB Cables
- 1 - M.2 SSD Enclosure
- 2 - SSD Fastener Pegs
- 1 - Thermal Pad
- 1 - Quick-Start Guide

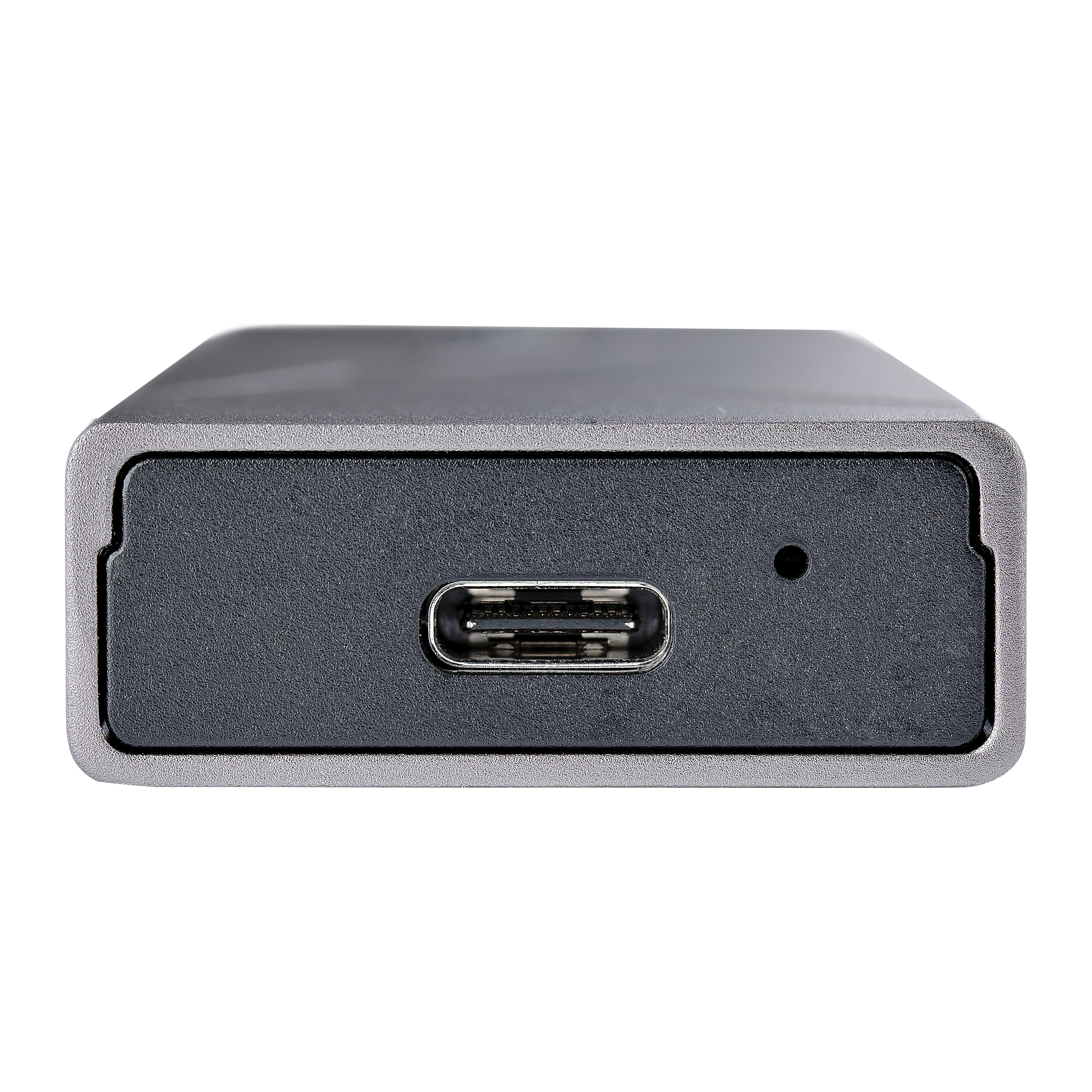

Package Depth (mm) 173 Package Height (mm) 33 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 168 Packaging Description M.2 SATA/NVMe SSD Enclosure - Tool-less - USB 3.2 (10Gbps) Packaging Description India M.2 SATA/NVMe SSD Enclosure - Tool-less - USB 10Gbps Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B+M-Key (PCIe / SATA, AHCI / NVMe) Connector 1 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2021-08-11 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-04-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IT,JP,MX,NL,SE,SG,UK,US Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-08-05 Target Production Release 2021-08-12 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle Mainstream
