M2E1BMU31C
USB 3 1 Gen 2 Type C to M 2 NVMe Enclosure

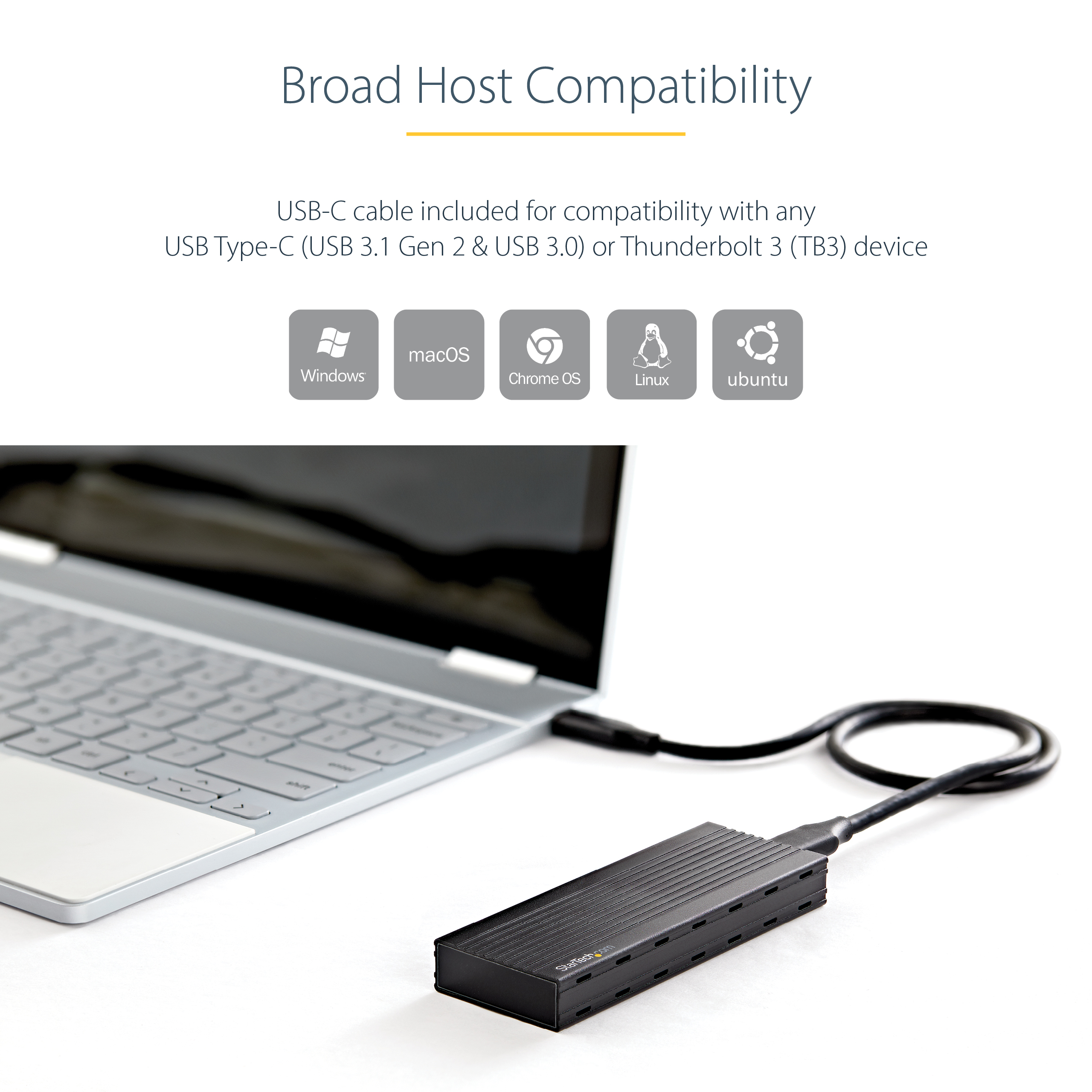

External NVMe Enclosure | Thunderbolt™ 3 Compatible | USB-C Cable Included
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name USB 3 1 Gen 2 Type C to M 2 NVMe Enclosure Product Number M2E1BMU31C UPC 065030875691 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 NVMe Enclosures - USB-C 10Gbps Family M.2 NVMe Enclosure - USB-C 10Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) M.2 NVMe Enclosure Product Title (Short) USB-C to M.2 NVMe PCIe SSD Enclosure Product Title (Medium) M.2 NVMe SSD Enclosure for PCIe SSDs - USB 3.1 Gen 2 (10 Gbps) USB-C - External Product Title (Standard) USB-C (10Gbps) to M.2 NVMe SSD Enclosure, Portable M.2 PCIe Aluminum Case, 1GB/s Read & Write, Mac & PC, TAA Product Title (Long) USB-C 10Gbps to M.2 NVMe SSD Enclosure - Portable External M.2 NGFF PCIe Aluminum Case - 1GB/s Read/Write - Supports 2230, 2242, 2260, 2280 - TB3 Compatible - Mac & PC - TAA Product Title (AMZ) USB-C 10Gbps to M.2 NVMe SSD Enclosure - Portable External M.2 NGFF PCIe Aluminum Case - 1GB/s Read/Write - Supports 2230, 2242, 2260, 2280 - TB3 Compatible - Mac & PC , TAA (M2E1BMU31C) Title Ingram (Part 1) M.2 NVMe SSD Enclosure for PCIe Title Ingram (Part 2) USB 3.1 Gen 2 (10 Gbps) USB-C Website Product Headline External NVMe Enclosure | Thunderbolt™ 3 Compatible | USB-C Cable Included Bullet 1 HIGH PERFORMANCE: M.2 NVMe STORAGE: USB-C storage for your PCIe M.2 SSD. This enclosure features USB 3.1 Gen 2 (10Gbps) with UASP support & PCIe 3.0 for read/write data transfer speeds up to 1GB/s. Bullet 2 DURABLE & PORTABLE: Aluminum housing protects the M.2 NGFF SSD and features ventilation holes for heat dissipation to ensure consistency at all performance levels. Ideal for data backup and recovery. Bullet 3 BROAD DRIVE COMPATIBILITY: Compatible with M-Key PCI Express drives sized 2230/2242/2260/2280 including Samsung 950/960/970, Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives. Bullet 4 BROAD HOST COMPATIBILITY: USB-C cable included for compatibility with any USB Type-C (USB 3.1 Gen 2 & USB 3.0) or Thunderbolt 3 (TB3) device. OS Support includes Windows, Mac, Chrome, Linux, & Ubuntu. Bullet 5 EASY INSTALLATION: The external M.2 NVME SSD enclosure case supports driverless plug-and-play installation and hassle free drive installation with the small screwdriver you'll need included. Bullets (Compact) USB-C external enclosure for PCIe M.2 NVMe SSD with USB 3.1 Gen 2 (10Gbps) and PCI Express 3.0 for speeds up to 1GB/s - Portable aluminum housing with ventilation - M-Key PCIe SSDs 2230/2242/2260/2280 Compatible - USB Type-C cable - Supports any OS Bullets (Consolidated) USB-C external enclosure for PCIe M.2 NVMe SSD with 10Gbps USB 3.1 Gen 2 (w/UASP support)and PCIe 3.0 for speeds up to 1GB/s - Ventilated aluminum housing for optimal heat dissipation protects your M.2 NGFF SSD - Compatible with M-Key PCI Express drives (2230/2242/2260/2280)incl. Samsung/Kingston/Seagate/Intel - Incl. cable is compatible with USB Type-C (USB 3.1 Gen 2 and USB 3.0)or Thunderbolt 3 devices. Windows/Mac/Chrome/Linux Support - Driverless plug-and-play - Screwdriver included Marketing Copy Marketing Copy (No HTML) Applications - Create a portable, high-performance storage solution
- Access your NVMe drive externally with ultra-fast transfer speeds
- Superior speeds are ideal for data-migration related tasks
- Ideal for professionals who require high-speed data access
- Perfect for data recovery, backup or repair
Website Search Keyword - USB C to NVMe adapter
- USB-C NVMe adapter
- USB C NVMe adapter
- USB C to NVMe enclosure
- hard drive enclosure
- ssd external enclosure
- nvme enclosure
- m.2 ssd enclosure
- usb c hard drive enclosure
- m 2 pcie enclosure
- m.2 ssd external enclosure
- external hard disk case
- m 2 nvme ssd enclosure
- usb 3.1 gen 2 enclosure
- usb 3.1 hard drive enclosure
- usb 3.1 external hard drive enclosure
- solid state drive enclosure
- usb c m.2 enclosure
- U457-1M2-NVMEG2
- U357-1M2-NVMEG2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB storage devices. Accessory Products - USB31AC50CM
- USB31AC1M
- USB31CC50CM
- USB31CC1M
Related Products - U2M2E125
- PEX4SFF8643
- PEX4SFF8639
- PEXM2SAT32N1
- M2E4SFF8643
- PEX4M2E1
- SM2NGFFMBU33
- SM21BMU31C3
- SM22BU31C3R

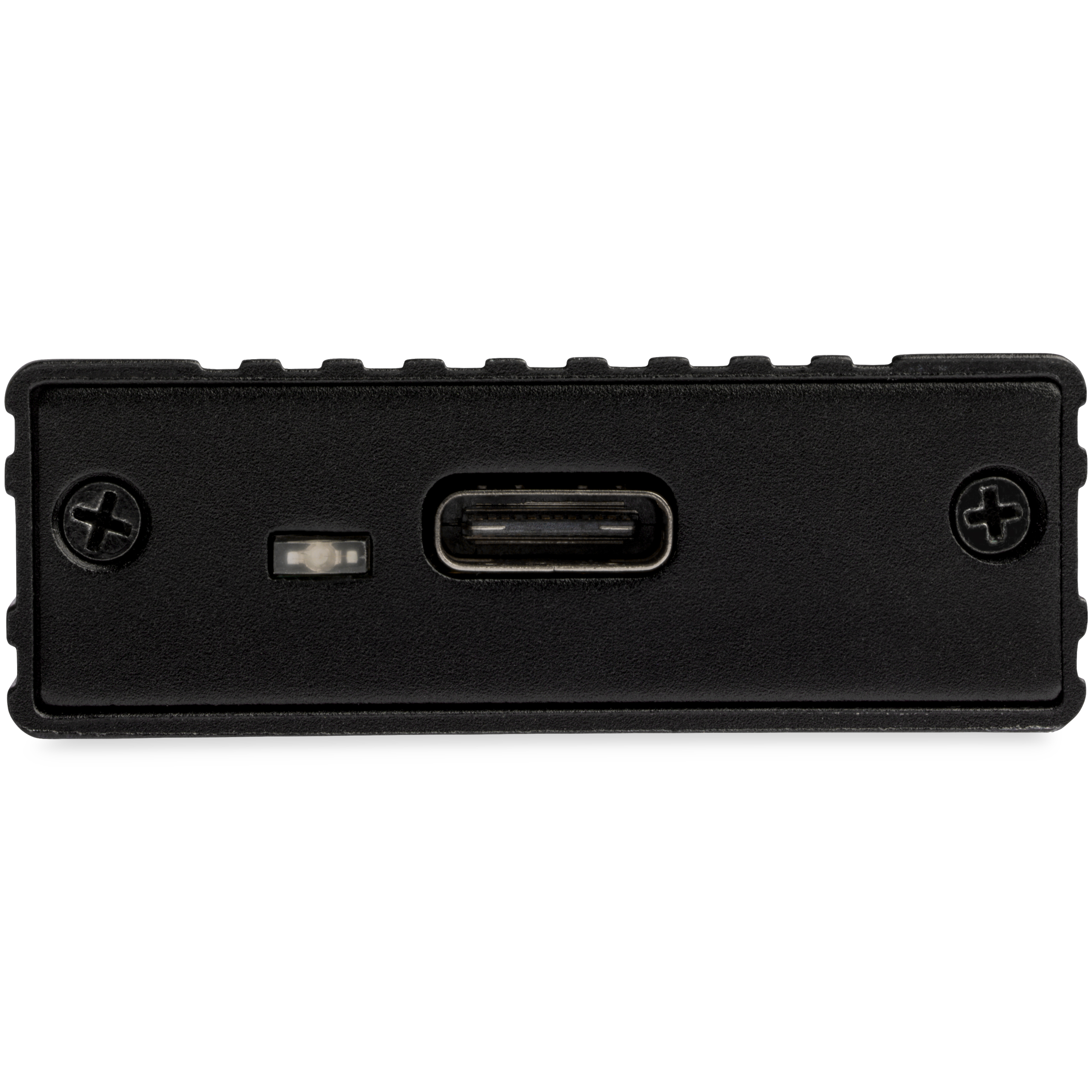

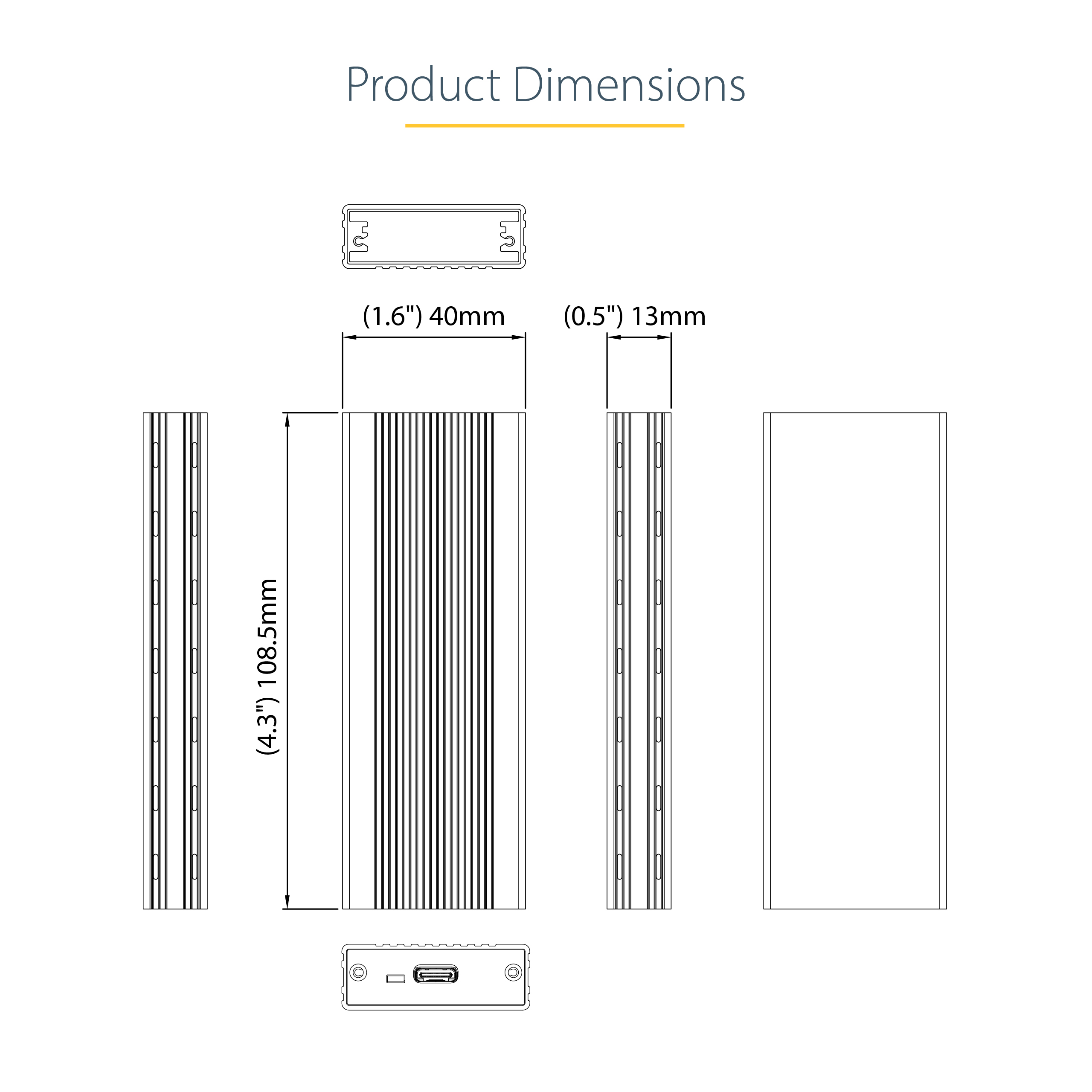

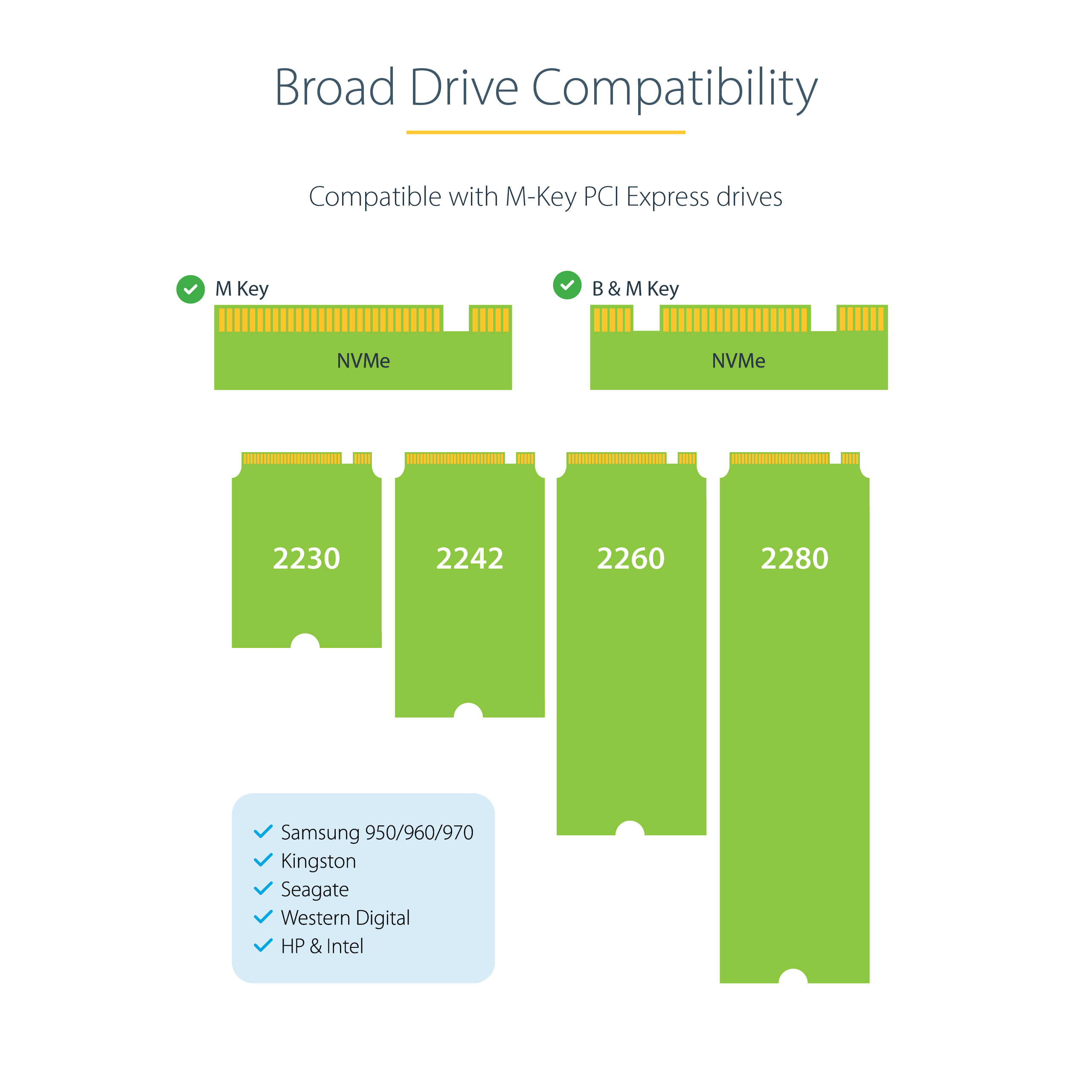

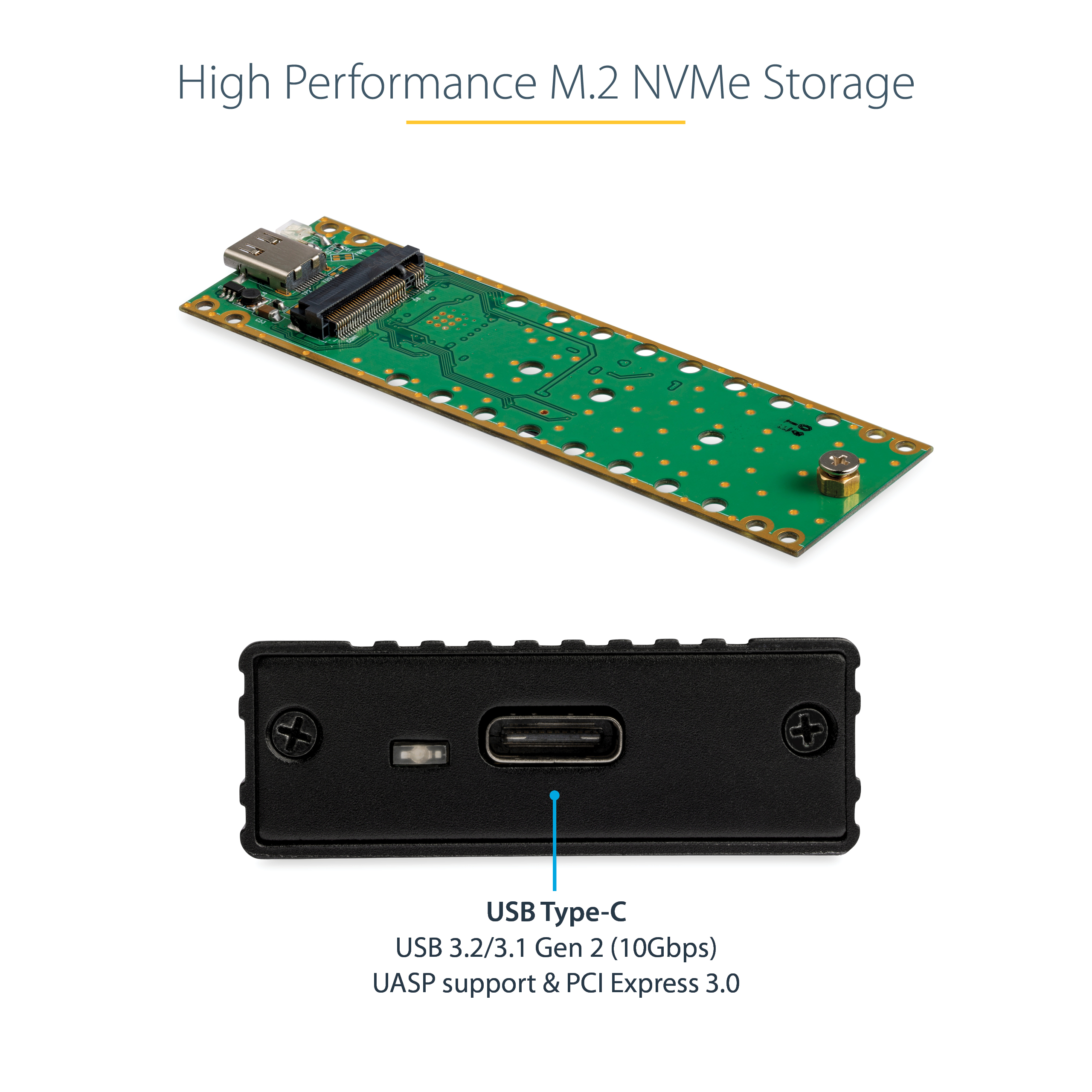

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 108.500 Product Width (mm) 40.000 Product Height (mm) 13.000 Product Weight (g) 65.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant Yes 4Kn Support Yes General Specifications Not compatible with M.2 SATA or AHCI based SSDs Maximum Data Transfer Rate 10 Gbps MTBF (hours) 233,398 Hours OS Compatibility OS Independent SATA Type and Rate NVMe (PCIe Gen 3) S.M.A.R.T. Support Yes TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM2362 Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

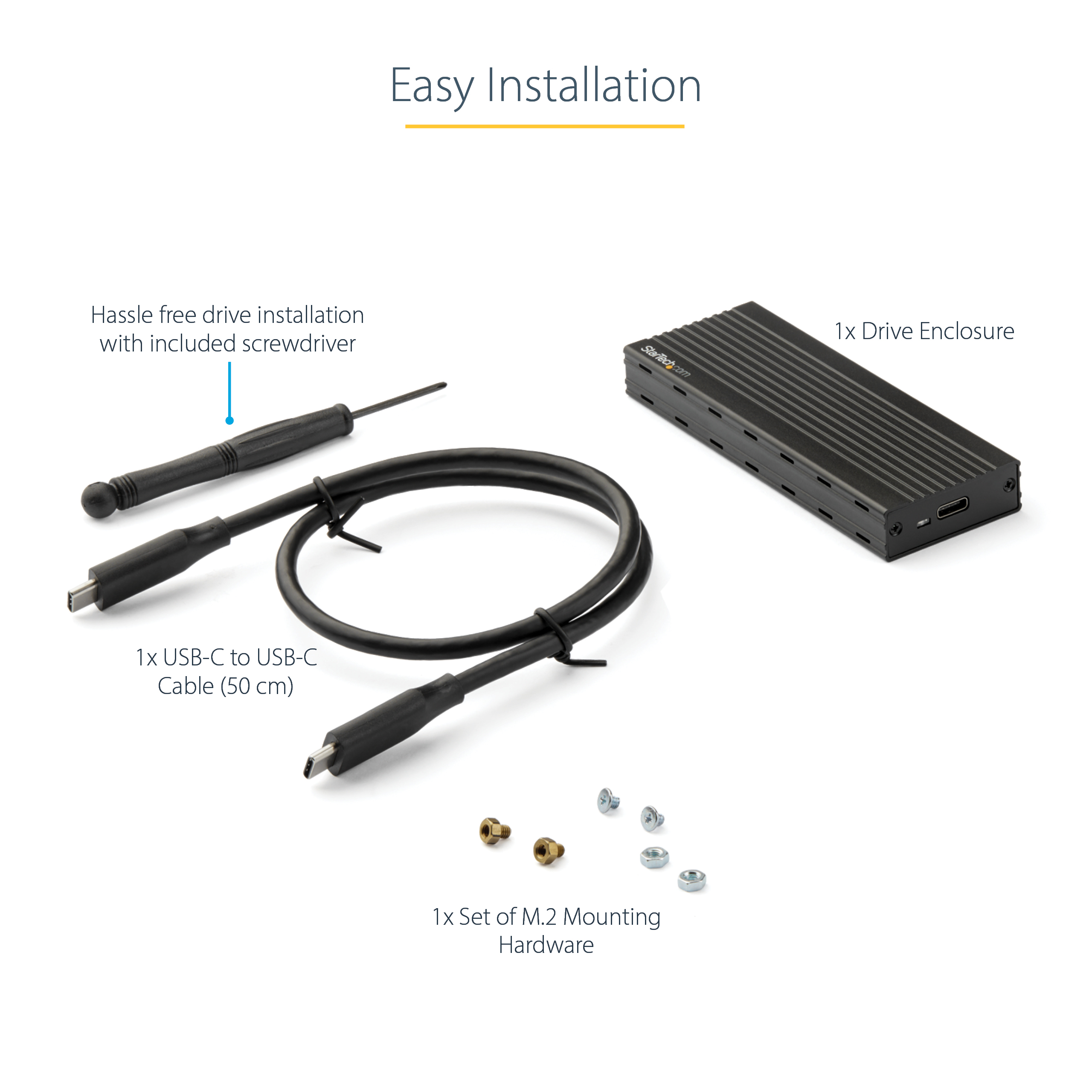

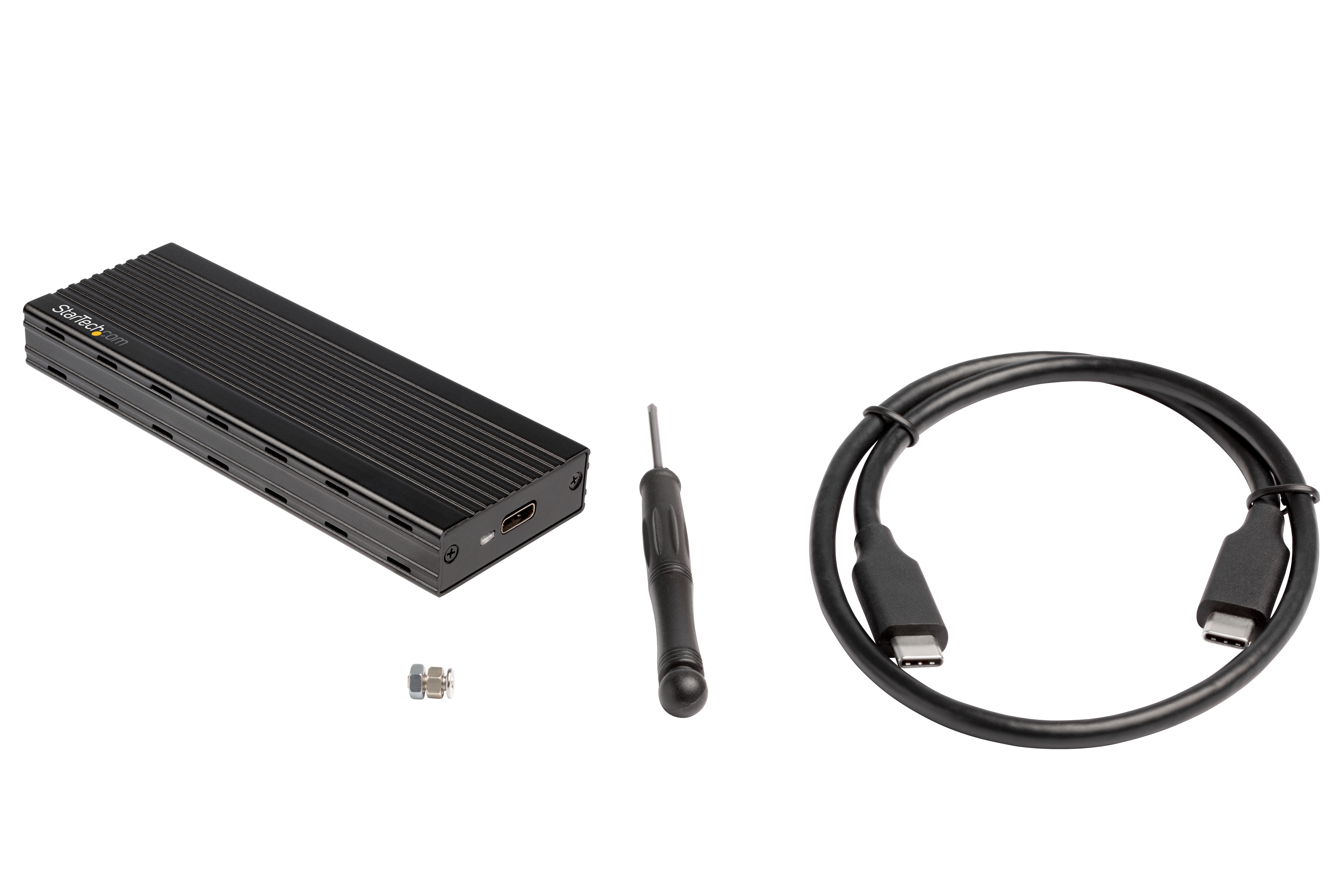

Carton Depth (mm) 390 Carton Height (mm) 268 Carton Quantity 60 Carton Weight Gross (g) 10782 Included in Package - 1 - Drive Enclosure
- 1 - Set of M.2 Mounting Hardware (Installed)
- 1 - Screwdriver
- 1 - Quick-Start Guide
- 1 - USB-C to USB-C Cable (50 cm)
Package Depth (mm) 108 Package Height (mm) 38 Package Width (mm) 156 Package Quantity 1 Package Weight (g) 160 Packaging Description M.2 NVMe Enclosure - USB 3.1 (10Gbps) - USB-C Packaging Description India M.2 NVMe Enclosure - USB 10Gbps - USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 M.2 M-Key (PCIe, AHCI / NVMe) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2019-02-22 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-04-05 Target Production Release 2019-04-19 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
