M2E1BRU31C

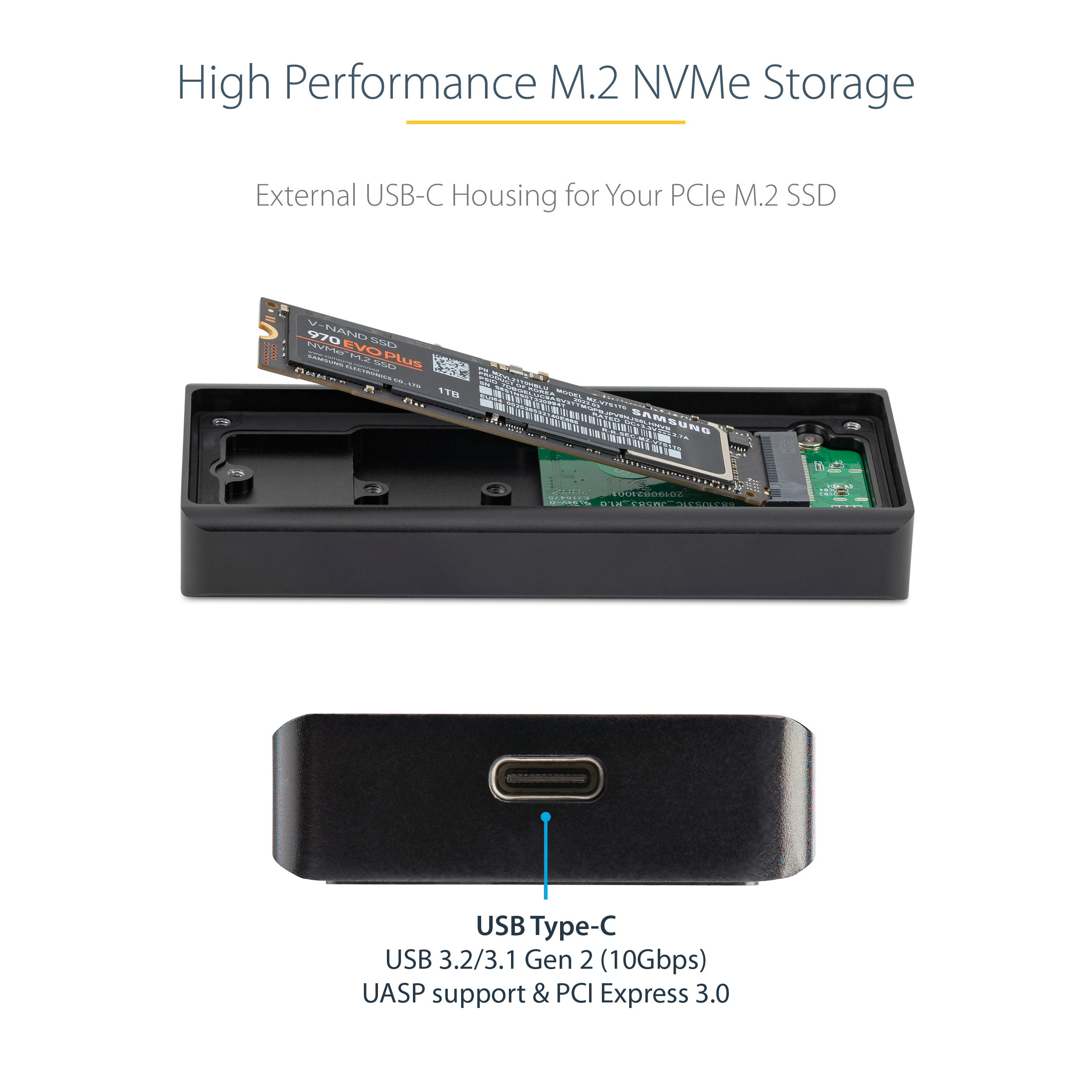

USB 3 1 Gen 2 Type C IP67 Rugged NVMe Enclosure

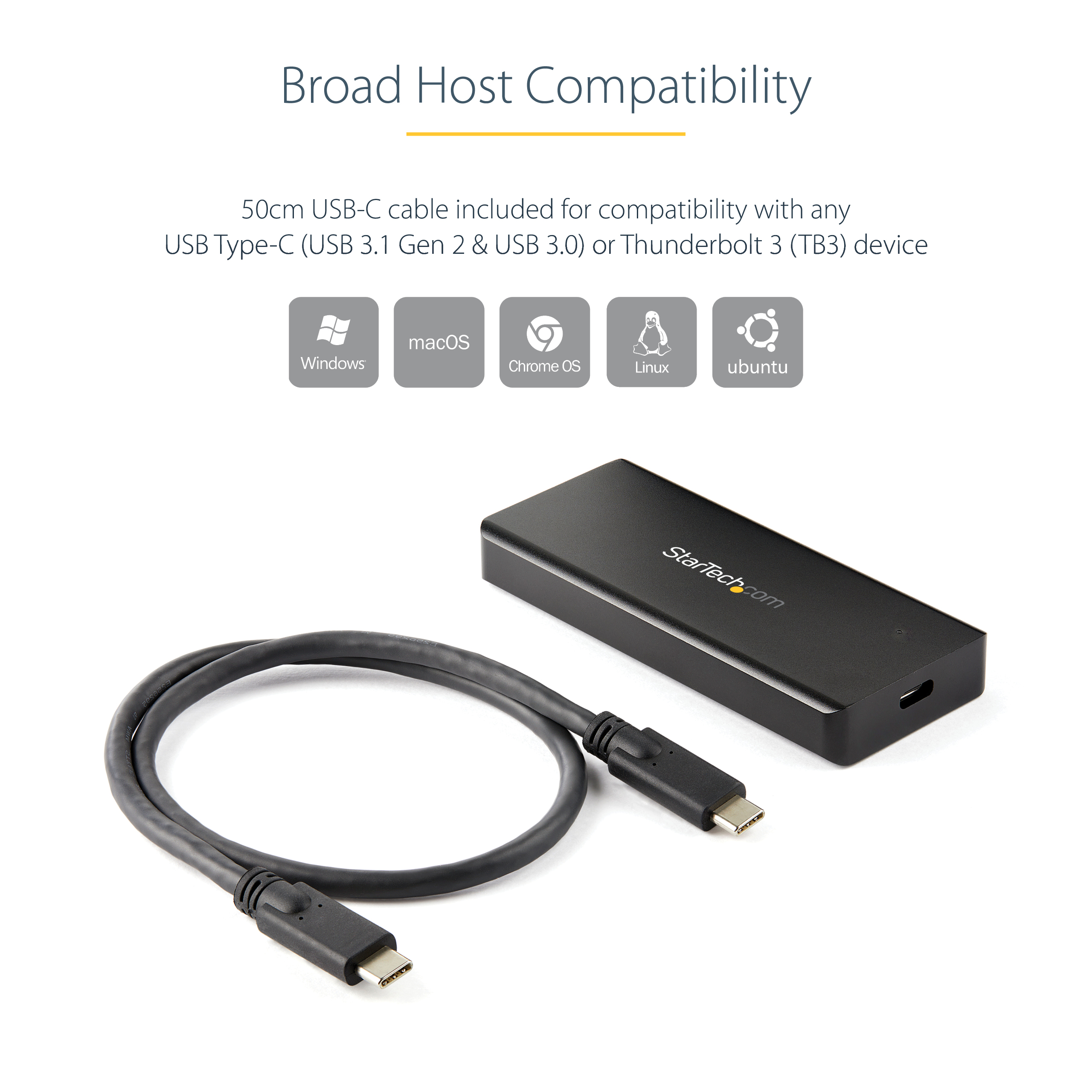

Rugged SSD Enclosure | Thunderbolt 3 Compatible | USB-C Cable Included
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name USB 3 1 Gen 2 Type C IP67 Rugged NVMe Enclosure Product Number M2E1BRU31C UPC 065030889476 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 NVMe Enclosures - USB-C 10Gbps Family M.2 NVMe Enclosure - USB-C 10Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) M.2 NVMe SSD Case Product Title (Short) Rugged USB-C M.2 NVMe PCIe SSD Enclosure Product Title (Medium) M.2 NVMe PCIe SSD Enclosure - IP67 water/dust resistance - USB 3.1 Gen 2 10Gbps Product Title (Standard) USB-C 10Gbps M.2 NVMe PCIe SSD Enclosure, 1GB/s Rugged Aluminum M.2 PCI Express M-Key Case IP67 Rated, Mac/PC, TAA Product Title (Long) USB-C 10Gbps M.2 NVMe PCIe SSD Enclosure - Rugged Aluminum External M.2 PCIe M-Key Case IP67 Rated - 1GB/s Read/Write - Supports 2230/2242/2260/2280 - TB3 Compatible - Mac/PC - TAA Product Title (AMZ) USB-C 10Gbps M.2 NVMe PCIe SSD Enclosure - Rugged Aluminum External M.2 PCIe M-Key Case IP67 Rated - 1GB/s Read/Write - Supports 2230/2242/2260/2280 - TB3 Compatible - Mac/PC , TAA Title Ingram (Part 1) M.2 NVMe PCIe SSD Enclosure Title Ingram (Part 2) - IP67 - USB Type C - 10Gbps Website Product Headline Rugged SSD Enclosure | Thunderbolt 3 Compatible | USB-C Cable Included Bullet 1 HIGH PERFORMANCE M.2 NVMe STORAGE: External USB-C housing for your PCIe M.2 SSD (Solid State Drive); features USB 3.1 Gen 2 (10Gbps), UASP & PCIe 3.0 for read/write data transfer speeds up to 1GB/s Bullet 2 PORTABLE & RUGGED: Solid aluminum housing w/ internal thermal pad for heat dissipation transfers heat away from drive; IP67 rated 100% dustproof/water resistant & MIL-STD-810G drop test certified Bullet 3 BROAD DRIVE COMPATIBILITY: Compatible with M.2 NGFF M-Key PCI Express drives sized 2230/2242/2260/2280 including Samsung 950/960/970, Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives Bullet 4 BROAD HOST COMPATIBILITY: 50cm USB-C cable incl. for compatibility w/ any USB Type-C (USB 3.1 Gen 2 & USB 3.0) or Thunderbolt 3 (TB3) device; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up) Bullet 5 EASY INSTALL: USB 3.2 Gen 2x1 M.2 NVMe PCIe SSD Enclosure adapter w/ rubber feet offers firm grip, protects surfaces from scratches & raises the case for air flow; mounting hardware & screwdriver incl Bullets (Compact) USB-C enclosure for M.2 NVMe SSD; USB 3.2 Gen 2 (10Gbps); UASP - Portable w/ aluminum housing - IP67 rated dustproof/water resistant & MIL-STD-810G certified - USB Type-C/Thunderbolt 3/4 compatible - Windows/Mac/Chrome/Linux/iOS (iPhone 15 and up) Bullets (Consolidated) - External USB-C enclosure for PCIe M.2 NVMe SSD w/ 10Gbps USB 3.1 Gen 2 UASP support and PCIe 3.0 for speeds up to 1GB/s - Portable rugged solid aluminum housing w/ internal thermal pad for heat dissipation - IP67 rated dustproof/water resistant and MIL-STD-810G drop test certified - M.2 NVMe PCIe SSD case compatible w/ M.2 NGFF M-Key PCI Express drives (2230/2242/2260/2280) - Incl. cable for USB Type-C/Thunderbolt 3 devices; Windows/Mac/Chrome/Linux/iOS (iPhone 15 [Plus/Pro/Max] and up) Marketing Copy Marketing Copy (No HTML) Applications - Access your NVMe drive externally with ultra-fast transfer speeds
- Superior speeds are ideal for data-migration related tasks
- Ideal for professionals who work in environments with a lot of dust, like: construction sites, factories, or manufacturing facilities.
- Create a portable, high-performance storage solution perfect for data recovery, backup or repair
Website Search Keyword - m.2 nvme enclosure
- m.2 ssd enclosure
- rugged ssd enclosure
- usb c m.2 nvme enclosure
- m 2 nvme ssd external enclosure
- pci express ssd enclosure
- portable hard drive enclosure
- usb 3.1 gen 2 nvme enclosure
- usb c to nvme ssd adapter
- usb type c external hard drive enclosure
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Windows 7 and earlier Windows versions do not support TRIM and UAS with USB storage devices. Accessory Products - USB31AC1M
- USB31AC50CM
- USB31CC1M
- USB31CC50CM
Related Products - M2E1BMU31C
- SM21BMU31C3
- SM22BU31C3R
- SM21BMU31CI3
- SM2NGFFMBU33
- U2M2E125
- PEX8M2E2
- PEX4M2E1

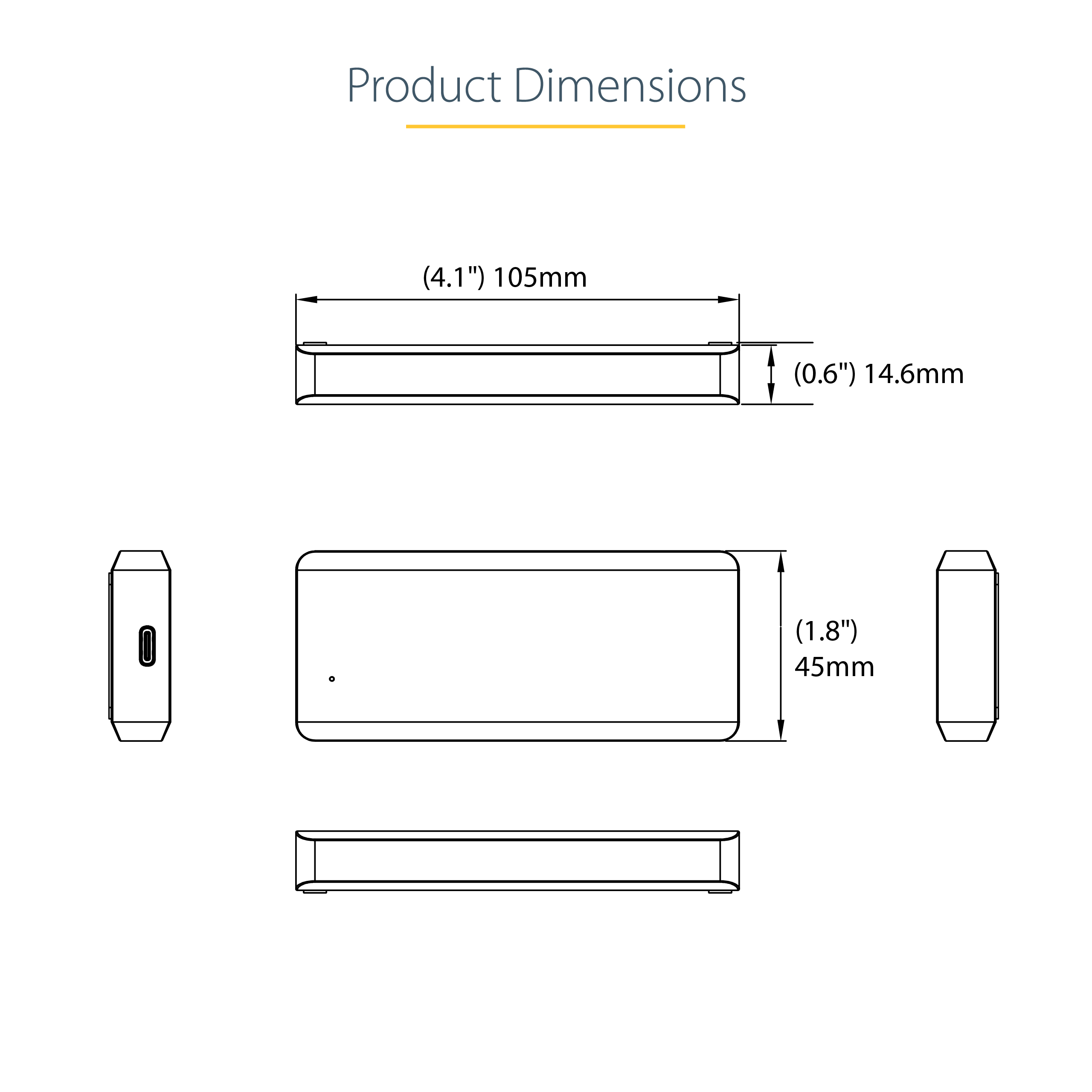

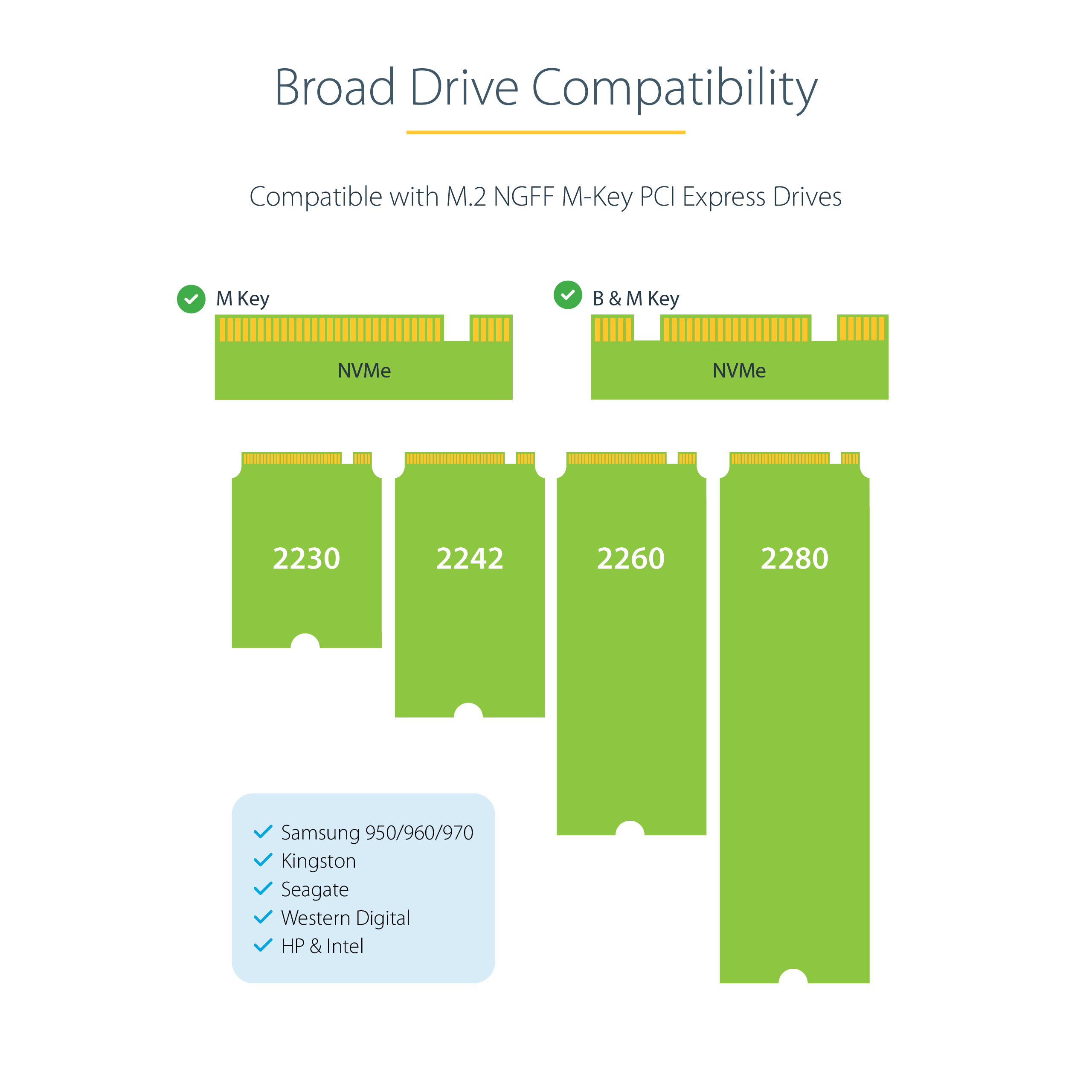

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source Bus Powered Cable Length (mm) 510 Color Black Humidity Humidity: 20% ~ 80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 45.000 Product Width (mm) 105.000 Product Height (mm) 14.000 Product Weight (g) 140 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant Yes 4Kn Support Yes General Specifications Not compatible with M.2 SATA or AHCI based SSDs Maximum Data Transfer Rate 10 Gbps MTBF (hours) 50,000 Hours OS Compatibility OS Independent SATA Type and Rate NVMe (PCIe Gen 3) S.M.A.R.T. Support No TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 10Gbps Chipset ID JMicron - JMS583 Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Interface/Bridge USB 3.2 Gen 2 10Gbps LED Indicators 1 - Power / Blinking: Read & Write Activity Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

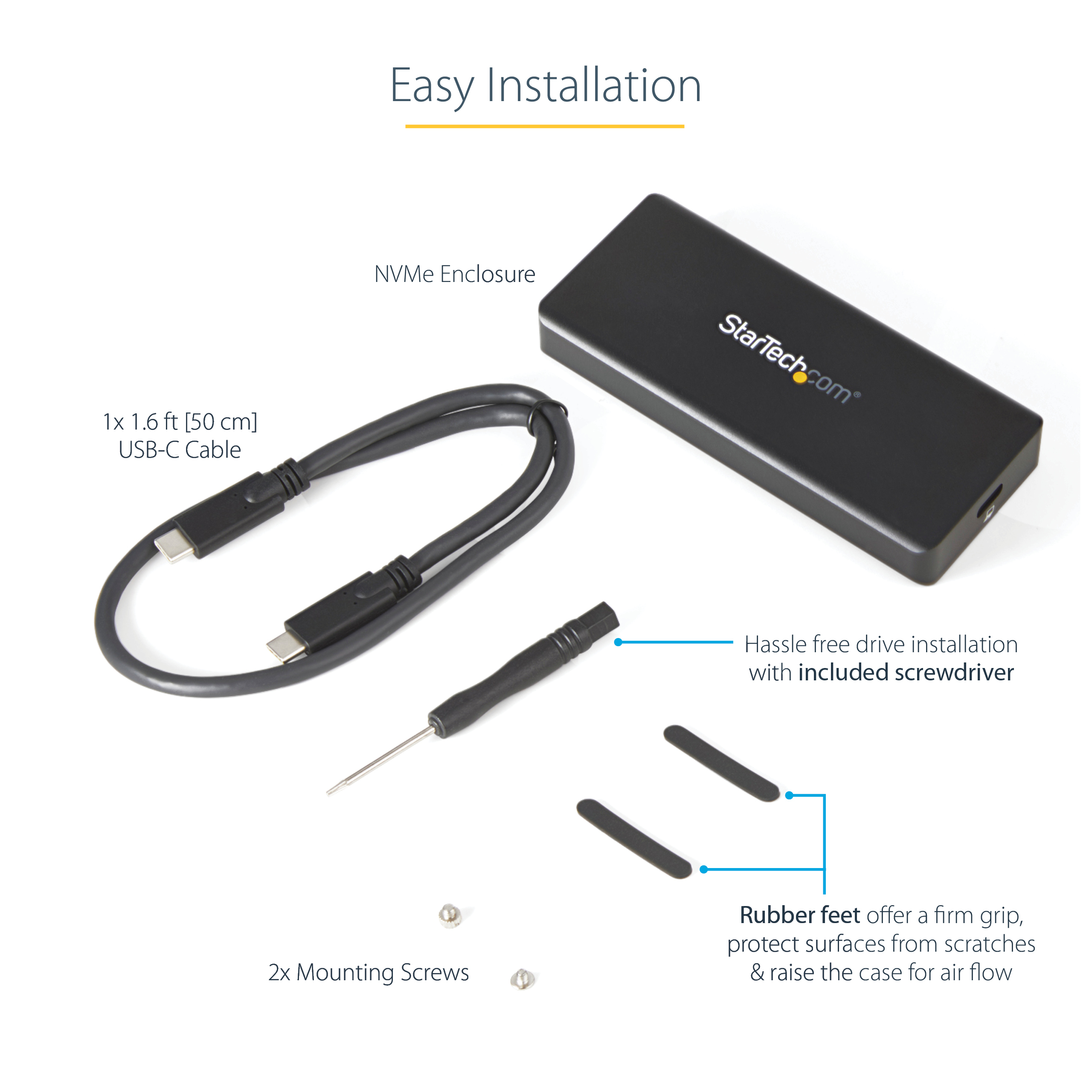

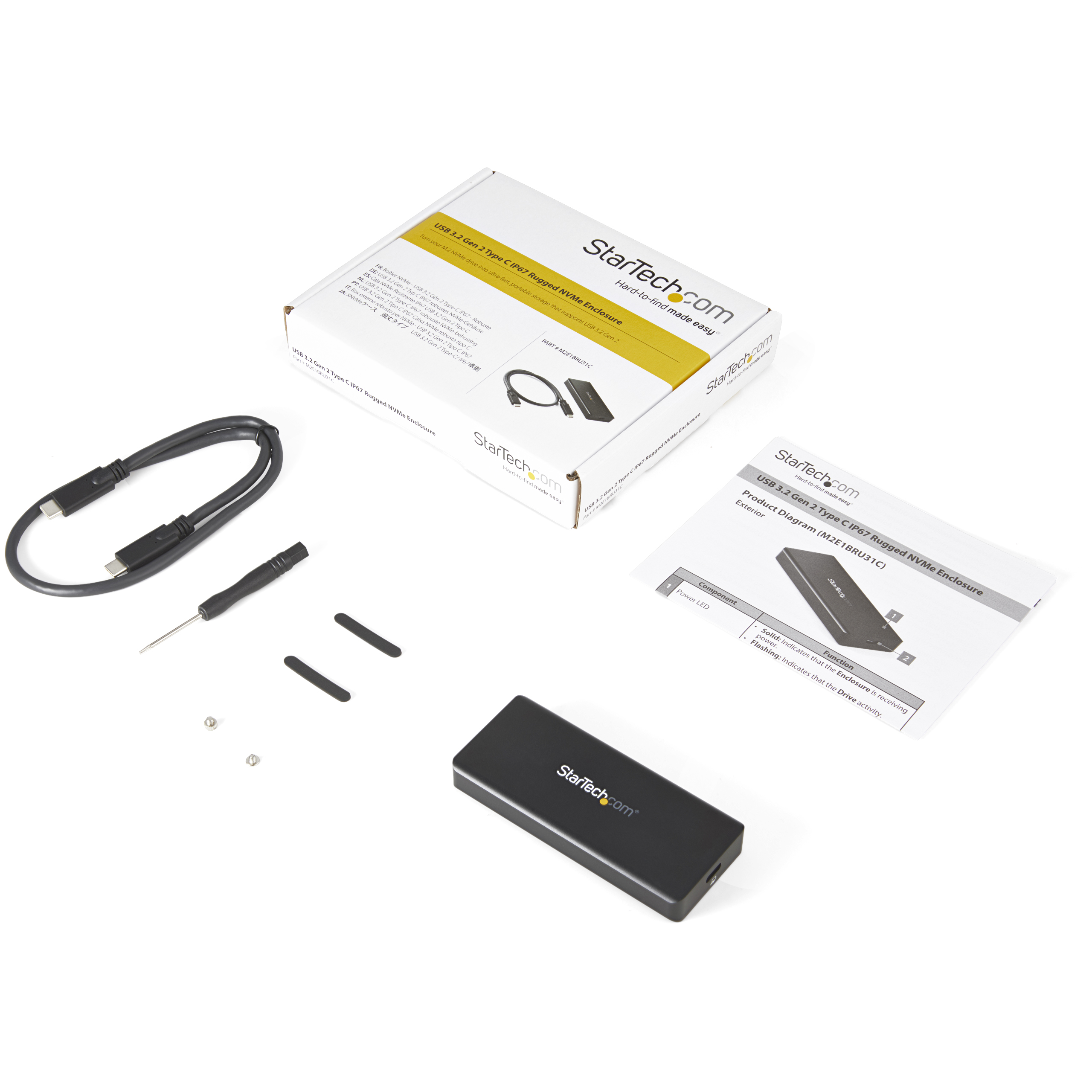

Carton Depth (mm) 424 Carton Height (mm) 401 Carton Quantity 40 Carton Weight Gross (g) 11944 Included in Package - 1 - NVMe Enclosure
- 1 - 1.7 ft [52 cm] USB-C Cable
- 1 - Additional Drive Mounting Stand-off
- 1 - Torx Screw Driver
- 1 - Rubber Feet
- 1 - Quick Start Guide
Number of Sub-Cartons 4 Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 250 Packaging Description USB 3.2 Gen 2 Type C IP67 Rugged NVMe Enclosure Packaging Description India USB 3.2 Gen 2 Type C IP67 Rugged NVMe Enclosure Sub-Carton Depth (mm) 337 Sub-Carton Height (mm) 189 Sub-Carton Width (mm) 198 Sub-Carton Quantity 10 Sub-Carton Weight (g) 2980 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-12-26 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2020-01-02 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-12-31 Target Production Release 2019-12-26 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
