M2E4BTB3

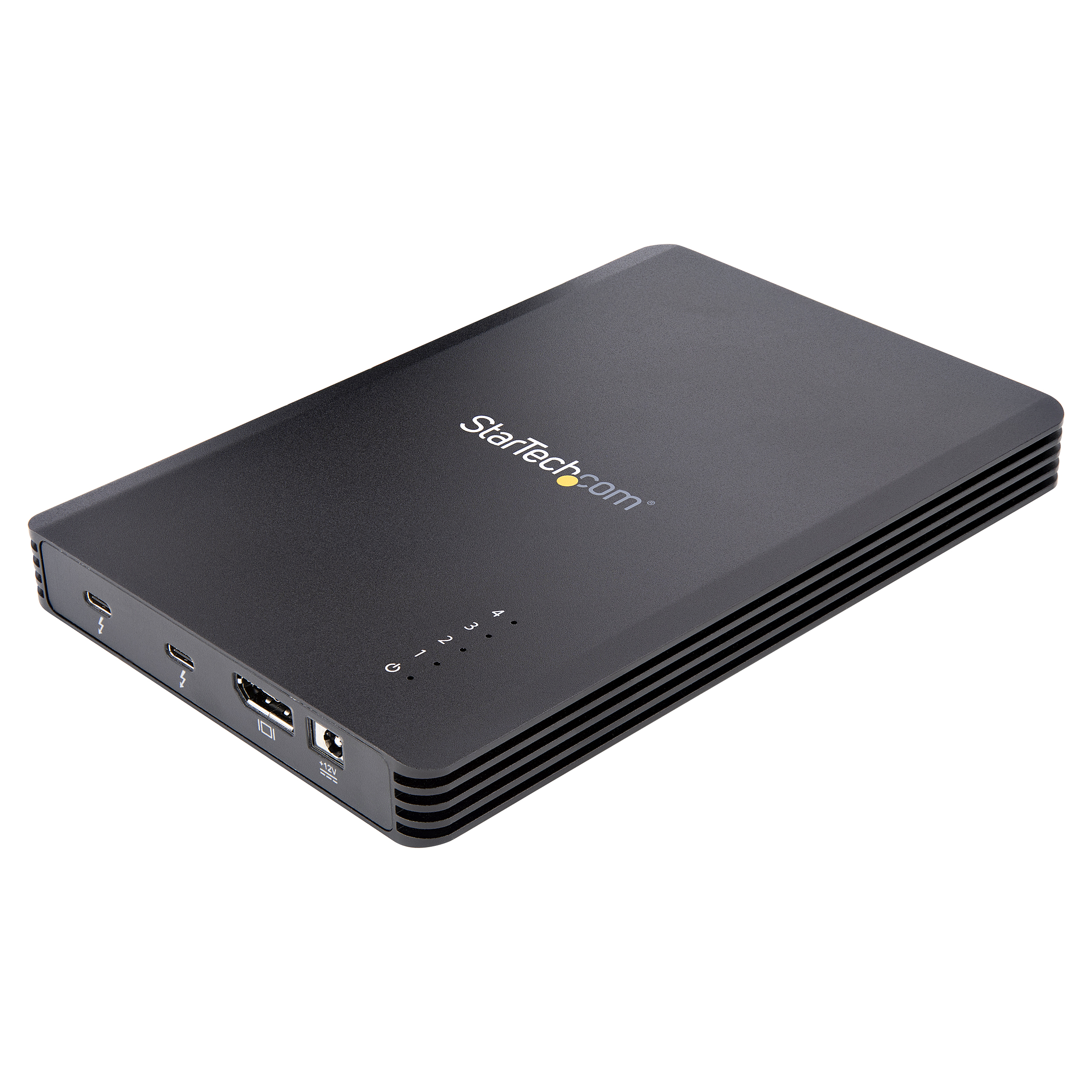

4 Bay NVMe TB3 SSD Enclosure
4-Drive PCIe M.2 Enclosure | Thunderbolt™ 3 | 72W EPS Power Supply & 2.3 ft (70 cm) Thunderbolt 3 Cable Included
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 4 Bay NVMe TB3 SSD Enclosure Product Number M2E4BTB3 UPC 065030886406 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 NVMe Enclosures - USB-C 10Gbps Family M.2 NVMe Enclosure - TB3 40Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 4x M.2 TB3 Enclosure Product Title (Short) 4 Bay Thunderbolt 3 NVMe Enclosure Product Title (Medium) 4 Bay Thunderbolt 3 NVMe Enclosure, M.2 NVMe, 1x DP and 2x Thunderbolt 3 Ports Product Title (Standard) 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video and 2x TB3 Downstream Ports, 40Gbps, TAA Product Title (Long) 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video/ 2x TB3 Downstream Ports, 40Gbps, 72W Power Supply, External Hard Drive Enclosure - TAA Product Title (AMZ) 4 Bay Thunderbolt 3™ NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video/ 2x TB3 Downstream Ports, 40Gbps, 72W Power Supply, External Hard Drive Enclosure , TAA (M2E4BTB3) Title Ingram (Part 1) 4 Bay Thunderbolt 3 NVMe Title Ingram (Part 2) Enclosure, M.2 NVMe, 40Gbps Website Product Headline 4-Drive PCIe M.2 Enclosure | Thunderbolt™ 3 | 72W EPS Power Supply & 2.3 ft (70 cm) Thunderbolt 3 Cable Included Bullet 1 HIGH PERFORMANCE M.2 STORAGE VIA THUNDERBOLT 3 : Turn up to 4 PCIe 80mm M.2 SSDs (M-Key) into an external TB3 storage solution; Data transfer speeds up to 40Gbps; Downstream TB3 port; DisplayPort video output; Vented metal enclosure w/thermal pads & fan Bullet 2 MAXIMIZE DRIVE SPEED: Connect up to four M.2 PCIe NVMe and/or AHCI drives with an 8Gbps PCIe lane dedicated to each SSD; Supports software RAID with storage management systems like Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux) Bullet 3 FLEXIBLE PORT OPTIONS: DisplayPort output to connect to a display with resolutions up to 4K 60Hz; Downstream TB3 port to daisy chain additional TB3 devices or a compatible TB3 display (up to 5K 60Hz); Connected devices share bandwidth with connected SSDs Bullet 4 THUNDERBOLT 3 CERTIFIED: Works w/TB3 & TB4 host devices like MacBook Pro 16/13/Air (Dual displays on Apple M1/M2/M3 Pro/Max Processors; Only single display on M1/M2/M3), Lenovo ThinkPad X1 Carbon/T Series, Dell XPS/Latitude/Precision & HP EliteBook Bullet 5 POWER ADAPTER & THUNDERBOLT 3 CABLE INCLUDED: Self powered with an included 72W EPS power supply that powers the enclosure, the connected drives and provides 15W to TB3 port; Includes 2.3 ft (70cm) TB3 certified passive cable; NOT COMPATIBLE WITH SATA SSD Bullets (Compact) 4 x 80mm PCIe M.2 M-Key NVMe and/or AHCI SSD to Thunderbolt 3 enclosure - Data transfer speeds up to 40Gbps - Downstream TB3 port - DisplayPort output w\resolutions up to 4K 60Hz - Thunderbolt 3 Certified - 72W EPS power supply - 3.3ft TB3 cable Bullets (Consolidated) Turn up to 4 80mm PCIe M.2 M-Key NVMe and/or AHCI SSDs into an external Thunderbolt 3 storage solution - Data transfer speeds up to 40Gbps w/8Gbps PCIe lane dedicated to each drive - Downstream TB3 port | DisplayPort output w/resolutions up to 4K 60Hz - Thunderbolt 3 Certified works w/TB3/TB4 MacBook Pro 16/13/Air/Lenovo ThinkPad X1 Carbon/T Series/ Dell XPS/Latitude/Precision/HP EliteBook - Includes: 72W EPS power supply | 3.3 ft Thunderbolt 3 cable - Vented metal w/ thermal pads and fan Marketing Copy Marketing Copy (No HTML) Applications - Build a software RAID array with a storage management system like Storage Spaces (Microsoft), RAID Assistant (macOS), or mdraid/mdadm (Linux)
- Ideal for creative professionals working with large files such as high-resolution graphics, video, and CAD files
Website Search Keyword - 4 bay enclosure
- 4 bay hard drive enclosure
- 4 bay raid
- 4 bay ssd enclosure
- 4 bay thunderbolt 3 m.2 nvme enclosure
- direct attached storage
- external hard disk case
- external nvme enclosure
- external thunderbolt 3 enclosure
- hard drive enclosure
- m.2 enclosure
- m.2 nvme enclosure
- m.2 ssd enclosure
- nvme enclosure
- nvme external
- nvme m.2 enclosure
- nvme ssd enclosure
- nvme thunderbolt 3 enclosure
- nvme to thunderbolt
- portable hard drive enclosure
- raid enclosure
- raid storage
- solid state drive enclosure
- ssd external enclosure
- ssd nvme m.2
- thunderbolt 3 drive enclosure
- thunderbolt 3 enclosure
- thunderbolt 3 external hard drive enclosure
- thunderbolt 3 hard drive enclosure
- thunderbolt 3 nvme enclosure
- thunderbolt 3 ssd enclosure
- thunderbolt 3 to displayport
- thunderbolt enclosure
- thunderbolt nvme enclosure
- thunderbolt raid drive
- thunderbolt ssd enclosure
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - - This M.2 enclosure does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro. When the dock is connected to your host laptop, a charging icon may appear on the screen. This is only sufficient to charge your laptop in sleep state, and charging will require an extended time period.
- - 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work at 5K with this M.2 enclosure
- - A 4K-capable display is required to achieve 4K resolution (4K is also known as 4K x 2K).
- - Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, and Asus PB287Q (these models must be set to 4K at 30Hz).
- - When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter may be required, depending on the input of your display.
- - Secondary Thunderbolt 3 port can also be used to connect USB 3.2 Gen 2 (10 Gbps) USB-Type C devices, such as USB 3.2 Gen 2 Hubs. Backwards compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0.
- - Not Compatible with SATA Based M.2 Drives.
Accessory Products - TBLT3MM2MW
- TBLT3MM2MA
- TBLT34MM80CM
- TBLT34MM50CM
- DP14VMM1M
- DISPLPORT6L
- DP14MM2M
- DP14VMM2M
- DP14MM3M
- DP14VMM3M
Related Products - M2E1BMU31C
- M2E1BRU31C
- SM2E1BMU31C
- TB31PCIEX16
- SM22BU31C3R
Input Current 2 A Input Voltage 110V-240V AC Output Current 6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 20% ~ 80% RH Material Metal Operating Temperature 5°C to 45°C (41°F to 113°F) Product Length (mm) 195.000 Product Width (mm) 130.000 Product Height (mm) 20.000 Product Weight (g) 622.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant Yes 4Kn Support Yes Maximum Data Transfer Rate 40 Gbps MTBF (hours) 50,000 Hours Noise Level 34.5dB @ 50cm OS Compatibility OS Independent SATA Type and Rate NVMe (PCIe x1 Gen 3; 8Gbps) S.M.A.R.T. Support Yes TRIM Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Bus Type Thunderbolt 3 Chipset ID - Intel - JHL6540
- TI - TPS65983B

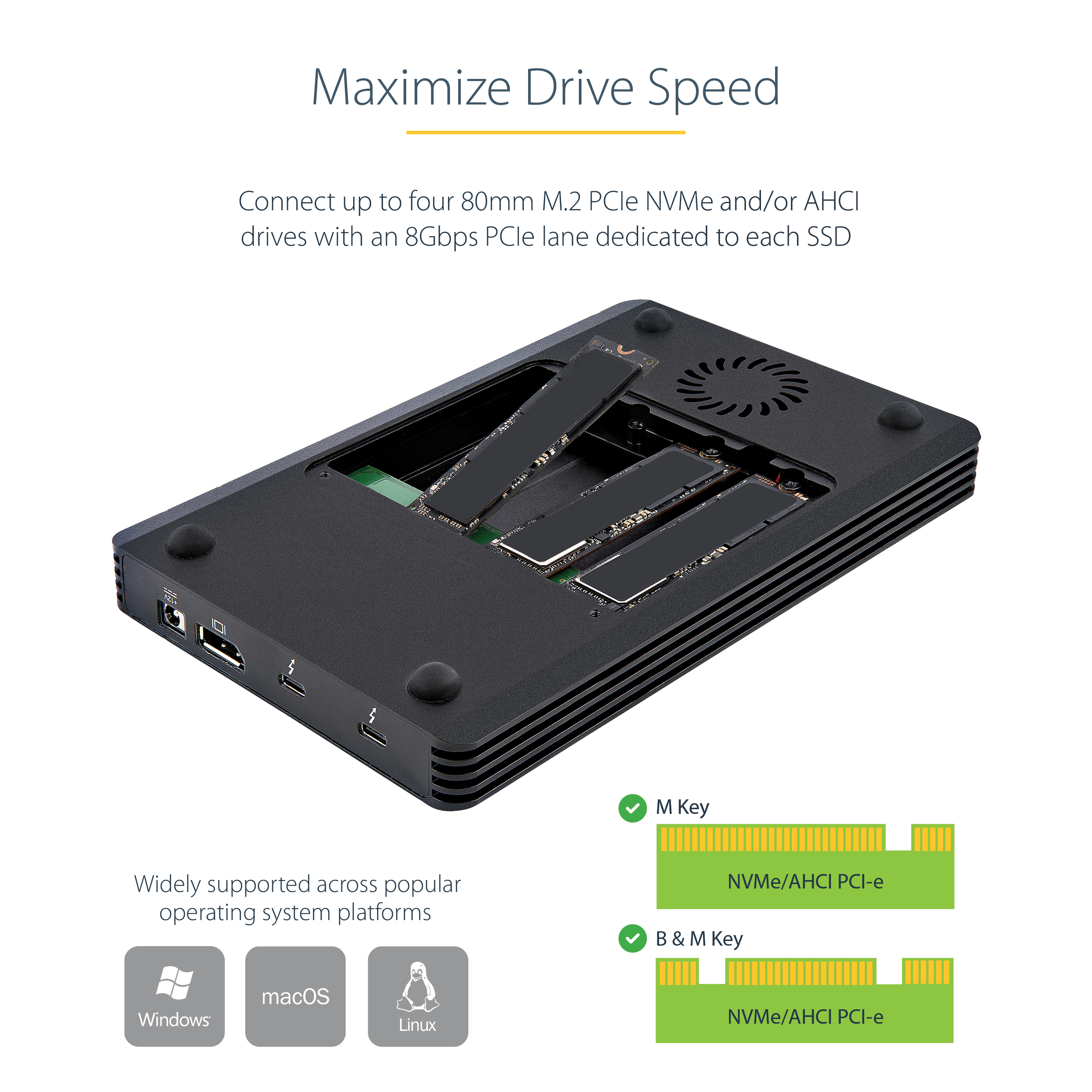

Compatible Drive Types - M.2 (PCIe, NVMe, M-Key, NGFF)
- M.2 (PCIe, AHCI, M-Key, NGFF)

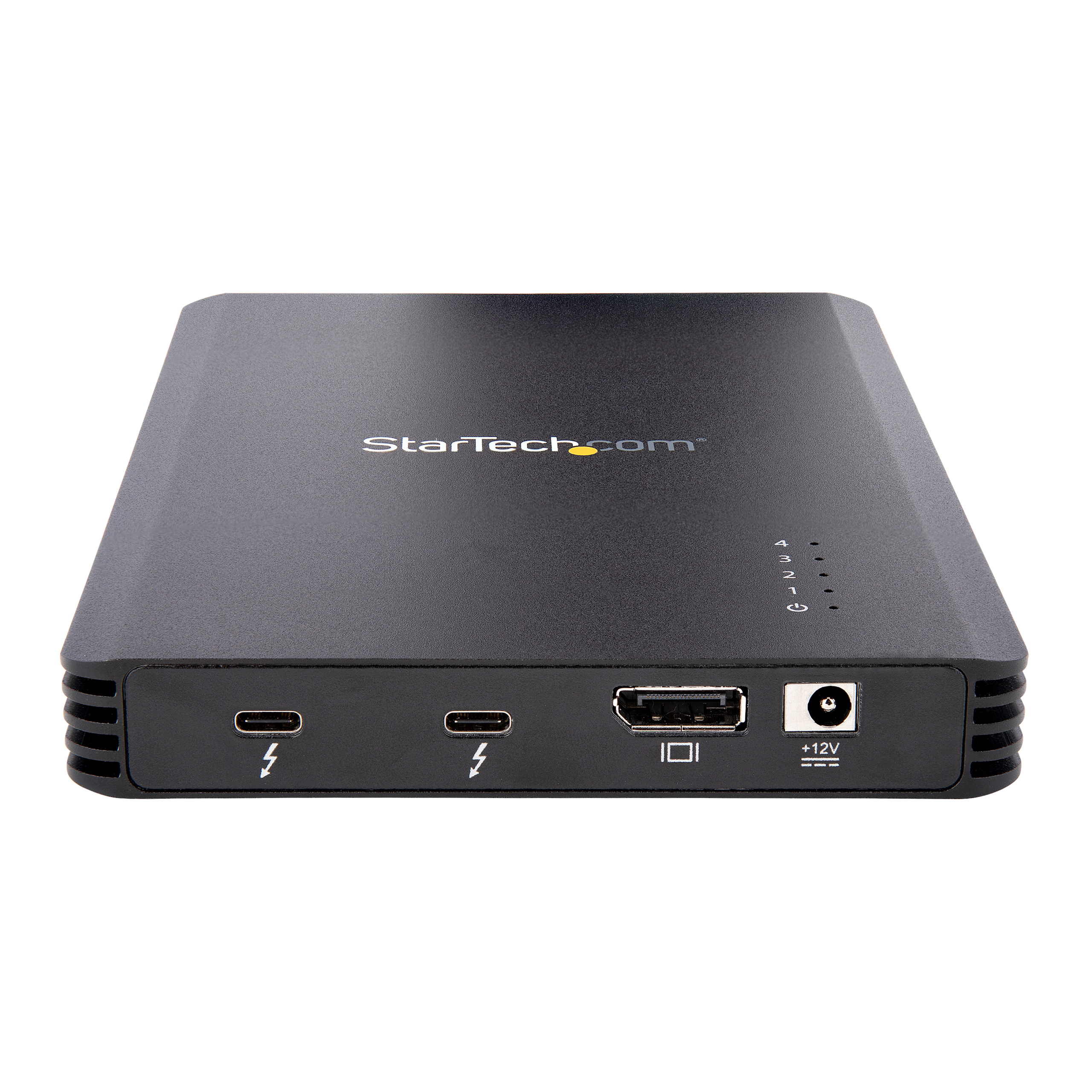

Fan Bearing Type Sleeve Bearing Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge Thunderbolt 3 LED Indicators - 1 - Power (Illuminates when powered on)
- 4 - Drive Activity (Flashes when drive activity is detected)

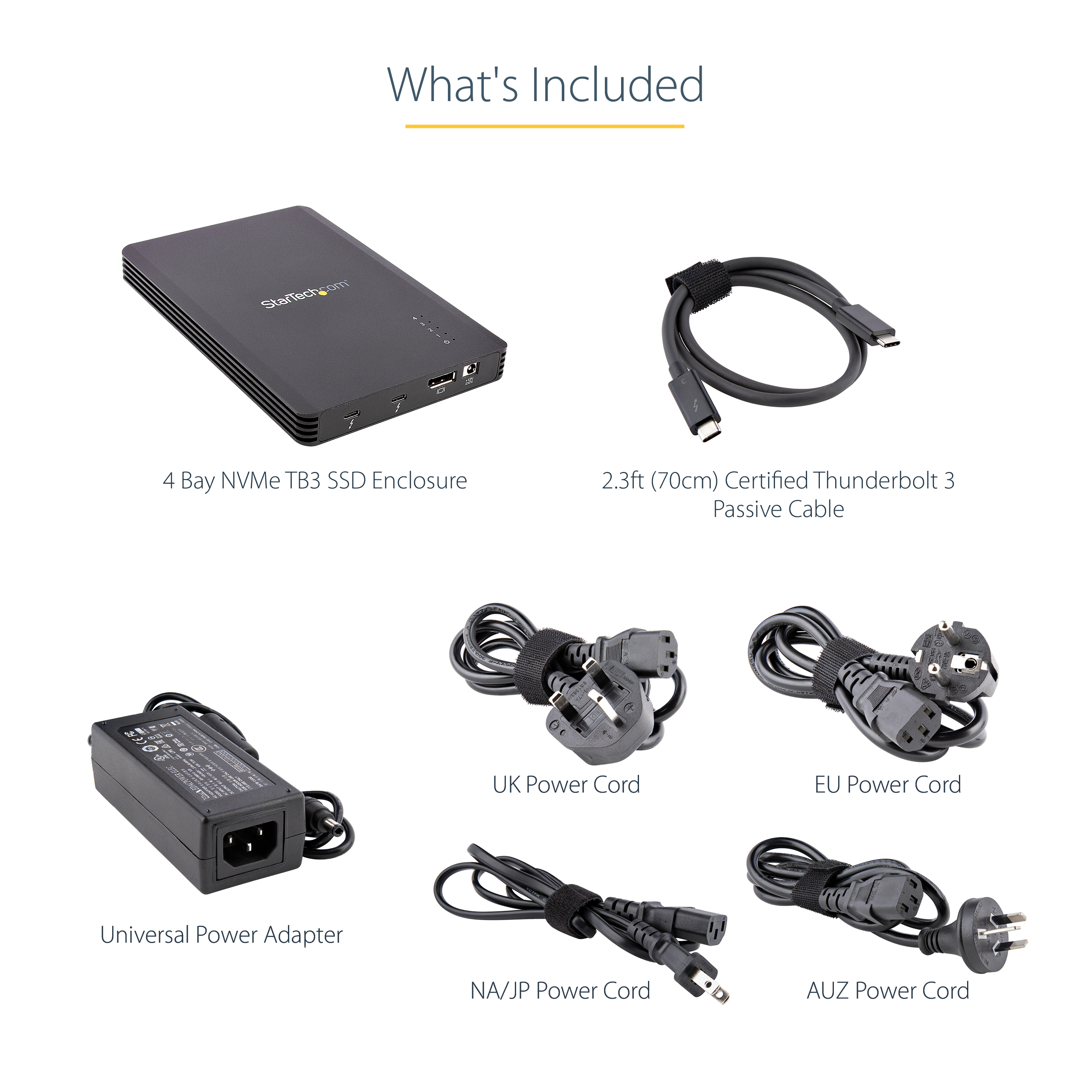

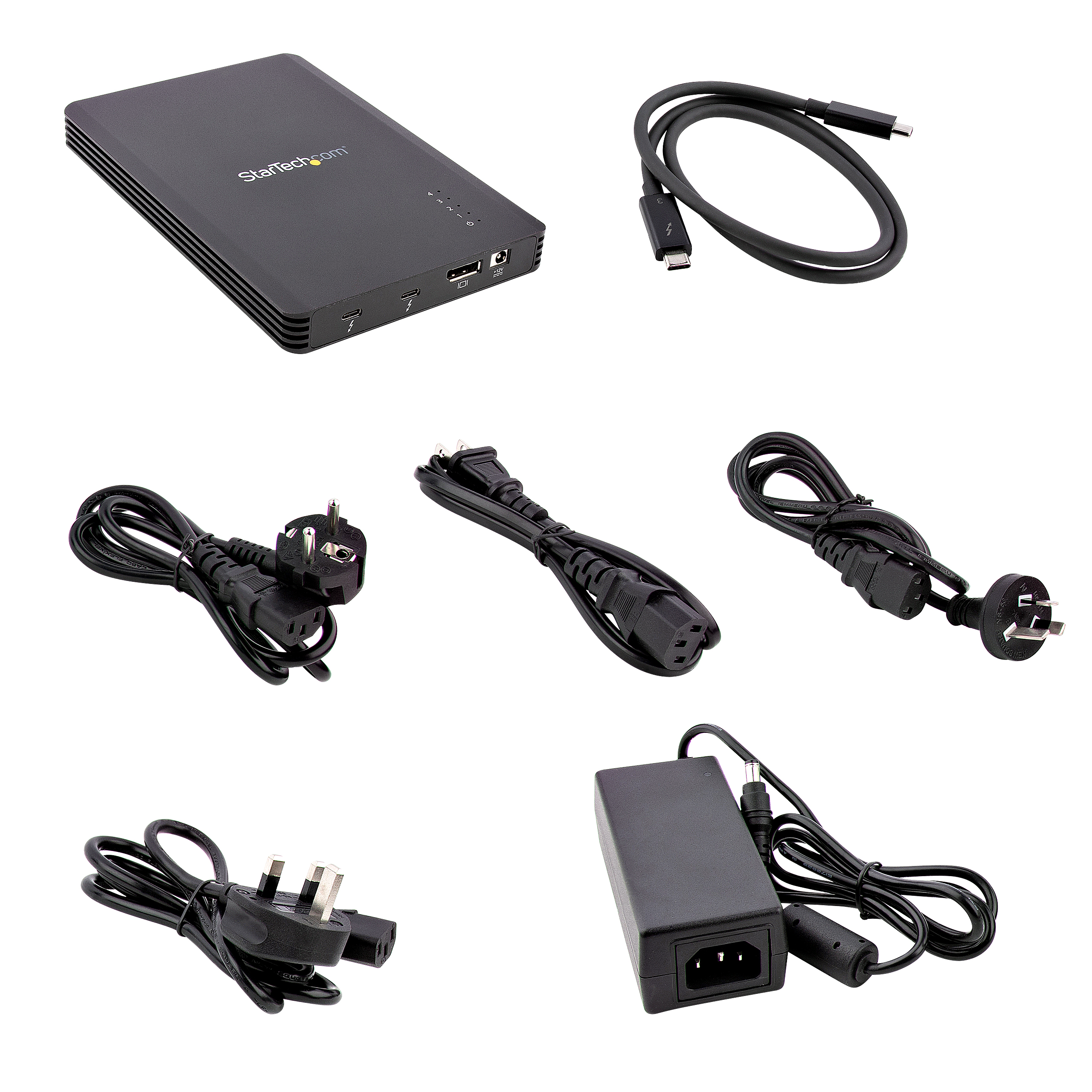

Number of Drives 4 Supported Drive Height(s) 2280 Carton Depth (mm) 250 Carton Height (mm) 350 Carton Quantity 6 Carton Weight Gross (g) 11900 Included in Package - 1 - 2.3 ft (70 cm) Certified Thunderbolt 3 Passive Cable
- 1 - Manual
- 1 - 4 Bay NVMe TB3 SSD Enclosure
- 1 - Universal Power Adapter (NA/JP, UK, EU, ANZ)
Package Depth (mm) 183 Package Height (mm) 128 Package Width (mm) 279 Package Quantity 1 Package Weight (g) 1768 Packaging Description 4-Bay M.2 NVMe Enclosure - Thunderbolt 3 - PCIe Packaging Description India 4-Bay M.2 NVMe Enclosure - Thunderbolt 3 - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 M.2 M-Key (PCIe, AHCI / NVMe) Connector 3 (Quantity) 4 Host Connector 1 USB-C (Thunderbolt 40Gbps) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-03-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-04-14 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology Thunderbolt 3 Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-05-31 Target Production Release 2021-06-07 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
