M2E4SFF8643

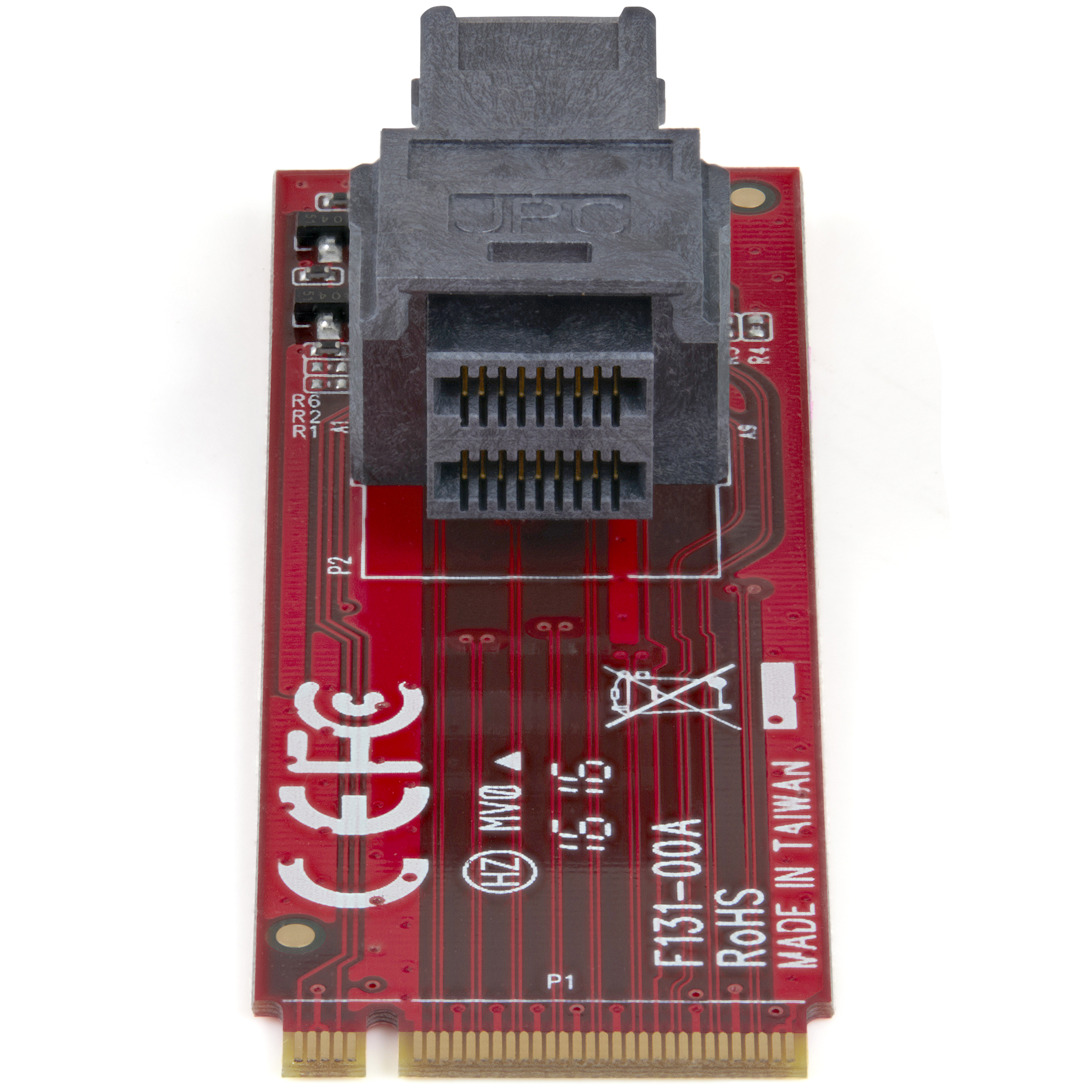

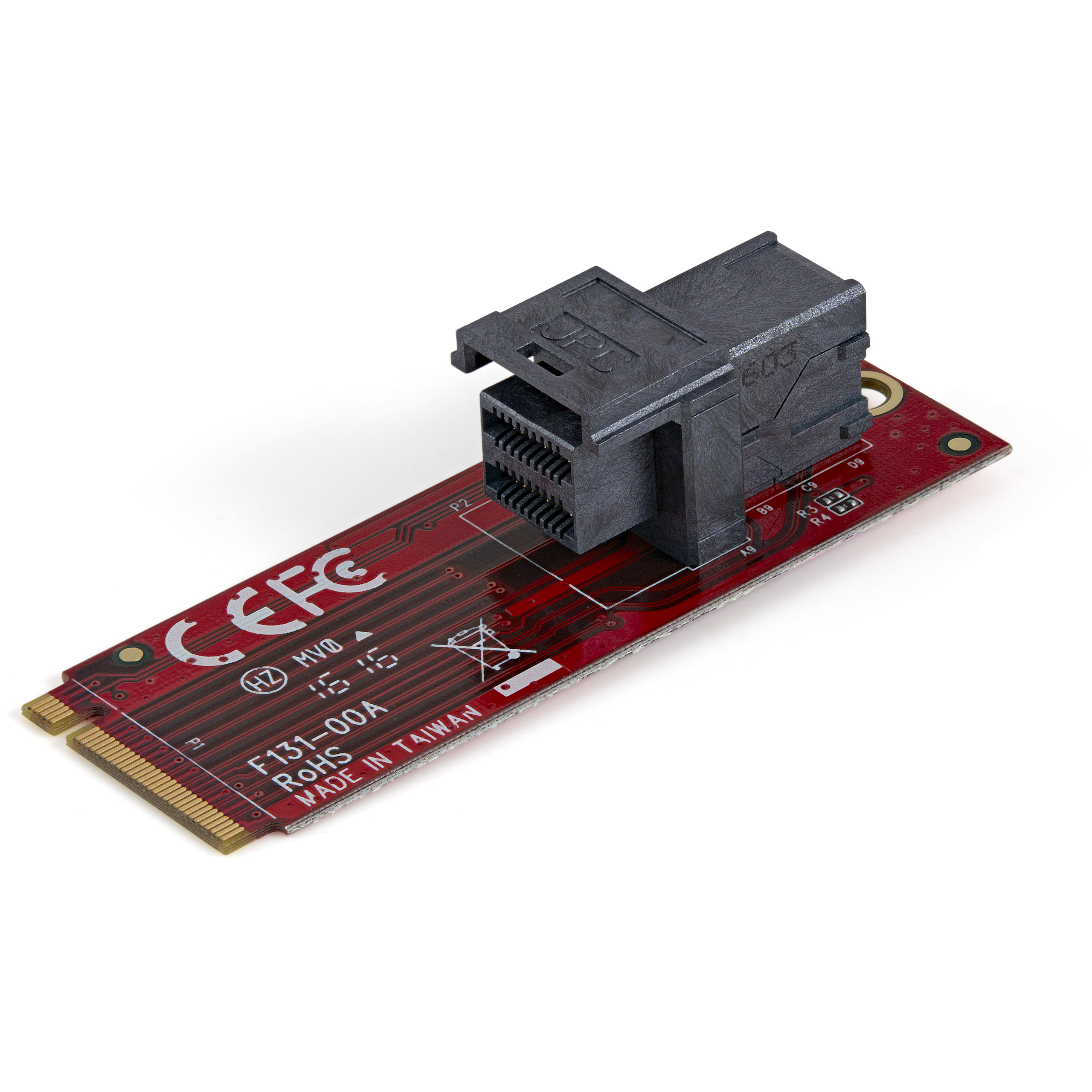

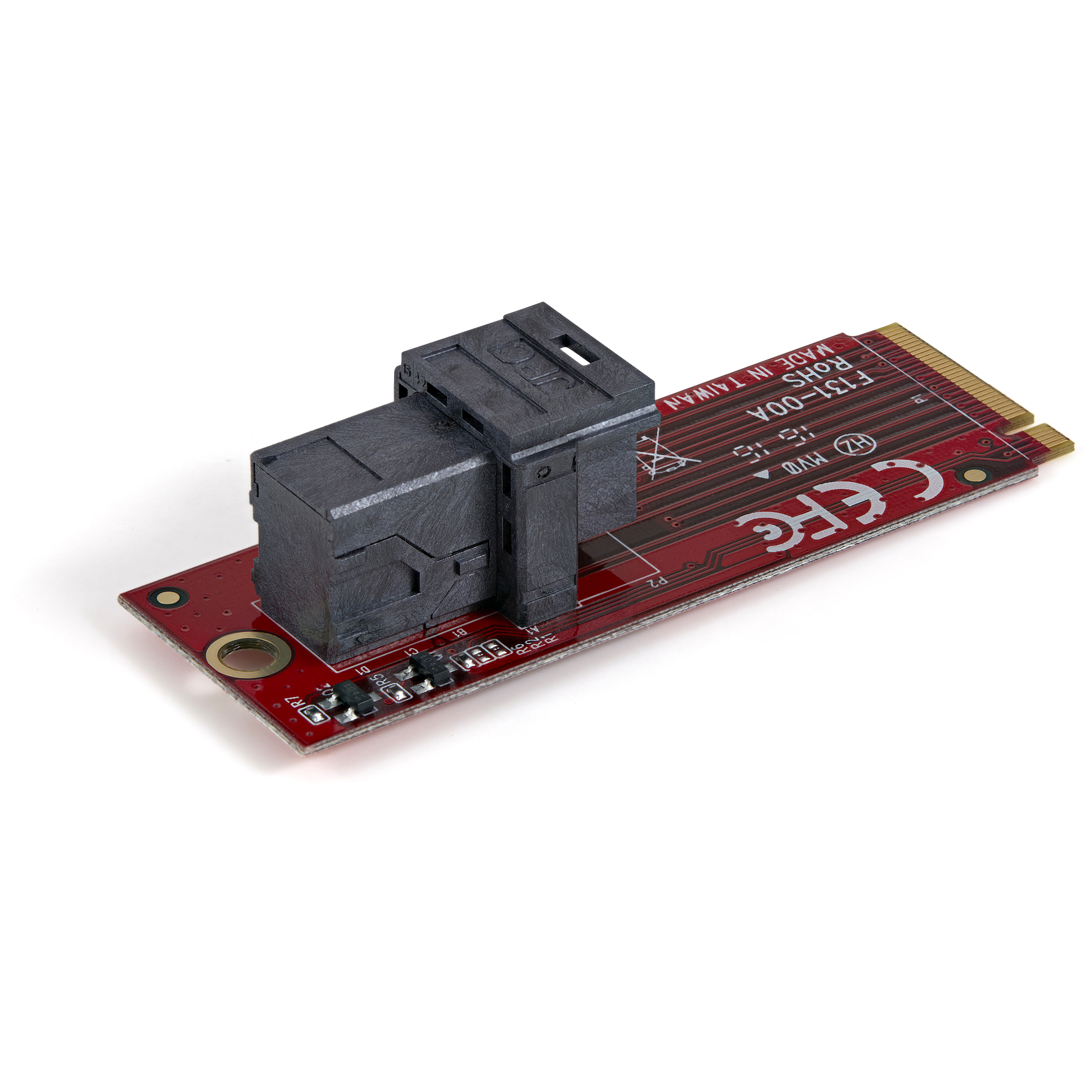

U 2 to M 2 Adapter for U 2 NVMe SSD
Add U.2 PCIe NVMe SSD performance to your desktop computer or server, by connecting a U.2 SSD to an M.2 PCIe x4 host interface
Main Image
Product Images
Product Images
BOM Image
Product Name U 2 to M 2 Adapter for U 2 NVMe SSD Product Number M2E4SFF8643 UPC 065030872607 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family U.2 to M.2 Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) U.2 to M.2 Adapter Product Title (Short) Adapter, U.2 to M.2 - 2.5” U.2 NVMe SSD Product Title (Medium) U.2 to M.2 Adapter for 2.5” U.2 NVMe SSD - M.2 PCIe x4 Host - U.2 SSD Adapter Product Title (Standard) U.2 to M.2 Adapter for U.2 NVMe SSD, M.2 PCIe x4 Host Interface, U.2 SSD SFF-8643, M2 PCIe Adapter, U.2 Drive Adapter, TAA Product Title (Long) U.2 (SFF-8643) to M.2 PCI Express 4.0 x4 Host Adapter Card for 2.5" U.2 NVMe SSD - TAA Product Title (AMZ) U.2 to M.2 Adapter - for 1 x U.2 PCIe NVMe SSD - M.2 PCIe x4 Host Interface - U.2 SSD - M.2 PCIe Adapter - U.2 Drive , TAA (M2E4SFF8643) Title Ingram (Part 1) U.2 to M.2 Adapter for U.2 NVMe Title Ingram (Part 2) SSD - M.2 PCIe x4 Host Interface Website Product Headline Add U.2 PCIe NVMe SSD performance to your desktop computer or server, by connecting a U.2 SSD to an M.2 PCIe x4 host interface Bullet 1 Boost system performance by adding an enterprise-class U.2 PCIe NVMe SSD to your PC or server Bullet 2 Adapter supports one U.2 PCIe SSD (NVMe and AHCI), with a Mini-SAS HD SFF-8643 connector Bullet 3 M.2 PCIe x4 host interface; Supports PCIe 4.0 and is backwards compatible with earlier PCIe revisions Bullet 4 Compatible with current PCIe standards and backward compatible with earlier releases Bullet 5 Fast and easy setup with native OS support Bullets (Compact) Add U.2 PCIe NVMe SSD performance to your desktop computer or server by connecting a U.2 SSD to an M.2 PCIe x4 host interface - U.2 to M.2 Adapter for 2.5” U.2 NVMe SSD - Native OS support - U.2 SSD Adapter - U.2 Drive Adapter - M2 PCIe Adapter Bullets (Consolidated) Add U.2 PCIe NVMe SSD performance to your desktop computer or server by connecting a U.2 SSD to an M.2 PCIe x4 host interface - Adapter supports one U.2 PCIe NVMe SSD with a Mini-SAS HD SFF-8643 connector - Fast and easy setup with native OS support - Compatible with current PCIe standards and backward compatible with earlier releases - U.2 SSD Adapter - M2 PCIe Adapter - U.2 Drive Adapter - U.2 NVMe SSD Adapter - M.2 adapter - M.2 PCIe x4 Marketing Copy Applications - Ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a computer or server solution
- Provides an easy and economical upgrade solution for systems that already have an available SSD/HDD mounting bay and an M.2 PCIe x4 connection
Website Search Keyword - U.2 to M.2 Adapter
- U.2 Adapter
- U.2 to M.2 Adapter for 2.5” U.2 NVMe SSD
- M.2 PCIe x4 Host
- U.2 SSD Adapter
- U.2 Drive Adapter
- U.2 NVMe Adapter
- SFF-8643 to M.2 Adapter
- U.2 NVMe SSD Adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - BRACKET225PT
- BRACKET425F
- BRACKET125PT
Related Products - 25S22M2NGFFR
- PEX2M2
- SM2NGFFMBU33
- SAT32M225
- 35S24M2NGFF
- PEX4M2E1
- S32M2NGFFPEX
- SAT2M2NGFF25
- SM21BMU31C3
- PEXM2SAT3422
- PEX4SFF8643
- U2M2E125
- PEX4SFF8639

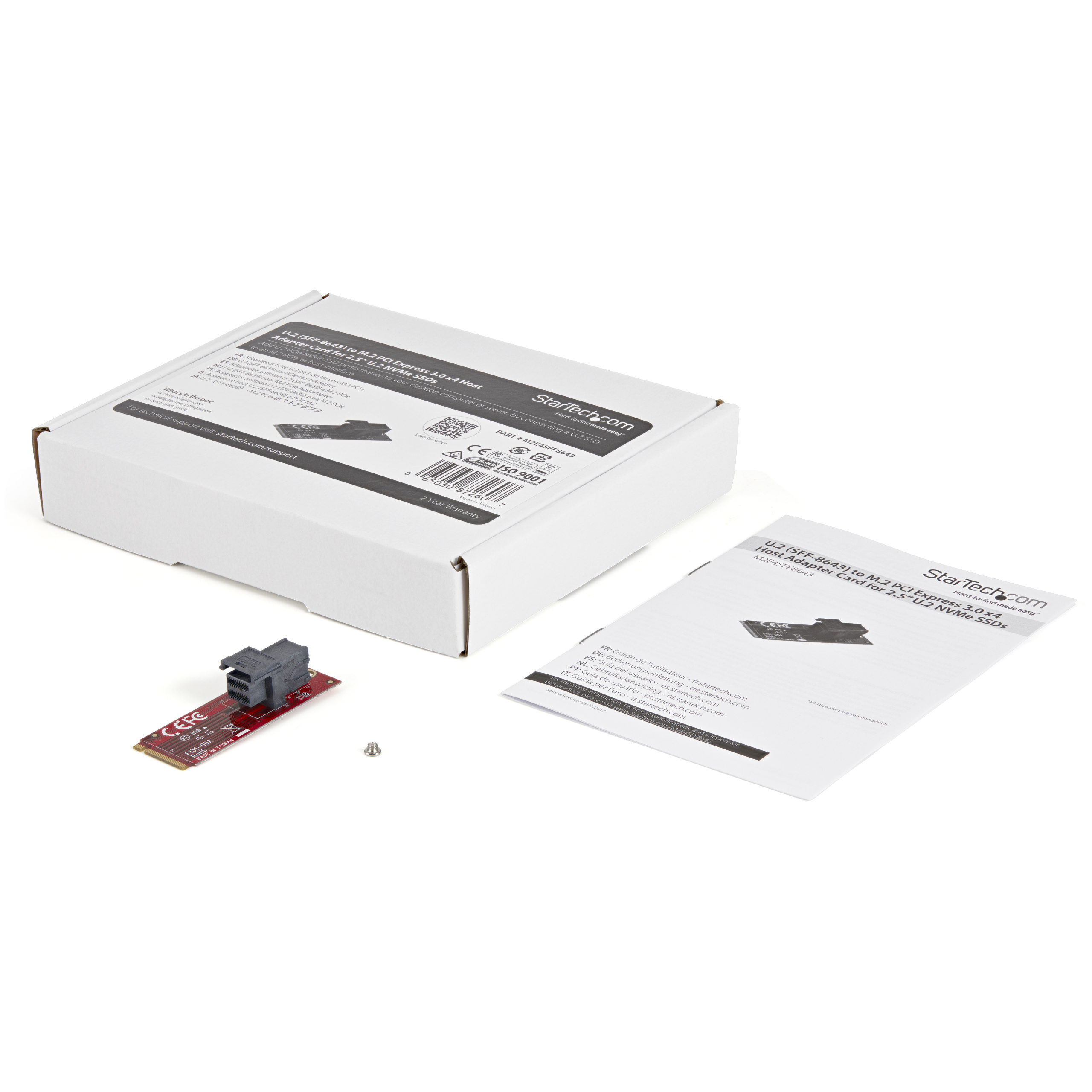

Color Red Humidity 15% ~ 90% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 63 Product Width (mm) 21 Product Height (mm) 15 Product Weight (g) 8 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes OS Compatibility OS Independent RAID No Bus Type PCI Express Compatible Drive Types U.2 (PCIe, NVMe, SFF-8643) Interface/Bridge M.2 PCIe (x4 PCIe) Number of Drives 1 Carton Depth (mm) 386 Carton Height (mm) 324 Carton Quantity 60 Carton Weight Gross (g) 5300 Included in Package - 1 - drive adapter card
- 1 - adapter-mounting screw
- 1 - quick-start guide
Included In Package for Label - 1 - Drive Converter Card
- 1 - Converter-Mounting Screw
- 1 - Quick-Start Guide
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 72 Packaging Description U.2 (SFF-8643) to M.2 PCIe x4 Host Adapter Card for 2.5" U.2 NVMe SSD Packaging Description India U.2 (SFF-8639) to M.2 PCIe Host Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8643 (36-Pin, PCIe) Connector 1 (Quantity) 1 Host Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-06-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-02-10 Target Production Release 2017-03-24 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
