MACPRODOCK

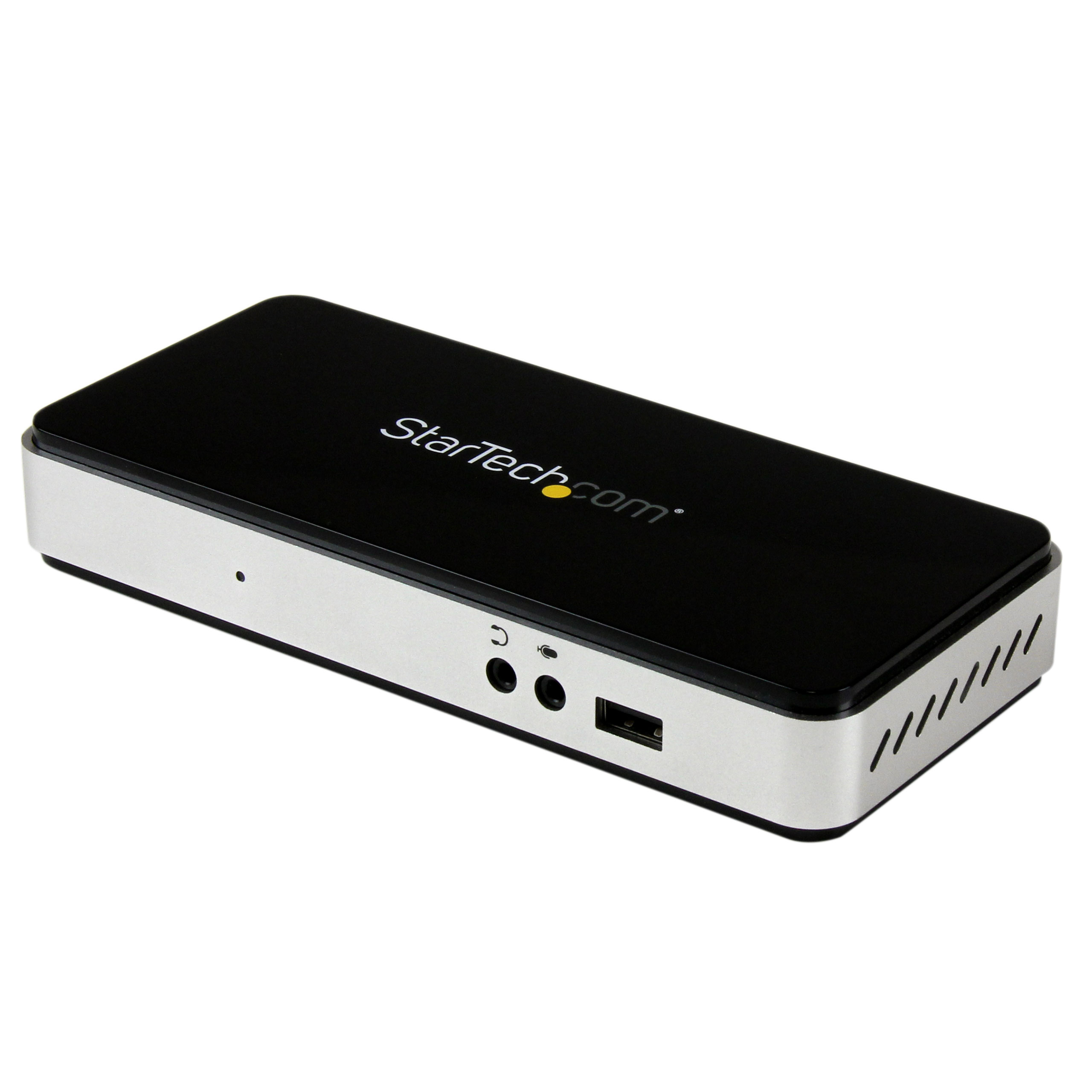

Macbook Pro Docking Station
Transform your MacBook Pro into a powerful workstation through a single Thunderbolt cable
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Macbook Pro Docking Station Product Number MACPRODOCK UPC 065030856485 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) Thunderbolt Docking Station - HDMI or Mini DisplayPort, USB 3.0, GbE, w/ Thunderbolt Cable Product Title (AMZ) MacBook Pro Docking Station - Thunderbolt to HDMI or MDP, USB 3.0, GbE - w/ Thunderbolt Cable - MacBook Pro Dock Accessories (MACPRODOCK) Website Product Headline Transform your MacBook Pro into a powerful workstation through a single Thunderbolt cable Bullet 1 Compatible with your MacBook Pro, Ultrabook™, or Thunderbolt-enabled laptop Bullet 2 Connect the Mac Dock right out of the box with included 3ft (1m) Thunderbolt Cable Bullet 3 Thunderbolt Dock supporting data rates of up to 10Gbps, compatible with Thunderbolt 2 technology Bullet 4 Mini DisplayPort or HDMI video output, dual monitor support when using HDMI + Thunderbolt Display Bullet 5 Thunderbolt to Ethernet, HDMI, USB 3.0 with UASP x3, Thunderbolt x2, 3.5mm Audio x2 (in/out) Marketing Copy Applications - Turn a Thunderbolt™-equipped MacBook Pro®, MacBook Air®, laptop or Ultrabook™ into a powerful workstation
- Connect a wide variety of peripherals at home / office to a laptop all from a single Thunderbolt connection

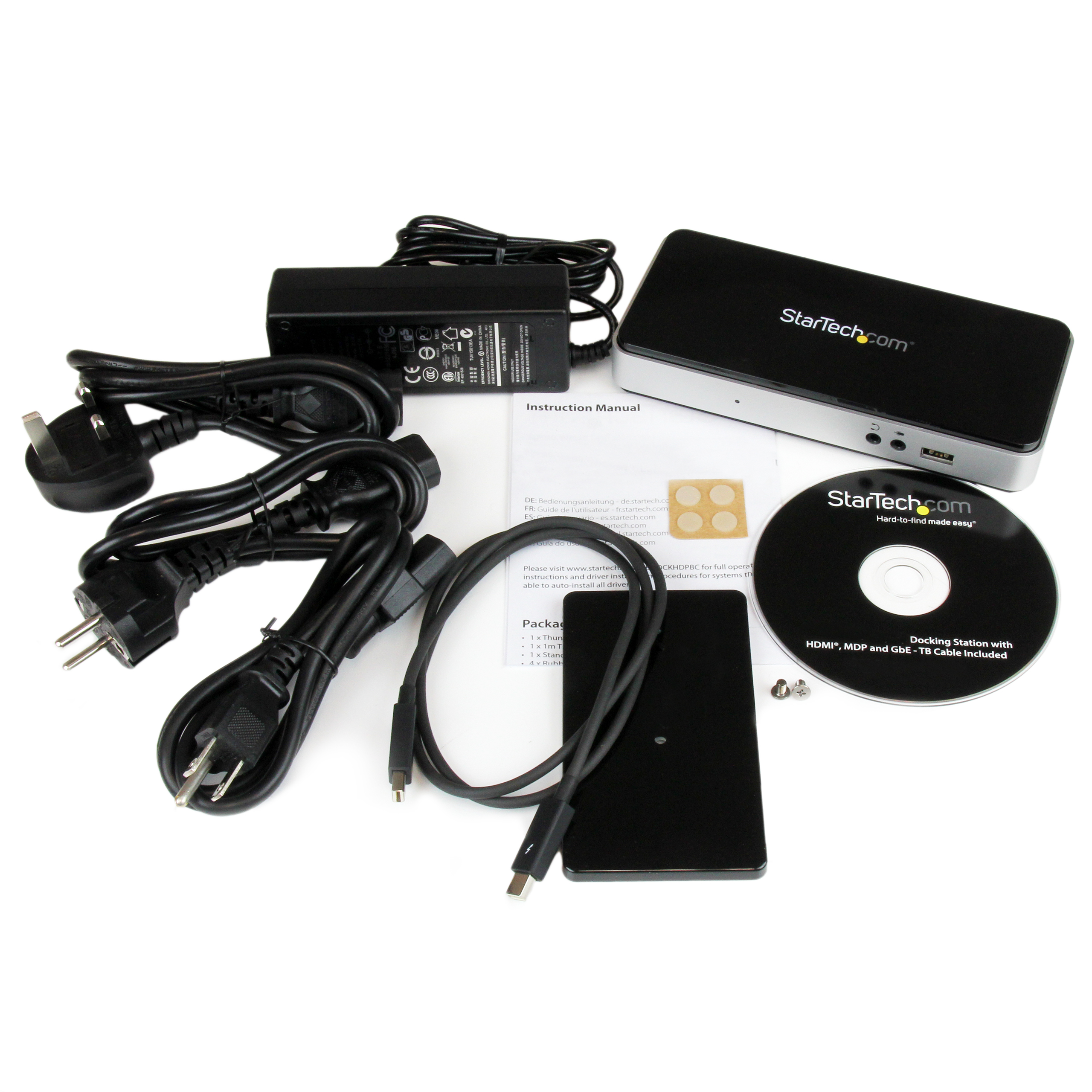

Website Search Keyword Docking Stations System and Cable Requirements Available Thunderbolt interface Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Cable Length (mm) 1000 Color Black & Silver Humidity 5~95% RH Material Aluminum and Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 124 Product Width (mm) 70 Product Height (mm) 189 Product Weight (g) 411 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Bus Type Thunderbolt Chipset ID Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab LED Indicators 1 - Power Carton Depth (mm) 355 Carton Height (mm) 225 Carton Quantity 6 Carton Weight Gross (g) 8902 Included in Package - 1 - Thunderbolt Docking Station
- 1 - 1m Thunderbolt Cable
- 1 - Stand (w/ screws)
- 4 - Rubber Feet
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Installation CD
- 1 - Instruction Manual
Package Depth (mm) 121 Package Height (mm) 205 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 1317 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort (Thunderbolt 10Gbps) Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 3 Connector 5 HDMI Connector 5 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-03-05 Buying Center - End User Compute Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais
