MASFP10GBLR

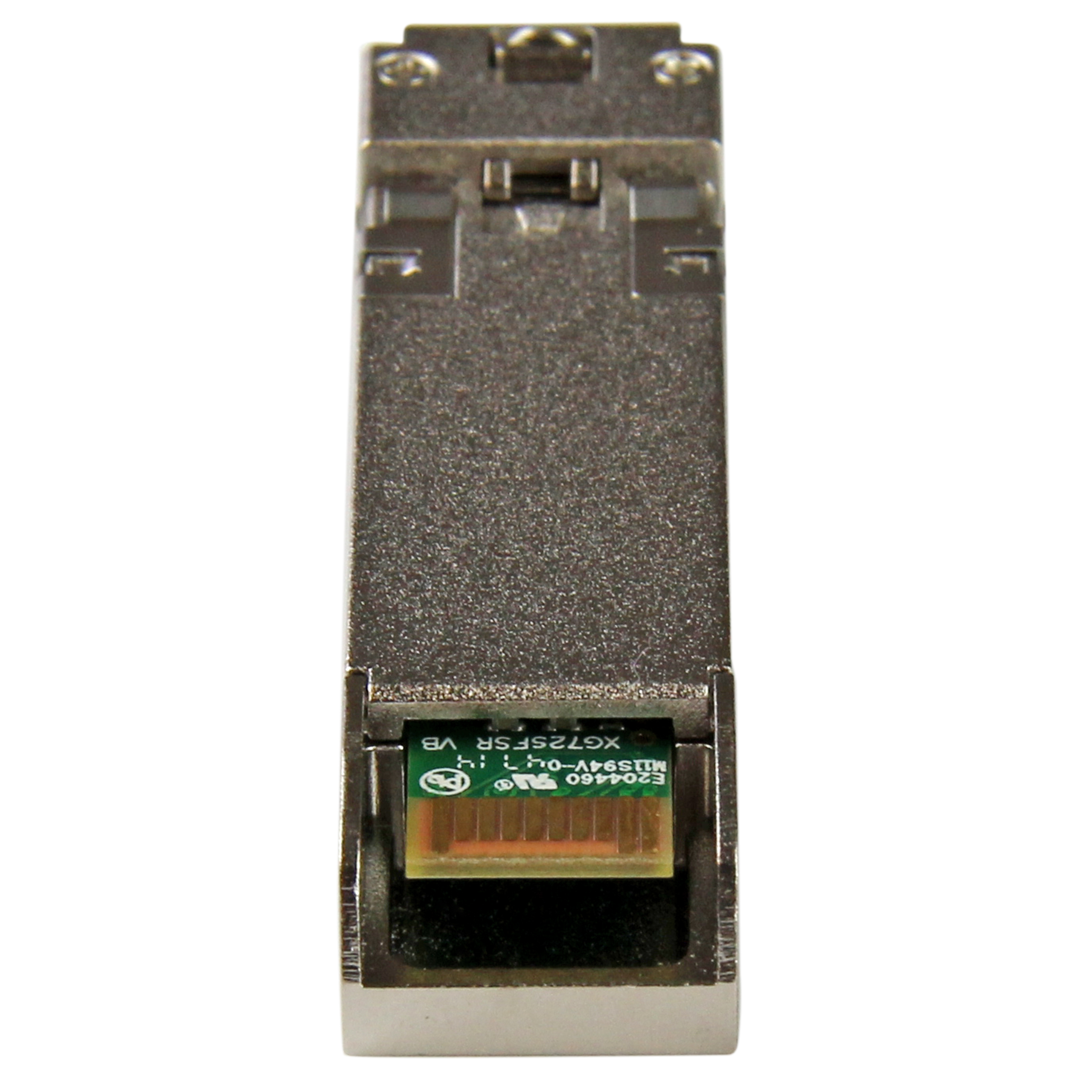

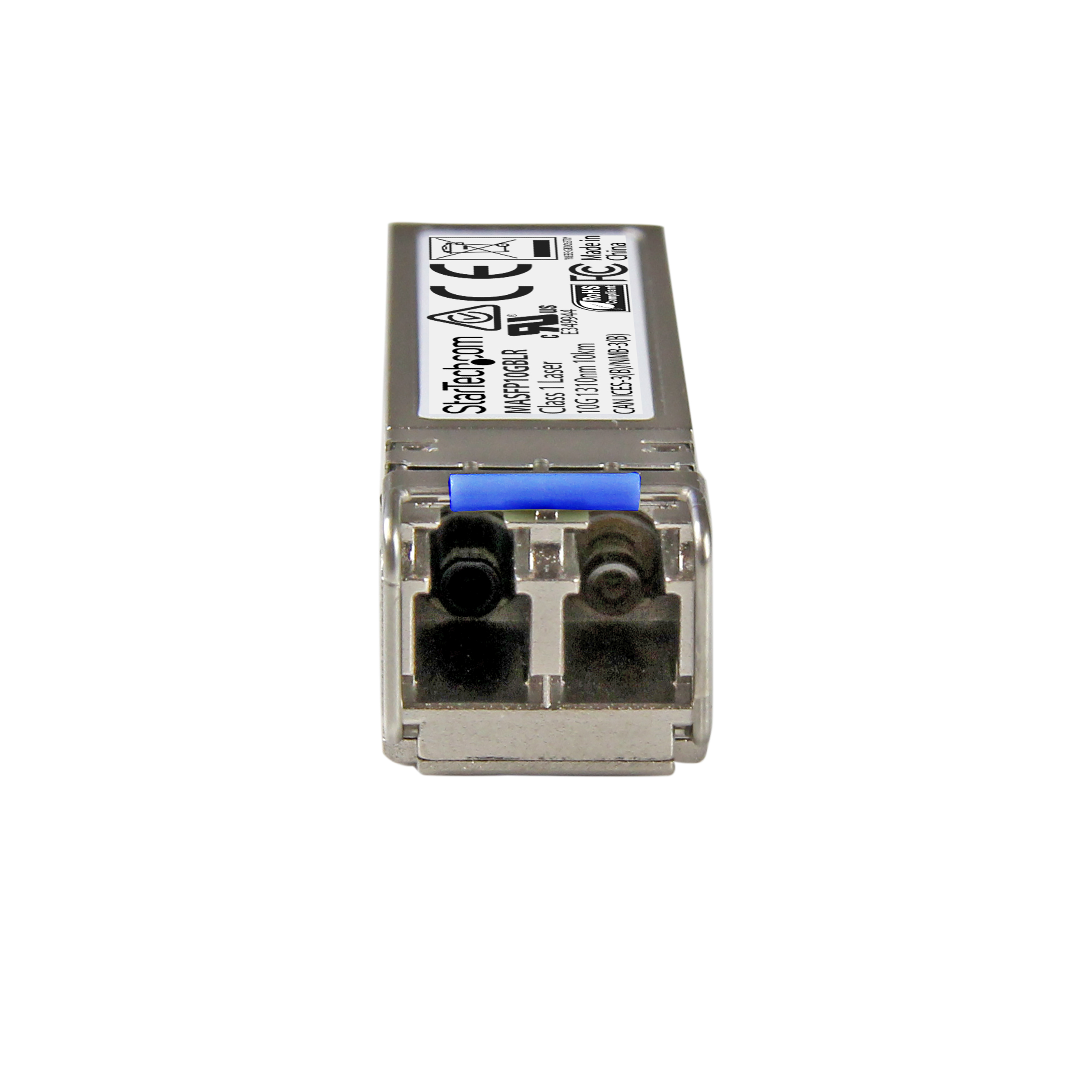

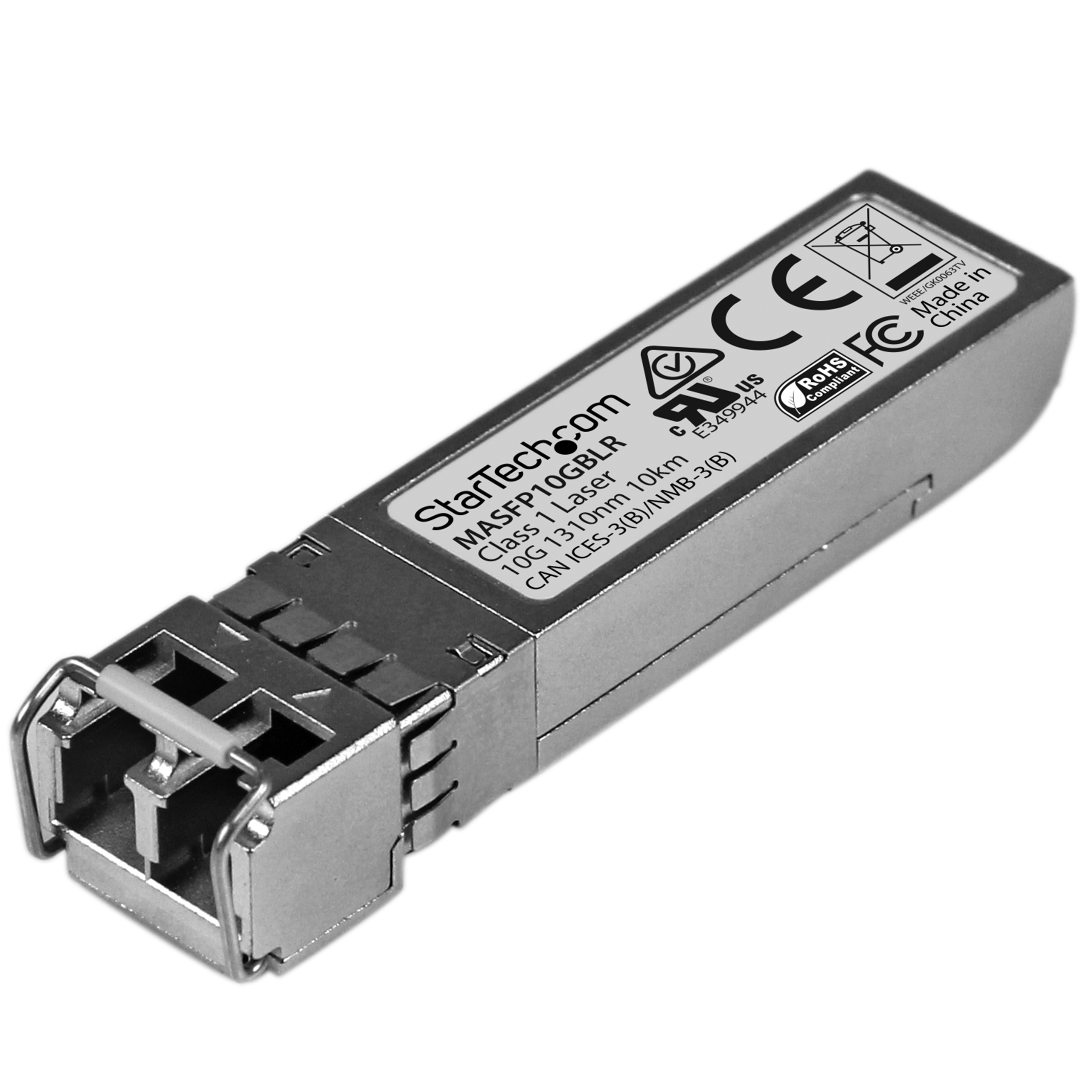

Cisco Meraki MA SFP 10GB LR Compatible SFP
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name Cisco Meraki MA SFP 10GB LR Compatible SFP Product Number MASFP10GBLR UPC 065030872119 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Family Cisco Meraki Compatible - 10G SFP+ Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) MA-SFP-10GB-LR SFP+ Product Title (Short) Cisco Meraki MA-SFP-10GB-LR Comp. SFP+ Product Title (Medium) Cisco Meraki MA-SFP-10GB-LR Comp. SFP+ Fiber Module - 10GBASE-LR - Product Title (Standard) Cisco Meraki MA-SFP-10GB-LR Comp. SFP+ Module - 10GBASE-LR - 10GbE Gigabit Ethernet Single Mode Fiber SMF Optic Transceiver Product Title (Long) Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM Cisco Meraki MS225, MX400, MS250 Product Title (AMZ) Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE SMF Optic Transceiver - Gigabit Ethernet SFP+ - LC 10km 1310nm DDM Cisco Meraki MS225, MX400 (MASFP10GBLR) Title Ingram (Part 1) Cisco Meraki MA-SFP-10GB-LR Title Ingram (Part 2) Comp - Fiber SFP+ Module Website Product Headline 10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty Bullet 1 100% CISCO MERAKI MA-SFP-10GB-LR COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MS425 and others Bullet 2 TECHNICAL SPECS: 10GBASE-LR | 10 Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance. Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ - 10GBASE-LR 10 Gbps - 10GbE Module - 10GE Gigabit Ethernet SFP+ 1310nm - Single Mode (SMF) Transceiver - 10km (6.2mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ 10GBASE-LR (10 Gbps) Gigabit Ethernet - 1310nm | Single Mode (SMF) - Up to 10km (6.2mi) - LC Connector DDM - For Cisco Meraki switches like: MS225 MX400 MS250 MS350 MS425 MX600 MX450 MS450 - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replacing defective or damaged SFP+ modules in Cisco Meraki switches and routers
- Expand your network to remote segments
Website Search Keyword - Cisco Meraki MA-SFP-10GB-LR Compatible SFP+
- Cisco Meraki MA-SFP-10GB-LR SFP+
- 10GBase-LR SFP+ module
- 10Gb Fiber SFP+
- 10 Gigabit SFP+
- Single-mode SFP+
- SM SFP+
- 10G SFP+
- SFP+ transceiver
- Cisco compatible SFP+ module
- 10GBase-LR
- Cisco SFP+
- SFP+ optical transceiver
- MA-SFP-10GB-LR
- Cisco Meraki SFP+
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in 10 Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco Meraki compliant SFP+ port Accessory Products - PEX20000SFPI
- PEX10000SFP
- PEX10000SFPI
- ET10GSFP
Power Consumption (In Watts) < 1.2 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 58.400 Product Width (mm) 13.900 Product Height (mm) 12.600 Product Weight (g) 22.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 10 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 10 Gbps Max Transfer Distance 10 km (6.2 mi) MTBF (hours) 2,104,865 hours Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3ae 10GBASE-LR OEM Part Number MA-SFP-10GB-LR SFP Compatible Brand Cisco Meraki Carton Depth (mm) 250 Carton Height (mm) 200 Carton Quantity 3 Carton Weight Gross (g) 346 Included in Package 1 - SFP+ transceiver Package Depth (mm) 92 Package Height (mm) 33 Package Width (mm) 114 Package Quantity 1 Package Weight (g) 48 Packaging Description 10 Gb Fiber SFP+ - MA-SFP-10GB-LR Compatible - SM LC Packaging Description India 10 Gb Fiber SFP+ - MA-SFP-10GB-LR Compatible - SM LC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-12-06 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-12-23 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-09 Target Production Release 2016-12-09 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
