MASFP1GBSXST

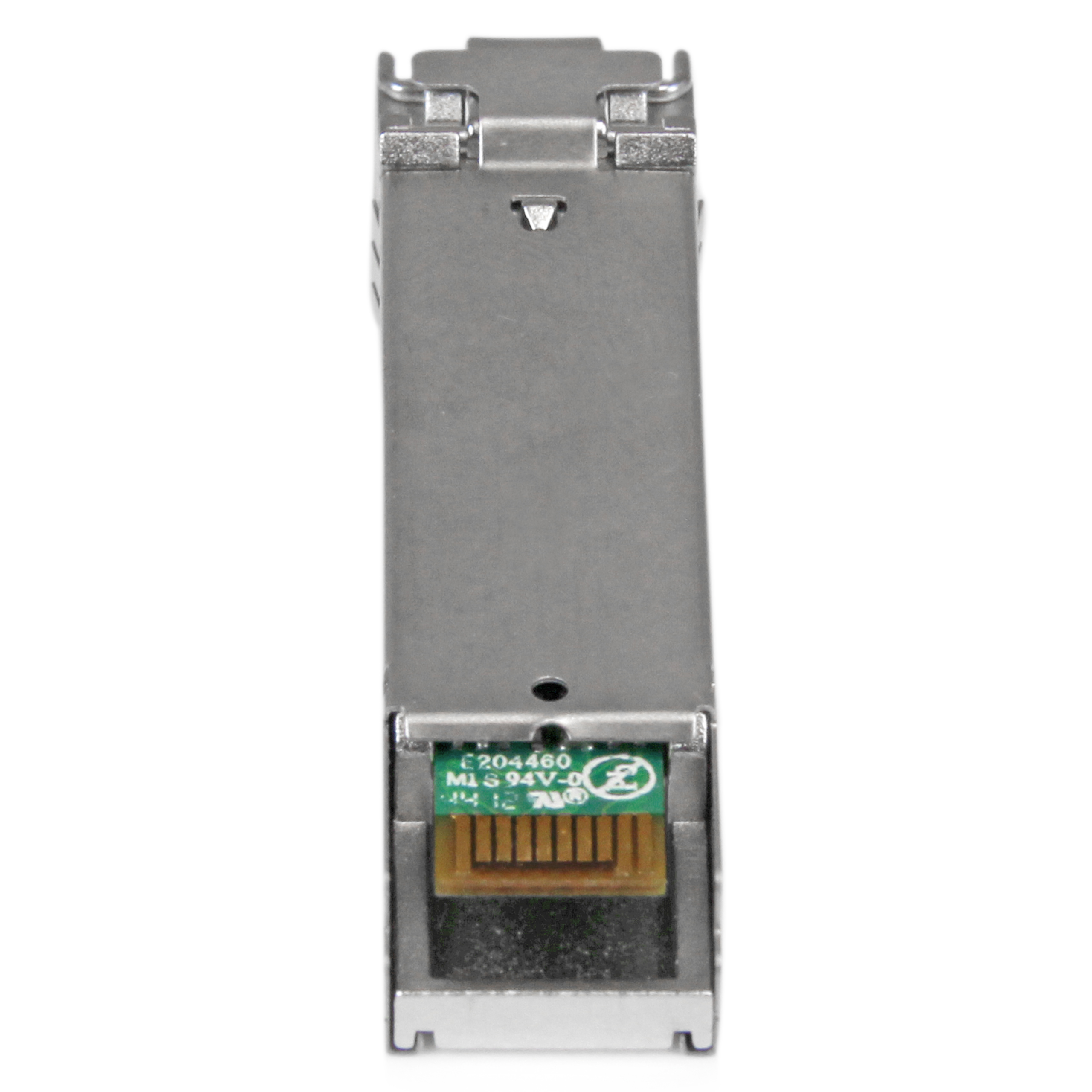

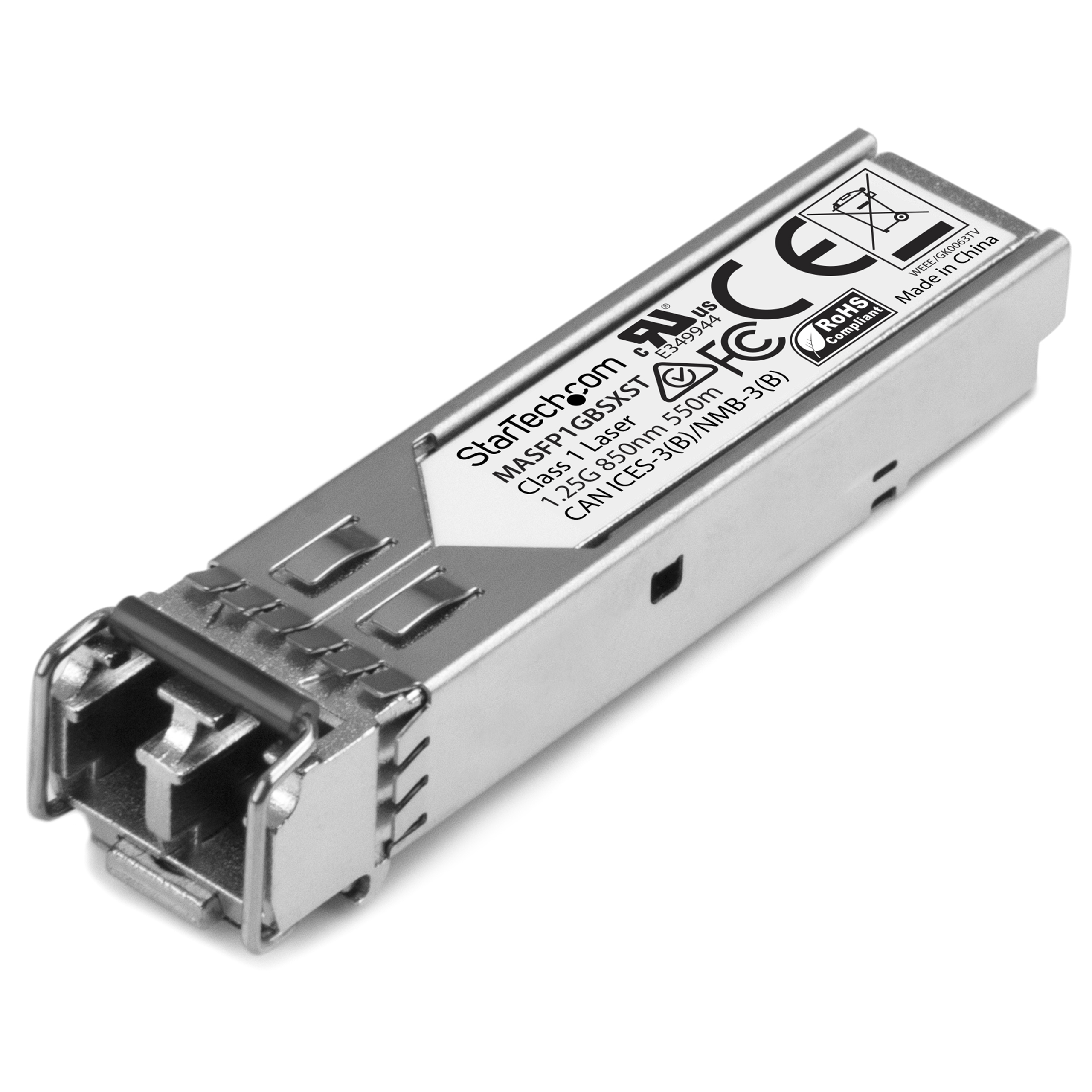

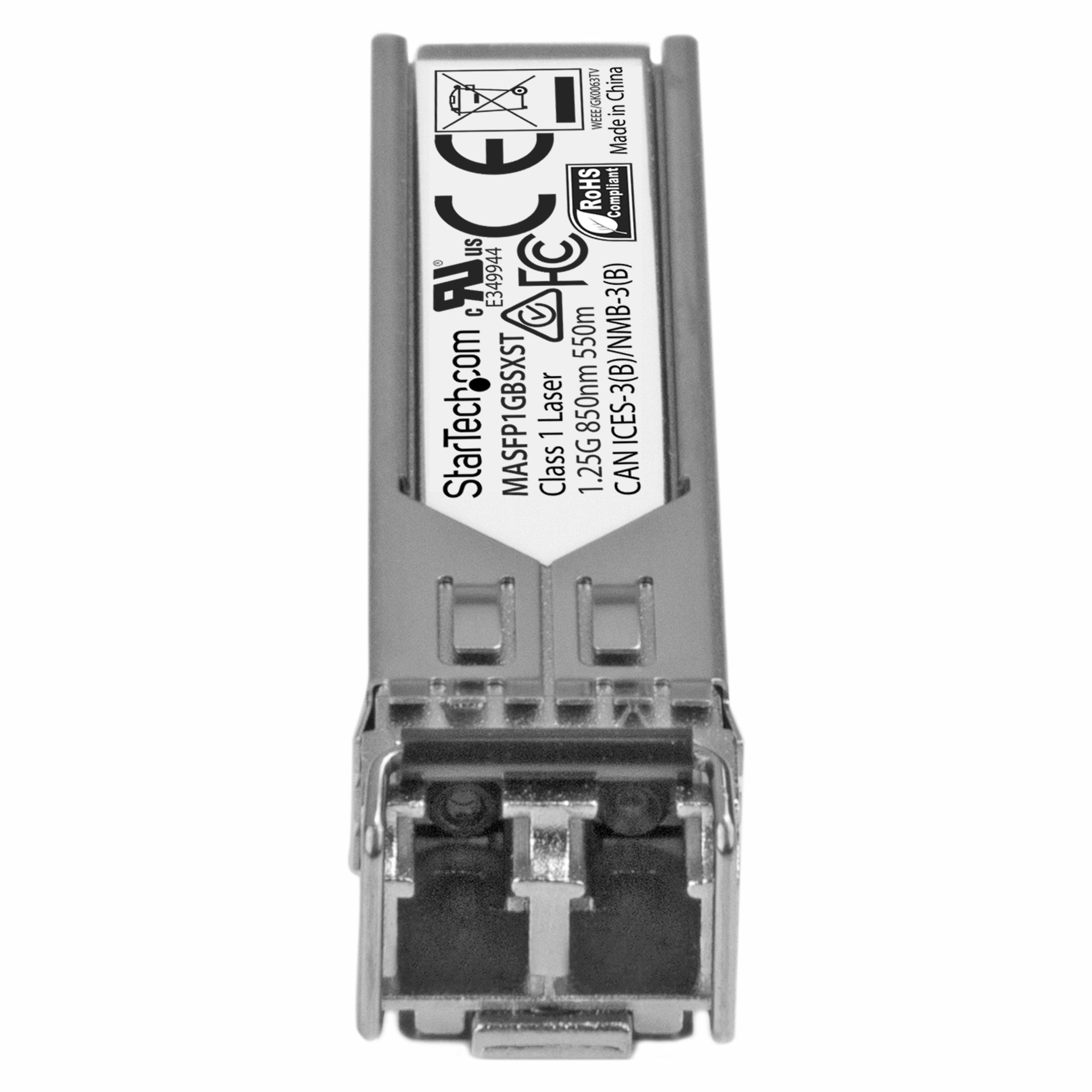

Gb Fiber 1000Base-SX SFP - Cisco Meraki Compatible
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name Gb Fiber 1000Base-SX SFP - Cisco Meraki Compatible Product Number MASFP1GBSXST UPC 065030868655 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Family Cisco Meraki Compatible - 1G SFP Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) MA-SFP-1GB-SX SFP Product Title (Short) Cisco Meraki MA-SFP-1GB-SX Comp. SFP Product Title (Medium) Cisco Meraki MA-SFP-1GB-SX Compatible SFP Fiber Module - 1000BASE-SX - Product Title (Standard) Cisco Meraki MA-SFP-1GB-SX Comp. SFP Module - 1000BASE-SX - 1GbE Gigabit Ethernet SFP Multimode Fiber MMF Optic Transceiver Product Title (Long) Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Meraki MS225, MX400, MS250 Product Title (AMZ) Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE MMF Optic Transceiver - LC 550m - 850nm - DDM Cisco Meraki MS225, MX400 (MASFP1GBSXST) Title Ingram (Part 1) Cisco Meraki MA-SFP-1GB-SX Title Ingram (Part 2) Comp - Fiber SFP Module Website Product Headline 1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty Bullet 1 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others Bullet 2 TECHNICAL SPECS: 1000BASE-SX | 1 Gbps | Multi Mode (MMF) | LC Connector | 850nm | Digital Diagnostic Monitoring (DDM) | Distances up to 550m (1804ft) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance. Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) Cisco Meraki MA-SFP-1GB-SX Compatible SFP - 1000BASE-SX 1 Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 850nm - Multi Mode (MMF) Transceiver - 550m (1804ft) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) Cisco Meraki MA-SFP-1GB-SX Compatible SFP 1000BASE-SX (1 Gbps) Gigabit Ethernet - 850nm | Multi Mode (MMF) - Up to 550m (1804') - LC Connector DDM - For Cisco Meraki switches like: MS225 MX400 MS250 MS350 MX84 MX600 MX450 MS425 - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replacing defective or damaged SFP modules in Cisco Meraki switches and routers
- Expand your network to remote segments
Website Search Keyword - SFP
- Cisco Meraki compatible SFP
- SFP Module
- GBIC Module
- mini GBIC
- MSA
- Cisco
- Cisco Meraki MA-SFP-1GB-SX Compatible sfp
- Cisco Meraki MA-SFP-1GB-SX
- MA-SFP-1GB-SX
- 1000Base-SX
- 1000Base-SX SFP
- MM SFP
- Cisco SFP
- Meraki SFP
- Meraki
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco Meraki compliant SFP port Accessory Products - 50FIBLCLC1
- 50FIBLCLC2
- 50FIBLCLC3
- 50FIBLCLC5
- 50FIBLCLC10
- PEX1000SFP2
- IES101002SFP
- IES101GP2SFW
- IES101G2SFPW
- MCM1110SFP
Power Consumption (In Watts) < 1 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 56.600 Product Width (mm) 13.700 Product Height (mm) 12.500 Product Weight (g) 14.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1.25 Gbps Max Transfer Distance 550m [1804ft] MTBF (hours) 3,381,761 hours Wavelength 850nm Fiber Connector LC Industry Standards IEEE 802.3z 1000BASE-SX OEM Part Number MA-SFP-1GB-SX SFP Compatible Brand Cisco Meraki Carton Depth (mm) 342 Carton Height (mm) 340 Carton Quantity 108 Carton Weight Gross (g) 5900 Included in Package 1 - SFP transceiver Package Depth (mm) 92 Package Height (mm) 33 Package Width (mm) 113 Package Quantity 1 Package Weight (g) 42 Packaging Description Gb Fiber SFP - MA-SFP-1GB-SX Compatible - MM LC Packaging Description India Gb Fiber SFP - MA-SFP-1GB-SX Compatible - MM LC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-12-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-12-23 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-09 Target Production Release 2016-12-09 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
