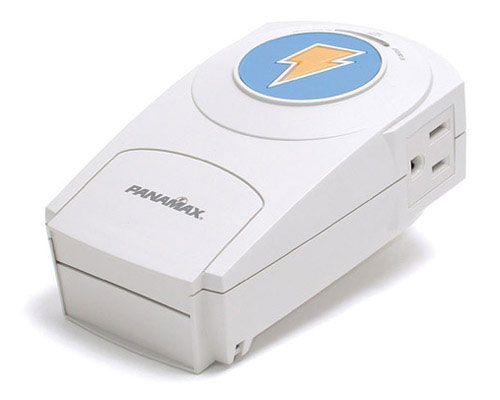

Panamax MAX 2 Surge Protector (2 AC)

Main Image

Product Name	Panamax MAX 2 Surge Protector (2 AC)
Product Number	MAX2
UPC	050616006569
Warranty	Lifetime
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1
Country of Origin History (2)	China

Product Title (Long)	Panamax MAX 2 Surge Protector (2 AC)
Bullet 1	Compact two-receptacle surge protection for general use
Bullet 2	Thermal fuse provides power shut off in the event of extended overvoltage
Bullet 3	Enhanced EMI/RFI noise filtration protects equipment
Bullet 4	Includes Ground OK diagnostics LED indicator
Bullet 5	Metal Oxide Varistors (MOVs) instantly begin clamping and absorbing surges
Marketing Copy	The StarTech.com name is synonymous with only the highest-quality products that you can rely on to keep your business and computer workstations running smoothly and efficiently. That’s why we’ve teamed up with Panamax, the leader in Power Protection Products, to present you with the MAX2, a perfect example of our commitment to giving customers safe, reliable products for the home and office. This compact, two-receptacle surge protector is designed for general use. The thermal fuse provides power shut off in the event of extended over-voltage while enhanced EMI/RFI noise filtration protects senstive equipment from harmful disruptions. Metal Oxide Varistors (MOVs) instantly begin clamping and absorbing surges while special Sine Wave Tracking ensures that surge clamping begins at 200 Volts, regardless of where the surge appears on the AC sine wave.

General Specifications

UL 1449 Surge Protection Rating: 330 volts
AC Line Initial Clamping Level: 200 volts
AC Line Protection Modes: Line to Neutral, Line to Ground, Neutral to Ground
AC Line Voltage: 120 VAC, 50/60 Hz
AC Line Rated Current: 15 amps (1800 watts)
AC Line EMI/RFI Noise Filtration: 99.7% removed from 100KHz to 1MHz
AC Line Response Time: Instantaneous / <1 Nanosecond
AC Line Energy Dissipation: 576 Joules
AC Line Peak Impulse Current: 30,000 amps
Catastrophic Surge Circuit: Disconnects automatically, preventing damage from massive surges, including lightning
Thermal Fuse: In the event of extended overvoltage, shuts off power to connected equipment
