MCHD2VGAA2

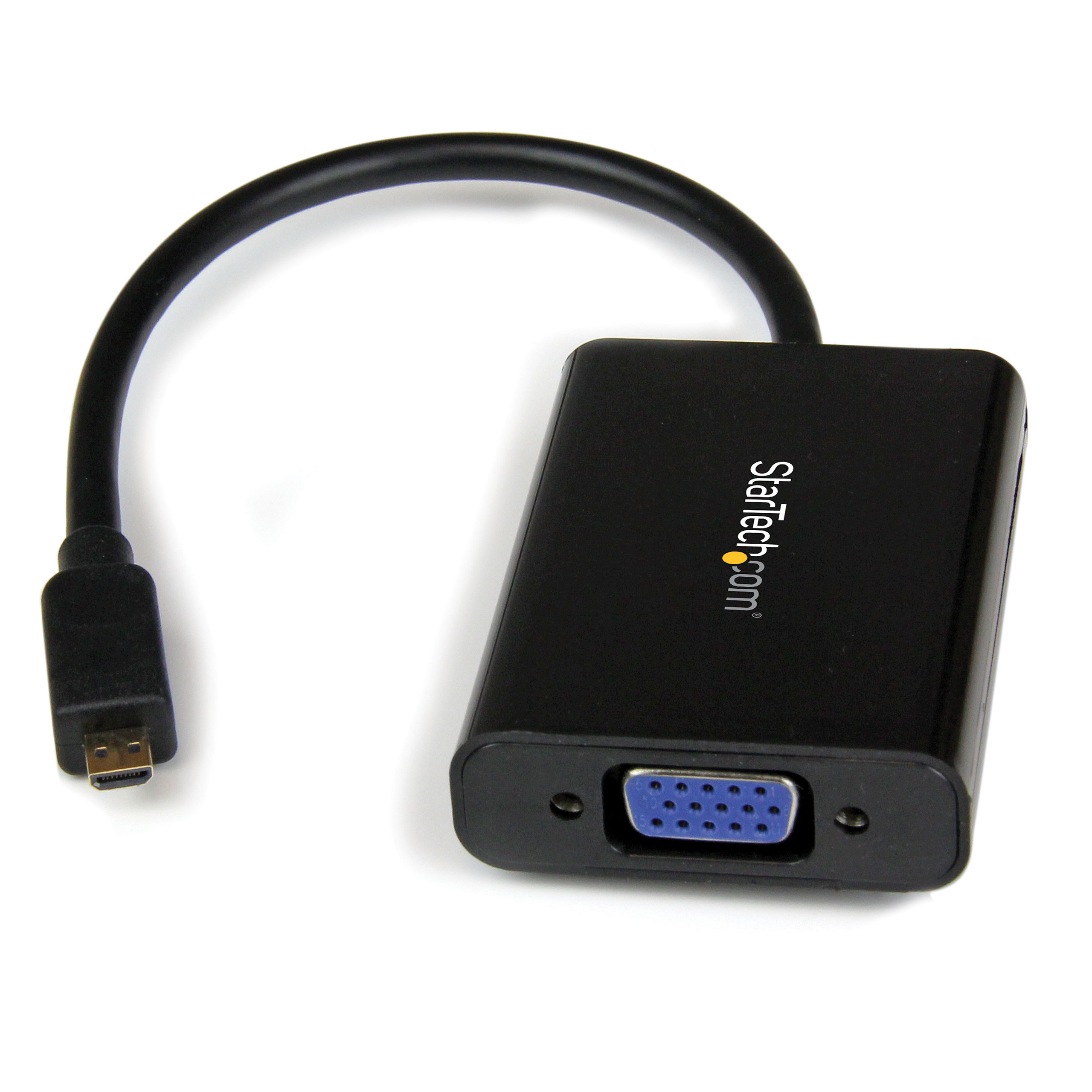

Micro HDMI Male to VGA Female Converter with Audio
Convert a Micro HDMI® video signal to VGA, with discrete audio output
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Micro HDMI Male to VGA Female Converter with Audio Product Number MCHD2VGAA2 UPC 065030851008 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 HDMI and DVI Display Adapters Category Level 3 HDMI to VGA Family Display Adapters with Audio (HDMI/Micro HDMI) Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) Micro HDMI to VGA Product Title (Short) Micro HDMI to VGA Adapter Product Title (Medium) x Product Title (Standard) Micro HDMI® to VGA Adapter Converter with Audio for Smartphones / Ultrabooks / Tablets - 1920x1080 Product Title (Long) Micro HDMI to VGA Adapter Converter with Audio for Smartphones / Ultrabooks / Tablets - 1920x1080 Product Title (AMZ) Micro HDMI to VGA Adapter Converter w/ Audio for Smartphones / Ultrabooks / Tablets 1920x1080 - Micro HDMI Male to VGA Female (MCHD2VGAA2) Title Ingram (Part 1) Micro HDMI Male to VGA Female Ad Title Ingram (Part 2) apter Converter with Audio Website Product Headline Convert a Micro HDMI® video signal to VGA, with discrete audio output Bullet 1 Easy to use with no software required Bullet 2 Supports output resolutions up to 1920x1080 Bullet 3 Compact, lightweight, and portable design Bullet 4 Supported on any VGA display, including televisions and projectors Bullets (Consolidated) Convert a Micro HDMI Video signal to VGA with discrete audio output - Micro HDMI to VGA Adapter - Micro HDMI to VGA Converter - Micro HDMI male to VGA female - Micro HDMI to VGA with 1 Port Micro HDMI Adapter Hub Micro HDMI to VGA and Audio Converter - Supports resolutions up to 1920x1080 (1080p) Marketing Copy Applications Connect your smartphone or tablet to a VGA projector or display in boardrooms, hotel rooms, in the office, or at home Website Search Keyword - Micro HDMI to VGA
- Micro HDMI VGA Adapter
- VGA Micro HDMI Adapter
- Micro HDMI to VGA Converter
- Micro HDMI to VGA Cable
- LT82VGAA2
- ASMCHD2VGAA2
- P131-06N-MICROA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Cable Length (mm) 175 Color Black Humidity 40%-85%RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 250.000 Product Width (mm) 66.000 Product Height (mm) 42.000 Product Weight (g) 28.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Maximum Analog Resolutions 1920x1080 Maximum Digital Resolutions 1920x1080 (1080p) @ 60Hz Maximum Supported Resolution 1080p MTBF (hours) 1,332,330 hours Supported Resolutions 1920x1080 (1080p) @ 60Hz Video Output Port VGA Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Micro HDMI AV Output - VGA
- 3.5 mm Stereo Audio
Converter Type Format Converter Host Connection Port Micro HDMI Industry Standards HDMI®, HDCP Carton Depth (mm) 336 Carton Height (mm) 446 Carton Quantity 200 Carton Weight Gross (g) 13058 Included in Package 1 - Micro HDMI® to VGA Adapter Converter Number of Sub-Cartons 20 Package Depth (mm) 81 Package Height (mm) 25 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 62 Packaging Description Micro HDMI® to VGA Adapter with Audio Packaging Description India Micro HDMI® to VGA Converter with Audio Sub-Carton Depth (mm) 66 Sub-Carton Height (mm) 42 Sub-Carton Width (mm) 250 Sub-Carton Quantity 10 Sub-Carton Weight (g) 280 Connector 1 USB Micro-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Micro HDMI Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None
