MCHD2VGAE2

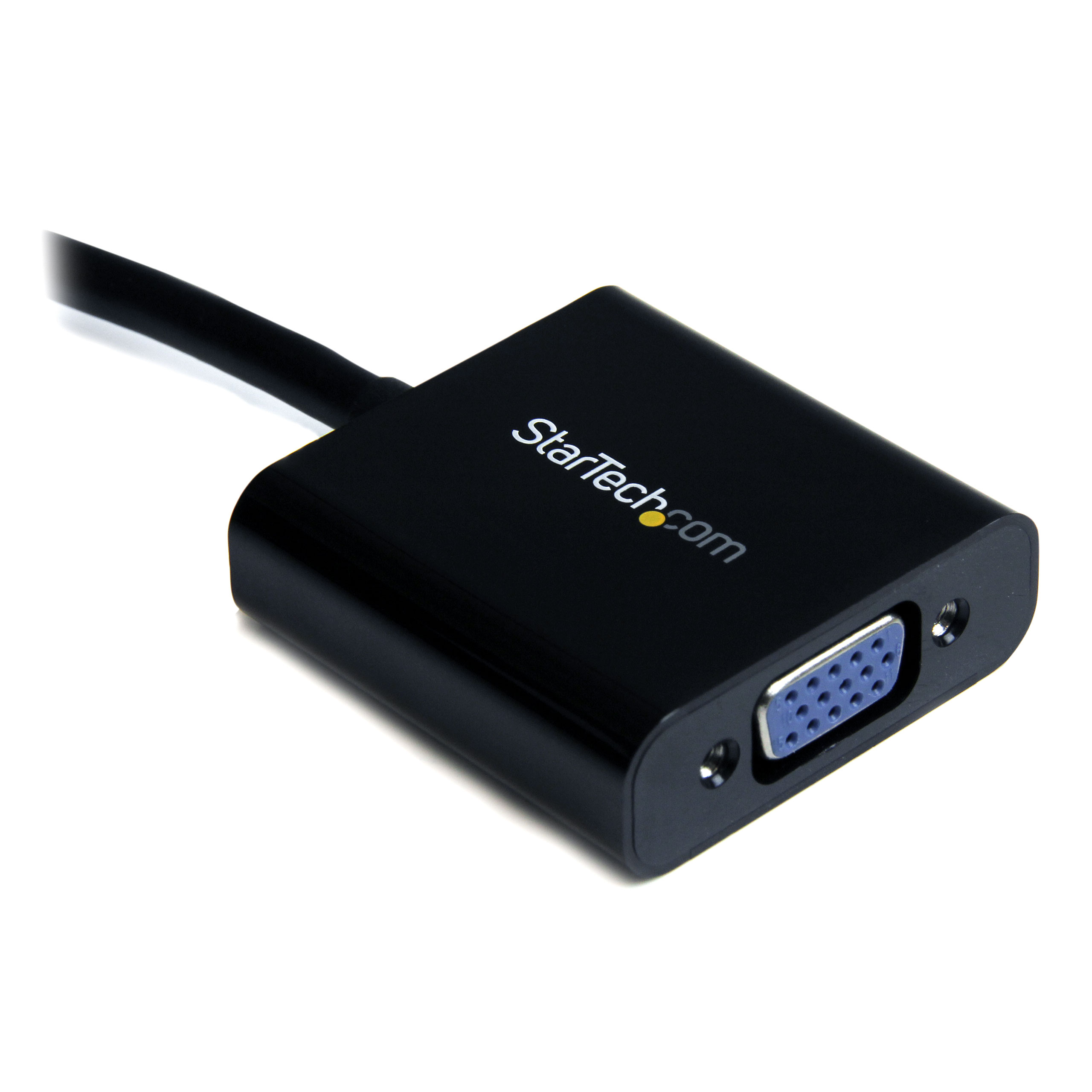

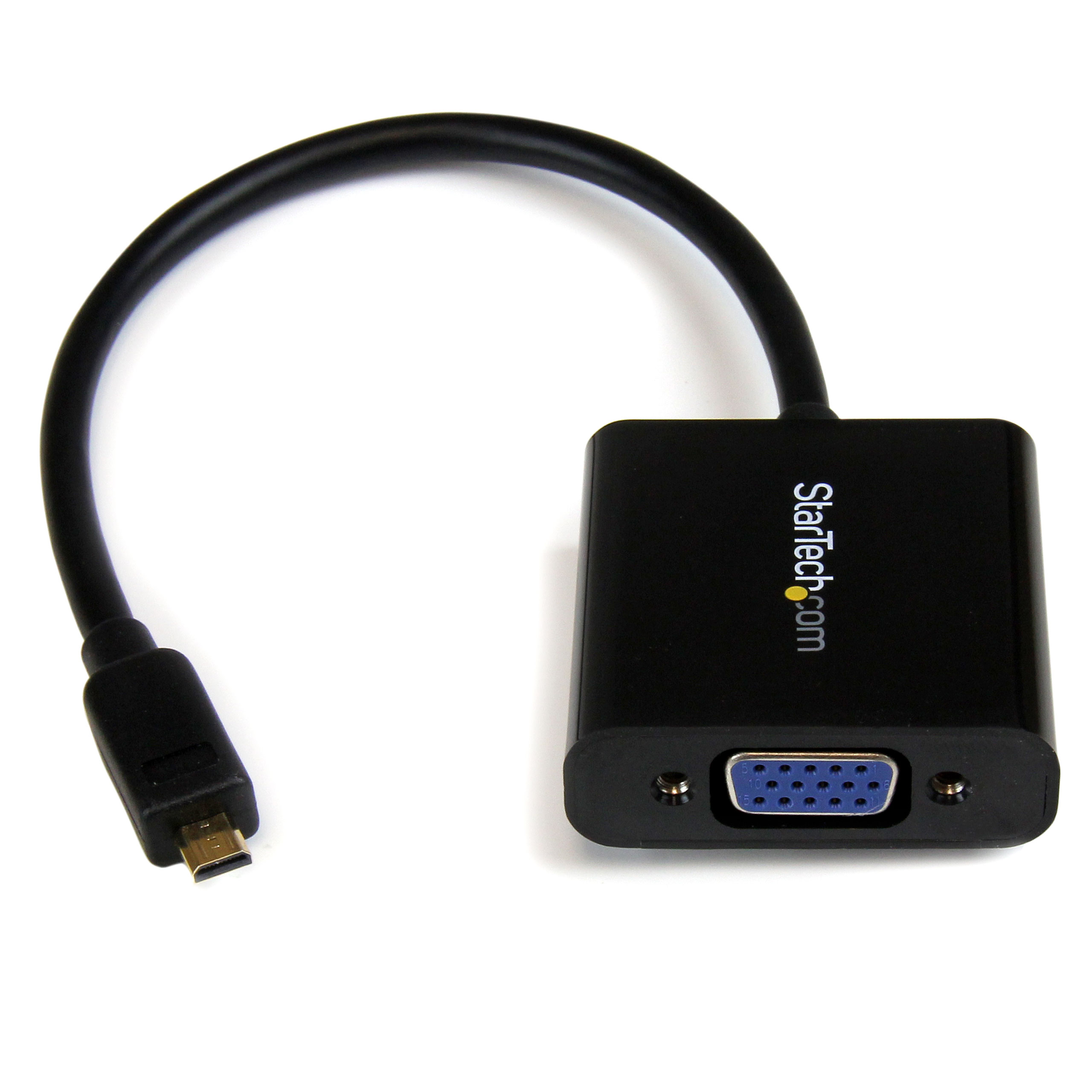

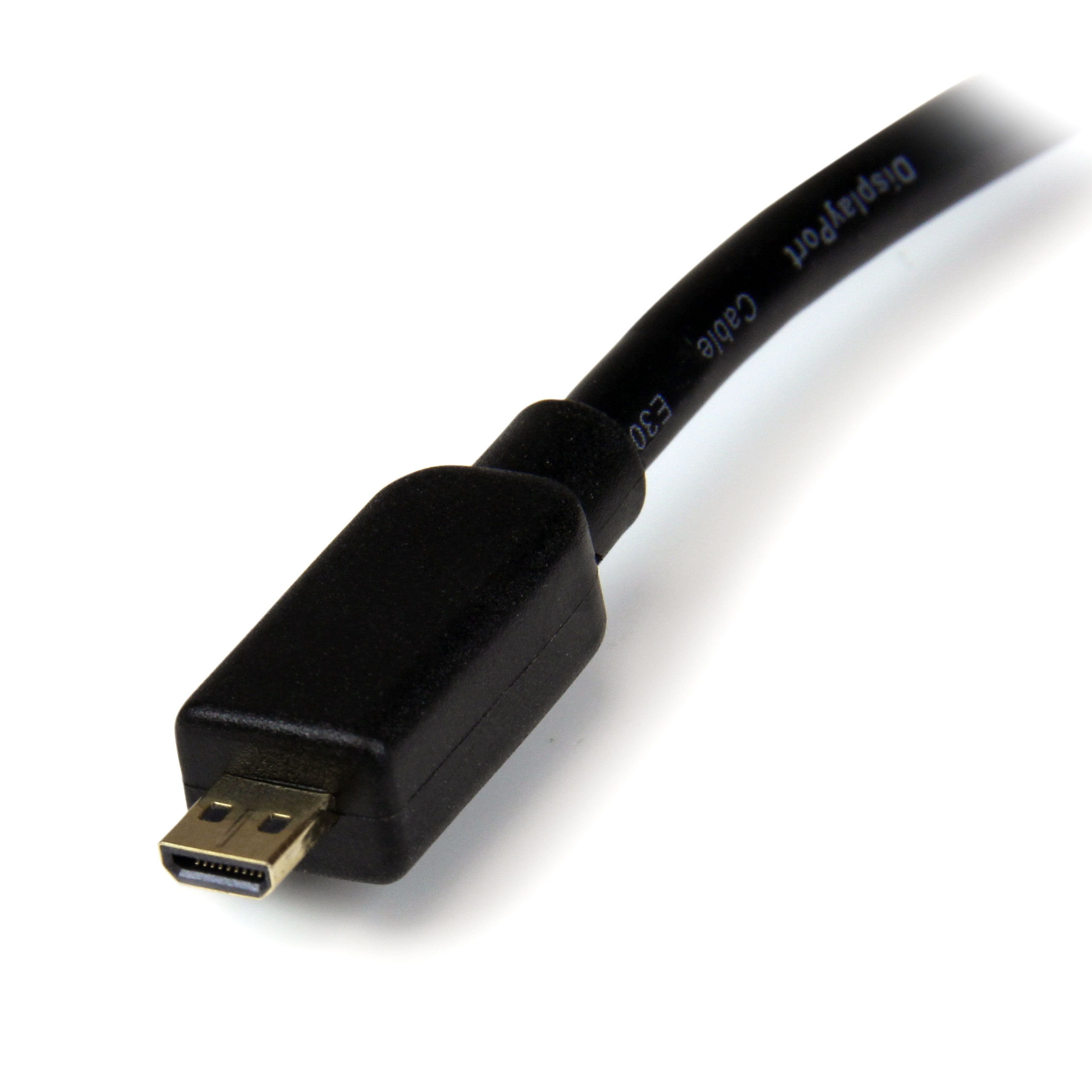

Micro HD - VGA adapter cable

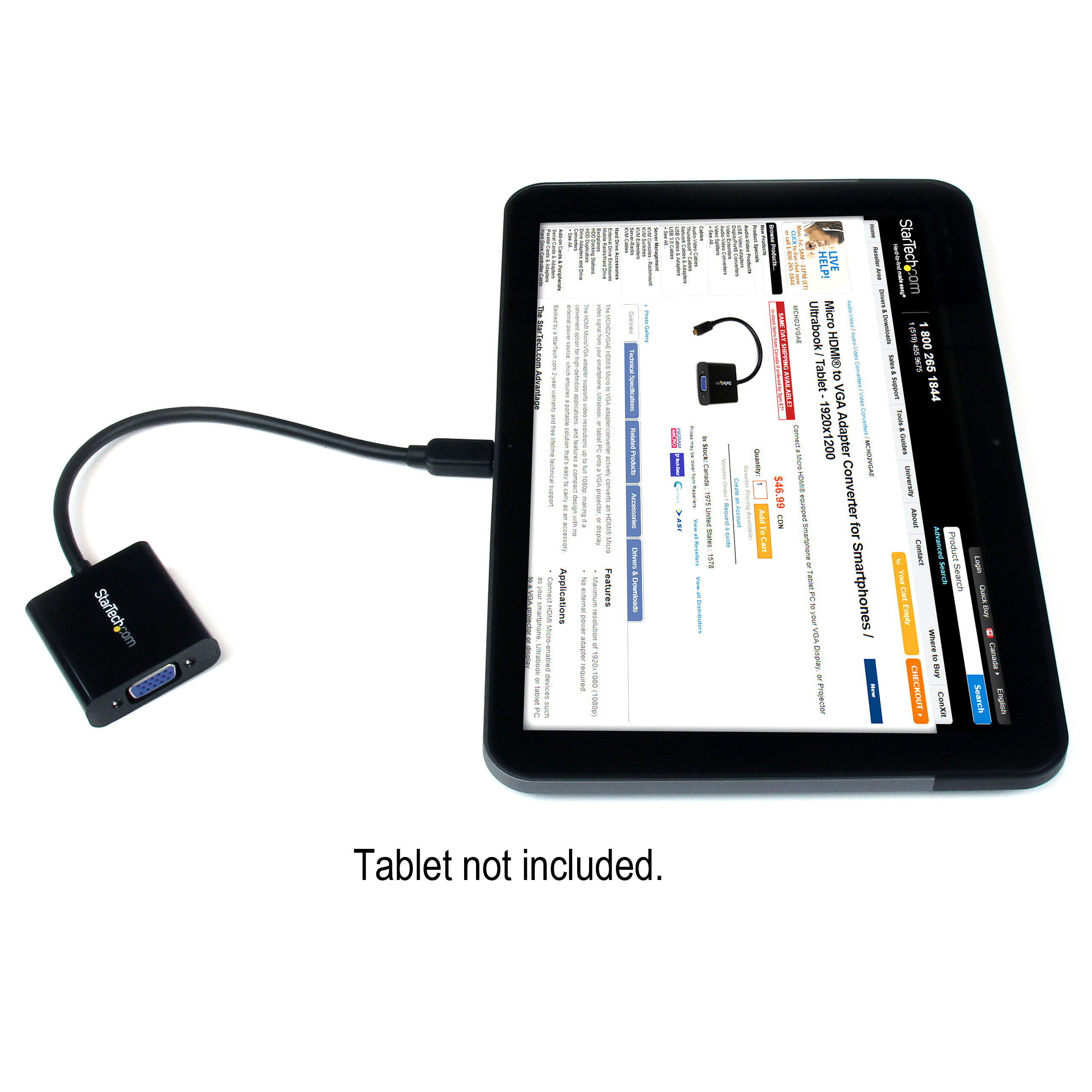

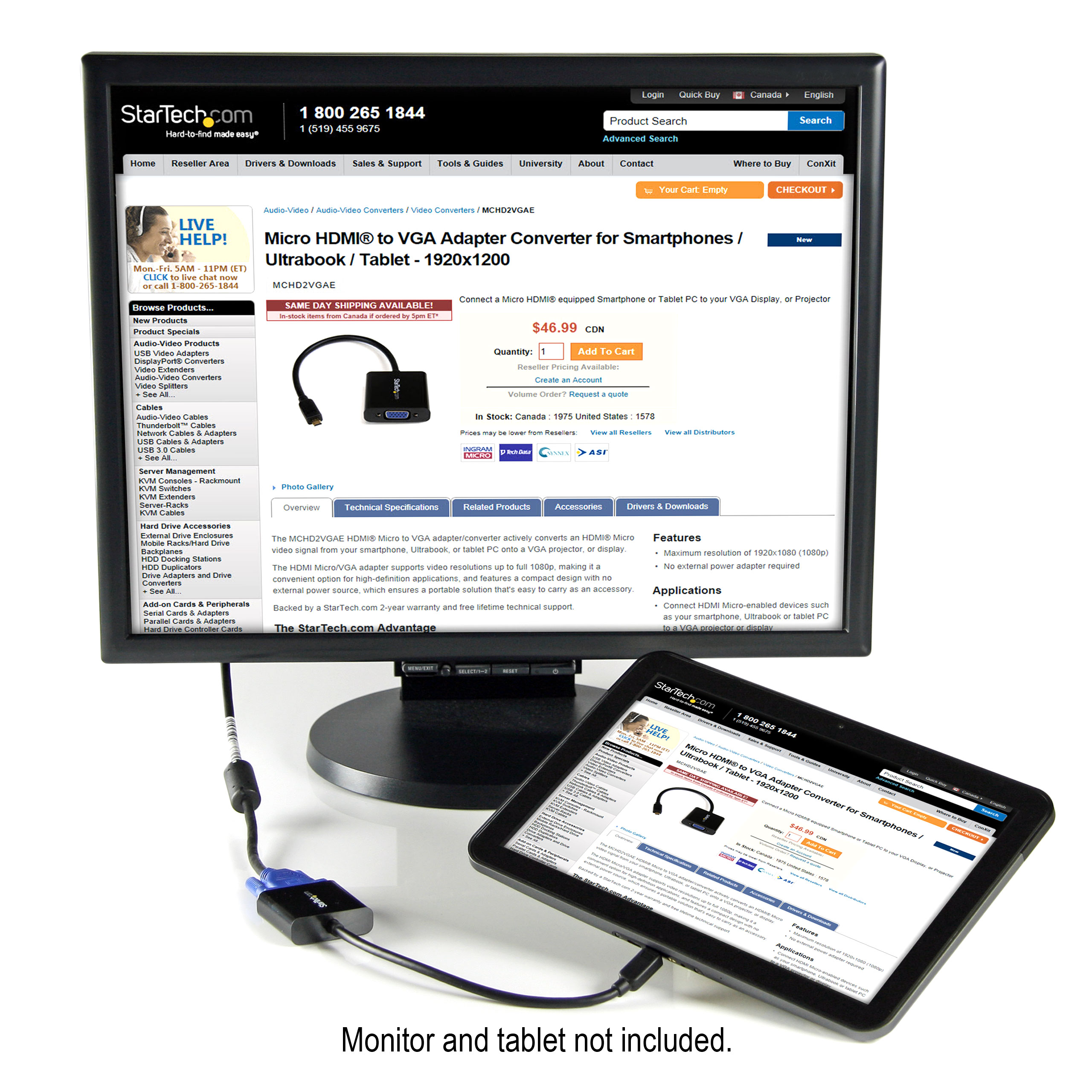

Connect a Micro HDMI® equipped Smartphone or Tablet PC to your VGA Display, or Projector
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name Micro HD - VGA adapter cable Product Number MCHD2VGAE2 UPC 065030850971 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 HDMI and DVI Display Adapters Category Level 3 HDMI to VGA Family HDMI to VGA Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) Micro HDMI to VGA Product Title (Short) Micro HDMI to VGA Adapter Product Title (Medium) x Product Title (Standard) Micro HDMI® to VGA Adapter Converter for Smartphones / Ultrabook / Tablet - 1920x1080 Product Title (Long) Micro HDMI to VGA Adapter Converter for Smartphones / Ultrabook / Tablet - 1920x1080 Product Title (AMZ) Micro HDMI® to VGA Adapter Converter for Smartphones / Ultrabook / Tablet - 1920x1080 - Micro HDMI Male to VGA Female (MCHD2VGAE2) Title Ingram (Part 1) Micro HDMI to VGA Adapter 1920x1 Title Ingram (Part 2) 1080 for Ultrabook / Tablet Website Product Headline Connect a Micro HDMI® equipped Smartphone or Tablet PC to your VGA Display, or Projector Bullet 1 Maximum resolution of 1920x1080 (1080p) Bullet 2 No external power adapter required Bullets (Consolidated) Connect a Micro HDMI equipped Smartphone or Tablet PC to your VGA Display or Projector - Compatible with Micro-HDMI enabled smartphones and tablets and VGA monitors, televisions and projectors - Supports resolutions up to 1080p - Micro HDMI to VGA adapter/Micro HDMI to VGA converter/Micro HDMI to VGA adapter - Simple plug and play adapter, for a quick and hassle-free setup - Compact design with no power adapter required for minimal footprint Marketing Copy Applications Connect HDMI Micro-enabled devices such as your smartphone, Ultrabook or tablet PC to a VGA projector or display Website Search Keyword - micro hdmi® to vga adapter
- micro hdmi® to vga converter
- micro hdmi® to vga adaptor
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- MXT101MMHQ30
Related Products - MCHD2VGAA2
- MCHD2VGA
- HD2VGAE2
- HD2VGAMICRO
- HD2VGAA2
- HD2VGAMICRA
- HDMI2VGA
- HD2DPVGADVI
- HD2VGAMM3
- HD2VGAMM6
- HD2VGAMM10
Cable Length (mm) 200 Color Black Humidity 40% to 85% RH Non-Condensing Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 255.000 Product Width (mm) 45.000 Product Height (mm) 15.000 Product Weight (g) 25.300 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Maximum Analog Resolutions 1920x1200 Maximum Digital Resolutions 1920x1200 Maximum Supported Resolution 1080p MTBF (hours) 1,754,784 hours Supported Resolutions 1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz Video Output Port VGA Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input Micro HDMI AV Output VGA Chipset ID ITE - IT6695FN Converter Type Format Converter Host Connection Port Micro HDMI Industry Standards High Speed HDMI® Carton Depth (mm) 420 Carton Height (mm) 435 Carton Quantity 240 Carton Weight Gross (g) 8220 Included in Package 1 - Micro HDMI® to VGA Converter Adapter Included In Package for Label 1 - Micro HDMI® To VGA Converter Converter Number of Sub-Cartons 24 Package Depth (mm) 199 Package Height (mm) 18 Package Width (mm) 112 Package Quantity 1 Package Weight (g) 44 Packaging Description Micro HD to VGA Adapter Converter Packaging Description India Micro HD to VGA Converter Converter Sub-Carton Depth (mm) 234 Sub-Carton Height (mm) 90 Sub-Carton Width (mm) 261 Sub-Carton Quantity 10 Sub-Carton Weight (g) 436 Connector 1 Micro HDMI Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
