Main Image
MCM10G6SSFP
10GbE Multigigabit Open SFP Fiber Media Converter
Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 10GbE Multigigabit Open SFP Fiber Media Converter Product Number MCM10G6SSFP UPC 065030917094 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Open Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) Fiber Media Convrter Product Title (Short) 10GbE Multi-Gigabit Media Converter, TAA Product Title (Medium) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, 10G/5G/2.5G/1G/100M, TAA Product Title (Standard) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone Ethernet RJ-45 to 10GBASE-X SFP+, Single/Multi-Mode, TAA Product Title (Long) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-X SFP+, Single-Mode / Multi-Mode, 16K Jumbo Frames - TAA Product Title (AMZ) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-X SFP+, Single-Mode / Multi-Mode, 16K Jumbo Frames - TAA Title Ingram (Part 1) 10GbE Multi-Gigabit Open SFP+ - Title Ingram (Part 2) Fiber Media Converter, TAA Website Product Headline Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver. Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Convert 100M to 10GBASE-T copper (RJ-45) to 10G fiber using an open SFP+ slot - Supports multi-mode / single-mode transceivers for flexible deployment and extended reach - Use as a compact standalone unit / with chassis systems - Does not support PoE Bullets (Consolidated) Convert 100M to 10GBASE-T copper (RJ-45) to 10G fiber using an open SFP+ slot; Supports multimode or single-mode transceivers - Use as standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) - Plug-and-play installation supports auto-negotiation of 100Mbps, 1/2.5/5/10Gbps copper speeds, 16K Jumbo Frames, Full-duplex - Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply - Does not support PoE Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
Input Current 0.4 Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 3.75 Power Source AC Adapter Included Plug Type NA/UK/EU/AU Center Tip Polarity Positive Color Black Humidity 5~95% RH (non-condensing) Material Metal Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 70 Product Width (mm) 94 Product Height (mm) 26 Product Weight (g) 180 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 100/1000/10000 Mbps (10Gb) Fiber Operating Mode Full-Duplex Fiber Type Single Mode / Multi Mode Flow Control Yes Jumbo Frame Support 16K max. Maximum Data Transfer Rate 10Gbps (Full-Duplex) Max Transfer Distance 60 km (37.3 mi) MTBF (hours) 50,000 Hours Remote Management Ability No Switching Architecture None Fiber Connector Open Industry Standards - IEEE 802.3an 10GBASE-T
- IEEE 802.3bz 2.5GBASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x
- IEEE 802.3ae 10Gbps Ethernet
LED Indicators - 1 - Power
- 1 - 1/10G LNK
- 1 - 5G/2.5G/100M LNK

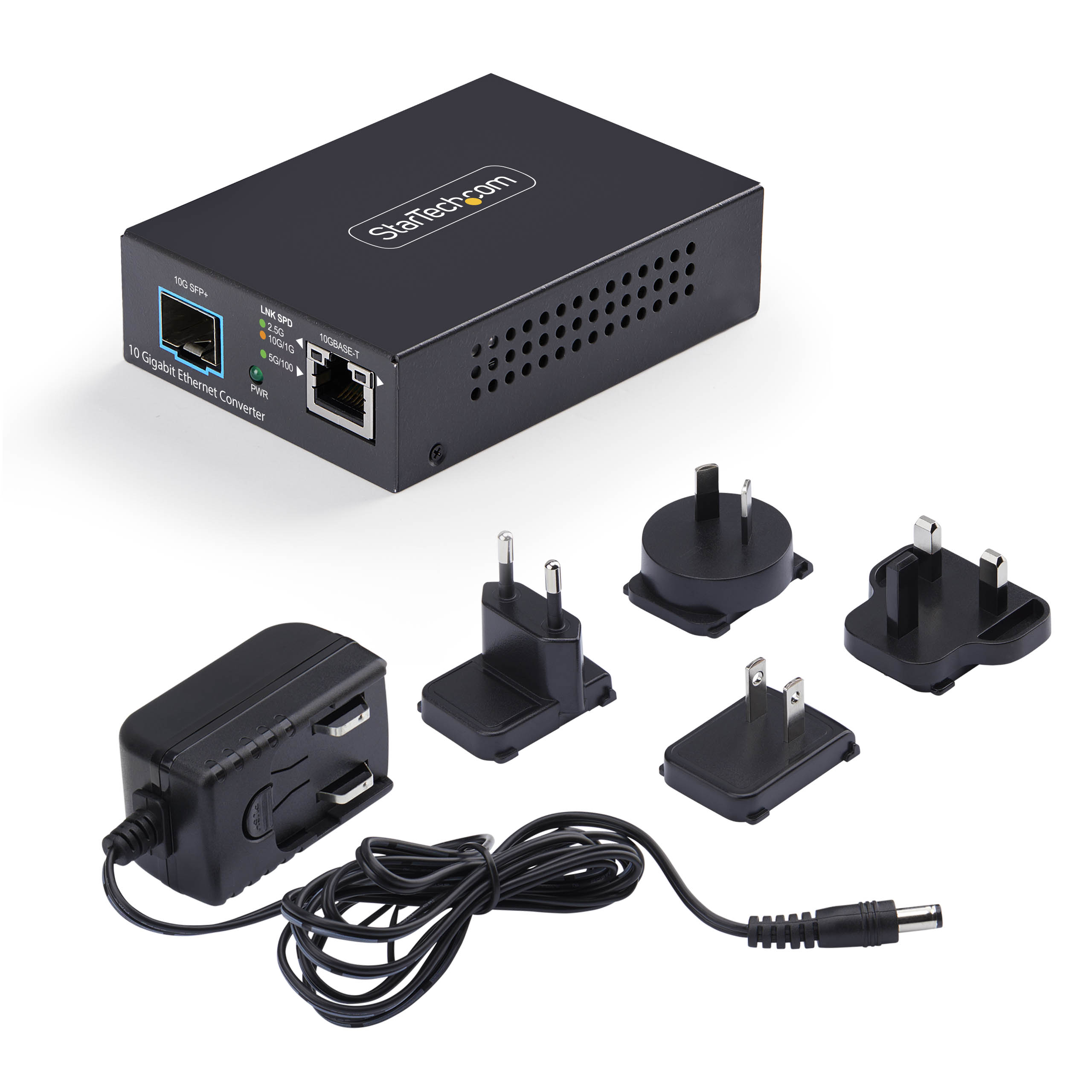

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 133 Carton Height (mm) 66 Carton Quantity 20 Carton Weight Gross (g) 10700 Included in Package - 1 - Media Converter
- 1 - Universal Power Supply
- 1 - Product Documentation
Package Depth (mm) 70 Package Height (mm) 26 Package Width (mm) 94 Package Weight (g) 535 Packaging Description 10GbE Fiber Media Converter - Open SFP+ Slot - Multigigabit Support Packaging Description India 10GbE Fiber Media Converter - Open SFP+ Slot - Multigigabit Support Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 10GbE Fiber Ethernet Media Converter for 10Gbps Network 10GBASE-T SFP to RJ45 Multigigabit Singlemode/Multimode Fiber Optic to Copper Network Ethernet to Fiber Bridge Comparable SKU 2 Comment 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed - TAA Digital Content Due Date 2025-10-27 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention MCM1xy ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,SE,UK,US Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-02-10 Target Production Release 2025-02-17 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Video Not Required
