MCM10GSFP
Low Cost 10Gb Ethernet RJ45 to Fiber Media Converter - Unman
Fiber to Copper Media Converter | 10GBASE/1000BASE | 10Gbps/1Gbps Unmanaged | Single Mode & Multimode
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Low Cost 10Gb Ethernet RJ45 to Fiber Media Converter - Unman Product Number MCM10GSFP UPC 065030878081 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Open Family Media Converters - MCM Series Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX163X Product Title (Ultra-Short) Fiber Media Convrter Product Title (Short) 10GbE Fiber Ethernet Media Converter Product Title (Medium) 10Gb Ethernet Fiber Media Converter with Open SFP+ Slot Product Title (Standard) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-T SFP, Single/Multi-Mode Product Title (Long) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-T SFP, Single-Mode / Multi-Mode, 9K Jumbo Frames Product Title (AMZ) 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-T SFP, Single-Mode / Multi-Mode, 9K Jumbo Frames Title Ingram (Part 1) 10Gb Ethernet Fiber Media Title Ingram (Part 2) Converter with Open SFP+ Slot Website Product Headline Fiber to Copper Media Converter | 10GBASE/1000BASE | 10Gbps/1Gbps Unmanaged | Single Mode & Multimode Bullet 1 FIBER ETHERNET MEDIA CONVERTER: Extends & converts 10Gbps/1Gbps fiber to RJ45 copper; Supports multimode & singlemode fiber connections & a wide variety of fiber protocols depending on SFP+ module used Bullet 2 Enable Zero-Touch Network Deployment: Plug-and-play design removes drivers and software, allowing non-technical users to install quickly while IT teams reduce setup time; Open SFP+ slot supports flexible copper-to-fiber or fiber-to-copper conversion Bullet 3 TECH SPECS: 10 Gbps; 1 Gbps; 10GBASE-T; 1000BASE-T; Unmanaged; LFP; SMF & MMF; Full Duplex; RJ45; Mountable; Power adapter incl.; Open SFP/SFP+ Bullet 4 RELIABLE & DURABLE DESIGN: Compact, stand-alone design, no rack necessary; External steel housing with ESD Surge Protection; Contact and Air Discharge Protection; MTBF rating exceeds 38,400 hrs Bullet 5 THE IT PRO'S CHOICE:: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime multi-lingual technical assistance Bullets (Compact) Fiber Ethernet media converter to convert & extend copper to fiber or vice versa - 10G network, 10GBASE-T, Unmanaged MMF/SMF RJ45 Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warr Bullets (Consolidated) Extends and converts 10Gbps/1Gbps fiber to RJ45 copper; Supports multimode & single mode fiber connections depending on SFP+ module used - Plug-and-play - Open SFP+ slot supports copper-to-fiber or fiber-to-copper conversion - Compact, stand-alone design, no rack necessary; External steel housing with ESD Surge Protection; Contact and Air Discharge Protection - 10 Gbps; 1 Gbps; 10GBASE-T; 1000BASE-T; Unmanaged; Full Duplex; MTBF 38,400 hrs; Mountable; Power adapter included Marketing Copy Marketing Copy (No HTML) Applications - Campuses
- Businesses
- Government facilities
- Stadiums
- Areas requiring network access
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Replacement Product MCM10GSFP2 Constrained SKU Alternatives (Limited Stock) ET10GSFP Input Current 2.5A Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10% ~ 90% Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°C) Primary Material Aluminum Product Length (mm) 122.000 Product Width (mm) 80.000 Product Height (mm) 30.000 Product Weight (g) 242.000 Storage Temperature -40°C to 120°C (-40°F to 248°F) TAA Compliant No Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 1Gbps / 10Gbps Fiber Operating Mode Full-Duplex Fiber Type Single Mode / Multi Mode Jumbo Frame Support 9K max. MTBF (hours) 38400 hours Remote Management Ability No Fiber Connector Open Industry Standards - IEEE 802.3ab 1000BASE-T
- IEEE 802.3 10BASE-T
- IEEE 802.3z 1000BASE-SX
- IEEE 802.3z 1000BASE-LX
- IEEE 802.3ae 10GBASE-SR
- IEEE 802.3ae 10GBASE-ER
- IEEE 802.3ae 10GBASE-LR
- IEEE 802.3ae 10GBASE-LW
- IEEE 802.3ae 10GBASE-EW
- IEEE 802.3ae 10GBASE-R
- IEEE 802.3ae 10GBASE-SW
- IEEE 802.3ae 10GBASE-T
- IEEE 802.3 1000BASE-T

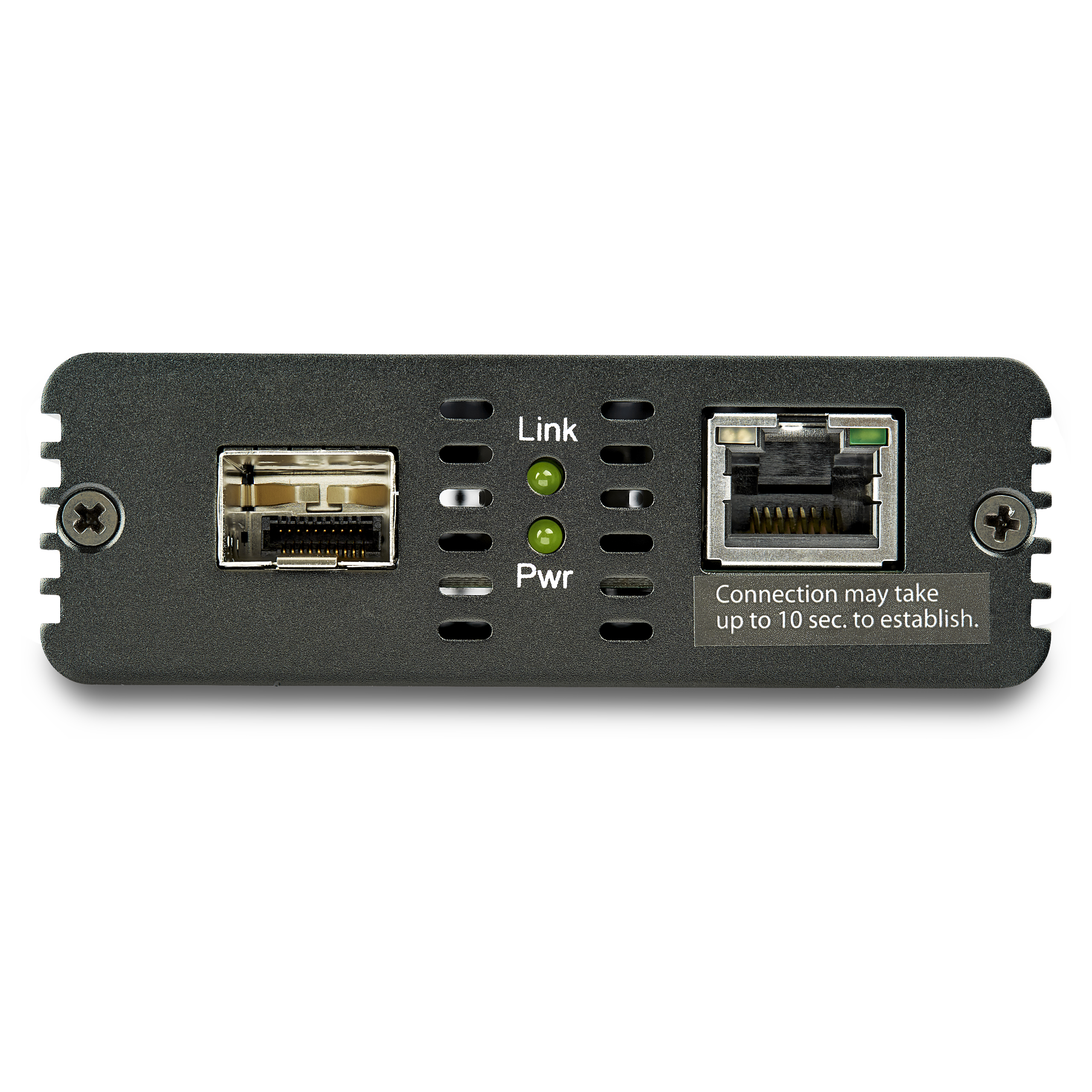

LED Indicators - 1 - Power
- 1 - Link

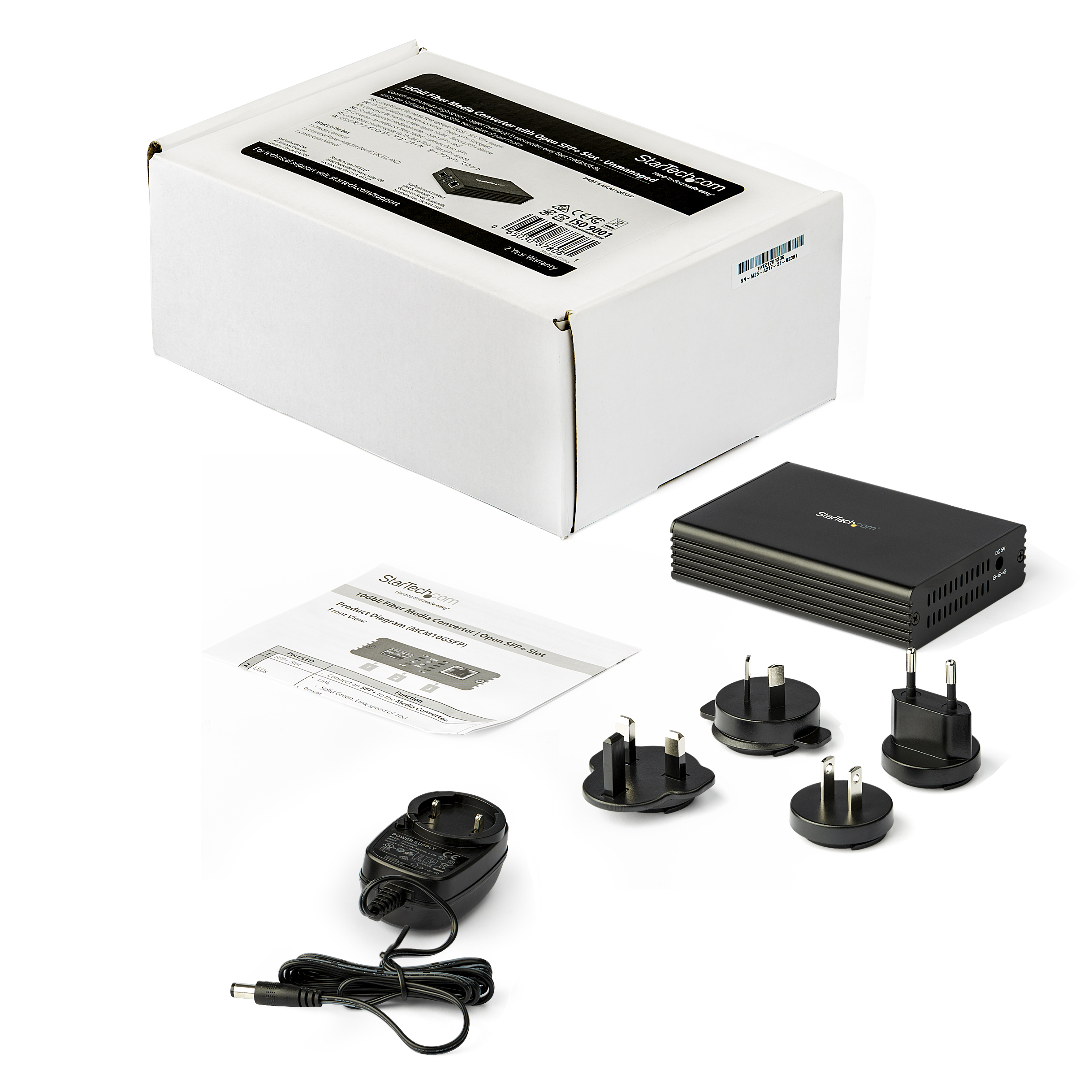

Power over Ethernet No Carton Depth (mm) 396 Carton Height (mm) 288 Carton Quantity 20 Carton Weight Gross (g) 10830 Included in Package - 1 - Media Converter
- 1 - Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 - Instruction Manual
Package Depth (mm) 129 Package Height (mm) 78 Package Width (mm) 205 Package Quantity 1 Package Weight (g) 498 Packaging Description 10GbE Fiber Media Converter - Open SFP+ Slot Packaging Description India 10GbE Fiber Media Converter - Open SFP+ Slot Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 SFP+ (10Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-12-21 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-01-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-07-20 Target Production Release 2018-12-21 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
