Main Image
MCM110SC
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 10/100 RJ45 to SC Fiber MMode Media Converter Product Number MCM110SC UPC 065030825924 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 10/100 Multi-Mode Fiber Media Converter RJ45 to SC Bullet 1 Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards Bullet 2 Auto detects half/full duplex transfer mode from the TX port. Bullet 3 It’s compact design and weight makes it portable and unobtrusive to carry Bullet 4 Led Indicators Bullet 5 Supports a maximum multi-mode fiber optic cable distance of 2km Marketing Copy The perfect solution for converting between 10 Base-T or 100 Base-TX electrical Ethernet signals and 100 Base-FX optical Ethernet signals, this 10/100 RJ45 multi-mode Converter supports a maximum multi-mode fiber optic cable distance of 2km, ensuring a highly reliable signal for ideal network performance. Applications Designed for large, higher speed bandwidth that has a demanding workgroups that require expansion of fast Ethernet Network. Website Search Keyword - RJ45 to SC
- Multi Mode Media Converter
- Media Converter
Accessory Products - FIBSCSC5
- FIBSCSC10
- FIBSCSC15
Related Products - MCM110ST
- ET90110ST
Replacement Product ET90110SC2 TAA Compliant No General Specifications - Standard: IEEE 802.3/IEEE 802.3U
- Operating Temperature: -10 ~ 50 degrees Celsius
- Storage: -40 to 70
- Humidity:10% - 90% (non – condensing)
- Maximum Distance: Twisted pair (cat 5e):100m Multi-mode fiber optic: 2km Single-mode fiber optic: 20/40/60/80/120km
- Power: Input: 220V AC, 48V DC Output: 5V DC 1A
- Power Adapter is Included

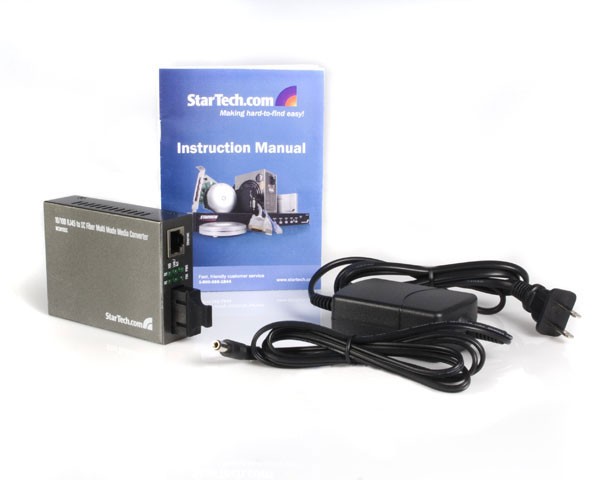

Carton Depth (mm) 490 Carton Height (mm) 380 Carton Quantity 20 Carton Weight Gross (g) 10800 Included in Package - 1 - Media Converter
- 1 - AC power adapter
- 1 - Instruction Manual
Package Depth (mm) 188 Package Height (mm) 65 Package Width (mm) 234 Package Weight (g) 480 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
