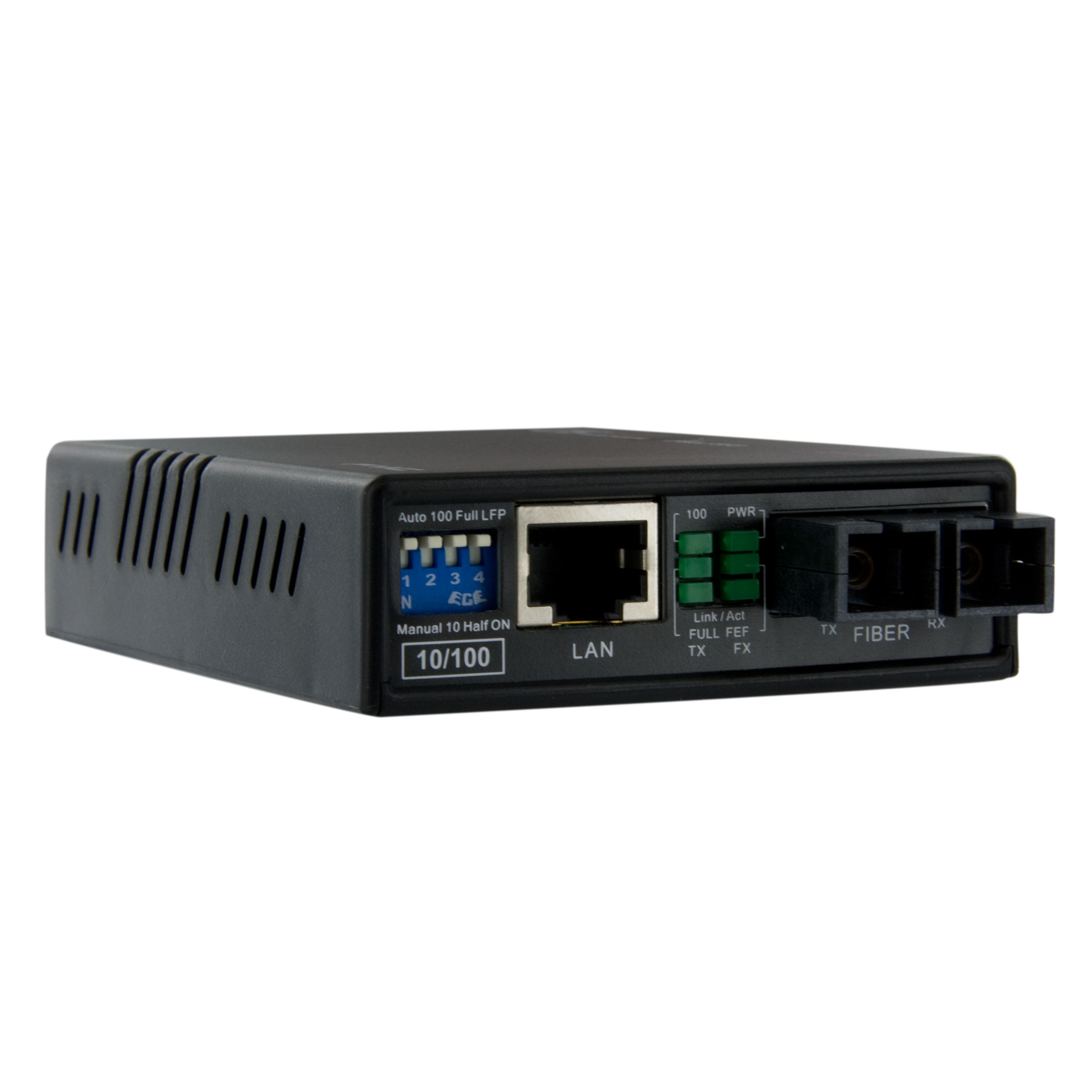

Main Image
MCM110SC2
10 100 100Base FX MultiMode Media Converter SC
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber
Main Image

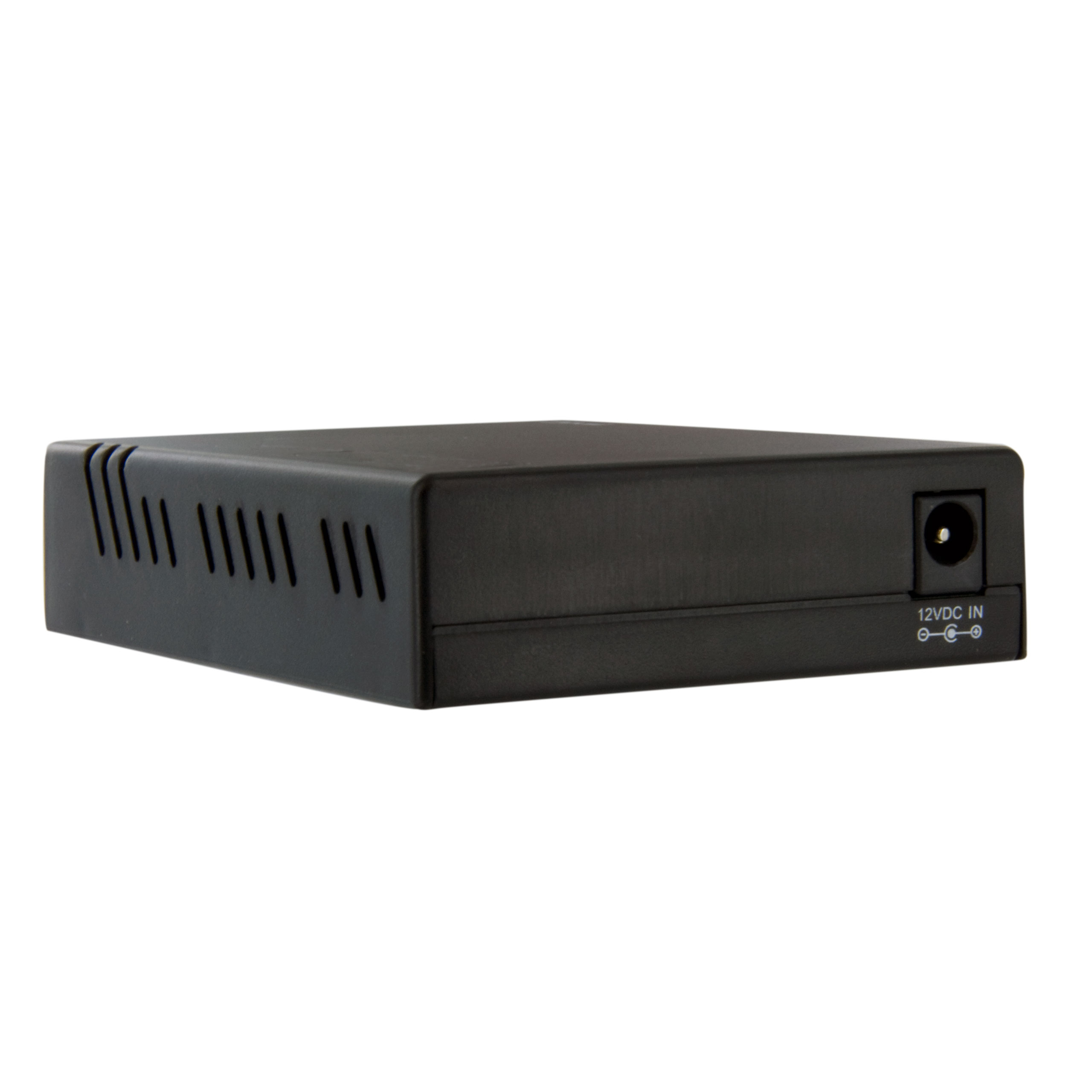

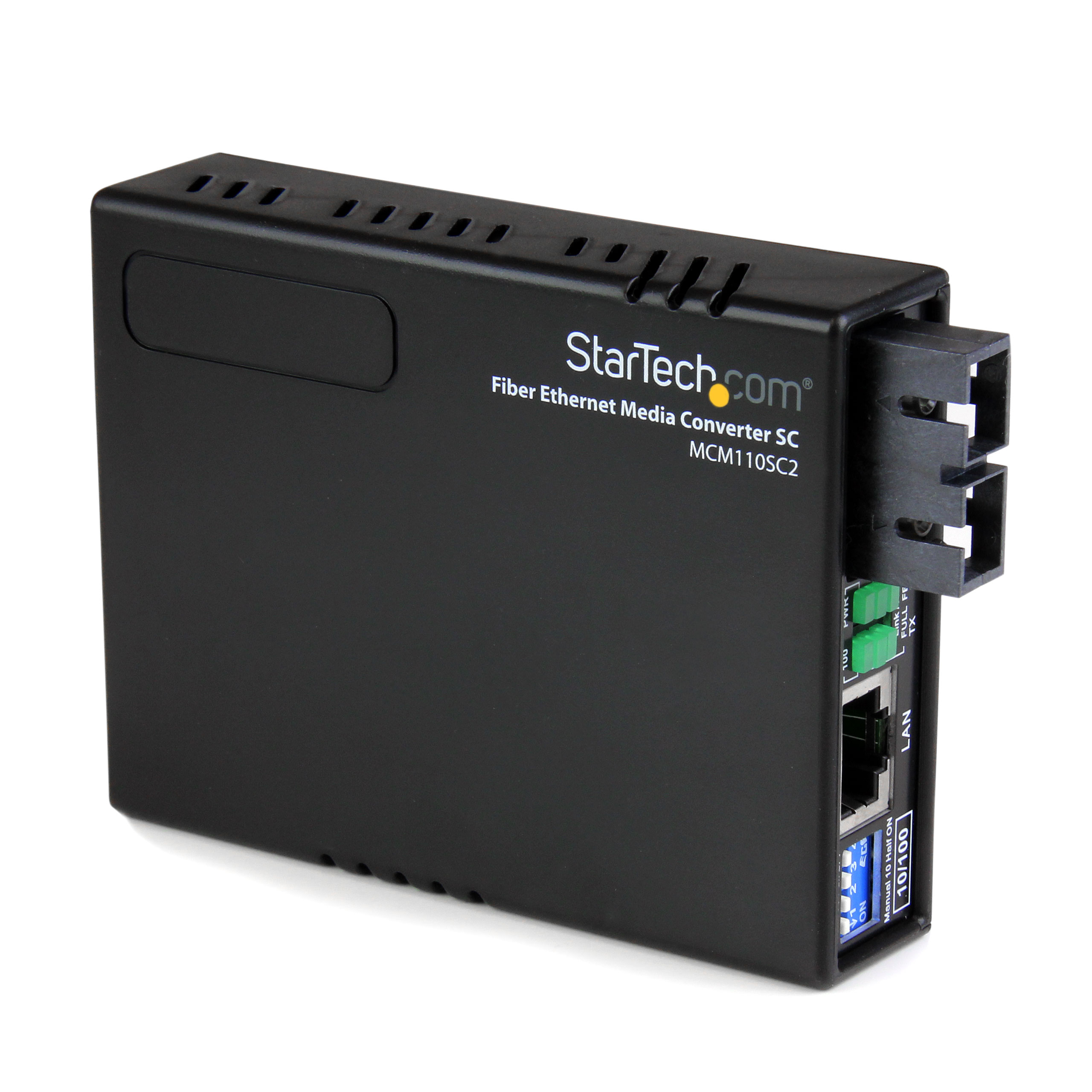

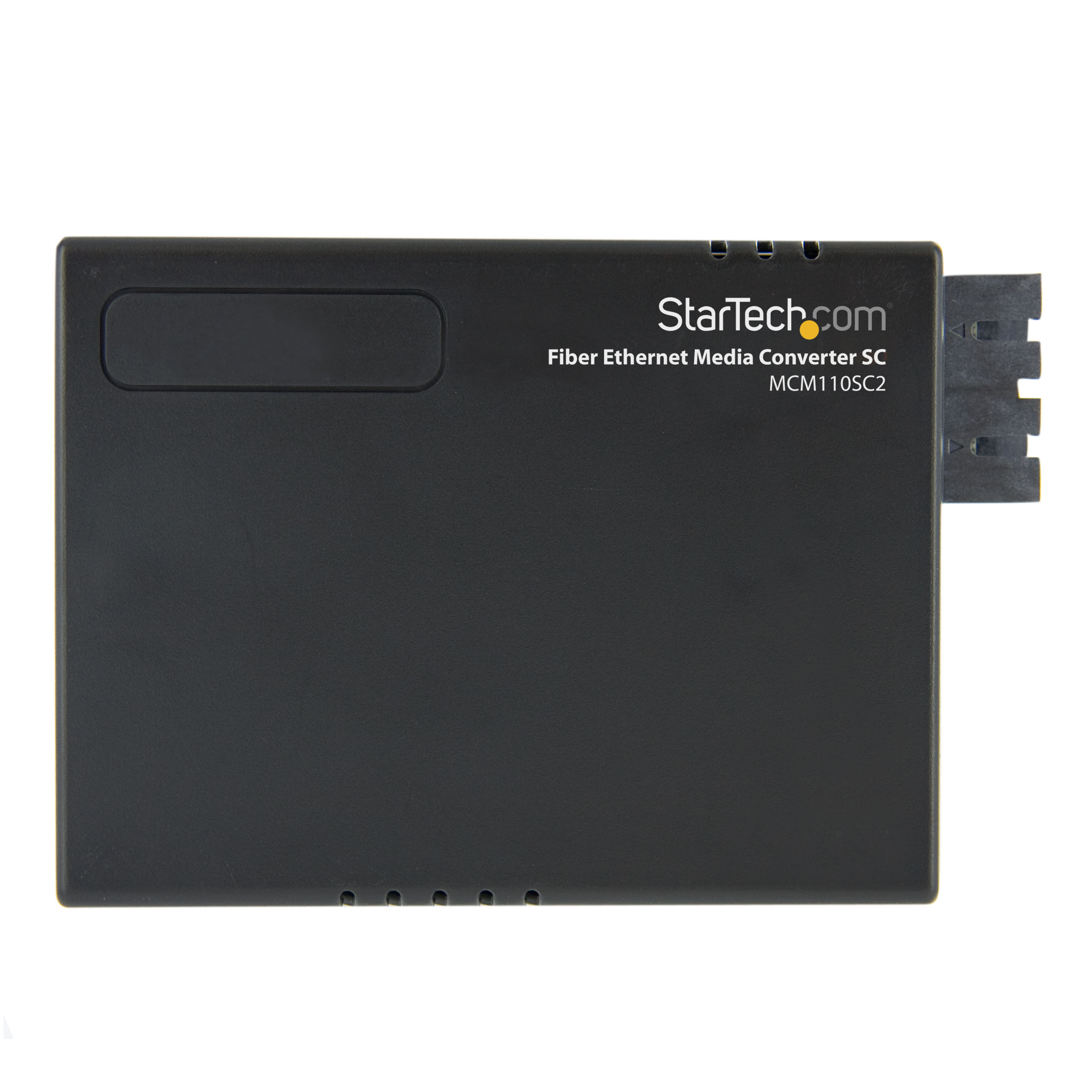

Product Images
Product Images
Product Images
BOM Image
Product Name 10 100 100Base FX MultiMode Media Converter SC Product Number MCM110SC2 UPC 065030835626 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - MCM Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) . Product Title (Short) Fiber to Ethernet Media Converter SC Product Title (Standard) Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC Fiber Converter, 1310nm, 2km, TAA Product Title (Long) Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA Product Title (AMZ) Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA Title Ingram (Part 1) 10/100 Fiber to Ethernet Media Title Ingram (Part 2) Converter - MM - RJ45 to SC 2 km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) . Bullets (Consolidated) Convert 10/100Mbps Ethernet to multi-mode SC fiber and extend up to 1.2mi (2km) - Compact converter installs in tight spaces, enabling fast integration into data centers or server rooms; Does not work with MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS - Plug-and-play; Auto-negotiates across networks or uses DIP switches to force speed, duplex, and link-fault passthrough settings - 2.4W w/12V DC input via included power adapter or an optional chassis power supply; Does not support PoE - TAA compliant Marketing Copy Marketing Copy (No HTML) Applications - Extend your Ethernet connection up to 2km away using fiber optics
- Designed for large, high speed work groups that require expansion of fast Ethernet Networks
- Connect via fiber optics two or more buildings on the same campus
- Connect remote sub-networks to larger fiber optic networks/backbones
Website Search Keyword - Long distance ethernet
- Ethernet fiber extender
- Fiber Optic transmitter
- Media Converter
- multi mode fiber
- Mutimode fiber converter
- RJ45 to SC
- transparent link
- N784-001-SC
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - 50FIBSCSC10
- FIBSCSC10
- FIBSCSC15
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
- M45PATCH6BL
- SVA12M2NEUA
- SVA12M5NA
Related Products - 110VDSLEXT
- ET1000SM40LC
- ET90110SC
- ET90110SM30
- ET90110ST
- ET90110WDM
- ET91000LC
- ET91000MMSM
- ET91000SC
- ET91000SM40
- MCM110ST2
Equivalent Part Number in the EU MCM110SC2EU Equivalent Part Number in the UK MCM110SC2GB Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 2.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 95.000 Product Width (mm) 75.000 Product Height (mm) 20.000 Product Weight (g) 84.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC Industry Standards - IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-FX
- IEEE 802.3u 100BASE-TX
LED Indicators - 1 - Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link)
- 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
- 1 - Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link)
- 1 - Full ( Full duplex / Half duplex)
- 1 - Power
- 1 - Speed (Off - 10Mbps, On - 100 Mbps)

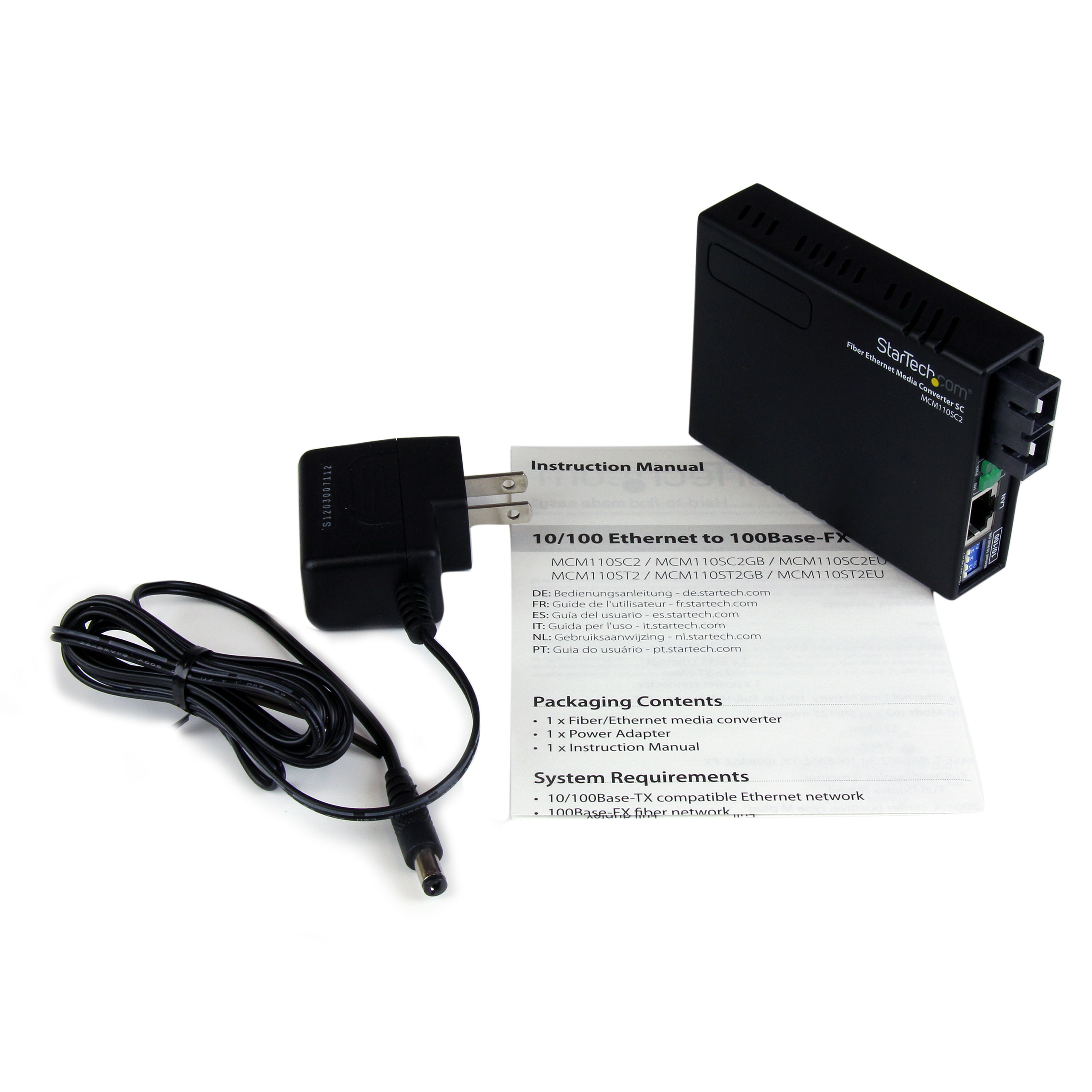

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 497 Carton Height (mm) 313 Carton Quantity 25 Carton Weight Gross (g) 7734 Included in Package - 1 - Media Converter
- 1 - Power Adapter
- 1 - User's Manual
Package Depth (mm) 146 Package Height (mm) 64 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 272 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,JP,NZ,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
