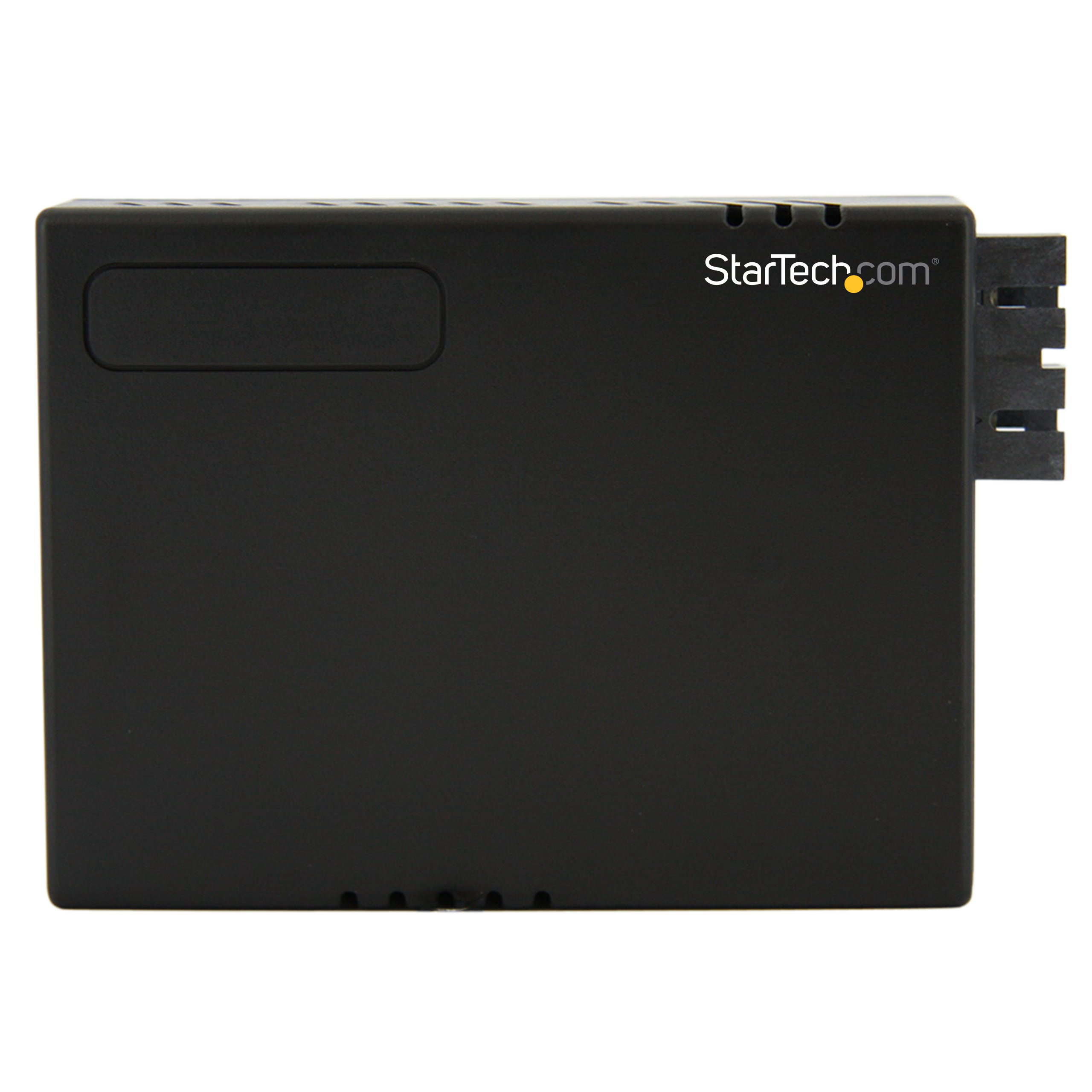

Main Image
MCM110SC2P
Power over Ethernet Media Converter SC
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber - with PoE
Main Image

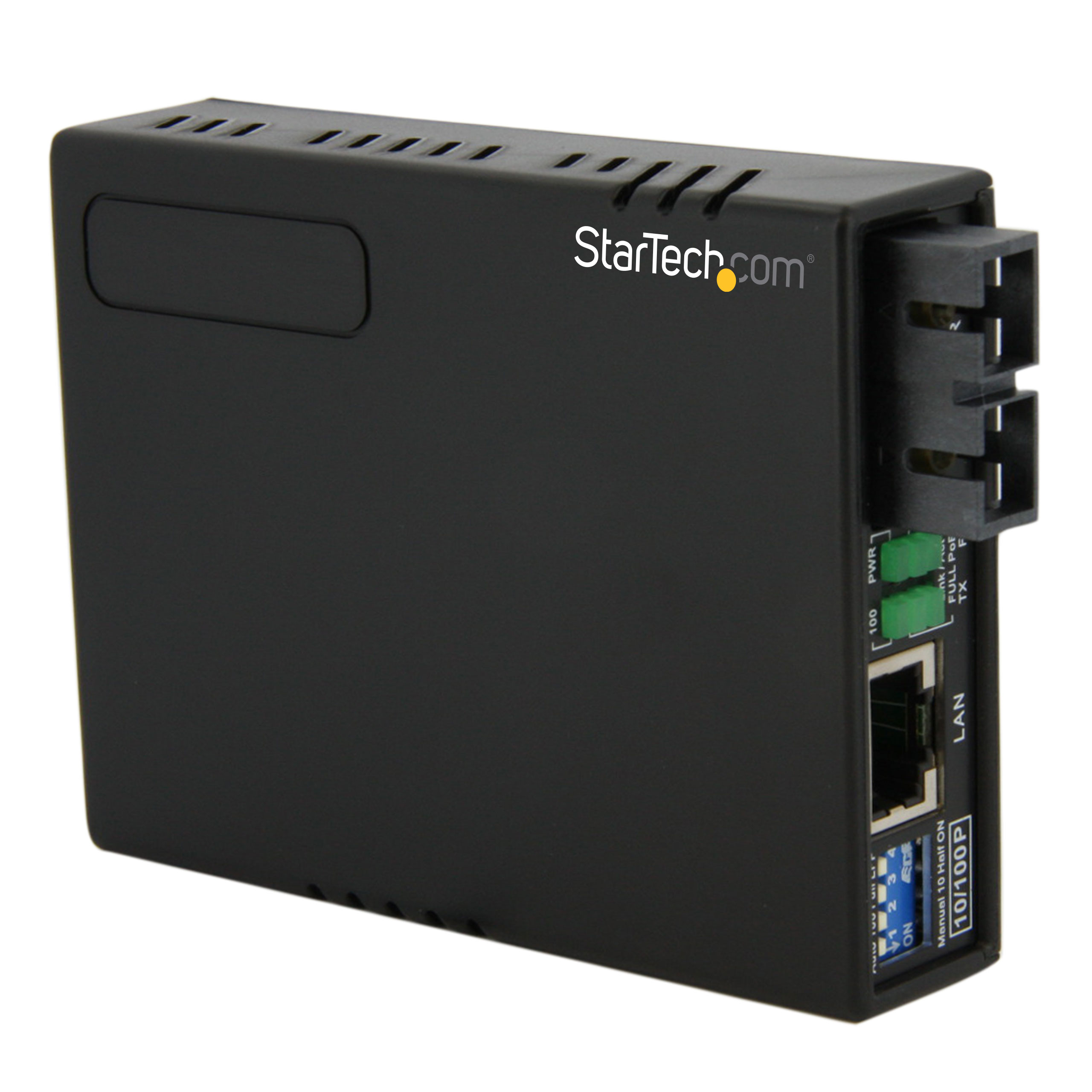

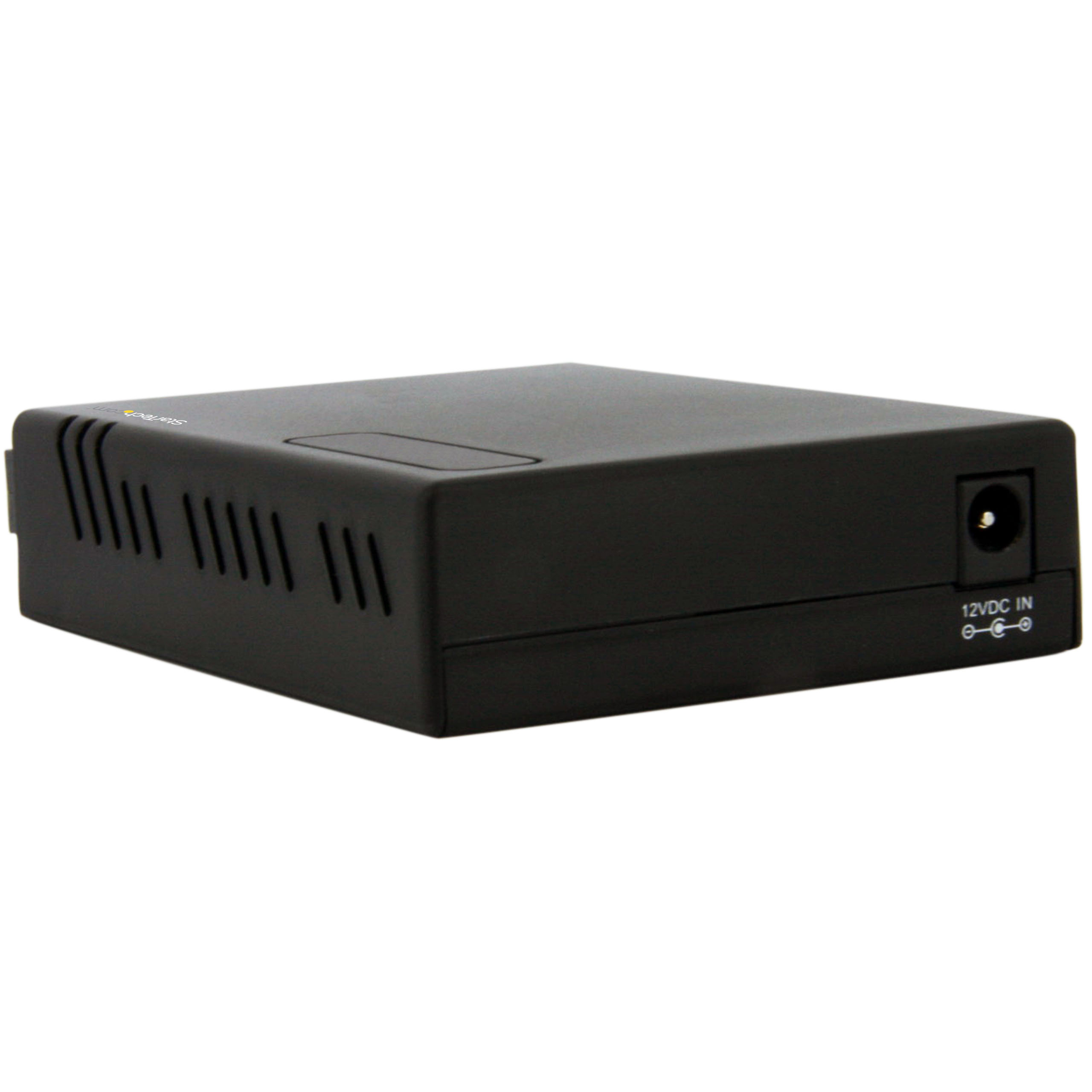

Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Power over Ethernet Media Converter SC Product Number MCM110SC2P UPC 065030835244 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - MCM Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Fiber to Ethernet Media Converter w/ PoE Product Title (Standard) 10/100 Multi Mode Fiber to Ethernet Media Converter SC 2km with PoE Product Title (Long) 10/100 Multi Mode Fiber to Ethernet Media Converter SC 2km with PoE - TAA Product Title (AMZ) 2 km Fiber Media Converter - 10/100Mbps Ethernet - Multi Mode SC Fiber - PoE - Ethernet Media Converter (MCM110SC2P) Title Ingram (Part 1) 10/100 MM Fiber to Ethernet Medi Title Ingram (Part 2) a Converter SC w/ PoE Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber - with PoE Bullet 1 Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards Bullet 2 Supports a maximum multimode fiber optic cable distance of 2km Bullet 3 10/100 Mbps auto-negotiation and auto-crossover on RJ45 port Bullet 4 Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber Bullet 5 Fiber Support Cable Type - 62.2/125µm & 50/125µm Bullets (Consolidated) Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber - Auto detects half/full duplex transfer mode on RJ45 port - Compact and lightweight design for portability - Supports a maximum multimode fiber optic cable distance of 2km - Forward 1600 bytes (Max.) packets - Supports IEEE 802.1q VLAN tagging pass-through Marketing Copy Applications - Designed for large, high speed bandwidth requirements of demanding workgroups needing expansion of their fast Ethernet Network
- Works well in industrial applications where standard power outlets are not available, or are too costly to install
Website Search Keyword - Multimode
- Multi-Mode
- Multi Mode
- 10/100
- 100BaseTX
- CAT5
- CAT5e
- CAT6
- Copper to Fiber
- RJ45
- SC Connector
- Fiber Media Converter
- PoE
- Power Over Ethernet
- Optical Media Converter
- Fast Ethernet
- transparent link
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - SCFIBLBTEST
- M45PATCH1BK
- M45PATCH2BL
- 45PATCH3GR
- FIBSCSC50
- FIBSCSC40
- FIBSCSC20
- 50FIBSCSC150
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET90110SC
- ET90110ST
- ET91000SC
- ET1000SM40LC
- ET91000MMSM
- MCM110ST2P
Equivalent Part Number in the UK MCM110SC2PGB Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 4.8 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 95.000 Product Width (mm) 75.000 Product Height (mm) 20.000 Product Weight (g) 86.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100 Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX

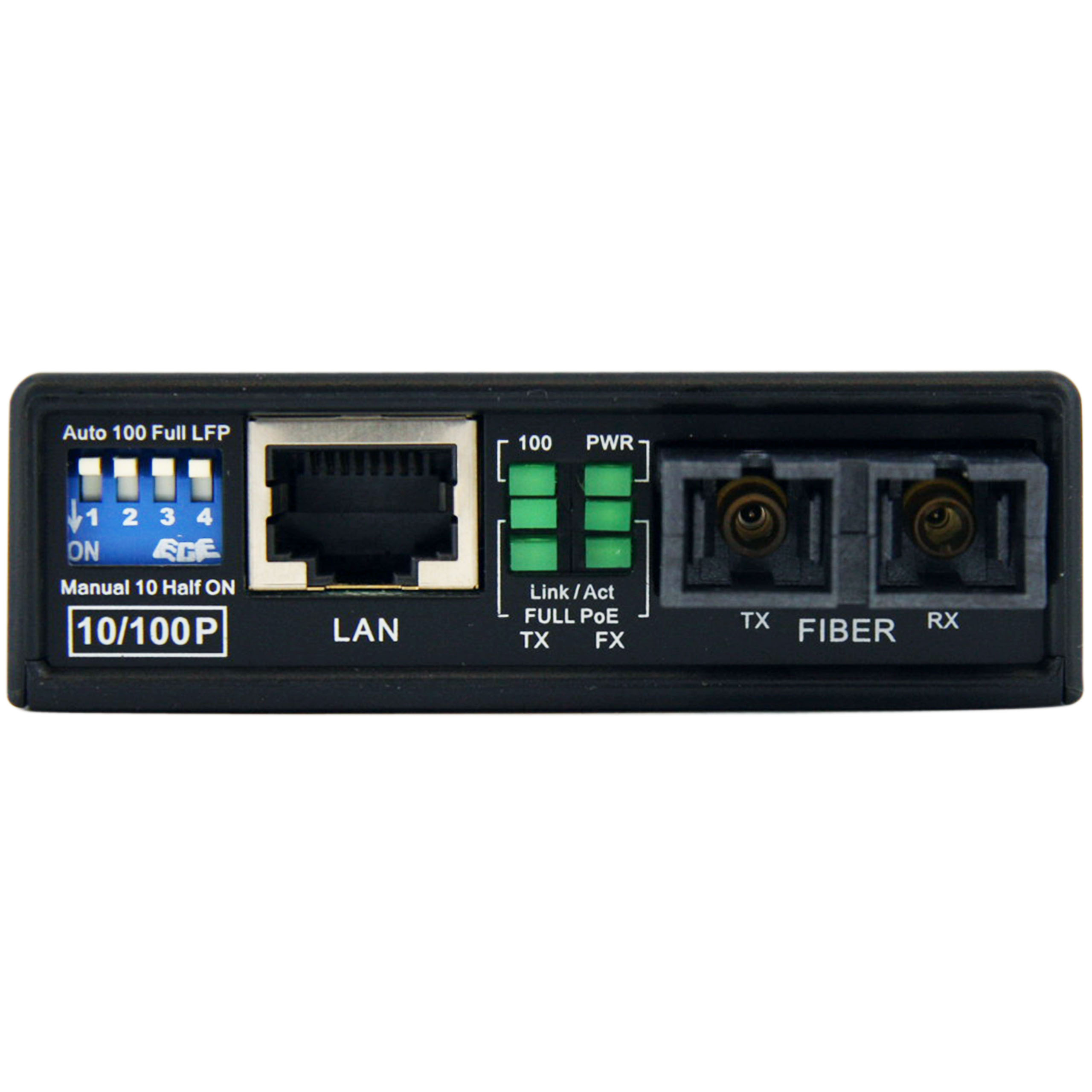

LED Indicators - 1 - Power
- 1 - 10/100 Operating Mode
- 1 - POE Enabled
- 1 - Full/Half Duplex Mode
- 1 - Fiber Activity/Link
- 1 - Ethernet Activity/Link

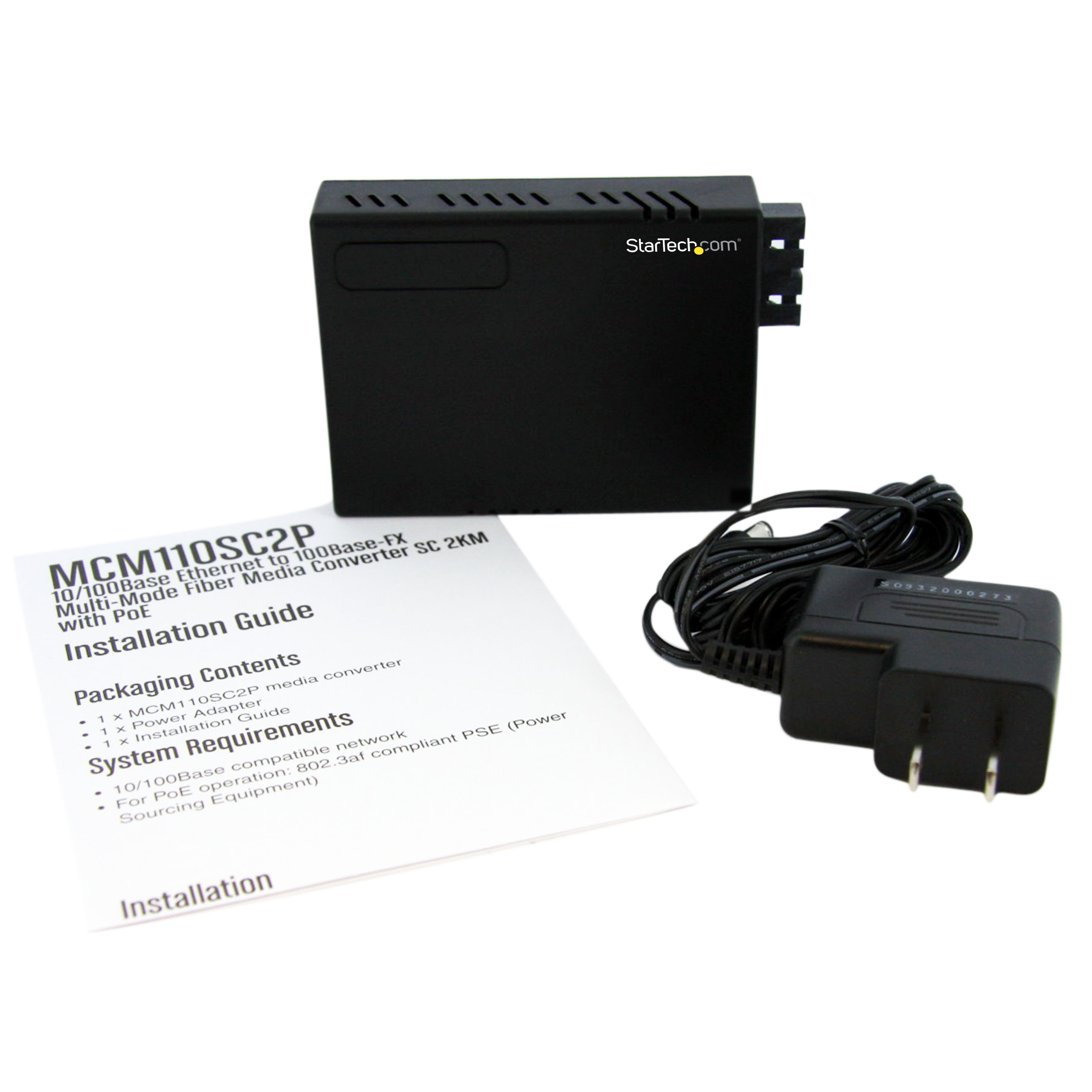

Power over Ethernet Yes Wave Division Multiplexing (WDM) No Carton Depth (mm) 394 Carton Height (mm) 306 Carton Quantity 25 Carton Weight Gross (g) 7934 Included in Package - 1 - Media Converter
- 1 - Power Adapter
- 1 - Instruction Sheet
Package Depth (mm) 146 Package Height (mm) 62 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 276 Packaging Description 10/100 Ethernet to SC Fiber Converter w/ PoE Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
