MCM110ST2
10 100 Fiber to Ethernet Media Converter Multi Mode ST 2 km
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10 100 Fiber to Ethernet Media Converter Multi Mode ST 2 km Product Number MCM110ST2 UPC 065030835633 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - MCM Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) . Product Title (Short) MM Fiber Ethernet Media Converter ST 2km Product Title (Standard) Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST Fiber Converter, 1310nm, 2km, TAA Product Title (Long) Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM Fiber Media Converter, 1310nm, 2km - TAA Product Title (AMZ) Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM Fiber Media Converter, 1310nm, 2km - TAA Title Ingram (Part 1) 10/100 UTP to Fiber Ethernet Med Title Ingram (Part 2) ia Converter - Multi Mode ST 2km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Consolidated) Convert 10/100Mbps Ethernet to multi-mode ST fiber and extend up to 1.2mi (2km) - Compact converter installs in tight spaces, enabling fast integration into data centers or server rooms; Does not work with MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS - Plug-and-play; Auto-negotiates across networks or uses DIP switches to force speed, duplex, and link-fault passthrough settings - 2.4W w/12V DC input via included power adapter or an optional chassis power supply; Does not support PoE - TAA compliant Marketing Copy Marketing Copy (No HTML) Applications - Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Perfect for secure environments required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals over multimode fiber cable
Website Search Keyword - Long distance ethernet
- Ethernet fiber extender
- Fiber Optic transmitter
- Media Converter
- multi mode fiber
- Mutimode fiber converter
- RJ45 to SC ST
- transparent link
- N784-001-ST
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - FIBSTST10
- FIBSTST15
- FIBSTST5
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
- M45PATCH6BL
- SVA12M2NEUA
- SVA12M5NA
Related Products - 110VDSLEXT
- ET1000SM40LC
- ET90110SC
- ET90110SM30
- ET90110ST
- ET90110WDM
- ET91000LC
- ET91000MMSM
- ET91000SC
- ET91000SM40
- MCM110SC2
Equivalent Part Number in the EU MCM110ST2EU Equivalent Part Number in the UK MCM110ST2GB Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 2.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 95 Product Width (mm) 75 Product Height (mm) 20 Product Weight (g) 82 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector ST Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX
- IEEE 802.3 10BASE-T
LED Indicators - 1 - Speed (10 or 100 Mbps)
- 1 - Power
- 1 - Full ( Full duplex / Half duplex)
- 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
- 1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
- 1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)

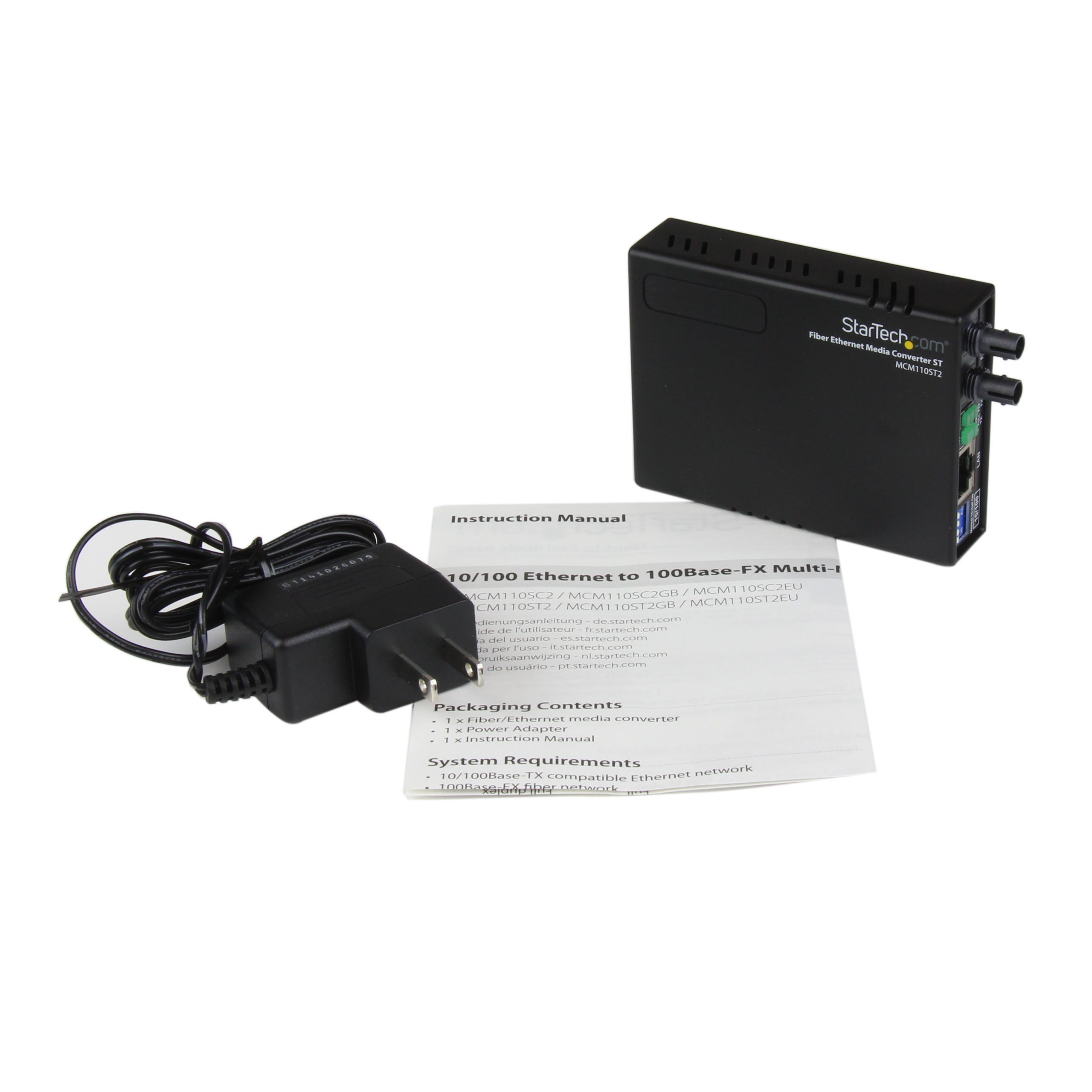

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 492 Carton Height (mm) 312 Carton Quantity 25 Carton Weight Gross (g) 7388 Included in Package - 1 - Media Converter
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 146 Package Height (mm) 64 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 254 Packaging Description 10/100 Mbps Ethernet to ST Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 ST Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,JP,MX,NZ,PE,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
