Main Image
MCM110ST2GB

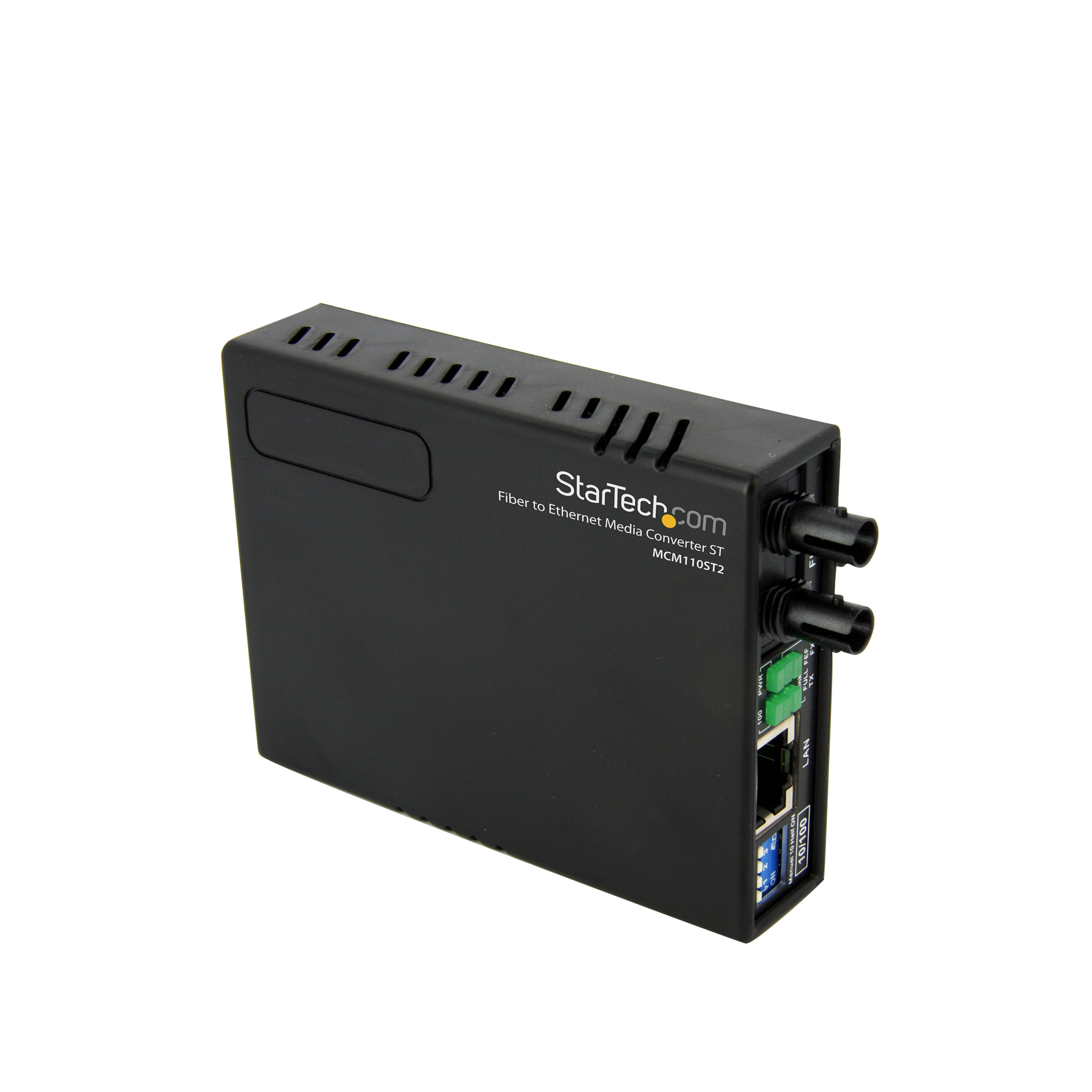

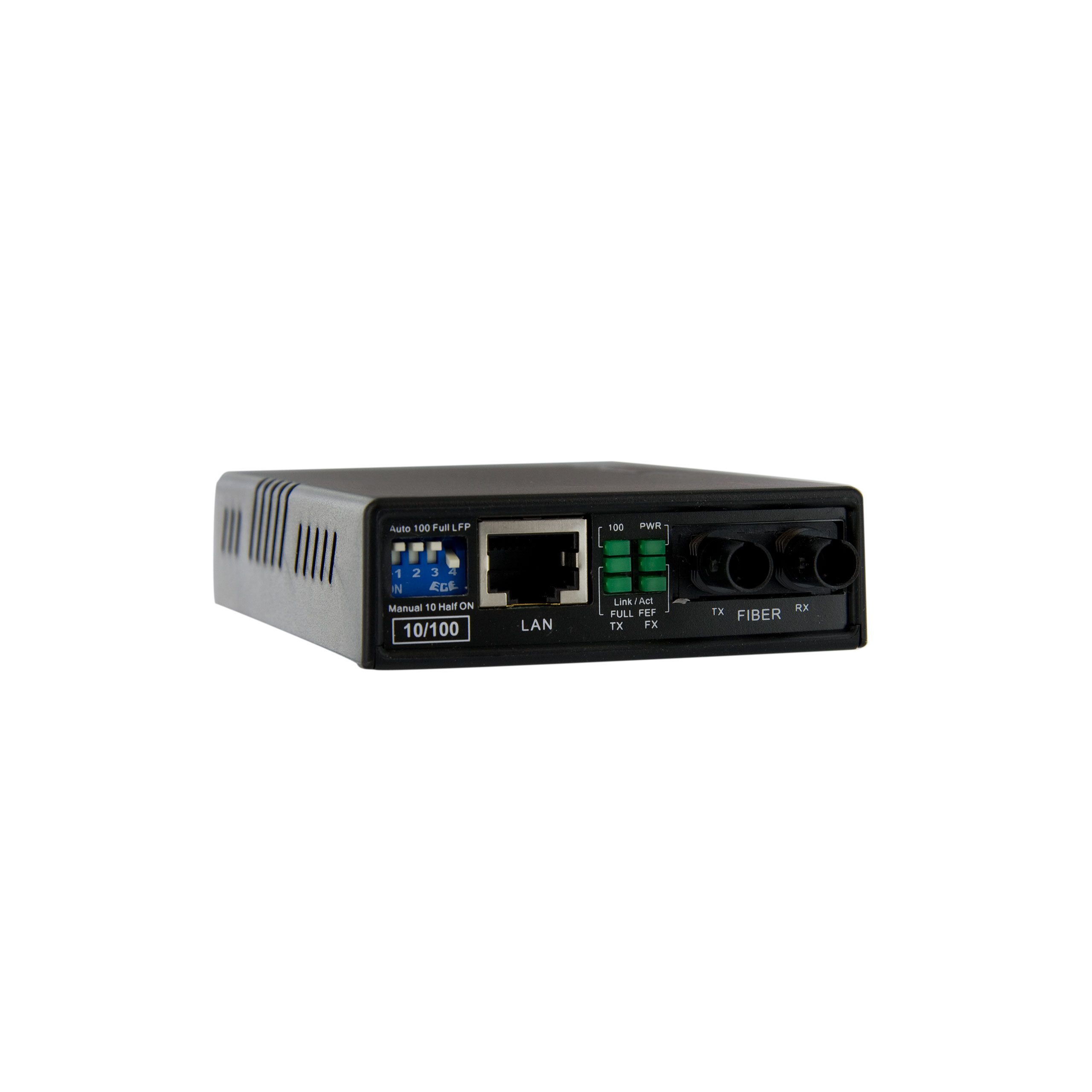

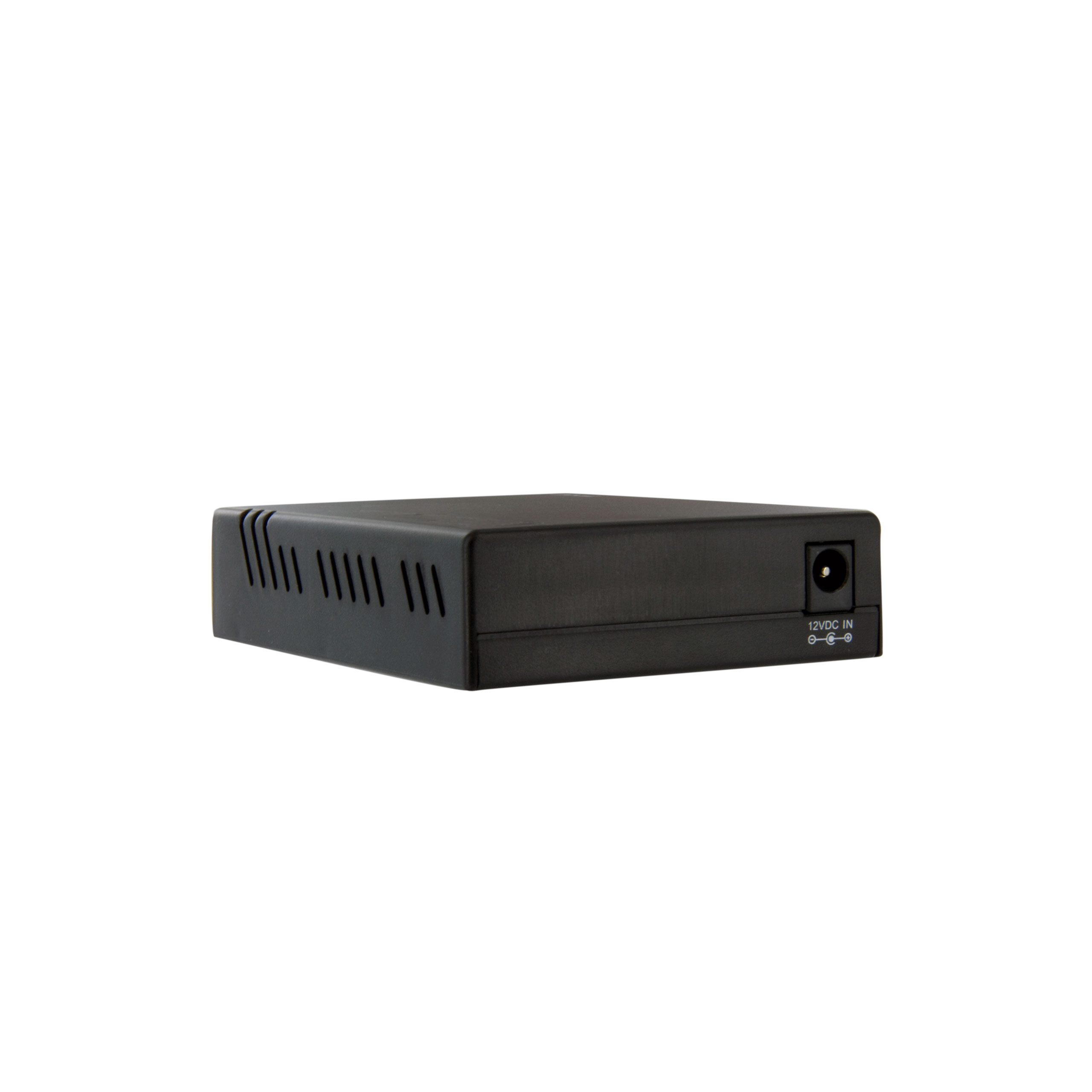

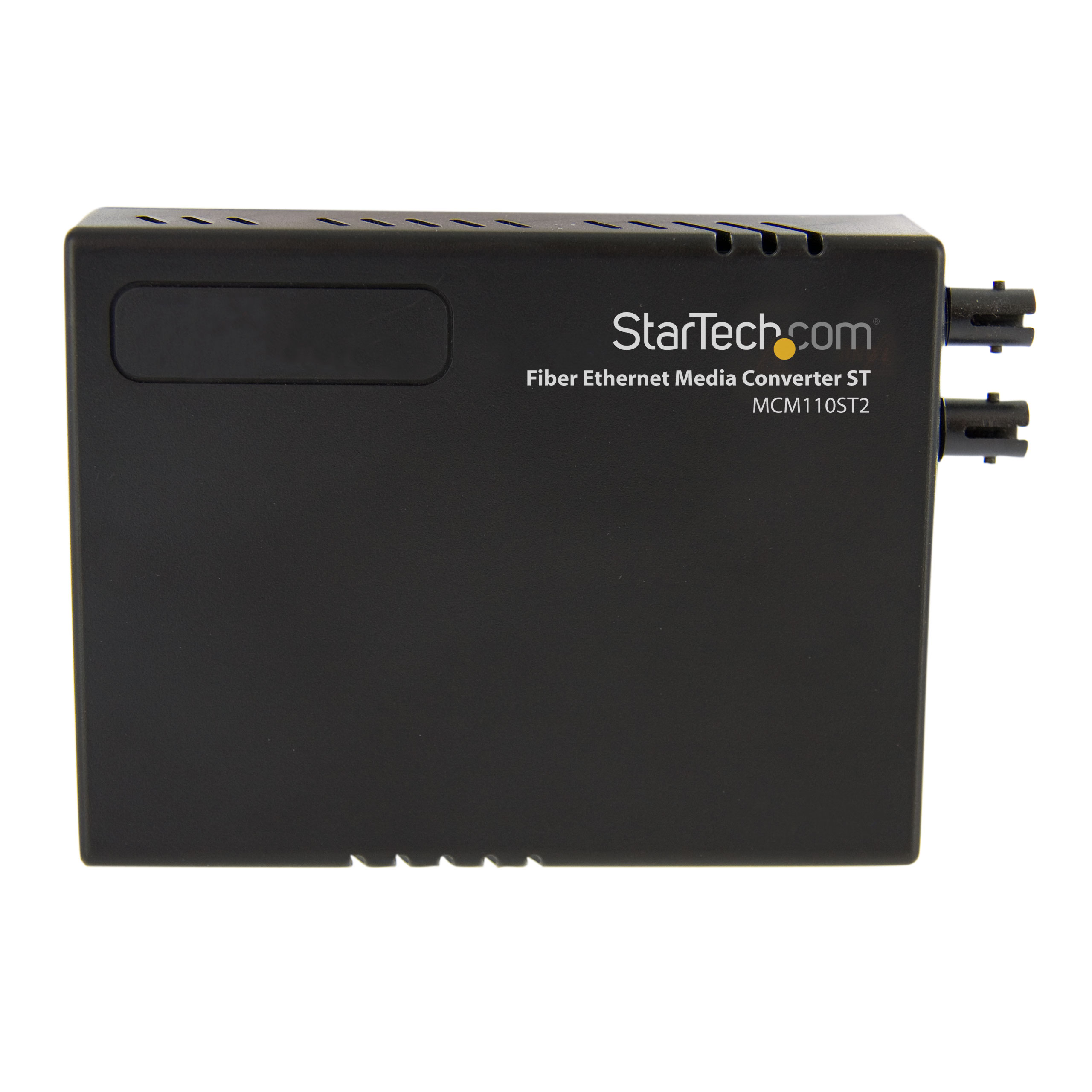

UTP to Fiber Ethernet Media Converter - MM ST 2km
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
Main Image
Product Images
Product Images
Product Images
Product Name UTP to Fiber Ethernet Media Converter - MM ST 2km Product Number MCM110ST2GB UPC 065030836517 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - MCM Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) MM Fiber Ethernet Media Converter ST 2km Product Title (Standard) 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km, TAA Product Title (Long) 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - TAA Product Title (AMZ) 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - UTP to 100Base-Fx - Fiber Optic Media Converter MM , TAA (MCM110ST2GB) Title Ingram (Part 1) 10/100 UTP to Fiber Ethernet Med Title Ingram (Part 2) ia Converter - Multi Mode ST 2km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber Bullet 1 1310nm wavelength Bullet 2 Auto detects half/full duplex transfer mode from the TX port. Bullet 3 Auto negotiation or Force 10/100 Mbps and MDI/MDI-X (Crossover for TX port). Bullet 4 Compatible with 3COM™, Cisco™, Lucent™ and Nortel™ networks Bullet 5 Forward 9K jumbo packets in converter mode Marketing Copy Applications - Connect remote sub-networks to larger fiber optic networks/backbones
- Connect via fiber optics two or more buildings on the same campus
- Designed for ethernet expansion, primarily for large workgroups requiring higher network speeds and increased bandwidth
- Extend your Ethernet connection up to 2km away at full speed using fiber optics.
Website Search Keyword - Ethernet fiber extender
- Fiber Optic transmitter
- Long distance ethernet
- Media Converter
- multi mode fiber
- Mutimode fiber converter
- RJ45 to SC ST
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - FIBSTST10
- FIBSTST15
- FIBSTST5
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
- M45PATCH6BL
- SVA12M2NEUA
- SVA12M5NA
Related Products - 110VDSLEXTGB
- ET1000MMSMGB
- ET90110SCGB
- ET90110STGB
- MCM110SC2GB
Input Voltage 100 - 240 AC Output Current 0.2A Output Voltage (V) 12V DC Power Consumption (In Watts) 2.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 95 Product Width (mm) 75 Product Height (mm) 20 Product Weight (g) 90.5 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector ST Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX
- IEEE 802.3 10BASE-T
LED Indicators - 1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)
- 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
- 1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
- 1 - Full ( Full duplex / Half duplex)
- 1 - Power
- 1 - Speed (10 or 100 Mbps)
Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 390 Carton Height (mm) 300 Carton Quantity 1 Carton Weight Gross (g) 8000 Included in Package - 1 - Media Converter
- 1 - Power Adapter
- 1 - User's Manual
- 1 - UK power plug adapter
Package Depth (mm) 145 Package Height (mm) 65 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 280 Packaging Description 10/100 Mbps Ethernet to ST Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 ST Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,EU,IE,NL,UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
