Main Image
MCM110ST2PGB
Power over Ethernet Media Converter ST
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber - with PoE
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Power over Ethernet Media Converter ST Product Number MCM110ST2PGB UPC 065030836814 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Fiber to Ethernet Media Converter w/ PoE Product Title (Standard) StarTech.com 10/100 Multi Mode Fiber to Ethernet Media Converter ST 2km with PoE Product Title (Long) 10/100 Multi Mode Fiber to Ethernet Media Converter ST 2km with PoE Title Ingram (Part 1) 10/100 MM Fiber Ethernet Media C Title Ingram (Part 2) onverter ST w/ PoE Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber - with PoE Bullet 1 Auto – negotiation of 10/100 Mbps and Auto – Crossover for TX port. Bullet 2 Auto detects half/full duplex transfer mode from the TX port. Bullet 3 Can be powered over RJ45 ethernet with a PoE enabled network Bullet 4 Fiber Support: Cable Type- 62.2/125µm, 50/125µm - 2km Range Bullet 5 Forward 1600 bytes (Max.) packets Marketing Copy Applications - Designed for large, high speed bandwidth requirements of demanding workgroups needing expansion of their fast Ethernet Network.
- Works well in industrial applications where standard power outlets are not available, or are too costly to install
Website Search Keyword - 10/100
- 100BaseT
- CAT5
- CAT5e
- CAT6
- Copper to Fiber
- Fast Ethernet
- Fiber Media Converter
- Multi Mode
- Multi-Mode
- Multimode
- Optical Media Converter
- PoE
- Power Over Ethernet
- RJ45
- ST Connector
- transparent link
Accessory Products - 45PATCH3GR
- 50FIBSCSC150
- FIBSCSC20
- FIBSCSC40
- FIBSCSC50
- M45PATCH1BK
- M45PATCH2BL
- SCFIBLBTEST
Related Products - 110VDSLEXTGB
- ET1000MMSMGB
- ET90110SCGB
- ET90110STGB
- MCM110SC2GB
- MCM110ST2GB
- SFPSXMM
Input Voltage 110V-240V AC Output Current 0.4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 95 Product Width (mm) 75 Product Height (mm) 20 Product Weight (g) 90 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100 Mbps Max Transfer Distance 2 km (1.2 mi) Wavelength 1310nm Fiber Connector ST Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX
LED Indicators - 1 - 10/100 Operating Mode
- 1 - Ethernet Activity/Link
- 1 - Fiber Activity/Link
- 1 - Full/Half Duplex Mode
- 1 - POE Enabled
- 1 - Power

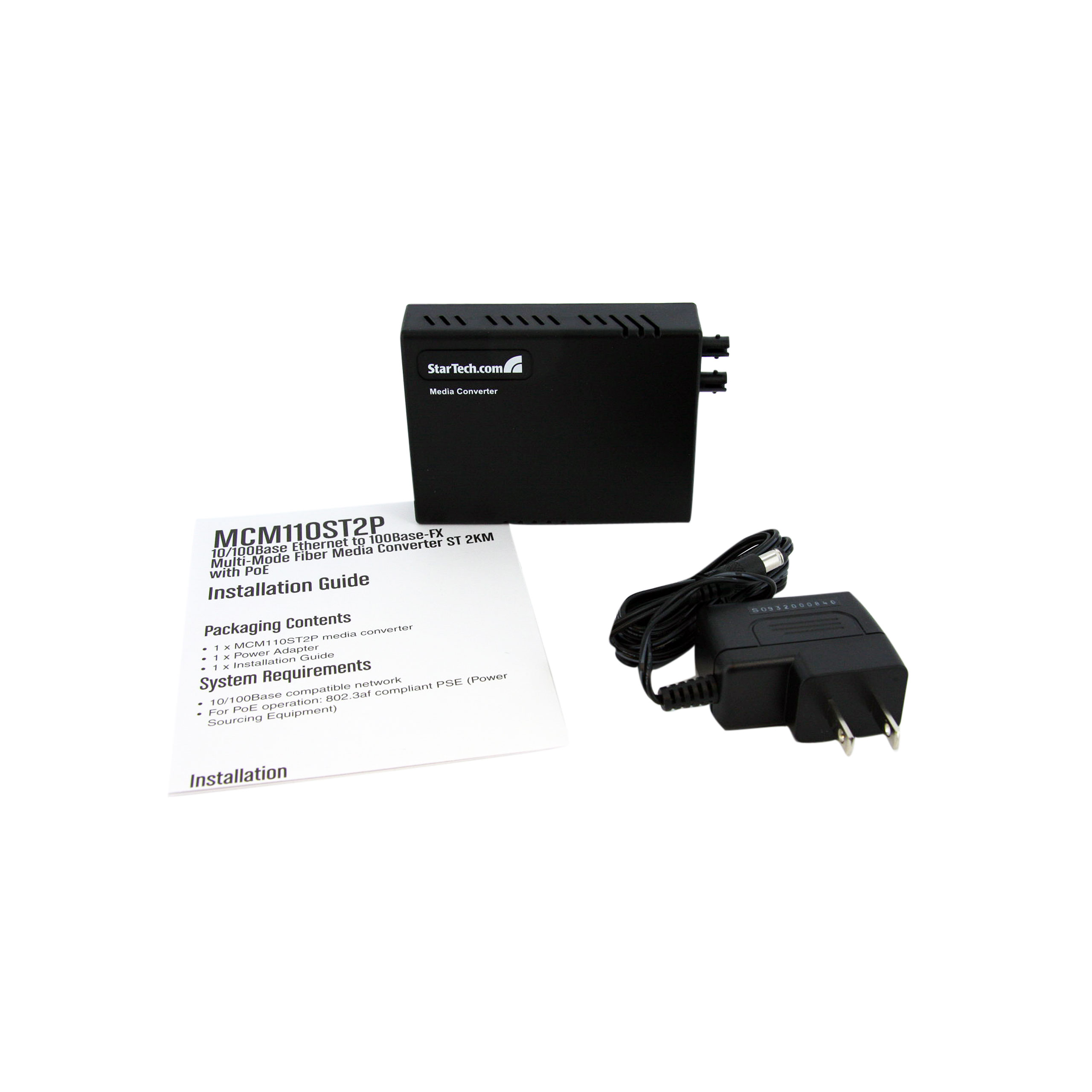

Power over Ethernet Yes Wave Division Multiplexing (WDM) No Carton Depth (mm) 520 Carton Height (mm) 240 Carton Quantity 10 Carton Weight Gross (g) 13700 Included in Package - 1 - Instruction Sheet
- 1 - Media Converter
Package Depth (mm) 144 Package Height (mm) 62 Package Width (mm) 175 Package Weight (g) 1270 Packaging Description 10/100 Ethernet to ST Fiber Converter w/ PoE Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ST Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
