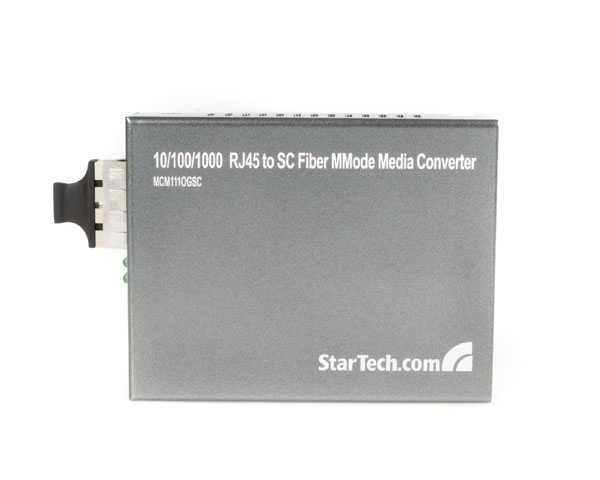

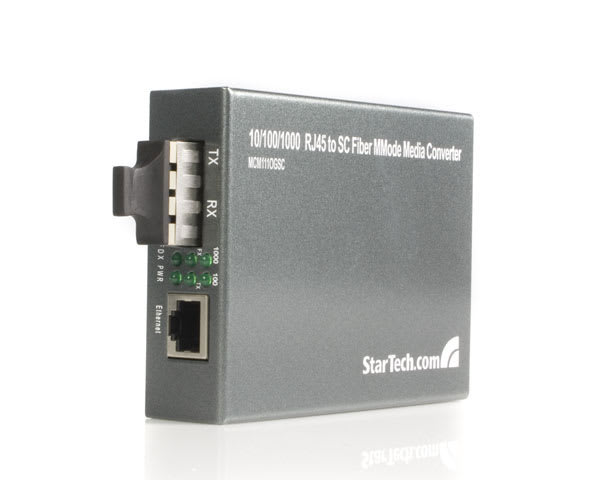

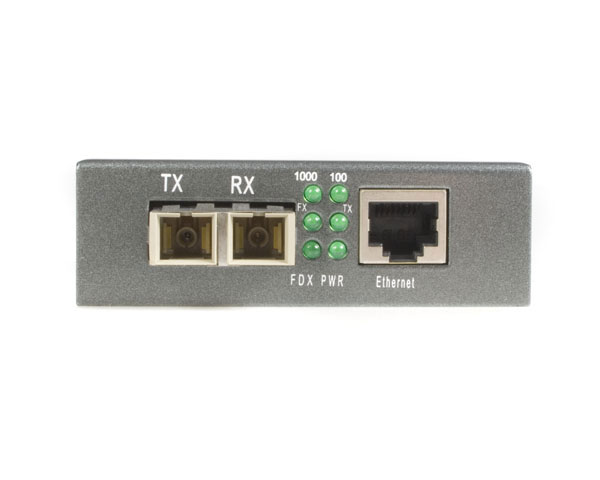

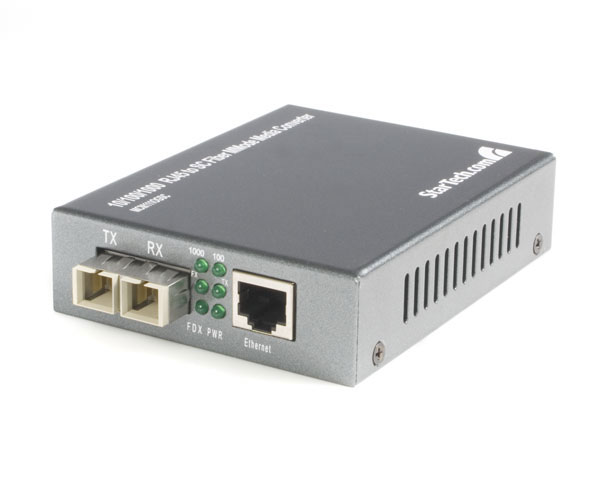

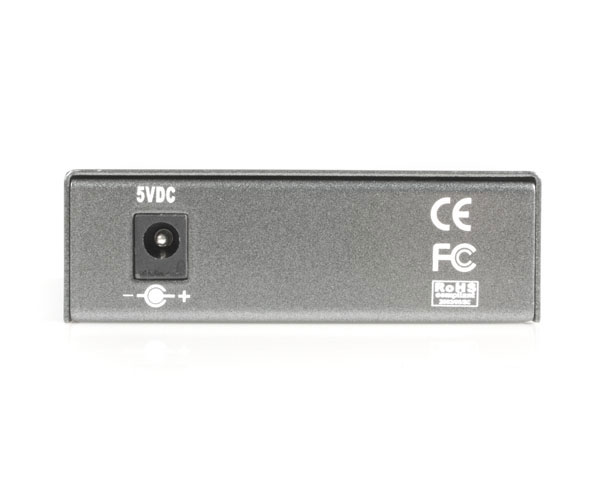

Product Name 10/100/1000 RJ45 to SC Fiber MMode Media Converter Product Number MCM1110GSC UPC 065030826143 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 10/100/1000 RJ45 to SC Fiber Multi Mode Media Converter Bullet 1 Supports IEEE 802.3Z/AB 1000Base-T/SX/LX Bullet 2 Standard RJ-45 connectors for connecting to UTP media, and SC connector for connecting to fiber media Bullet 3 Auto detects half/full duplex transfer mode from the TX port. Bullet 4 Its compact design and weight makes it portable and unobtrusive to carry Bullet 5 Supports a maximum multi mode fiber optic cable distance of 550m Marketing Copy Applications Designed for large, higher speed bandwidth that has a demanding workgroups that require expansion of fast Ethernet Network. Website Search Keyword - Media Converter
- multi mode
- RJ45 to SC
Accessory Products - SCFIBLBTEST
- FIBSCSC10
- FIBSCSC15
- FIBSCSC5
Related Products - MCS110SC20
- ET90110SC
Replacement Product ET91000SC2 Color Gray TAA Compliant No General Specifications - Standard: IEEE 802.3/IEEE 802.3U
- Operating Temperature: -10 ~ 50 degrees Celsius
- Storage: -40 to 70
- Humidity:10% - 90% (non – condensing)
- Fiber Type: Multi-Mode
- Wavelength: 850nm
- Max Distance: 550m / 1600ft
- Min TX Power: -6.0dBm
- Max TX Power: -12.0dBm
- Sensitivity: </= -17.0dBm
- Link Budget: 12.0dBm
- Transmit Mode: 10/100/1000 Mbps Full/Half Duplex

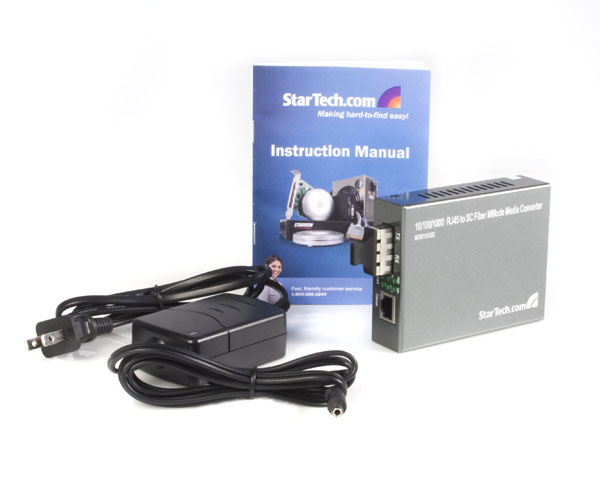

Carton Depth (mm) 490 Carton Height (mm) 380 Carton Quantity 20 Carton Weight Gross (g) 12800 Included in Package - 1 - Media Converter
- 1 - AC power adapter
- 1 - Instruction Manual
Package Depth (mm) 72 Package Height (mm) 192 Package Width (mm) 238 Package Weight (g) 580 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
