Main Image
MCM1110MMLC
10 100 1000 Ethernet to Fiber Media Converter
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 10 100 1000 Ethernet to Fiber Media Converter Product Number MCM1110MMLC UPC 065030861465 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - MCM Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) Fiber Med Converter Product Title (Short) Fiber Media Converter- 850nm MM LC- 550m Product Title (Medium) Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m Product Title (Standard) Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit RJ45 to LC Converter, SFP Included, TAA Product Title (Long) Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to LC Converter, SFP Transceiver Included, 850nm, 550m - TAA Product Title (AMZ) Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to LC Converter, SFP Transceiver Included, 850nm, 550m - TAA Title Ingram (Part 1) 10/100/1000 Ethernet Network to Title Ingram (Part 2) Fiber Converter w/ SFP Transceiver Website Product Headline Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Convert and extend different networks over a Gigabit fiber cable - Extend up to 550m (1804 ft) - Gigabit Ethernet Fiber Media Converter with SFP Transceiver - Compact 10/100/1000 Mbps Network Extender - 850nm LC Multimode GbE Fiber - Rugged Housing Bullets (Consolidated) Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit multi-mode LC fiber, up to 550m (1800ft) - Use as s standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT), chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) - Supports IEEE 802.3 standards, Jumbo Frames (up to 9K), full-duplexl, auto-negotiation, and auto MDI/MDI-X - Plug-and-play setup reducing packet loss - 3.75W with 5V DC input via included power adapter or an optional chassis power supply; Does not support PoE Marketing Copy Marketing Copy (No HTML) Applications - Extend or bridge networks using fiber cable
- Provide connectivity to users in an isolated area of a large complex or in a separate building
- Ideal for secure connections required by government or corporations where EMI is not acceptable
Website Search Keyword - fiber media converter
- rj45 to fiber media converter
- Ethernet media converter
- multimode fiber media converter
- gigabit media converter
- rj45 to fiber converter
- fiber to copper network converter
- network media converter
- fiber ethernet media converter
- ethernet network media converter
- fiber to ethernet media converter
- multimode fiber ethernet media converter
- media converter
- Unmanaged Gigabit Fiber Media Converter
- Gigabit Fiber Media Converter
- ethernet to fiber
- Ethernet fiber extender
- multimode fiber converter
- gigabit fiber converter
- Ethernet (10/100/1000Base-T) network converter
- 10/100/1000 network converter
- fiber media converter with SFP transceiver
- Gigabit Ethernet Fiber Media Converter - 850nm MM LC - 550m
- Gigabit Ethernet Fiber Media Converter - Compact -
- LC Fiber media converter
- N785-001-LC-MM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
Accessory Products - 50FIBLCST10
- 50FIBLCST2
- 50FIBLCST3
- 50FIBLCST5
- 50FIBLCST1
- SVUSBPOWER
- SVA5N3NEUA
Related Products - ET91000SFP2
- MCM1110SFP
- ET91000LC2
- ET1000S40LC2
- ET91000LCOAM
Constrained SKU Alternatives (Limited Stock) ET91000LC2 Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Brown Humidity 5~95% RH (Non-condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 94 Product Width (mm) 70 Product Height (mm) 26 Product Weight (g) 201 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Fiber Operating Mode Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1 Gbps Max Transfer Distance 550m [1804ft] MTBF (hours) > 50,000 hours at 25°C Wavelength 850nm Fiber Connector LC Industry Standards - IEEE 802.3ab 1000BASE-T
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3z 1000BASE-SX
- IEEE 802.3z 1000BASE-LX

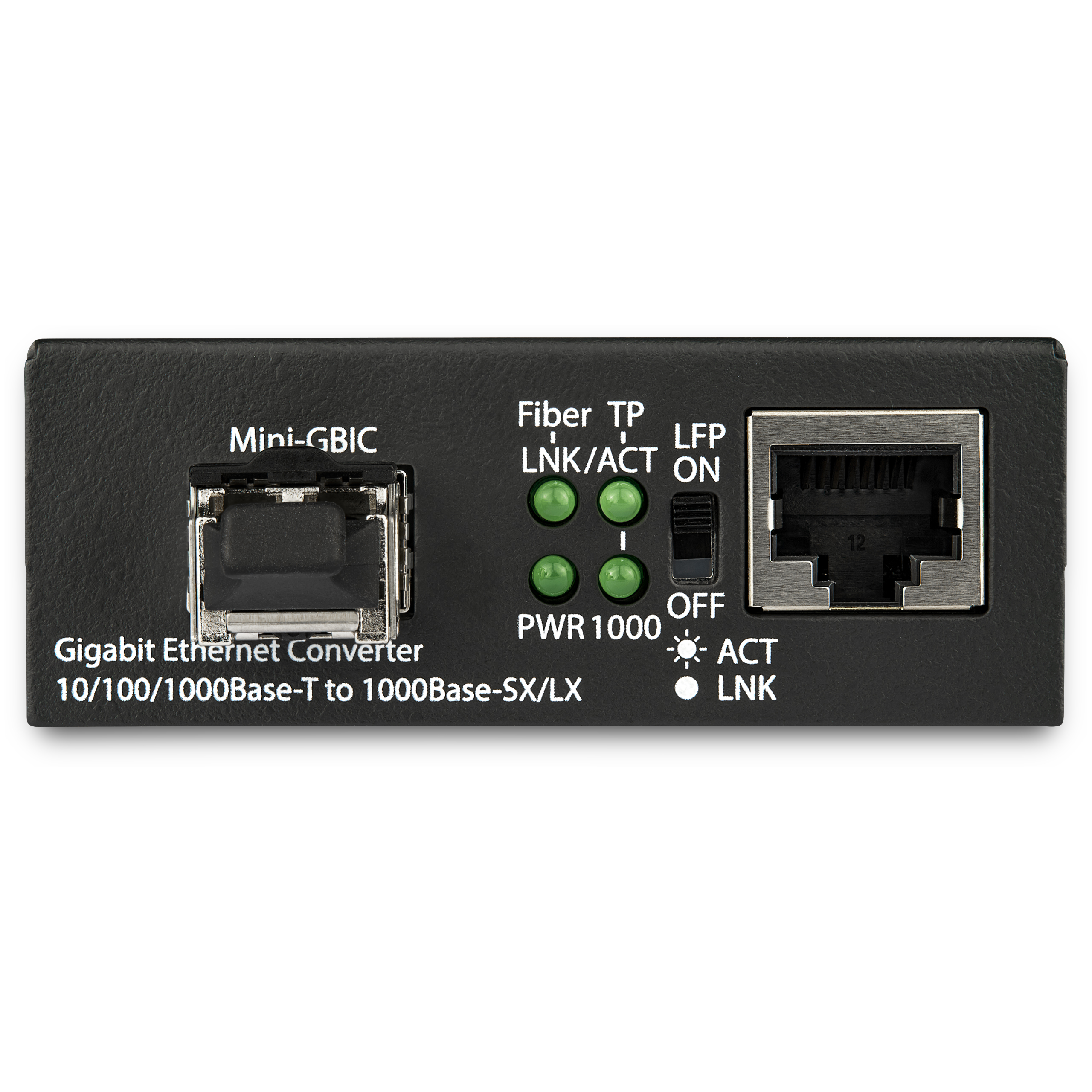

LED Indicators - 1 - Power
- 1 - Fiber Port Link/Act
- 1 - Copper Port Link/Act
- 1 - 1000 Mbps

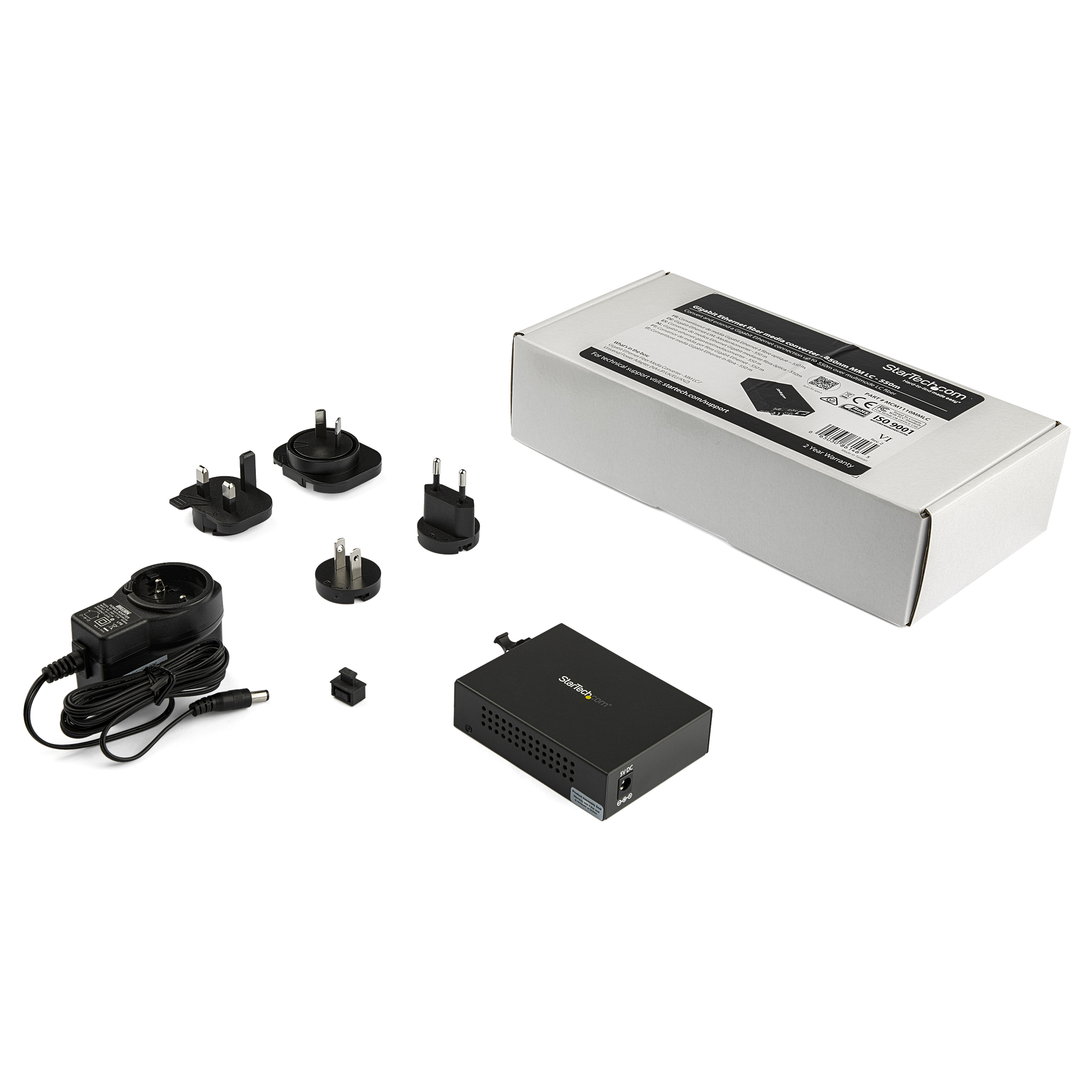

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 588 Carton Height (mm) 313 Carton Quantity 20 Carton Weight Gross (g) 11484 Included in Package - 1 - Gigabit Ethernet fiber media converter - MM LC
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
Package Depth (mm) 286 Package Height (mm) 69 Package Width (mm) 138 Package Quantity 1 Package Weight (g) 532 Packaging Description Gigabit Ethernet fiber media converter - 550m Packaging Description India Gigabit Ethernet fiber media converter - 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 LC Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-03-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-23 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
