Copper Ethernet 10 100 1000 to Fiber Converter

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

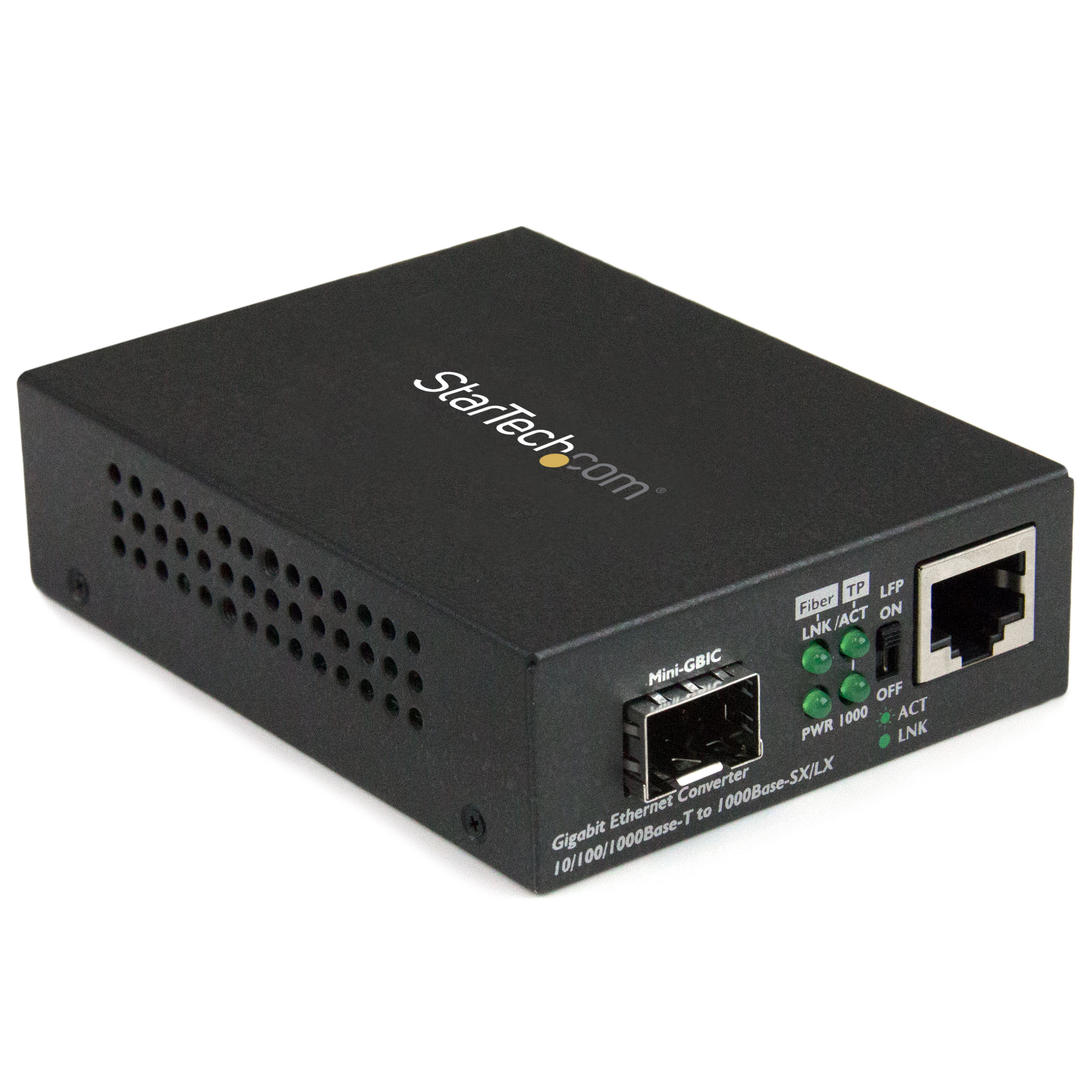

Main Image

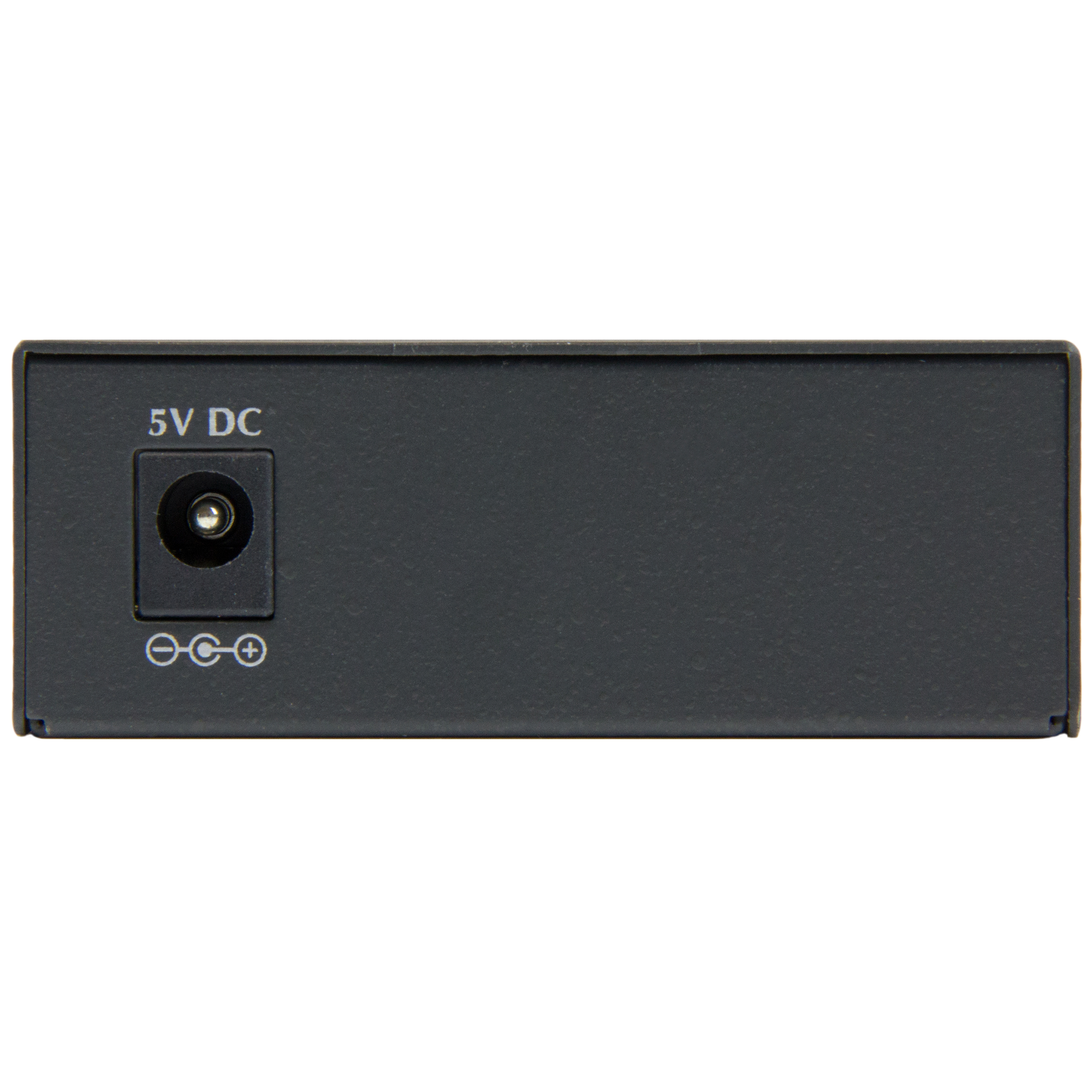

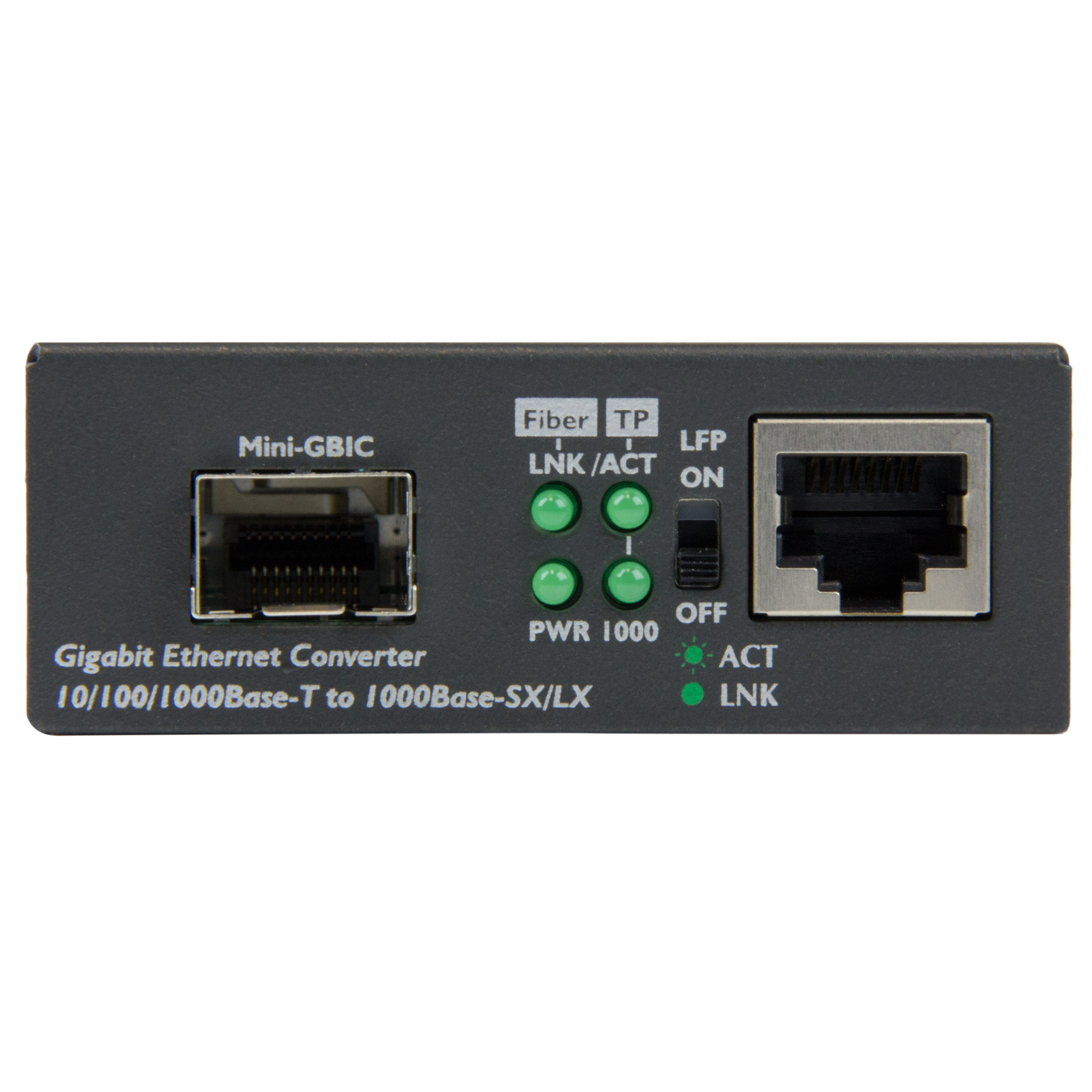

Product Images

Product Images

BOM Image

Product Name	Copper Ethernet 10 100 1000 to Fiber Converter
Product Number	MCM1110SFP
UPC	065030861472
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Networking > Ethernet Media Converters
Category Level 1	Networking
Category Level 2	Ethernet Media Converters
Category Level 3	Open
Family	Media Converters - MCM Series
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX060X

Manual https://images.salsify.com/image/upload/s--pmWPcjNf--/6cc4d2c01d833b615ad8f811a2616e667a58d0c8.pdf

Product Title (Ultra-Short)	Media Converter
Product Title (Short)	Fiber Media Converter with Open SFP Slot
Product Title (Medium)	Gigabit Ethernet Fiber Media Converter with Open SFP Slot - 10/100/1000 Networks
Product Title (Standard)	Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Gigabit RJ45 to Fiber, Open SFP Slot, TAA
Product Title (Long)	Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot - TAA
Product Title (AMZ)	Multi-Mode (MM) / Single-Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot - TAA
Title Ingram (Part 1)	Copper Ethernet to Fiber Media
Title Ingram (Part 2)	Converter for 10/100/1000 Networks
Website Product Headline	Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
Bullet 1	EXTEND GIGABIT NETWORKS OVER LONG DISTANCES: Convert RJ45 to fiber with full duplex performance, overcoming copper limits and resisting EMI; Link Fault Pass-through speeds up troubleshooting while ensuring reliable uptime for mission-critical deployments
Bullet 2	FLEXIBLE CONFIGURATION: Fiber media converter with open SFP slot which allows you to customize the network extension distance to your requirements with any MSA-compliant multi or single mode transceiver
Bullet 3	AUTO NEGOTIATION: Media converter features a 10/100/1000 Mbps compatible RJ45 port that supports auto negotiation to bridge different network devices/speeds to a Gigabit fiber network; Supports IEEE 802.1q Tag VLAN pass-through and 9K Jumbo Frames
Bullet 4	COMPACT AND DURABLE: Media converter installs almost anywhere with little to no configuration; Also mounts in the MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS for clean, professional integration into structured data centers, or server rooms; TAA compliant
Bullet 5	THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Bullets (Compact)	Convert and extend different networks over Gigabit fiber - Use the SFP of your choice - Gigabit Ethernet Fiber Media Converter w/ Open SFP Slot - Supports 10/100/1000 Mbps networks - Copper to Fiber Media Converter - Works with most MSA transceivers
Bullets (Consolidated)	Convert RJ45 to fiber with full duplex performance - Fiber media converter with an open SFP slot, allowing you to customize network extension to your requirements with any MSA-compliant multimode or single-mode transceiver - Features a 10/100/1000 Mbps compatible RJ45 port that supports auto negotiation - Supports IEEE 802.1q Tag VLAN pass-through and 9K Jumbo Frames - Installs almost anywhere with little to no configuration; Mounts in the MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS; TAA compliant
Marketing Copy
Marketing Copy (No HTML)
Applications	Extend or bridge networks cost-effectively using fiber cabling Provide connectivity to users in an isolated area of a large complex or in a separate building Open SFP slot lets you customize your connection mode or distance using most MSA-Compliant transceivers Ideal for secure connections required by government or corporations where EMI is not acceptable
Website Search Keyword	fiber media converter rj45 to fiber media converter Ethernet media converter multimode fiber media converter gigabit media converter media converter open sfp rj45 to fiber converter fiber to copper network converter network media converter fiber ethernet media converter ethernet network media converter fiber to ethernet media converter multimode fiber ethernet media converter media converter Unmanaged Gigabit Fiber Media Converter Gigabit Fiber Media Converter ethernet to fiber Ethernet fiber extender multimode fiber converter gigabit fiber converter open sfp fiber media converter open sfp ethernet media converter Ethernet (10/100/1000Base-T) network converter 10/100/1000 network converter N785P01SFP

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016

Special Notes Fiber data transfer speeds and distances are dependent on the SFP transceiver used (sold separately)

Accessory Products	SFPGLCLHSMST SFPGLCSXMMST SFPGESST SFPG1580C SFPG1340C SFPSXMM SFPG1320C SFPC1110
Related Products	ET91000SFP2 MCM1110MMLC ET1110PSE ET91000SC2 ET91000SM402 ET90110WDM2 ET91000LC2
Constrained SKU Alternatives (Limited Stock)	IMC1GSFP

Input Current 0.4 A
Input Voltage 100 - 240 AC
Output Current 2 A
Output Voltage (V) 5 DC
Power Consumption (In Watts) 10
Power Source AC Adapter Included
Plug Type N
Center Tip Polarity Positive

Color	Brown
Humidity	5~95% RH (Non-condensing)
Material	Steel
Operating Temperature	0°C to 50°C (32°F to 122°F)
Primary Material	Steel
Product Length (mm)	280
Product Width (mm)	135
Product Height (mm)	67.5
Product Weight (g)	500
Storage Temperature	-10°C to 70°C (14°F to 158°F)
TAA Compliant	Yes

Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Fiber Operating Mode Full-Duplex
Fiber Type Single Mode / Multi Mode
Maximum Data Transfer Rate 1 Gbps
MTBF (hours) > 50,000 hours at 25°C

Fiber Connector	Open
Industry Standards	IEEE 802.3z 1000BASE-LX IEEE 802.3z 1000BASE-SX IEEE 802.3u 100BASE-TX IEEE 802.3 10BASE-T IEEE 802.3ab 1000BASE-T
LED Indicators	1 - Power 1 - Copper Port Link/Act 1 - 1000 Mbps 1 - Fiber Port Link/Act
Power over Ethernet	No
Wave Division Multiplexing (WDM)	No

Carton Depth (mm)	590
Carton Height (mm)	311
Carton Quantity	20
Carton Weight Gross (g)	11310

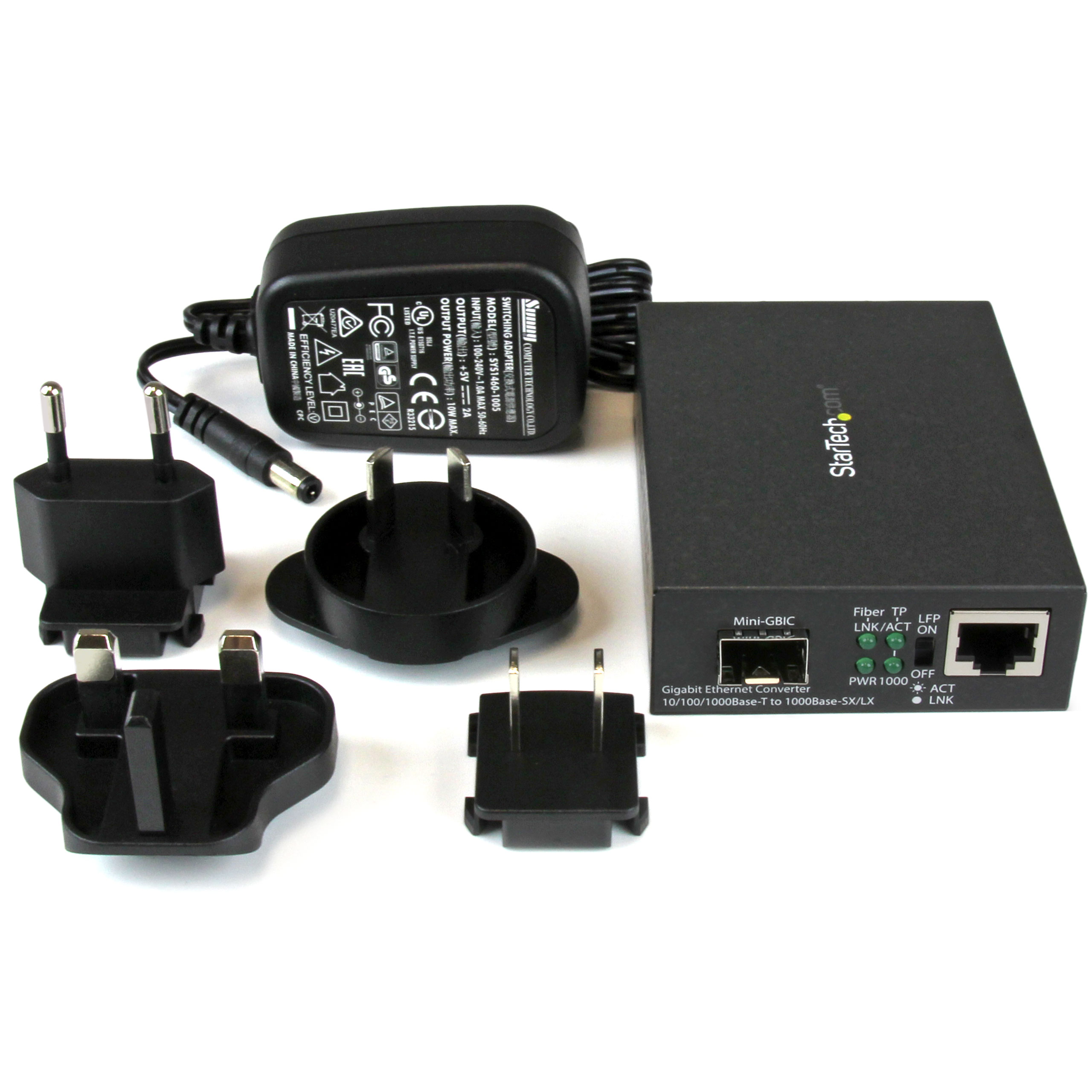

Included in Package	1 - Gigabit Ethernet fiber media converter w/ open SFP slot 1 - universal power adapter (NA/EU/UK/AU)
Package Depth (mm)	285
Package Height (mm)	69
Package Width (mm)	139
Package Quantity	1
Package Weight (g)	518
Packaging Description	Gigabit Ethernet fiber media converter w/ open SFP
Packaging Description India	Gigabit Ethernet fiber media converter w/ open SFP
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Host Connector 1 RJ-45
Host Connector 1 (Quantity) 1
Host Connector 2 SFP Slot
Host Connector 2 (Quantity) 1
