MCM1110SMLC40
Gigabit Single Mode LC 40km Fiber Media Converter

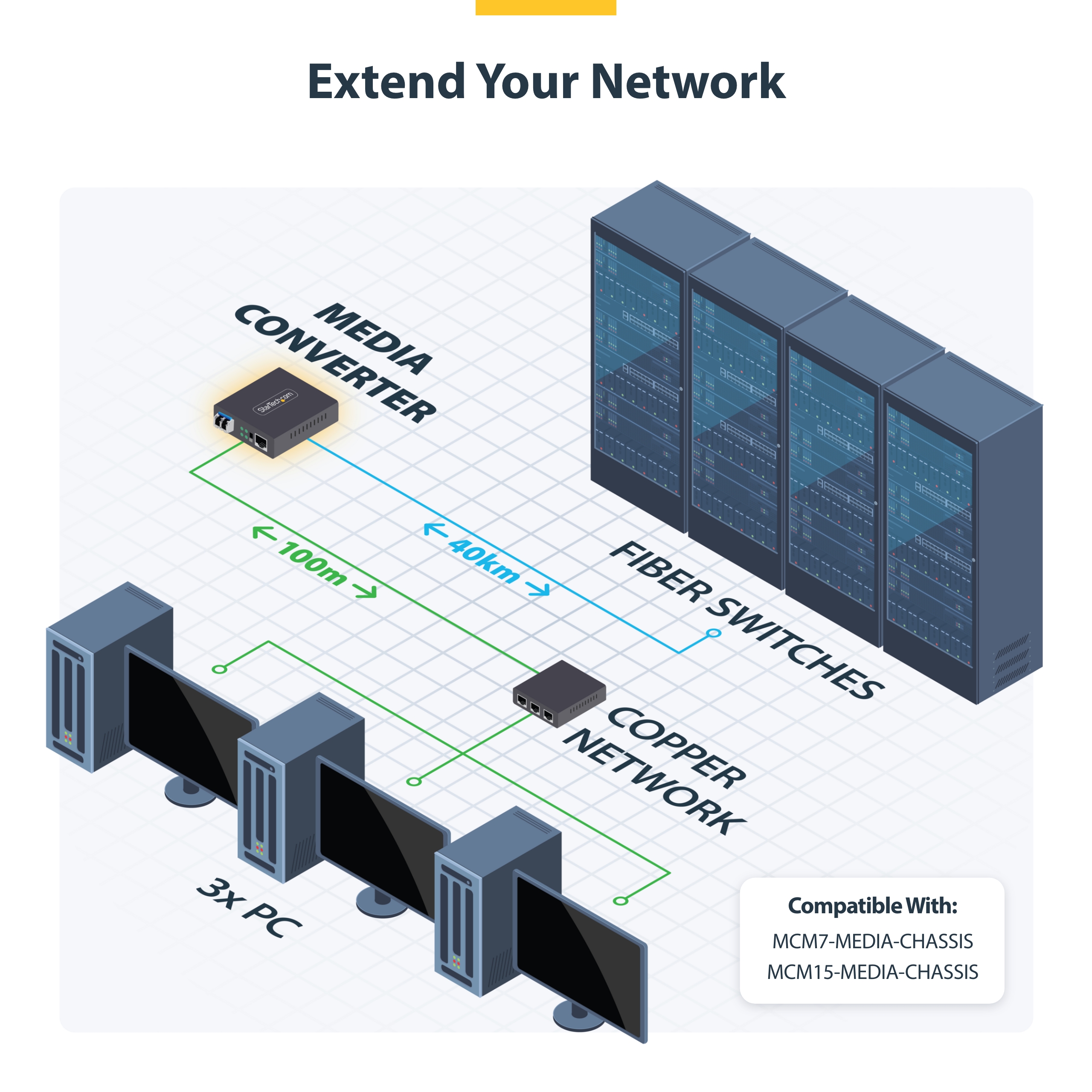

Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber.
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name Gigabit Single Mode LC 40km Fiber Media Converter Product Number MCM1110SMLC40 UPC 065030919876 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) Media Converter, SM Product Title (Short) Gigabit SM LC Fiber Media Converter 40km Product Title (Medium) Gigabit Ethernet Copper-to-Fiber Media Converter, SM LC, 40km, RJ45 to LC, TAA Product Title (Standard) Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 40km, TAA Product Title (Long) Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 40km - TAA Product Title (AMZ) Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 40km - TAA Title Ingram (Part 1) Gigabit SM LC Media Converter Title Ingram (Part 2) 40 km (24.8 mi), 10/100/1000 Mbps Website Product Headline Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber. Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Convert and extend a GbE connection up to 40 km (24.8 mi.) using single-mode LC fiber - Copper-to-Fiber Media Converter with wall-mount, DIN-rail, or chassis install -Supports LFP, LLCF/LLR, 9K Jumbo Frames - TAA compliant with 5V DC power adapter Bullets (Consolidated) Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode LC fiber, up to 40km (24.8mi) - Supports full/half duplex, 9K jumbo frames, auto-negotiation, auto MDI/MDI-X - DIP switch enables Link Fault Passthrough (LFP) with LLCF/LLR - All-metal chassis provides strong shielding and long-term durability - LED indicators (link, power, and activity) - Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) Marketing Copy Marketing Copy (No HTML) Website Search Keyword - fiber to ethernet converter
- media converter fiber to ethernet
- ethernet to fiber
- fiber to ethernet media converter
- media converter fiber optic to ethernet
- ethernet to fiber media converter
- fiber ethernet media converter
- single mode fiber to ethernet converter
- fiber to ethernet
- fiber media converter single mode
- fiber converter to ethernet
- cat6 to fiber converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Efficiency - European Union - EU ErP Ecodesign Directive 2009/125/EC
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Related Products - ET91000SM20
- ET91000SM10
- ET1000S40LC2
- ET91000LC2
- ET10GSFP
- ET91000SFP2C
- ET91000SFP2
- MCM1110SFP
- MCM1110MMLC
- MCM1110SMLC20
Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 4.6 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH (Non-condensing) Material Metal Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 79 Product Width (mm) 94 Product Height (mm) 26 Product Weight (g) 0.2 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Flow Control None Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Max Transfer Distance 40 km (24.8 mi) MTBF (hours) 50,000 Hours Remote Management Ability No Switching Architecture None Wavelength 1310nm Industry Standards - IEEE 802.3z 1000BASE-LX
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3 10BASE-T

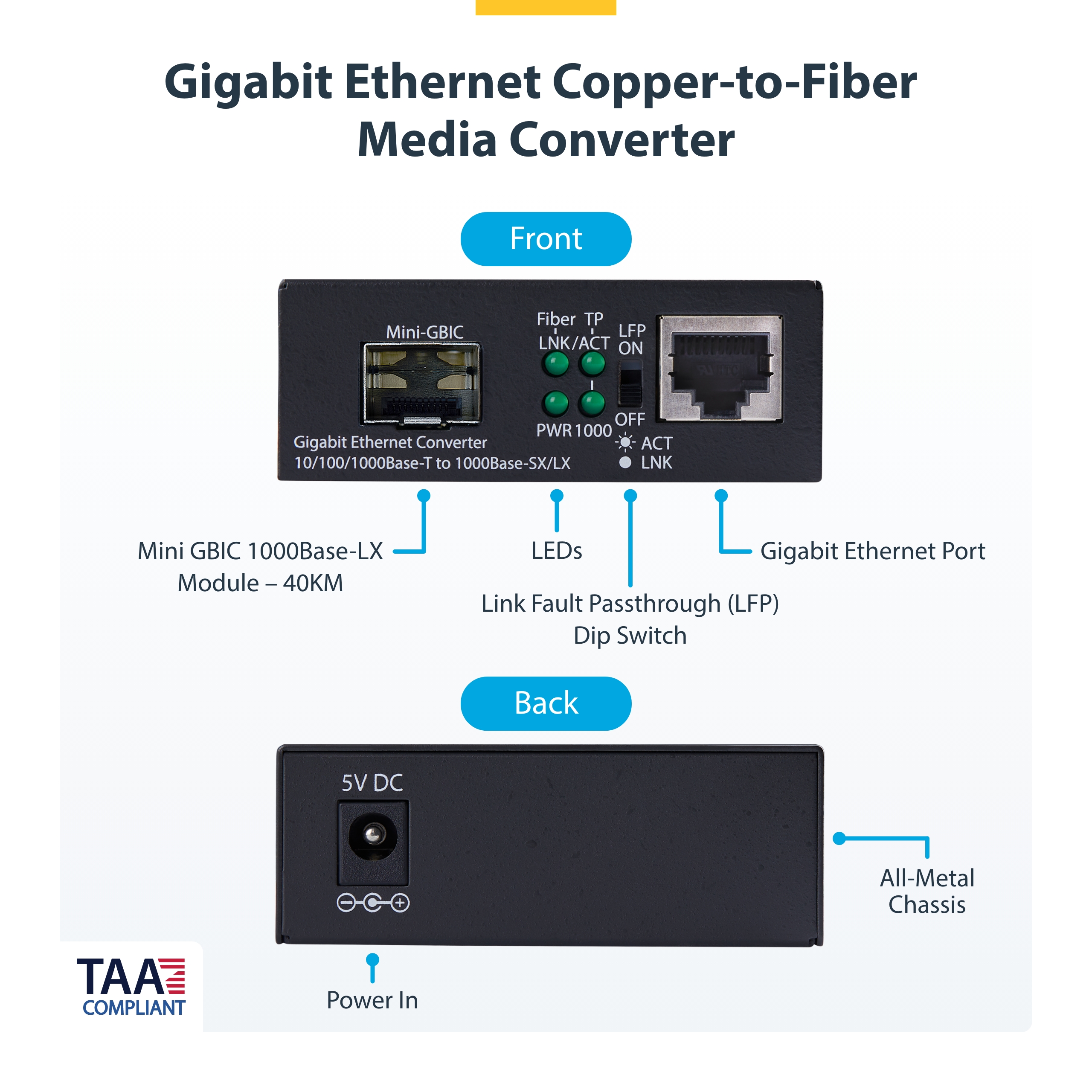

LED Indicators - 1 - PWR
- 1 - RPF
- 1 - LFP
- 1 - LNK
- 1 - LINK - RJ45
- 1 - FULL - RJ45

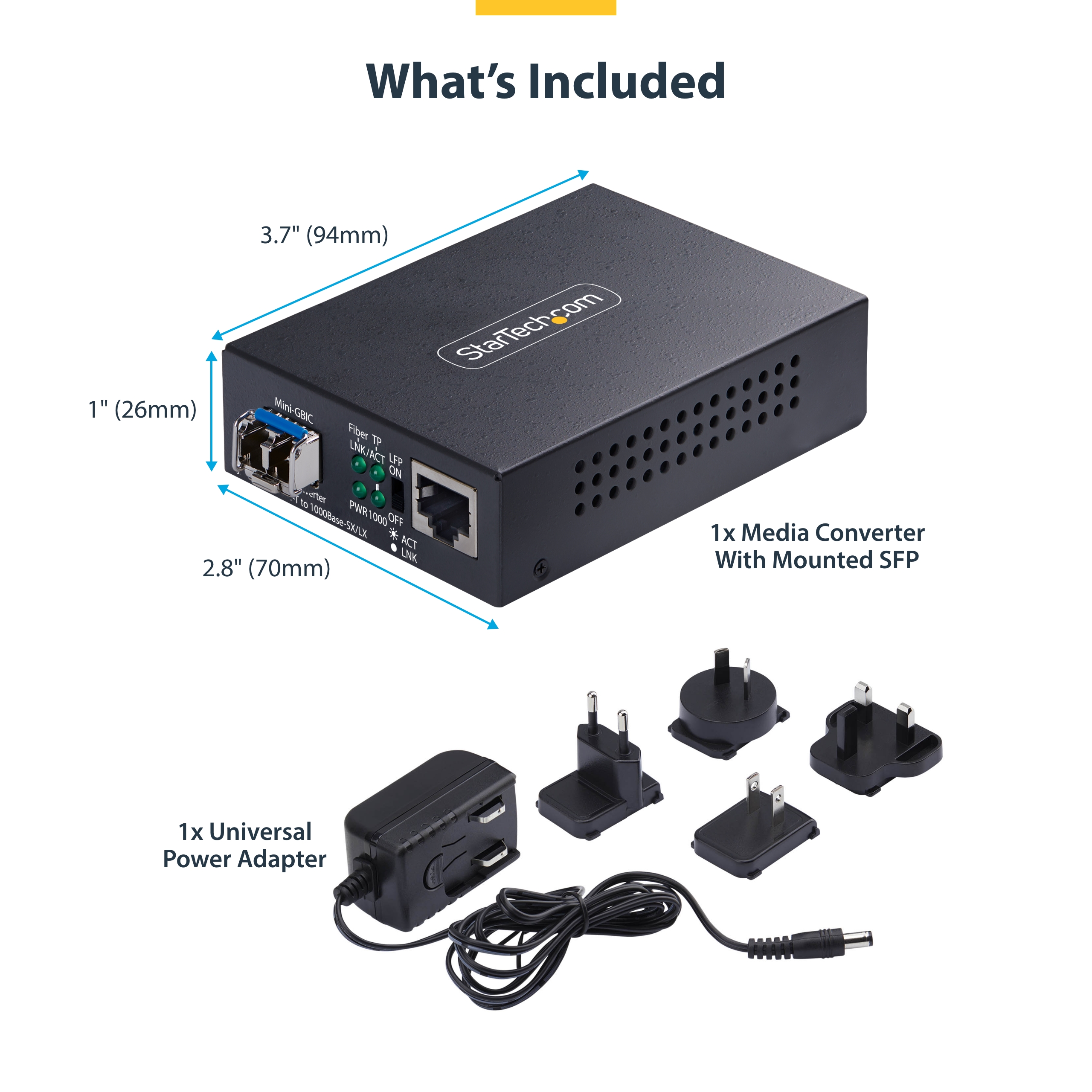

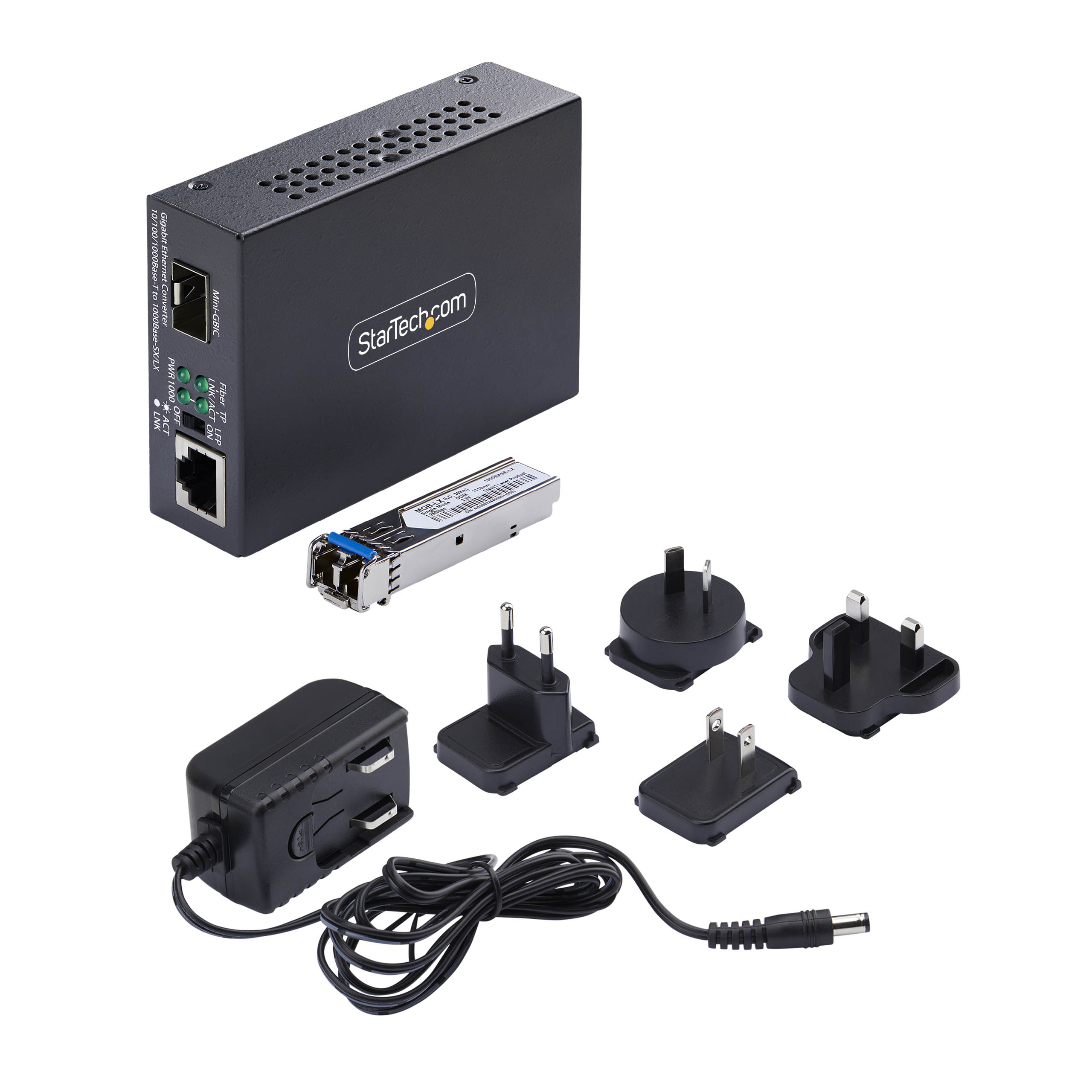

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 360 Carton Height (mm) 305 Carton Quantity 20 Carton Weight Gross (g) 7270 Included in Package - 1 - Media Converter
- 1 - Universal Power Adapter
- 1 - Product Documentation
Package Depth (mm) 133 Package Height (mm) 66 Package Width (mm) 280 Package Weight (g) 328 Packaging Description Gigabit Single Mode LC Fiber Media Converter - 40km Packaging Description India Gigabit Single Mode LC Fiber Media Converter - 40km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km - TAA Comparable SKU 2 Comment N/A Digital Content Due Date 2025-10-22 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention MCM1xy ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-02-10 Target Production Release 2025-02-17 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
