MCM15-MEDIA-CHASSIS

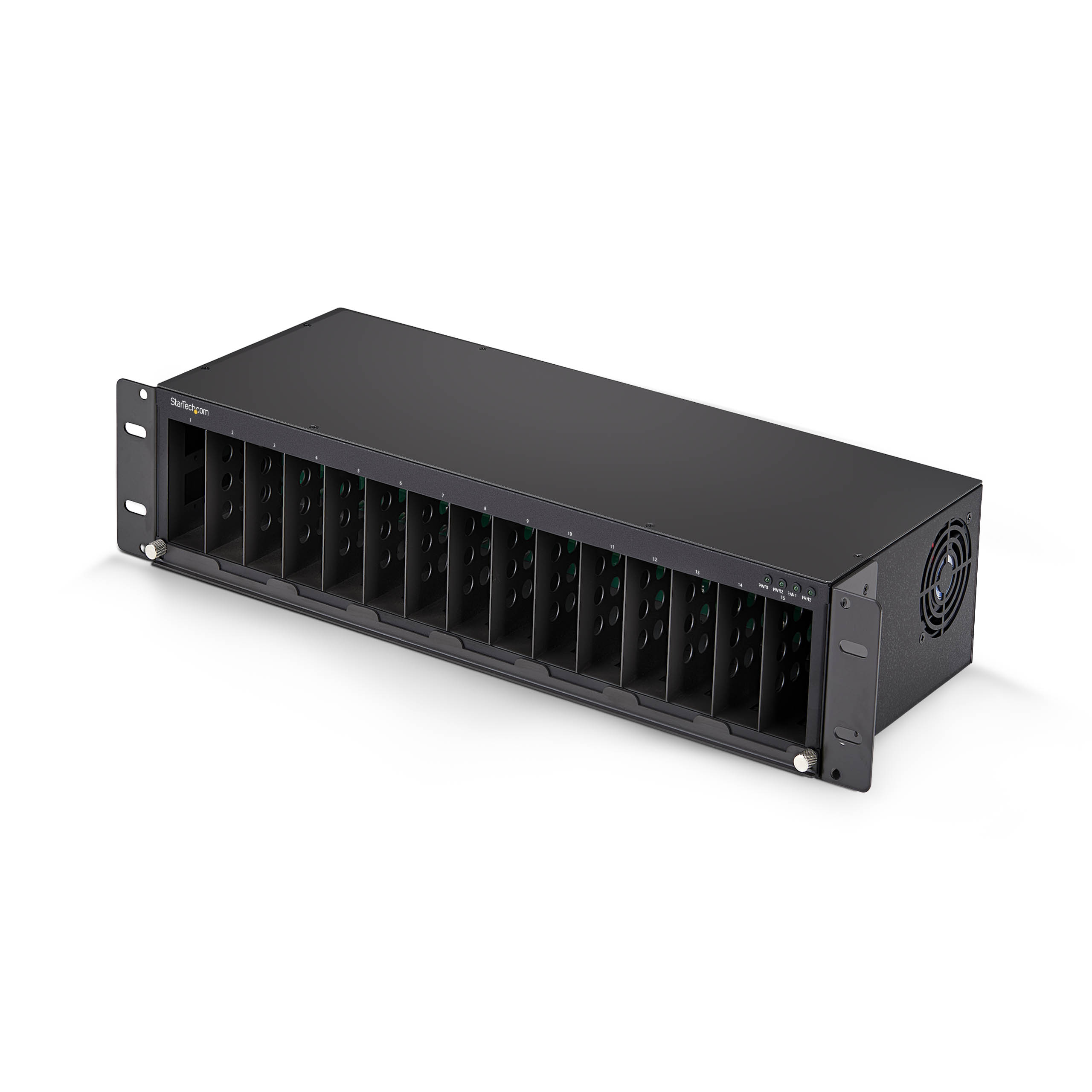

15 17 Slot Unmanaged Media Converter Chassis
Centralize edge conversions with a 15-slot rack that simplifies management and adds optional power redundancy for uptime.
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 15 17 Slot Unmanaged Media Converter Chassis Product Number MCM15-MEDIA-CHASSIS UPC 065030917056 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Other > Unclassifiables Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Other Ethernet Media Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) Media Chassis TAA Product Title (Short) 15-Slot Media Converter Chassis, TAA Product Title (Medium) 15-Slot Unmanaged Media Converter Chassis for MCM Media Converter Series, TAA Product Title (Standard) 15-Slot Unmanaged Media Converter Chassis, 19in Rackmount for MCM Media Converter Series, Active Cooling, TAA Compliant Product Title (Long) 15-Slot Unmanaged Media Converter Chassis for MCM Media Converter Series, Full Power Isolation, Active Cooling, 19in Rackmount, TAA Compliant Product Title (AMZ) 15-Slot Unmanaged Media Converter Chassis, 19in Rackmount for MCM Media Converter Series, Active Cooling, TAA Title Ingram (Part 1) 15-Slot Media Converter Chassis Title Ingram (Part 2) Unmanaged, 19in Rackmount, TAA Website Product Headline Centralize edge conversions with a 15-slot rack that simplifies management and adds optional power redundancy for uptime. Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Integrate up to 15 media converters in one 19in rack-mount chassis - For MCM Media Converter Series - Built-in hot-swappable AC power supply and optional redundant AC or -48V DC PSU - Independently powered converter bays - Over-voltage protection TAA Bullets (Consolidated) Integrate up to 15 media converters in one 19in rack-mount chassis for simplifying network organization and expanding connectivity in enterprise and data center environments - For MCM Media Converter Series - Built-in hot-swappable AC power supply and optional redundant AC or -48V DC PSU - Independently powered converter bays for easy module replacement without downtime - Over-voltage protection and FCC CE UL and TAA compliance - All-metal chassis with dual cooling fans and front LED monitoring Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - DO NOT USE - EU Low Voltage Directive (LVD) Short-Form DoC
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- UKCA - Safety - Electrical - United Kingdom - UK Electrical Equipment (Safety) Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + foam tray/divider
Special Notes Not compatible with PoE Media Converters Accessory Products - MCM10G6SSFP
- MCM1110SMLC20
- MCM1110SMLC40
- MCM10GSFP2
- MCMGBSCMM055
- MCM1110SFP
- MCM1110MMLC
- MCMGBSCSM10
Related Products MCM7-MEDIA-CHASSIS Input Current 2.5 Input Voltage 100 - 240 AC Output Current 4.2A Output Voltage (V) 48 DC Color Black Humidity 5~90% RH (non-condensing) Material Metal Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 200 Product Width (mm) 438 Product Height (mm) 103 Product Weight (g) 4288 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes MTBF (hours) 50,000 Hours Remote Management Ability No LED Indicators - 2 - Power
- 2 - Fan

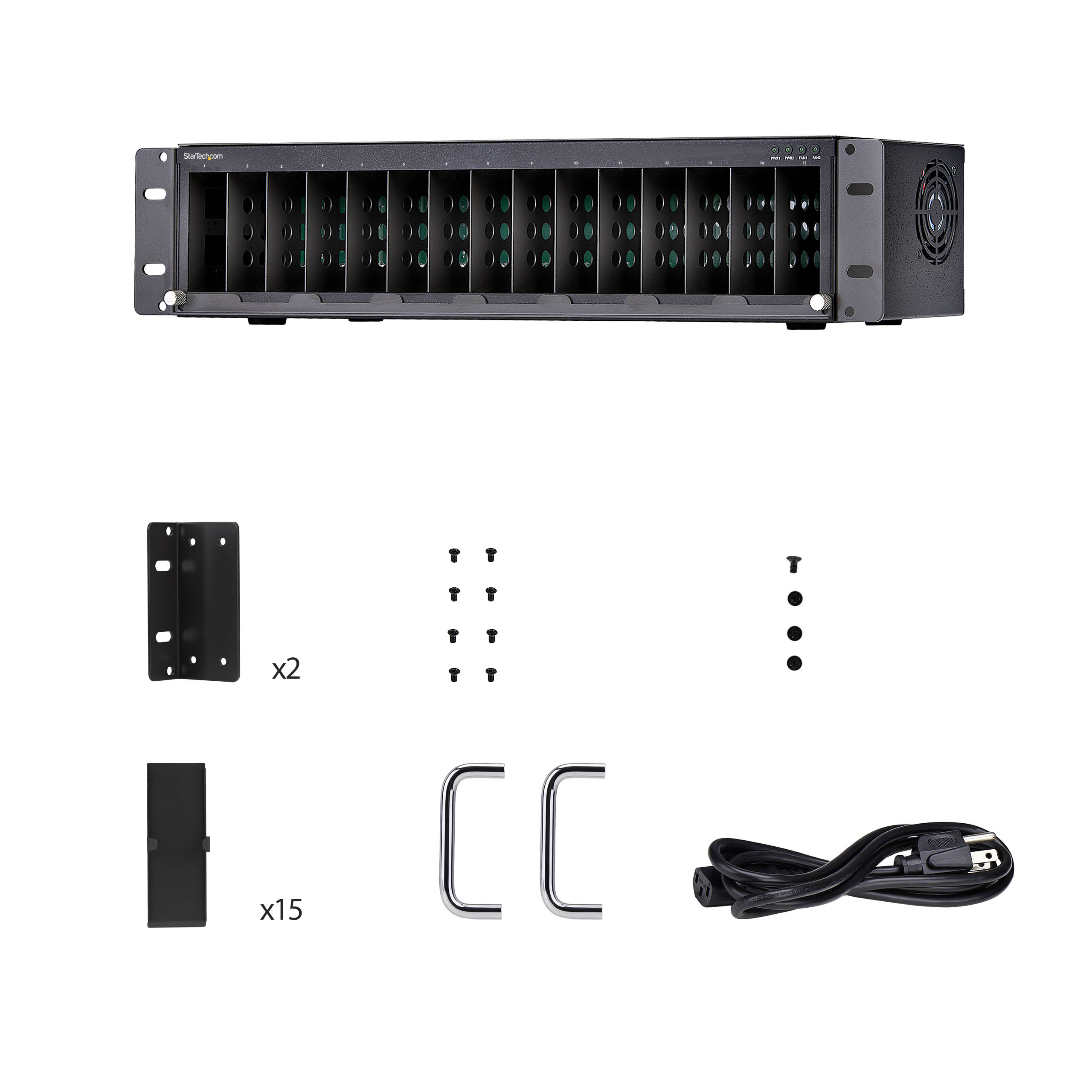

Power over Ethernet No Carton Depth (mm) 300 Carton Height (mm) 383 Carton Quantity 2 Carton Weight Gross (g) 11480 Included in Package - 1 - Media Converter Chassis
- 1 - NA Power Cord
- 1 - UK Power Cord
- 1 - EU Power Cord
- 15 - Port Covers
- 1 - Rack Mounting Kit
- 1 - Product Documentation
Package Depth (mm) 274 Package Height (mm) 170 Package Width (mm) 508 Package Weight (g) 5740 Packaging Description 15 Slot Unmanaged Media Converter Chassis, AC Power Input Packaging Description India 15 Slot Unmanaged Media Converter Chassis, AC Power Input Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Amazon Visual Content Level Silver Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converter Comparable SKU 2 Comment N/A Digital Content Due Date 2025-11-24 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention MCMx-MEDIA-CHASSIS ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-03-21 Target Production Release 2025-03-28 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
