MCMGBSC055
Gigabit - 1000Base-SX/LX Multi-Mode Converter SC
Convert and extend a Gigabit Ethernet connection up to 550 m over Multi Mode SC fiber
Main Image
Product Images
Product Images
BOM Image
Product Name Gigabit - 1000Base-SX/LX Multi-Mode Converter SC Product Number MCMGBSC055 UPC 065030836289 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Media Converter SC Product Title (Short) 1000 Fiber Ethernet Media Converter SC Product Title (Standard) Gigabit MM Fiber Ethernet Media Converter SC 550m Product Title (Long) 1000 Mbps Gigabit Multi Mode Fiber Ethernet Media Converter SC 550m Product Title (AMZ) Gigabit Multi Mode Fiber Ethernet Media Converter - SC - 550m - 1000Mbps Copper-to-Fiber Media Converter (MCMGBSC055) Title Ingram (Part 1) Gigabit Multi Mode Fiber Etherne Title Ingram (Part 2) t Media Converter SC Website Product Headline Convert and extend a Gigabit Ethernet connection up to 550 m over Multi Mode SC fiber Bullet 1 850nm Wavelength Bullet 2 Auto detects half/full duplex transfer mode from the TX port Bullet 3 Auto negotiation MDI/MDI-X (Crossover for TX port) Bullet 4 Compact design Bullet 5 LED Indicators for simple Ethernet/Fiber network link monitoring Bullets (Consolidated) Convert and extend a Gigabit Ethernet connection up to 550 m over Multi Mode SC Fiber - Fiber Converter - ethernet Media Converter - Fibre Converter - Gigabit Media Converter - 1000base-sx Marketing Copy Applications - Extending an Ethernet connection by up to 550m (0.34 miles) using a fiber backbone
- Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
- Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
- Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
Website Search Keyword - Ethernet fiber extender
- Fiber Optic transmitter
- Gigabit Fiber
- Long distance ethernet
- Media Converter
- multi mode fiber
- Multi-Mode
- Mutimode fiber converter
- RJ45 to SC
- 850nm fiber
- 850nm converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - 50FIBSCSC10
- FIBSCSC10
- FIBSCSC15
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
- M45PATCH6BL
- SVA9M2NEUA
Related Products - 110VDSLEXT
- ET1000SM40LC
- ET90110SC
- ET90110SM30
- ET90110ST
- ET90110WDM
- ET91000LC
- ET91000MMSM
- ET91000SC
- ET91000SM40
- MCM110ST2
Replacement Product MCMGBSCMM055 Constrained SKU Alternatives (Limited Stock) MCMGBSCMM055 Equivalent Part Number in the EU MCMGBSC055EU Equivalent Part Number in the UK MCMGBSC055GB Input Voltage 115V AC Output Current 0.6 A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 99.000 Product Width (mm) 73.000 Product Height (mm) 27.000 Product Weight (g) 234.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1000 Mbps (1 Gbps) Max Transfer Distance 550m [1804ft] Wavelength 850nm Fiber Connector SC Industry Standards IEEE 802.3z 1000BASE-SX LED Indicators - 1 - Power Indicator
- 1 - FX Link: On - Valid Fiber Link
- 1 - TP Link: On - Valid Ethernet Link
- 1 - TP RX: On - Receiving Data on the Ethernet Link

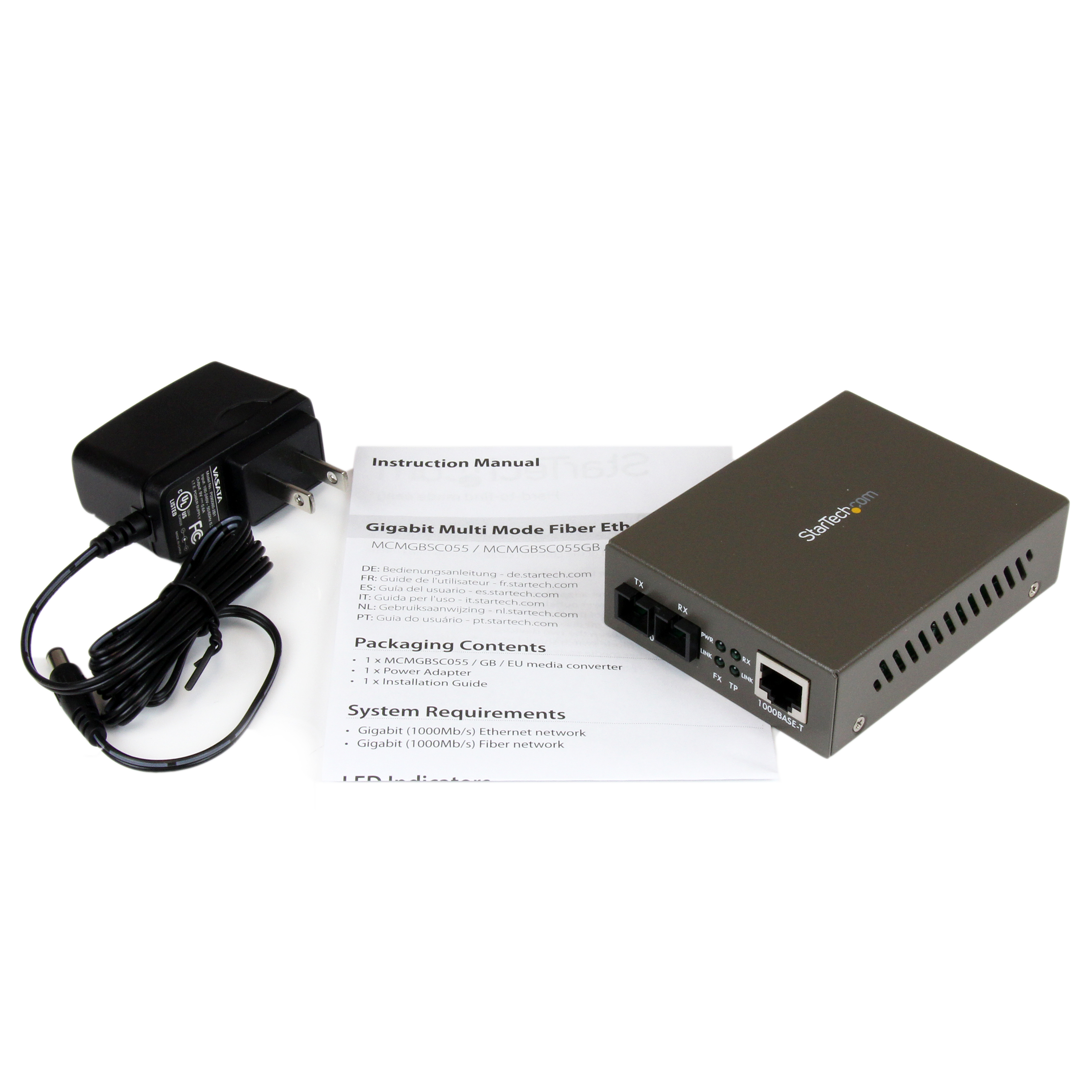

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 431 Carton Height (mm) 347 Carton Quantity 30 Carton Weight Gross (g) 14316 Included in Package - 1 - Media Converter
- 1 - Power Adapter
- 1 - User's Manual
Package Depth (mm) 166 Package Height (mm) 64 Package Width (mm) 204 Package Quantity 1 Package Weight (g) 436 Packaging Description Gigabit Ethernet to SC Fiber Converter 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,JP,NZ,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
