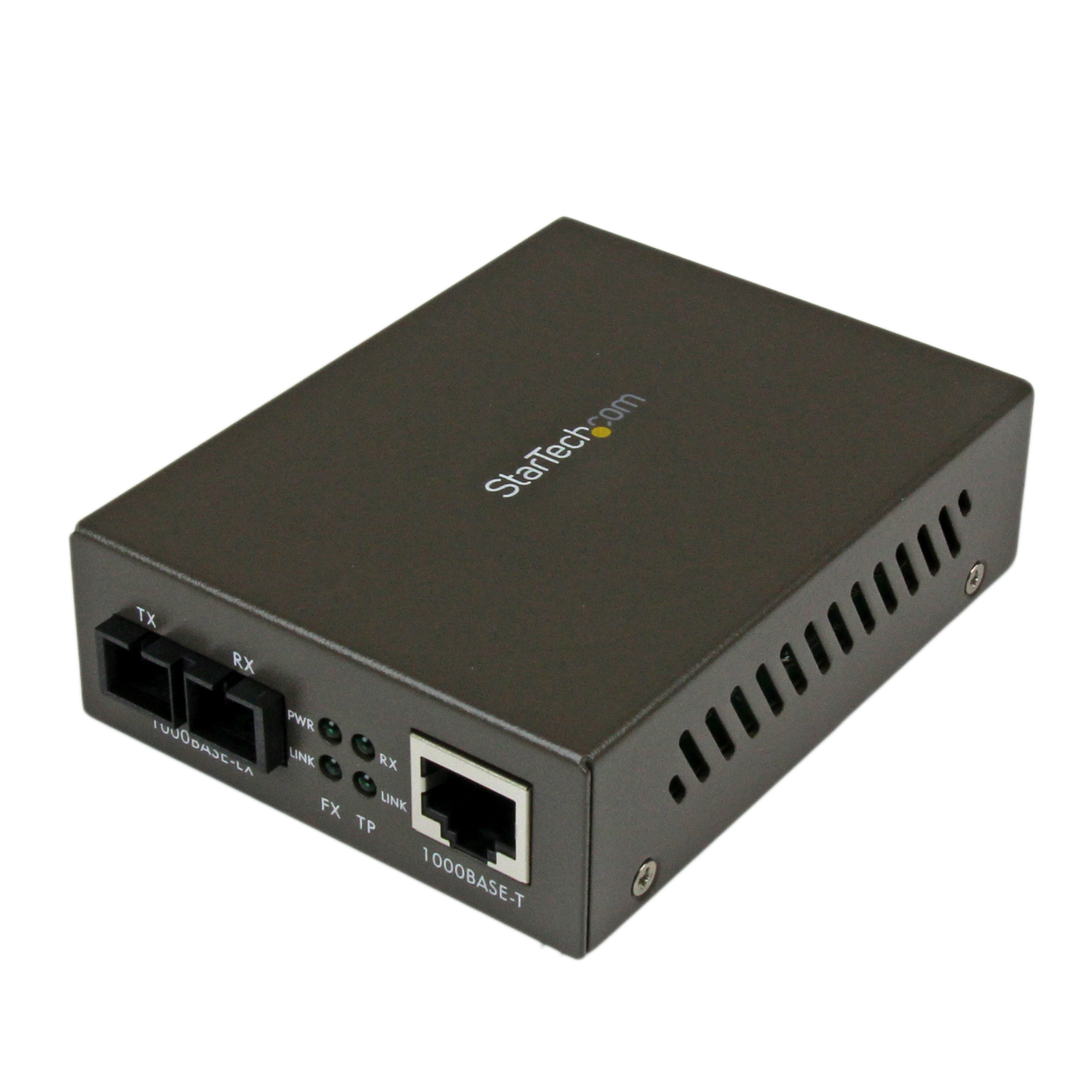

MCMGBSC15EU
Gigabit Fiber Ethernet Media Converter RJ45 to SC
Convert and extend a Gigabit Ethernet connection up to 15 km over Single Mode SC fiber
Main Image
Product Images
Product Images
Product Name Gigabit Fiber Ethernet Media Converter RJ45 to SC Product Number MCMGBSC15EU UPC 065030836319 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 1000 Fiber Ethernet Media Converter SC Product Title (Standard) Gigabit SM Fiber Ethernet Media Converter SC Product Title (Long) 1000 Mbps Gigabit Single Mode Fiber Ethernet Media Converter SC 15km Product Title (AMZ) 1000 Mbps Gigabit Single Mode Fiber Ethernet Media Converter SC 15km (MCMGBSC15EU) Title Ingram (Part 1) 1000 Mbps Gigabit Single-Mode Fi Title Ingram (Part 2) ber Ethernet Media Converter Website Product Headline Convert and extend a Gigabit Ethernet connection up to 15 km over Single Mode SC fiber Bullet 1 Auto detects half/full duplex transfer mode from the TX port Bullet 2 Auto negotiation MDI/MDI-X (Crossover for TX port) Bullet 3 Compact design Bullet 4 LED Indicators for simple Ethernet/Fiber network link monitoring Bullet 5 Supports forced full duplex or auto-negotiation modes on the fiber link Marketing Copy Applications - Extending an Ethernet connection by up to 15km (9.32 miles) using a fiber backbone
- Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
- Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
Website Search Keyword - Ethernet fiber extender
- Fiber Optic transmitter
- Gigabit fiber
- Long distance ethernet
- Media Converter
- Single Mode fiber
- Single-Mode
- SingleMode fiber converter
- RJ45 to SC
- Fiber converter
- 1310nm fiber
- 1310nm converter
- 15 km
- 15km
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - 45PATCH1GR
- M45PATCH1BK
- M45PATCH1RD
- M45PATCH1BL
- M45PATCH2BL
- M45PATCH6BL
- M45PATCH6GN
- M45PATCH6GR
- M45PATCH6PL
- RJ45PATCH6
- SVA9M2NEUA
Related Products - SFPSXMM
- IMC110MMSC
- MCM110SC2GB
- MCM110SC2PGB
- MCM110ST2GB
- MCM110ST2PGB
- MMC110MMST
- PEX1000MMSC
- MCMGBSC055EU
Replacement Product MCMGBSCSM10 Input Voltage 100 - 240 AC Output Current 0.8A Output Voltage (V) 9V DC Power Consumption (In Watts) 7.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 99 Product Width (mm) 73 Product Height (mm) 27 Product Weight (g) 450 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 1000 Mbps (1 Gbps) Max Transfer Distance 15 km (9.3 mi) Wavelength 1310nm Fiber Connector SC Industry Standards IEEE 802.3z 1000BASE-LX/LH LED Indicators - 1 - Power Indicator

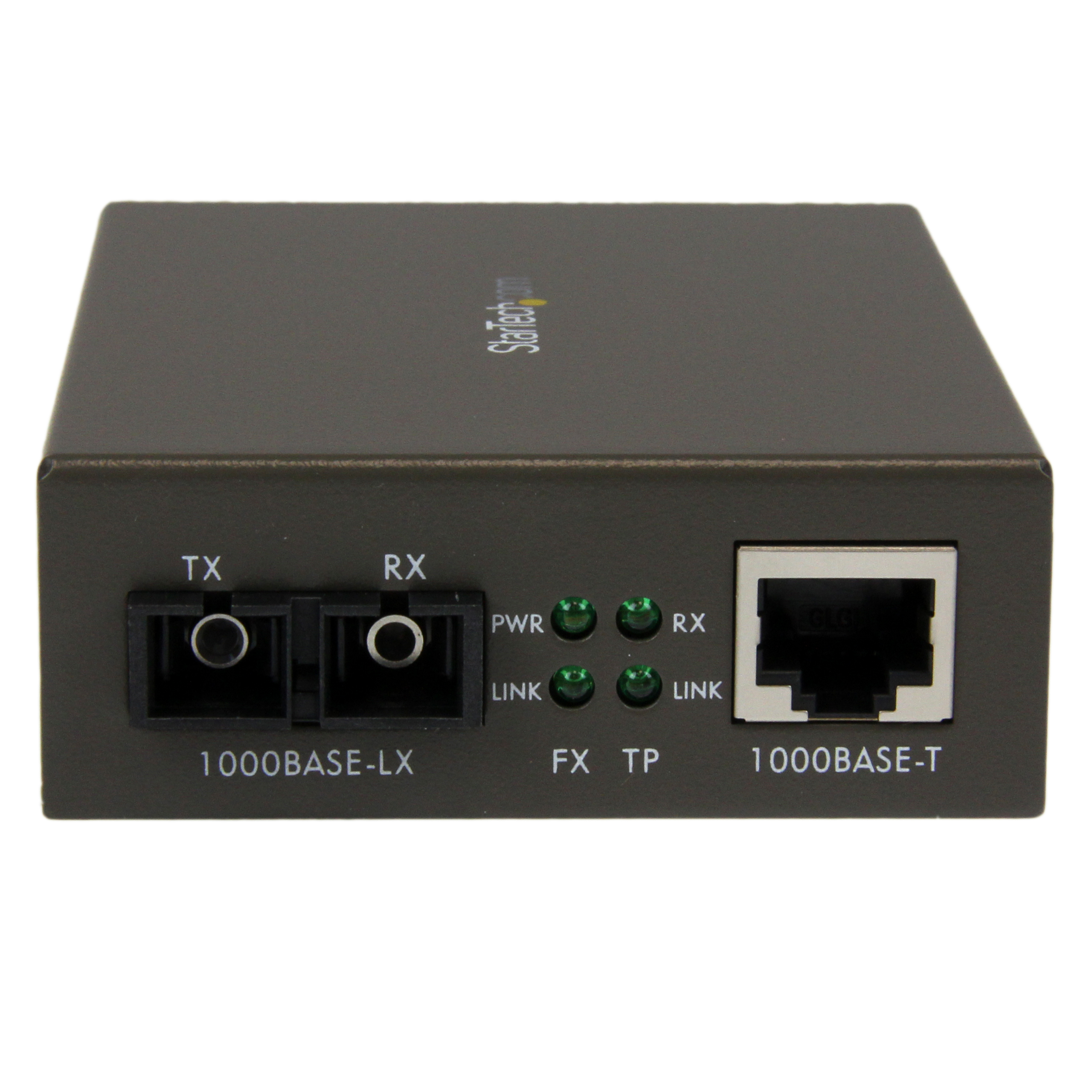

- 1 - FX Link: On - Valid Fiber Link
- 1 - TP Link: On - Valid Ethernet Link
- 1 - TP RX: On - Receiving Data on the Ethernet Link
Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 520 Carton Height (mm) 360 Carton Quantity 30 Carton Weight Gross (g) 14700 Included in Package - 1 - Media Converter
- 1 - User's Manual
- 1 - Power Adapter
Package Depth (mm) 165 Package Height (mm) 65 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 450 Packaging Description Gigabit SM Fiber Ethernet Converter SC 15km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
