MCMGBSCSM10

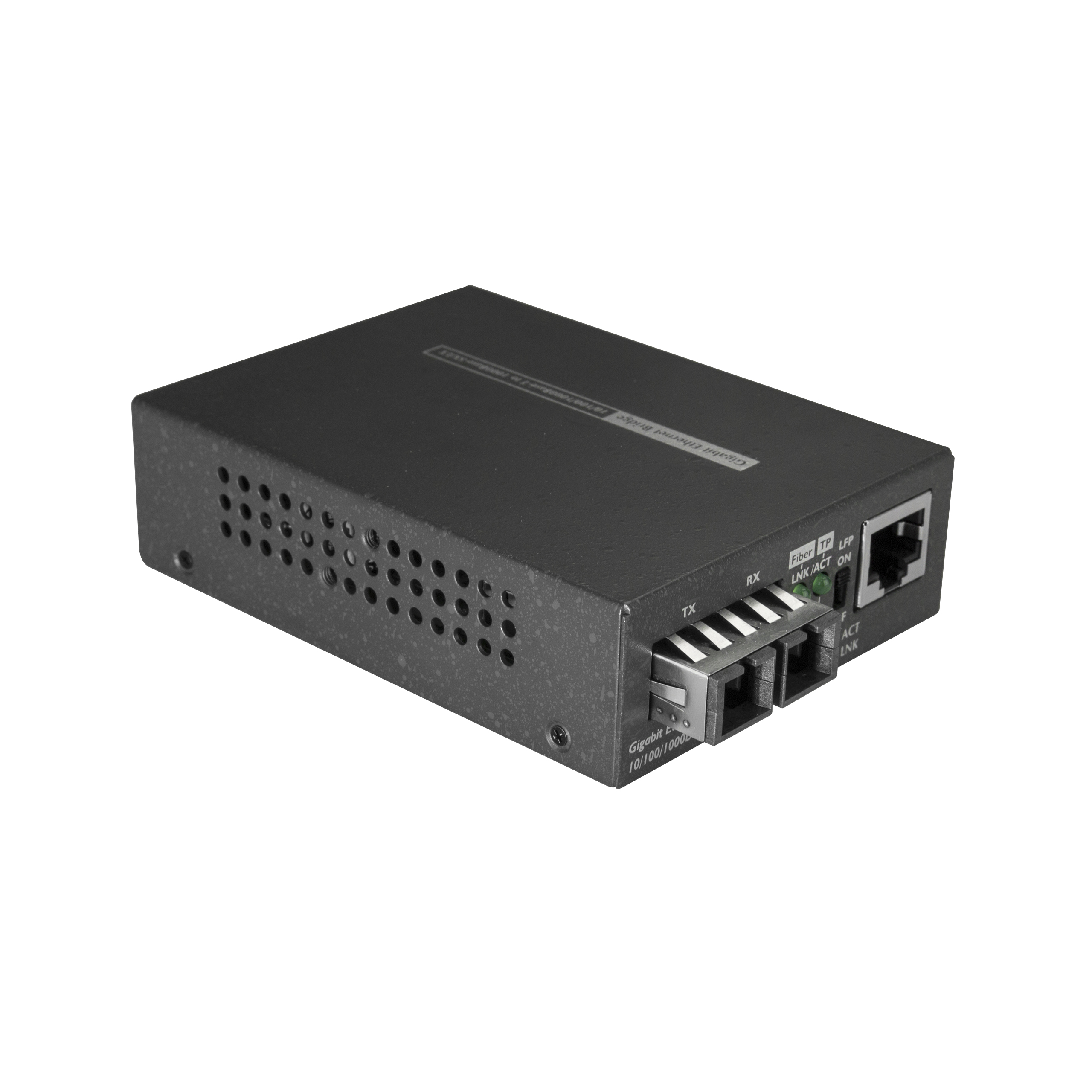

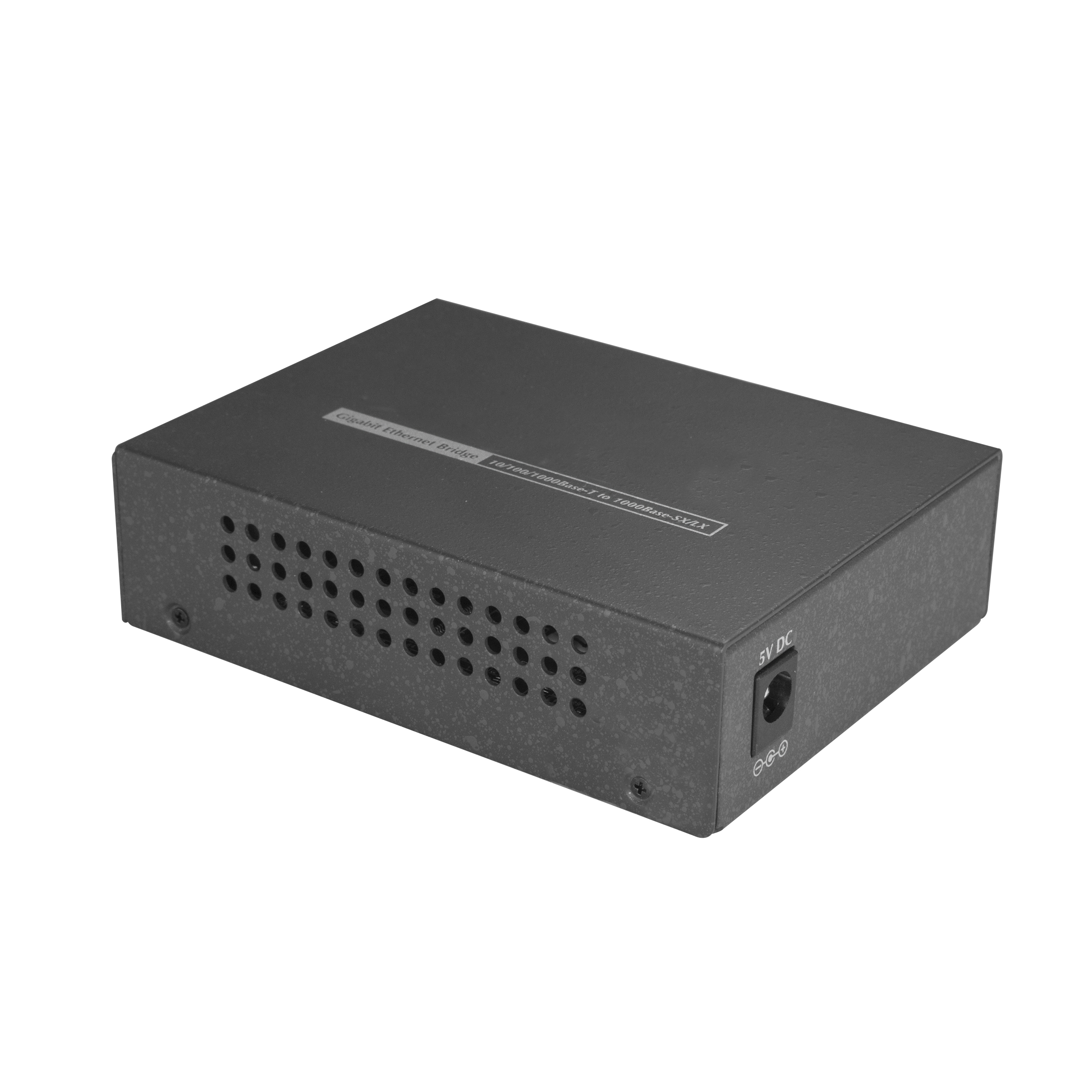

Fiber Media Converter - 10 km - SM - 1000Base-LX
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Fiber Media Converter - 10 km - SM - 1000Base-LX Product Number MCMGBSCSM10 UPC 065030878241 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - MCM Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) Media Converter - SM Product Title (Short) SM Fiber Ethernet Media Converter SC GbE Product Title (Medium) Fiber Media Converter - 1000Base-LX - SM 10 km - SC Fiber to Ethernet Converter Product Title (Standard) Single-Mode (SM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit RJ45 to Fiber Converter, 10km, TAA Product Title (Long) Single-Mode (SM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 1310nm, 10km - TAA Product Title (AMZ) Single-Mode (SM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 1310nm, 10km - TAA Title Ingram (Part 1) Fiber Media Converter, SM Fiber Title Ingram (Part 2) 10 km - 1000Base-LX Website Product Headline Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Single mode fiber Ethernet media converter extends & bridges copper networks - 10/100/1000 (Gigabit), 1000BASE-LX, 1310nm, 10km (6.2mi), Unmanaged, SMF, SC, RJ45, Mounting Brackets, LFP, VLAN, ESD Surge + Contact & Air Protection, 2 Yr Warranty Bullets (Consolidated) Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit multi-mode SC fiber, up to 10km (6.2mi) - Use as s standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT), chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) - Supports IEEE 802.3 standards, Jumbo Frames (up to 9K), full-duplexl, auto-negotiation, and auto MDI/MDI-X - Plug-and-play setup reducing packet loss - 3.75W with 5V DC input via included power adapter or an optional chassis power supply; Does not support PoE Marketing Copy Marketing Copy (No HTML) Applications - Extend an Ethernet connection by up to 10 km (6.2 miles) over a fiber backbone
- Create an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber-optic networks/backbones
- Converts Ethernet to fiber, and fiber to copper to provide a cost-effective networking solution
Website Search Keyword - Fiber media converter
- media converter
- Fiber to Ethernet Converter
- Fiber to Copper Converter
- Fiber optic media converter
- Fiber to Ethernet Media Converter
- Media converter fiber to Ethernet
- fiber converter
- SC fiber converter
- Gigabit Ethernet to SC Fiber Media Converter
- 1000Base-SX media converter
- SM media converter
- single mode media converter
- single-mode media converter
- network media converter
- Gigabit media converter
- N785-INT-SC-SM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016

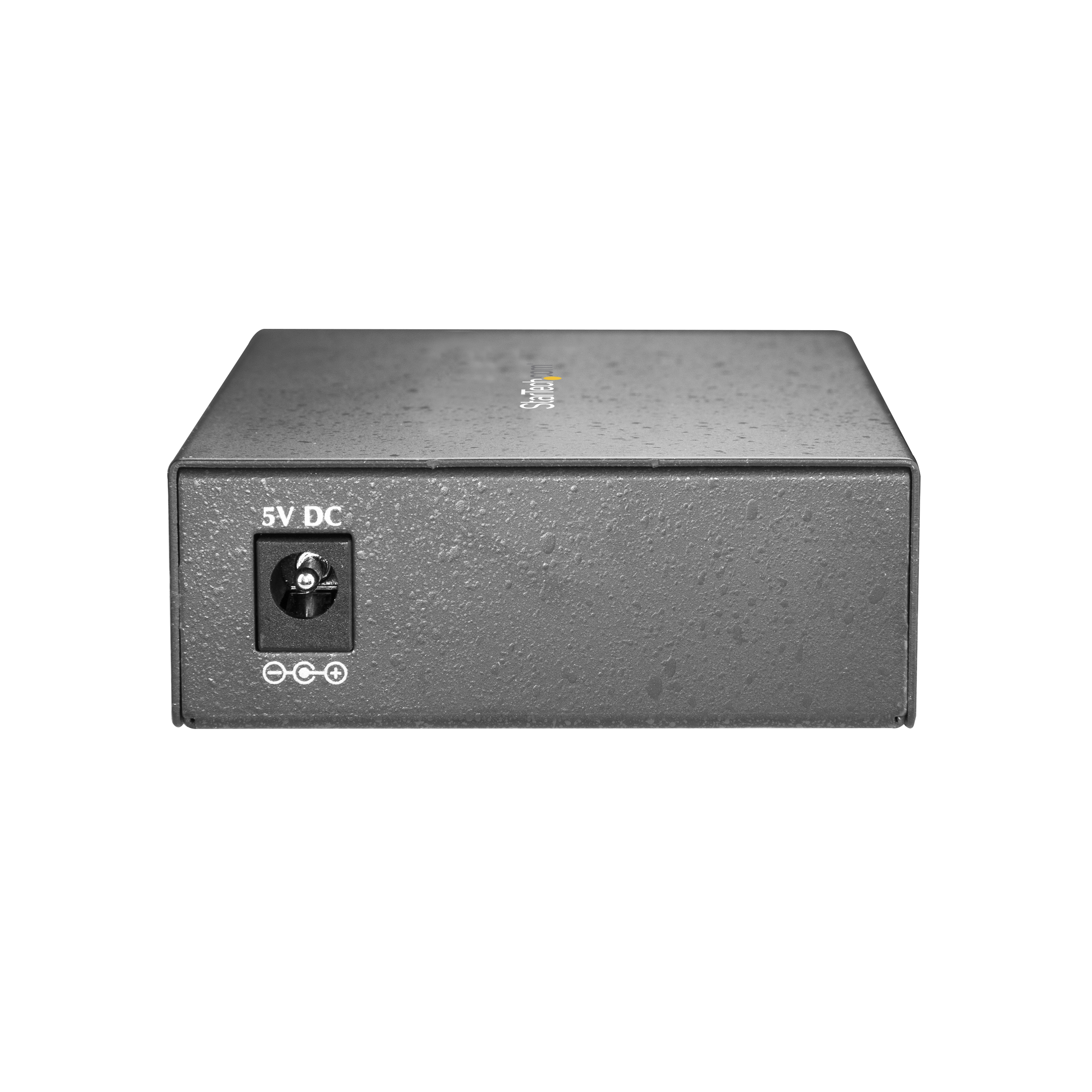

Constrained SKU Alternatives (Limited Stock) ET91000SM10 Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 5 ~ 90% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 70 Product Width (mm) 105 Product Height (mm) 26 Product Weight (g) 196 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode General Specifications Jumbo Frame Support 9K max. Max Distance 10 km (6.2 mi) Maximum Data Transfer Rate 1000 Mbps (1 Gbps) Max Transfer Distance 10 km (6.2 mi) MTBF (hours) > 50,000 hours at 25°C Switching Architecture Store-and-Forward Wavelength 1310nm Fiber Connector SC Industry Standards - IEEE 802.3x full-duplex flow control
- IEEE 802.1q VLAN pass through
- IEEE 802.3u 100BASE-LX
- IEEE 802.3z 1000BASE-LX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3 10BASE-T

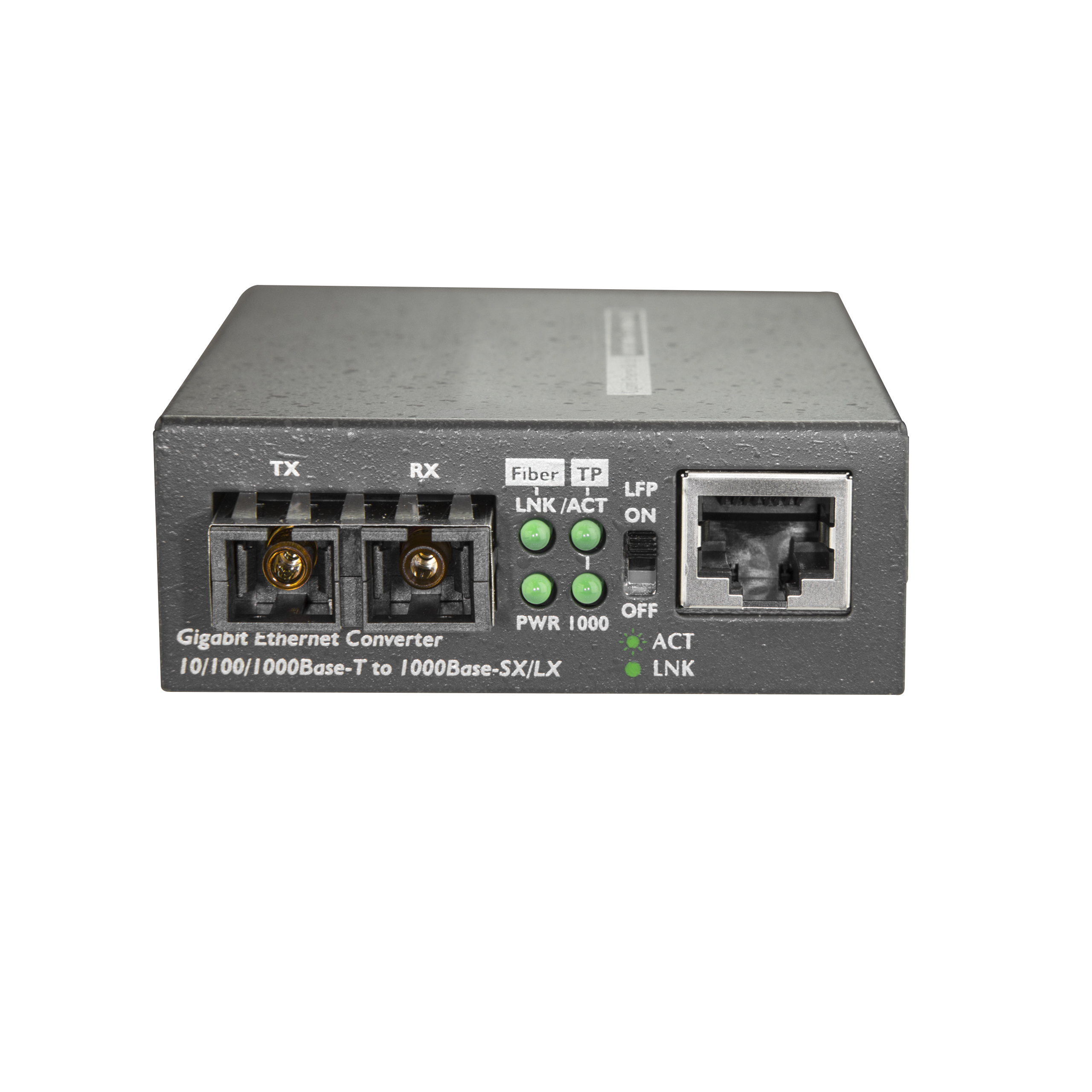

LED Indicators - 1 - Power
- 1 - FX Link/Activity
- 1 - TP Link/Activity
- 1 - 1000 Link: ON - Valid Gigabit Link

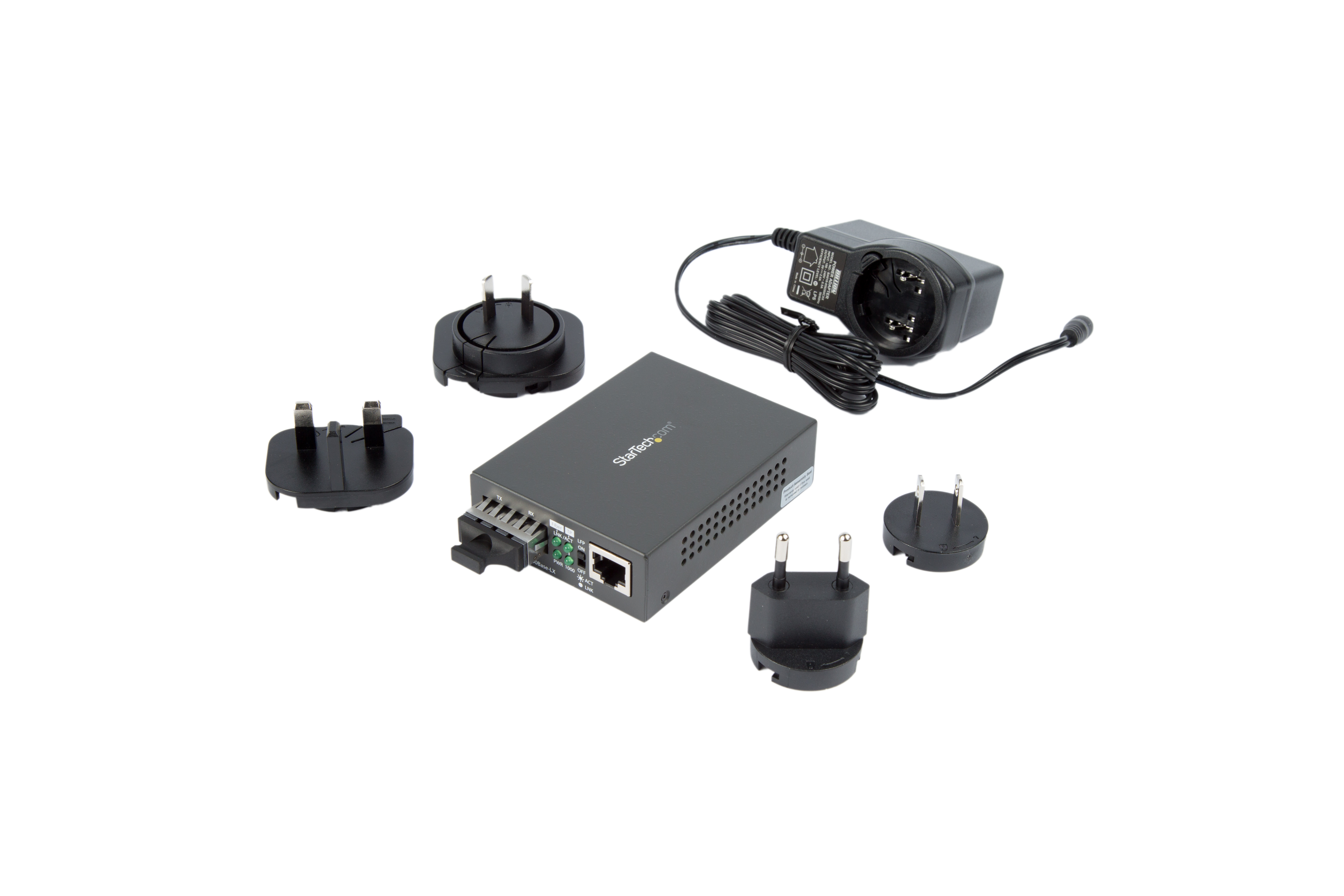

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 368 Carton Height (mm) 306 Carton Quantity 20 Carton Weight Gross (g) 11590 Included in Package - 1 - media converter
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - quick-start guide
Package Depth (mm) 120 Package Height (mm) 70 Package Width (mm) 226 Package Quantity 1 Package Weight (g) 428 Packaging Description GbE to SC Fiber Media Converter - SM - 10 km Packaging Description India GbE to SC Fiber Media Converter - SM - 10 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-10-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-01-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-09-22 Target Production Release 2017-11-03 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
