MDP2DPMM10

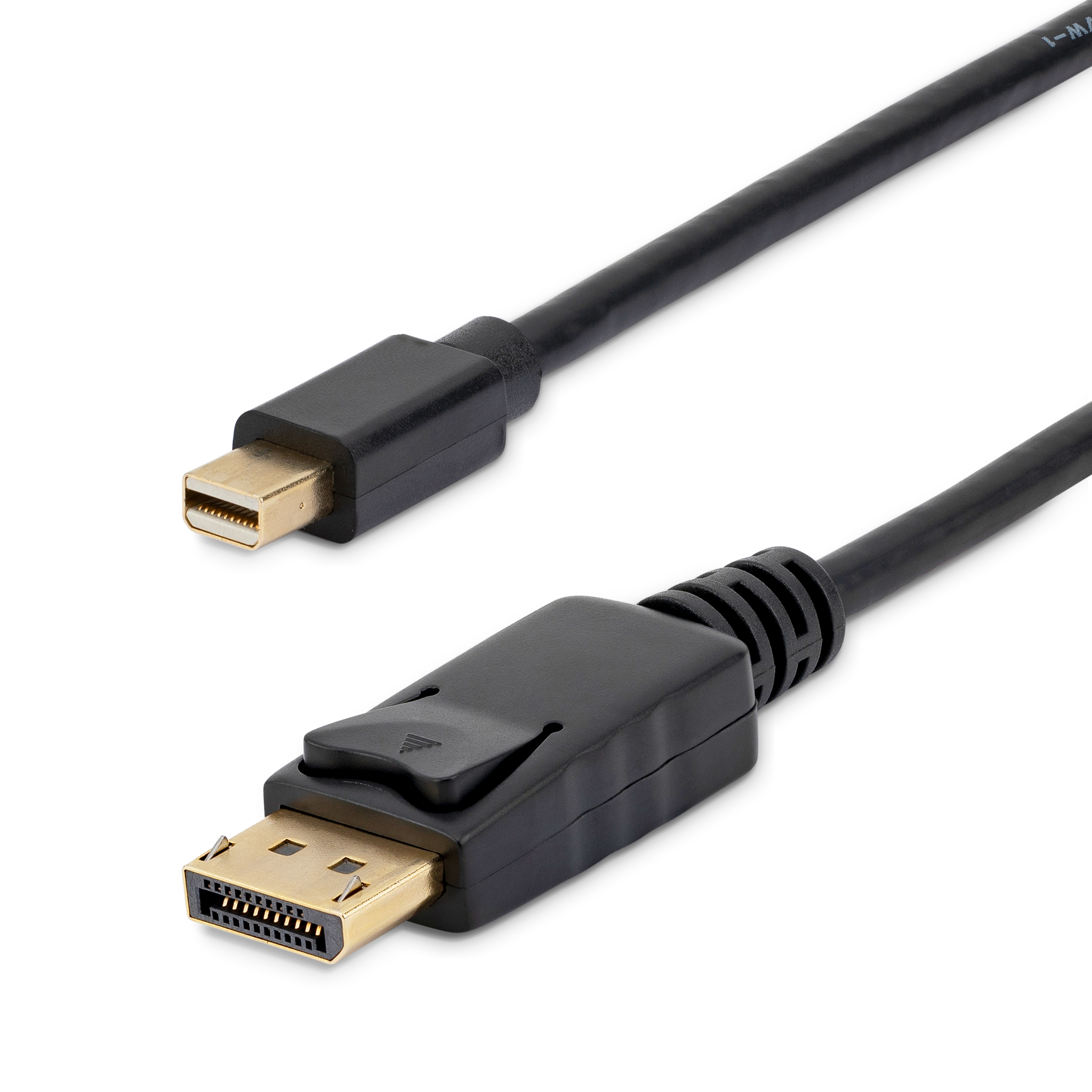

10 ft Mini DisplayPort to DisplayPort Cable M M
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 10 ft Mini DisplayPort to DisplayPort Cable M M Product Number MDP2DPMM10 UPC 065030840507 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 Mini DP Cables - 1.2 Family mDP 1.2 to DP Cables, 4K60 Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) 10ft mDP to DP 1.2 Product Title (Short) 10ft 3m Mini DP to DisplayPort 1.2 Cable Product Title (Medium) 10 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k Product Title (Standard) 10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable, 4K x 2K mDP to DisplayPort Adapter Cable, Mini DP to DP Cable Product Title (Long) 10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord Product Title (AMZ) 10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord (MDP2DPMM10) Title Ingram (Part 1) 10ft Mini DisplayPort to Title Ingram (Part 2) DisplayPort 1.2 Cable - 4k x 2k Website Product Headline Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor Bullet 1 MINI-DP to DISPLAYPORT 1.2 CABLE: This 9.8ft (3m) DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz) Bullet 2 RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection Bullet 3 QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1 Bullet 4 APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations with AMD FirePro™ W9100/8100, Nvidia NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 6/4 Bullet 5 SPECS: 9.8 ft (3 m); Black; DisplayPort v1.2; Mini-DP Male to Standard DP Latching Male; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR 2, MST, GTC; Backed for Life Bullets (Compact) 10ft/3m Mini-DP to DisplayPort v1.2 cable; 4Kx2K(3840x2400 60Hz)/21.6 Gbps bandwidth/HBR2/8Ch Audio/MST - Durable PVC strain relief; Latching connectors - For office/boardroom with laptop/workstation and monitor/projector; Samsung/Sony/Dell Bullets (Consolidated) 9.8ft/3m Mini-DP to DisplayPort v1.2 cable supports 4Kx2K(3840x2400 60Hz); 21.6 Gbps bandwidth/HBR2/8Ch Audio/MST/GTC/3D Stereo(2560x1600 120Hz) - Durable 32AWG cable w/flexible PVC strain relief prevents damage due to bends/rough use; Latching DP connectors prevent accidental disconnection - For home/office/boardroom/classroom use w/ laptop/workstation and UHD monitor/projector/large display; Samsung/Sony/Dell/Apple TV - Supports DP1.2 and earlier versions - StarTech.com Lifetime Warranty Marketing Copy Marketing Copy (No HTML) Applications Connect a DisplayPort monitor or projector to devices equipped with a Mini DisplayPort connection port Website Search Keyword - Adapter Cable
- apple
- Converter Cable
- DisplayPort Adapter
- mac
- Mini Display Port
- Mini Displayport
- Mini DisplayPort to DisplayPort
- Monitor Cable
- P583-010-BK
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - USB32DP4K
- USB32DPPRO
- USB32DPES
- DPEXT6L
- DPPNLFM3
- DPEXTAA6IN
Related Products - MDP2DPMM3
- MDP2DPMM6
- MDP2DPMM1MW
- MDP2DPMM2MW
- MDP2DPMM3MW
- MDP2DPMM4M
- DP2MDPMF3
- MDPEXT3
- MDPEXT6
- MDP2DPMF6IN
- DP2MDPMF6IN
- GCMDP2DPMF
Cable Length (mm) 3048 Cable OD 4.8 Color Black Connector Style Latching Humidity 10%-85% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 3048.000 Product Width (mm) 6.000 Product Height (mm) 5.000 Product Weight (g) 103.944 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Wire Gauge 32 AWG DisplayPort Version DP 1.2 - (HBR2) Maximum Digital Resolutions 4k x 2k (3840 x 2160) @ 60Hz Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Gold Connectors DisplayPort to Mini DisplayPort Fire Rating CMG Number of Conductors 19 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 513 Carton Height (mm) 219 Carton Quantity 50 Carton Weight Gross (g) 6272 Included in Package 1 - 10 ft Mini DisplayPort™ to DisplayPort 1.2 Adapter Cable - M/M Included In Package for Label 1 - 10 Ft Mini Displayport™ To Displayport 1.2 Converter Cable - M/M Number of Sub-Cartons 5 Package Depth (mm) 200 Package Height (mm) 30 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 108 Packaging Description Mini DisplayPort® to DisplayPort Cable - M/M Packaging Description India Mini DisplayPort® to DisplayPort Cable - M/M Sub-Carton Depth (mm) 243 Sub-Carton Height (mm) 123 Sub-Carton Width (mm) 229 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1104 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
