MDP2DVI3

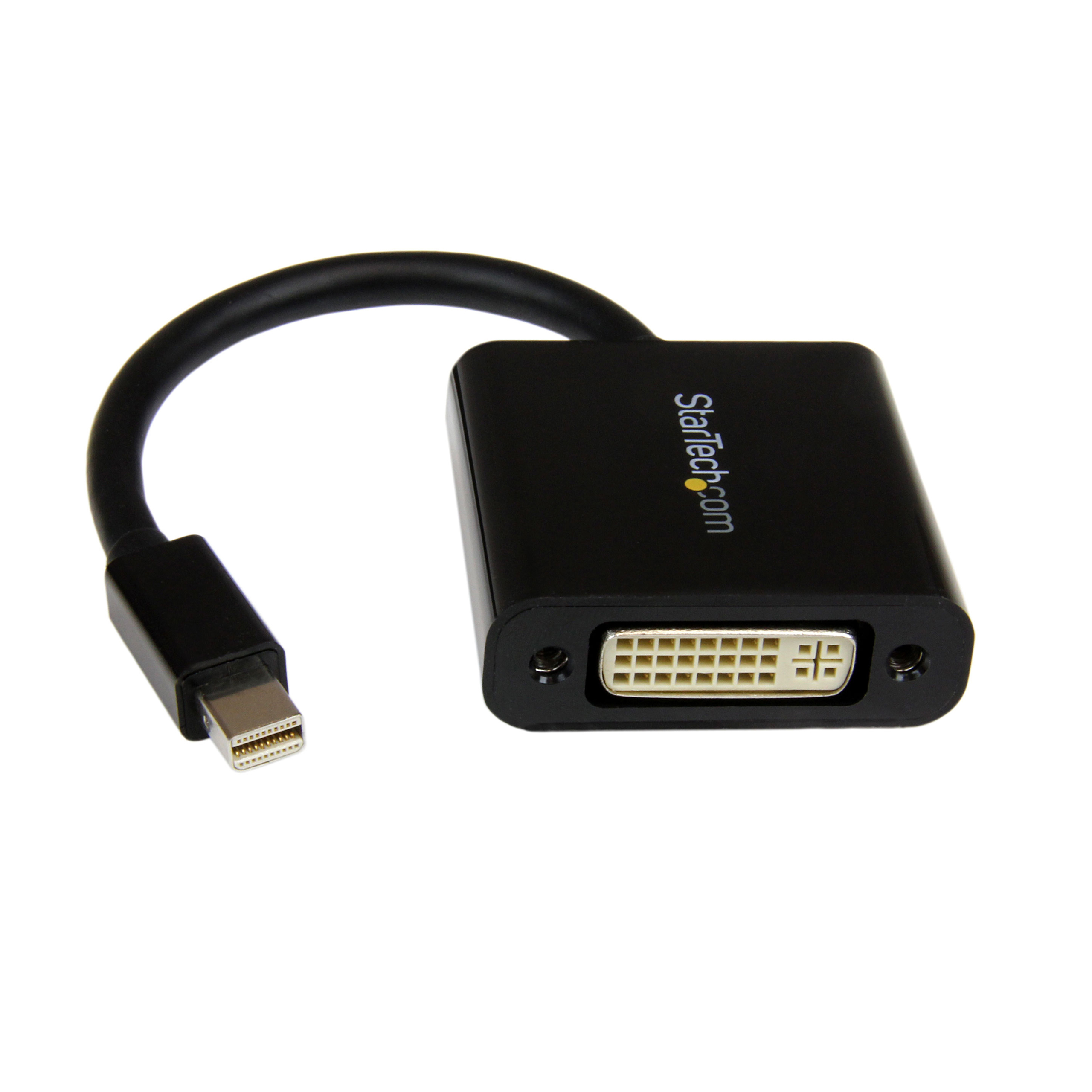

Mini DisplayPort to DVI Adapter
Connect a DVI Display to a Mini DisplayPort Video Source
Main Image
Product Images
Product Images
Product Images
Product Name Mini DisplayPort to DVI Adapter Product Number MDP2DVI3 UPC 065030848695 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to DVI Family mDP to DVI Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) Mini DP to DVI Product Title (Short) Mini DisplayPort to DVI Adapter - DVI-D Product Title (Medium) x Product Title (Standard) Mini DisplayPort to DVI Adapter, Mini DP to DVI-D Single Link Converter, 1080p Video, Passive, mDP 1.2 to DVI Monitor/Display Product Title (Long) Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle Product Title (AMZ) Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle (MDP2DVI3) Title Ingram (Part 1) Mini DisplayPort to DVI Adapter Title Ingram (Part 2) - Mini DP to DVI Converter Website Product Headline Connect a DVI Display to a Mini DisplayPort Video Source Bullet 1 HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 2 MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display Bullet 3 INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle | Compact design makes it ideal for travel | 5" (13cm) attached cable Bullet 4 SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors | Tested with DVI cables up to 25ft | mDP male to DVI female connector Bullet 5 EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort Bullets (Compact) Passive Mini DP to DVI-I (digital only DVI-D) single-link converter supports 1080p 60Hz video; mDP 1.2; EDID/DDC - mDP++ source to DVI monitor/display adapter - Compact Mini DisplayPort to DVI adapter dongle works w/ Thunderbolt 1/2 - OS independent Bullets (Consolidated) Mini DisplayPort to DVI-I (digital only DVI-D) single-link adapter connects DVI display/projector/monitor supporting 1920x1200/1080p 60Hz video | EDID/DDC - Passive Mini DP to DVI converter supports Mini Display Port 1.2 equipped PC/Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Surface Pro (1-6) | Workstations | Desktops (AMD/Nvidia video card) | Laptops | Docks - Mini DisplayPort to DVI adapter supports DVI screw locking cable - Compact mDP to DVI adapter dongle - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Connect your existing DVI monitor to Mini DisplayPort output device
- Ideal for using your DVI monitor as a secondary display
Website Search Keyword - DisplayPort to DVI Adapter
- Mini DisplayPort to DVI
- Mini DisplayPort DVI Adapter
- DisplayPort to DVI
- Apple DisplayPort
- Apple Mini DisplayPort
- Mac Mini DisplayPort
- Macbook Mini DisplayPort
- mac
- apple
- Light Peak
- Light Peek
- Thunder Bolt
- P137-06N-DVIB
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM25
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- HDDVIMM25
Related Products - MDP2DVI
- MDP2DVIS
- MDP2DVIW
- MDP2DVIMM6
- MDP2DVID
- MDP2DVIMM6BS
- MDP2DVIMM6B
- MDP2DVIMM3BS
- MDP2DVIMM3B
- MDP2DVIMM10B
- MDP2DVIMM10W
- MDP2DVIMM6WS
- MDP2DVIMM6W
- MDP2DVIMM3W
- MDP2DVIMM3WS
- MDPHDDVIKIT
Cable Length (mm) 130 Color Black Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 175.000 Product Width (mm) 45.000 Product Height (mm) 15.000 Product Weight (g) 34.000 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p MTBF (hours) 2,205,691 hours Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Passive Audio No AV Input Mini DisplayPort - 1.2 AV Output DVI-I (Digital Only) - Single-Link Converter Type Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 468 Carton Height (mm) 279 Carton Quantity 200 Carton Weight Gross (g) 10018 Included in Package 1 - Mini DisplayPort® to DVI Adapter Included In Package for Label 1 - Mini Displayport® To DVI Converter Number of Sub-Cartons 20 Package Depth (mm) 59 Package Height (mm) 32 Package Width (mm) 202 Package Quantity 1 Package Weight (g) 40 Packaging Description Mini DisplayPort to DVI Adapter Packaging Description India Mini DisplayPort to DVI Converter Sub-Carton Depth (mm) 236 Sub-Carton Height (mm) 69 Sub-Carton Width (mm) 260 Sub-Carton Quantity 10 Sub-Carton Weight (g) 432 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-04-03 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
