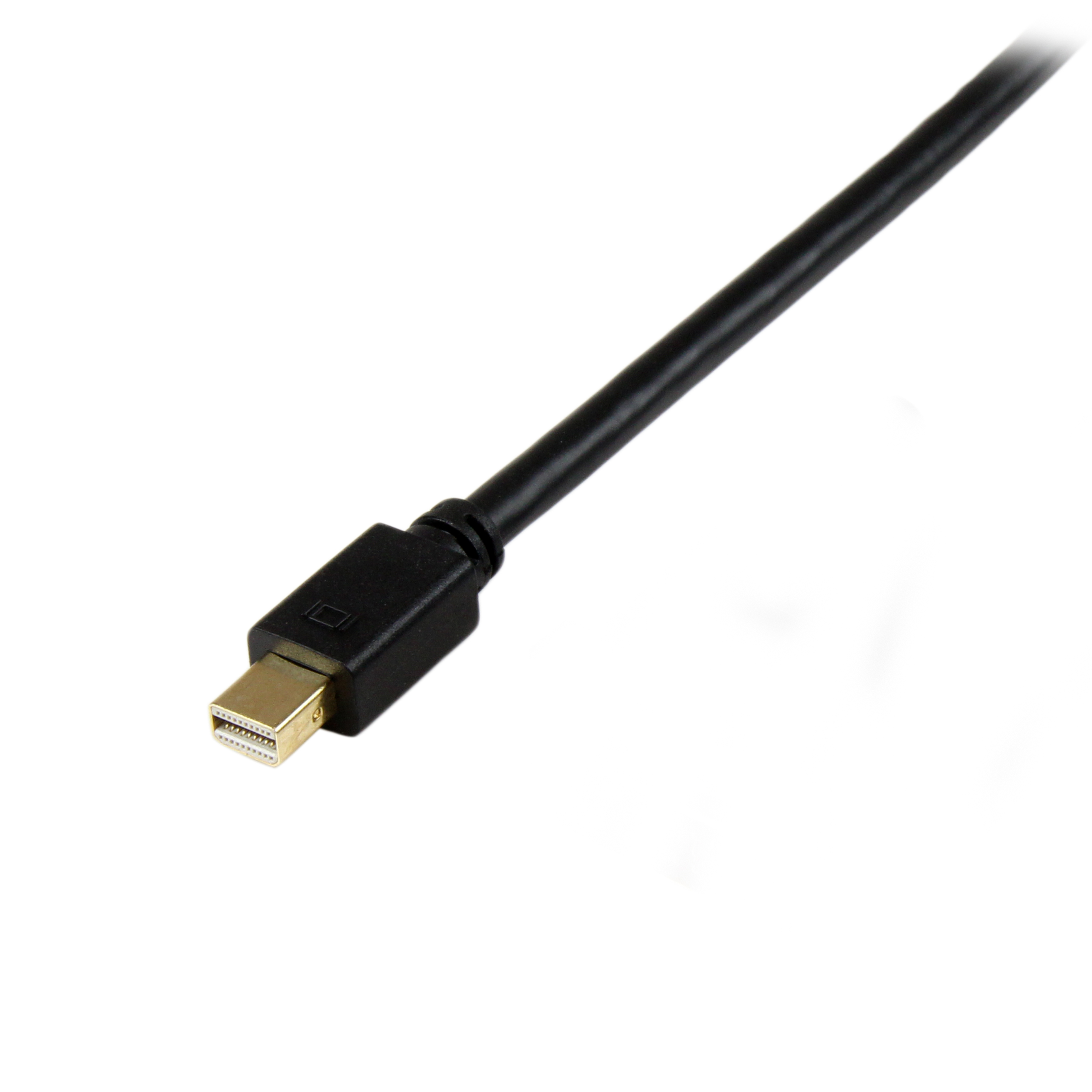

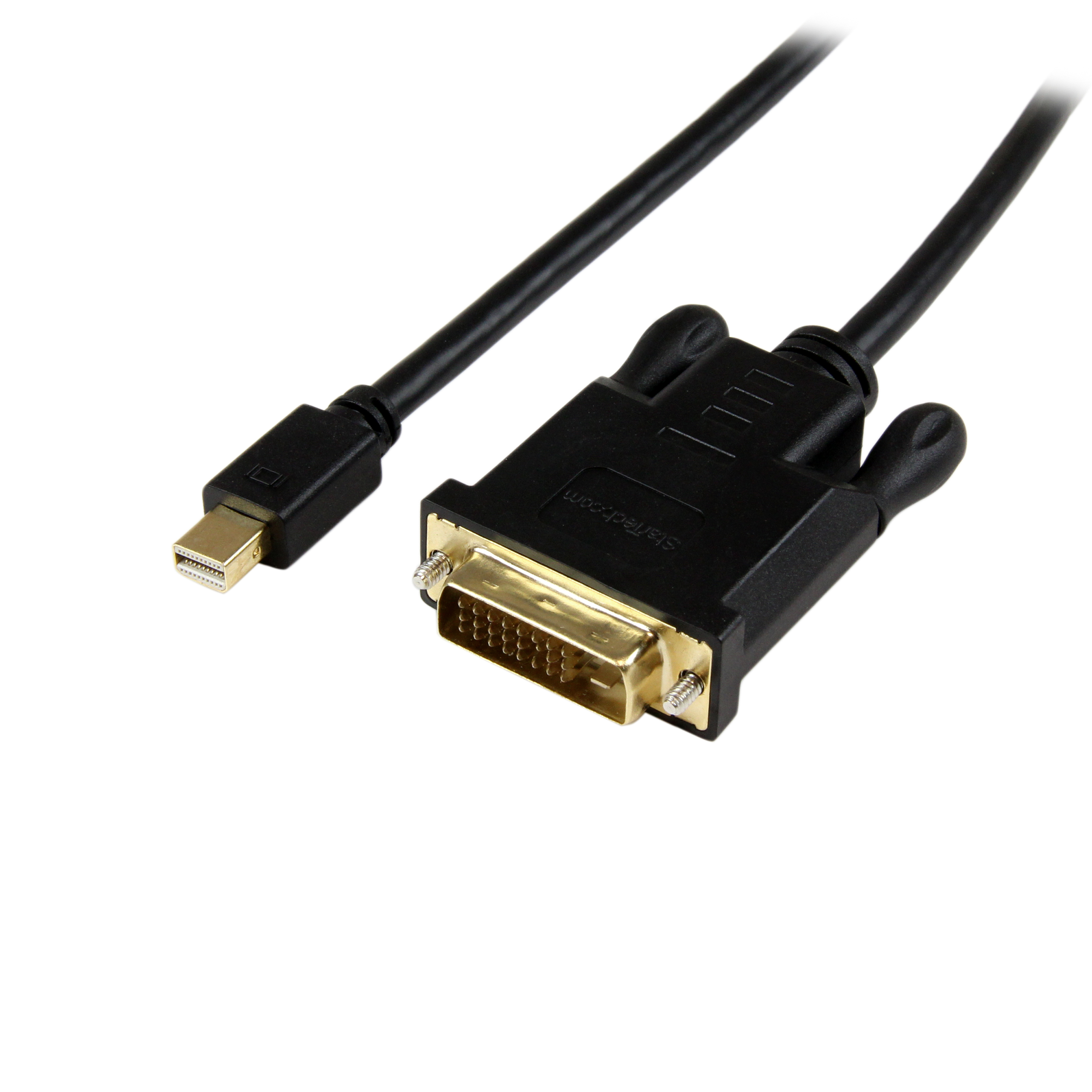

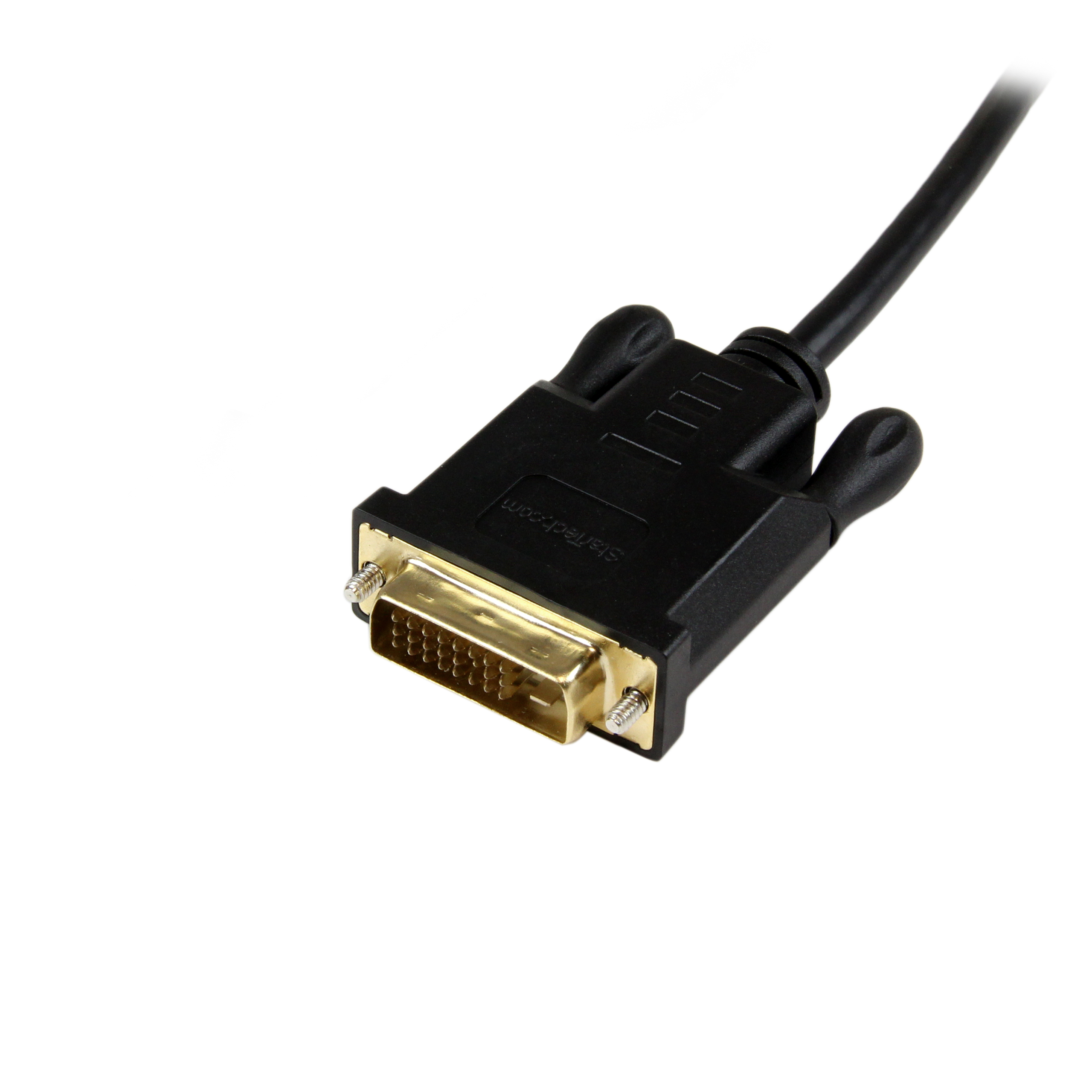

Mini DisplayPort to DVI - 3ft - Active - Black
Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter
Main Image
Product Images
Product Images
Product Name Mini DisplayPort to DVI - 3ft - Active - Black Product Number MDP2DVIMM3BS UPC 065030854924 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to DVI Family mDP to DVI Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) 3ft mDP to DVI Cable Product Title (Short) 3ft Active Mini DisplayPort to DVI Cable Product Title (Medium) x Product Title (Standard) 3ft Mini DisplayPort to DVI Cable, Active Mini DP to DVI-D Adapter/Converter Cable, 1080p Video, mDP to DVI Monitor/Display Product Title (Long) 3ft (91cm) Mini DisplayPort to DVI Cable - Active Mini DP to DVI Adapter Cable - 1080p Video - mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Product Title (AMZ) 3ft (0.9m) Mini DisplayPort to DVI Cable - Active Mini DP to DVI Adapter Cable - 1080p Video - mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor (MDP2DVIMM3BS) Title Ingram (Part 1) 3ft Mini DP to DVI Converter Title Ingram (Part 2) Cable - mDP to DVI - Black Website Product Headline Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter Bullet 1 MINI DISPLAYPORT TO DVI CABLE: 3ft (0.9m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display | 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display Bullet 2 HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 3 INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office Bullet 4 INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable | Supports DVI screw locking cable to prevent accidental disconnection | Mini DP male to DVI male Bullet 5 EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort Bullets (Compact) 3ft Mini DP 1.2 to DVI-D single-link adapter cable; 1080p 60Hz; HBR2; EDID - Active Mini DisplayPort to DVI cable converter connects mDP/mDP++ source to DVI monitor - Video adapter cable prevents signal loss - Works w/Thunderbolt 1/2 - OS independent Bullets (Consolidated) 3ft Mini DisplayPort to DVI-D (digital) single-link adapter cable connects a DVI display/projector| 1080p 60Hz or 4K 30Hz (monitors w/HDMI clock-rate) | EDID - Active Mini DisplayPort to DVI cable converter supports mDP 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Workstation | Desktop Computer (AMD Eyefinity/Radeo Pro | Nvidia Quadro) | Laptop | Dock -Integrated video adapter prevents signal loss - Mini DP to DVI cable supports DVI screw locking cord - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Use with single-mode Mini DisplayPort video outputs that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity video cards
- Connect your DVI display device (monitor, projector) directly to a Mini DisplayPort output device
- Ideal for using your DVI monitor as a secondary display
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements - Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
- This adapter is not compatible for use with the Apple Cinema Display.
Related Products - DP2DVIMM3BS
- MDP2DVIMM6WS
- DP2DVIMM6BS
- MDP2DVIMM6BS
- MDP2DVIMM3WS
Cable Length (mm) 920 Color Black Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 920.000 Product Width (mm) 40.000 Product Height (mm) 15.000 Product Weight (g) 82.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Cable Length (mm) 915 Maximum Digital Resolutions 1920 x 1200 Maximum Supported Resolution 1080p MTBF (hours) 1,291,679 hours Supported Resolutions Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input Mini DisplayPort - 1.2 AV Output DVI-D - Single-Link Chipset ID Parade - PS171 Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 416 Carton Height (mm) 426 Carton Quantity 180 Carton Weight Gross (g) 16606 Included in Package 1 - Active DisplayPort to DVI Adapter Number of Sub-Cartons 18 Package Depth (mm) 139 Package Height (mm) 21 Package Width (mm) 200 Package Quantity 1 Package Weight (g) 82 Packaging Description 3ft (0.9m) Mini DisplayPort to DVI Active Adapter Packaging Description India 3ft (0.9m) Mini DisplayPort to DVI Active Converter Sub-Carton Depth (mm) 248 Sub-Carton Height (mm) 97 Sub-Carton Width (mm) 216 Sub-Carton Quantity 10 Sub-Carton Weight (g) 842 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-10-04 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
