Main Image
MDP2DVIMM3WS

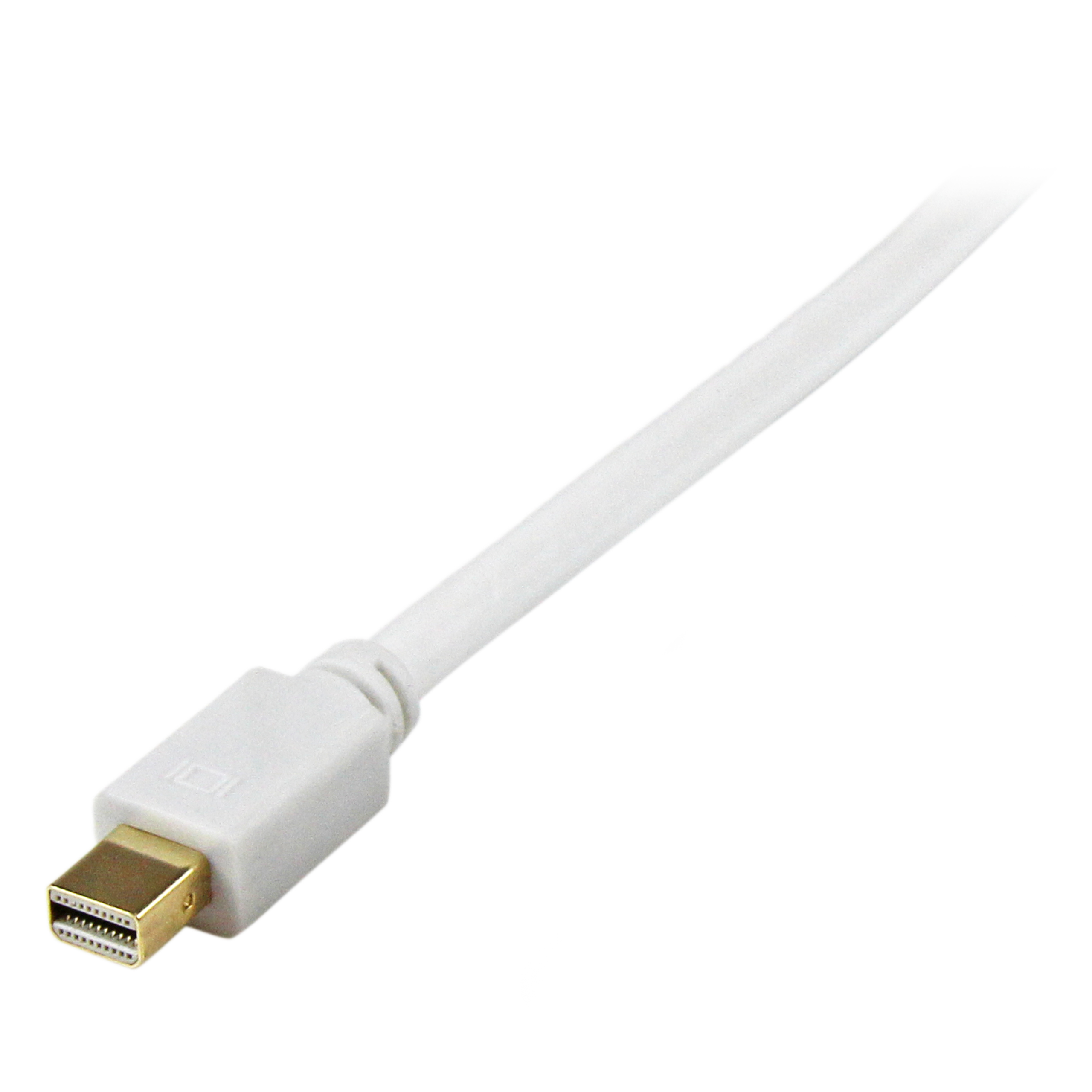

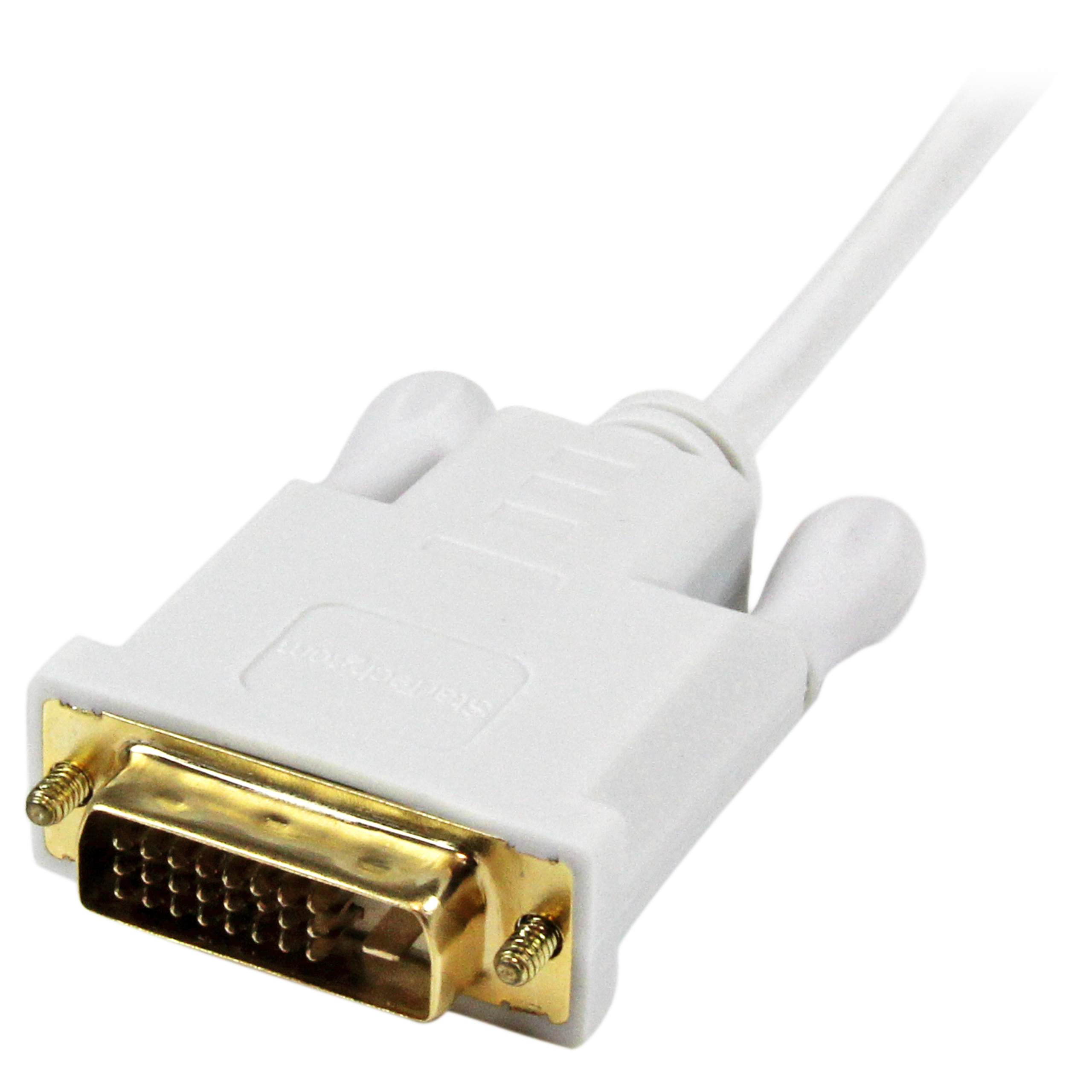

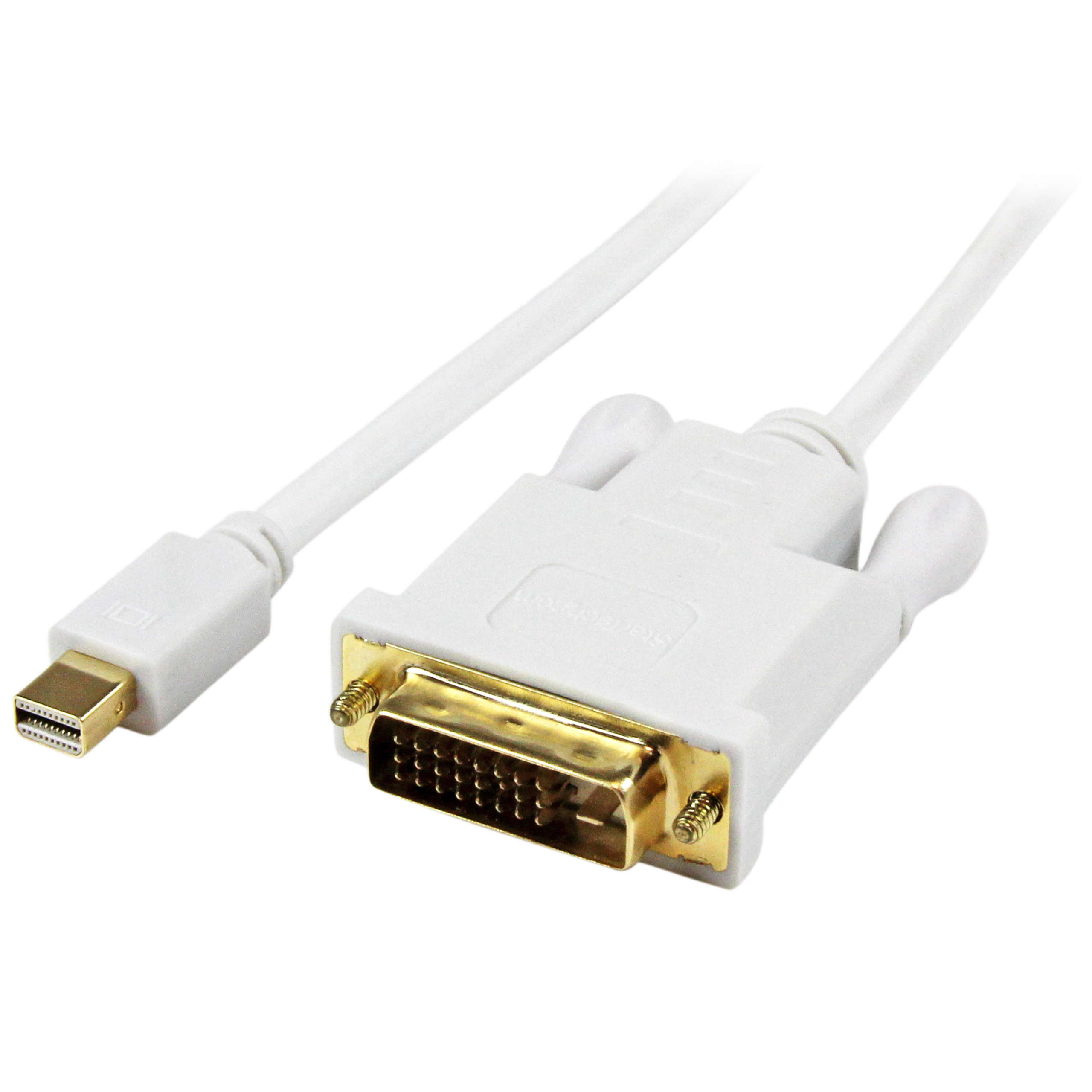

Mini DisplayPort to DVI - 3ft - Active - White
Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter
Main Image
Product Images
Product Images
Product Name Mini DisplayPort to DVI - 3ft - Active - White Product Number MDP2DVIMM3WS UPC 065030854948 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to DVI Family mDP to DVI Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) 3ft mDP to DVI Cable Product Title (Short) mDP to DVI Cable 3ft Active White Product Title (Medium) 3 ft Mini DisplayPort to DVI Active Adapter Converter Cable - 1920x1200 - White Product Title (Standard) 3 ft Mini DisplayPort to DVI Active Adapter Converter Cable - mDP to DVI 1920x1200 - White Product Title (Long) 3ft (91cm) Mini DisplayPort to DVI Active Adapter Converter Cable - mDP to DVI 1920x1200 - White Product Title (AMZ) 3 ft Mini DisplayPort to DVI Active Adapter Converter Cable - 3ft (0.9m) Active mDP to DVI M/M Cable - 1920x1200 - White (MDP2DVIMM3WS) Title Ingram (Part 1) 3 ft Mini DP to DVI Converter Title Ingram (Part 2) Cable - mDP to DVI – White Website Product Headline Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter Bullet 1 Active Mini DisplayPort to DVI conversion Bullet 2 1x Male DisplayPort connector, 1x Male DVI connector Bullet 3 Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal Bullet 4 Supports resolutions up to 1920 x 1200 Bullet 5 Plug-and-play Installation Bullets (Compact) Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter - Mini Displayport to DVI - Mini DisplayPort to DVI Adapter - Mini DisplayPort to DVI Cable - Active Mini Displayport to DVI M/M - Mini DP Bullets (Consolidated) Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter - Save upgrade costs by connecting your Mini DisplayPort computer to a DVI monitor or Projector - Reduces clutter with a short cable design - Hassle-free installation with cable-style adapter enabling you to connect your mDP source directly to a DVI display - Compatible with any Surface Pro or MacBook devices that are equipped with mDP Marketing Copy Marketing Copy (No HTML) Applications - Use with single-mode Mini DisplayPort video outputs that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity video cards
- Connect your DVI display device (monitor, projector) directly to a Mini DisplayPort output device
- Ideal for using your DVI monitor as a secondary display
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements - Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
- This adapter is not compatible for use with the Apple Cinema Display.
Related Products - DP2DVIMM3BS
- DP2DVIMM6BS
- MDP2DVIMM6BS
- MDP2DVIMM3BS
- MDP2DVIMM6WS
Cable Length (mm) 922 Color White Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 922 Product Width (mm) 40 Product Height (mm) 16 Product Weight (g) 71.6 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Cable Length (mm) 915 Maximum Digital Resolutions 1920 x 1200 Maximum Supported Resolution 1080p MTBF (hours) 1,291,679 hours Supported Resolutions Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input Mini DisplayPort - 1.2 AV Output DVI-D - Single-Link Chipset ID Parade - PS171 Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 420 Carton Height (mm) 435 Carton Quantity 220 Carton Weight Gross (g) 20500 Included in Package 1 - Active DisplayPort to DVI Adapter Package Depth (mm) 200 Package Height (mm) 15 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 84 Packaging Description 3ft (0.9m) Mini DisplayPort to DVI Active Adapter Packaging Description India 3ft (0.9m) Mini DisplayPort to DVI Active Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-10-04 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None
