MDP2DVIMM6

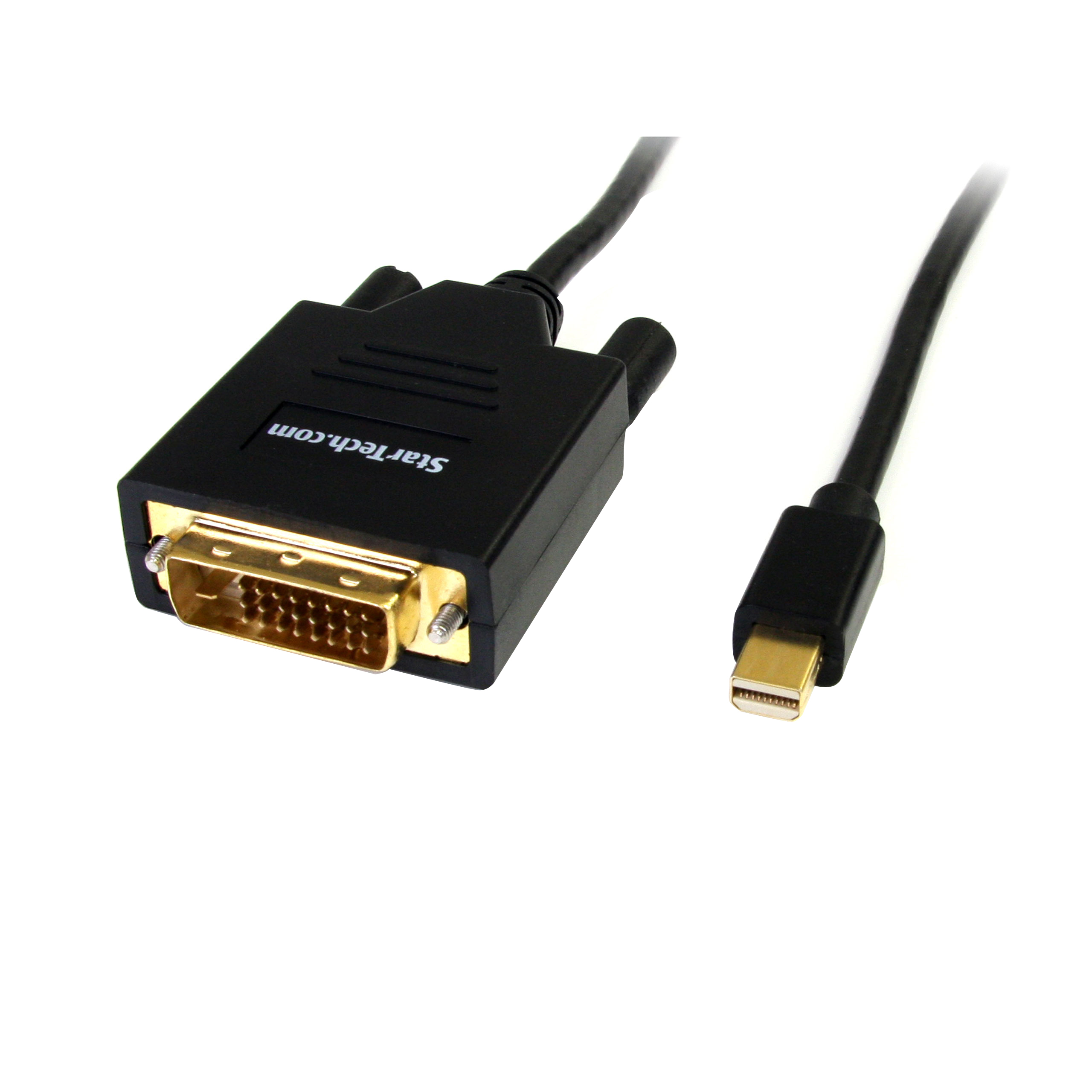

6FT MiniDisplayPort to DVI M M Cable
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC®
Main Image
Product Images
Product Images
Product Name 6FT MiniDisplayPort to DVI M M Cable Product Number MDP2DVIMM6 UPC 065030840279 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to DVI Family mDP to DVI Adapter Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Short) 6ft Mini DisplayPort to DVI Cable, DVI-D Product Title (Medium) x Product Title (Standard) 6ft Mini DisplayPort to DVI Cable, Mini DP to DVI-D Adapter/Converter Cable, 1080p Video, mDP 1.2 to DVI Monitor/Display Product Title (Long) 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP to DVI-D Single Link, mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor/Display Product Title (AMZ) 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP to DVI-D Single Link, mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor/Display (MDP2DVIMM6) Title Ingram (Part 1) 6 ft Mini DisplayPort to DVI Cab Title Ingram (Part 2) le - M/M Website Product Headline Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® Bullet 1 HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 2 MINI DISPLAYPORT TO DVI CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display | 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display Bullet 3 INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office Bullet 4 INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable | Supports DVI screw locking cable to prevent accidental disconnection | mDP Male to DVI Male Bullet 5 EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort Bullets (Compact) 6ft Passive Mini DP to DVI-D single-link cable 1080p 60Hz; mDP 1.2 HBR2; EDID - Mini DisplayPort to DVI cable converter connects mDP++ source to DVI monitor/display - Video adapter cable prevents signal loss - Works w/Thunderbolt 1/2 - OS independent Bullets (Consolidated) 6ft Mini DisplayPort to DVI-D (digital) single-link adapter cable connects a DVI display/projector/monitor | 1080p 60Hz or 4K 30Hz (monitors w/HDMI clock-rate) | EDID - Passive mDP to DVI converter cable supports Mini DisplayPort 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Workstations | Desktop Computers (AMD/Nvidia video cards) | Laptops | Docks -Integrated video adapter prevents signal loss - Mini DP to DVI cable supports DVI screw locking cord - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Keep your existing DVI display with our Mini DisplayPort to DVI video converter cables
- Use a DVI monitor with DisplayPort equipped MacBook's and iMac's with Mini DisplayPort video output
Website Search Keyword - apple
- Apple DisplayPort
- Apple Mini DisplayPort
- DisplayPort to DVI
- DisplayPort to DVI Adapter
- mac
- Mac Mini DisplayPort
- Macbook Mini DisplayPort
- Mini DisplayPort DVI Adapter
- Mini DisplayPort to DVI
- Light Peak
- Light Peek
- thunder bolt
- thunderbolt
- P586-006-DVI-V2
- P586-006-DVI
Required Regulatory Compliance Marks - Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
System and Cable Requirements DP++ (DisplayPort++) port required on video card or video source for DVI and HDMI signal pass-through. Related Products - MDP2DVIMM3B
- MDP2DVIMM10B
- MDP2DVIS
- MDP2DVI3
- MDP2DVIW
- MDP2DVI
- MDP2DVID
- MDP2DVIMM6BS
- MDP2DVIMM6B
- MDP2DVIMM3BS
- MDP2DVIMM10W
- MDP2DVIMM6WS
- MDP2DVIMM6W
- MDP2DVIMM3W
- MDP2DVIMM3WS
- MDPHDDVIKIT
Cable Length (mm) 1828.8 Color Black Humidity 5%-80% RH (no condensation) Operating Temperature 0°C to 35°C (32°F to 95°F) Primary Material Plastic Product Length (mm) 1830.000 Product Width (mm) 35.500 Product Height (mm) 16.800 Product Weight (g) 84.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Cable Length (mm) 1828.8 Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p Video Output Port DVI Active or Passive Adapter Passive Audio No AV Input Mini DisplayPort - 1.2 AV Output DVI-D - Single-Link Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 504 Carton Height (mm) 221 Carton Quantity 50 Carton Weight Gross (g) 5276 Included in Package 1 - 6 ft Mini DisplayPort to DVI Cable - M/M Included In Package for Label 1 - 6 Ft Mini Displayport To DVI Cable - M/M Number of Sub-Cartons 5 Package Depth (mm) 198 Package Height (mm) 24 Package Width (mm) 151 Package Quantity 1 Package Weight (g) 92 Packaging Description 6ft (1.8m) Mini DisplayPort® to DVI Adapter Packaging Description India 6ft (1.8m) Mini DisplayPort® to DVI Converter Sub-Carton Depth (mm) 249 Sub-Carton Height (mm) 114 Sub-Carton Width (mm) 223 Sub-Carton Quantity 10 Sub-Carton Weight (g) 912 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
