Main Image
MDP2DVIMM6W

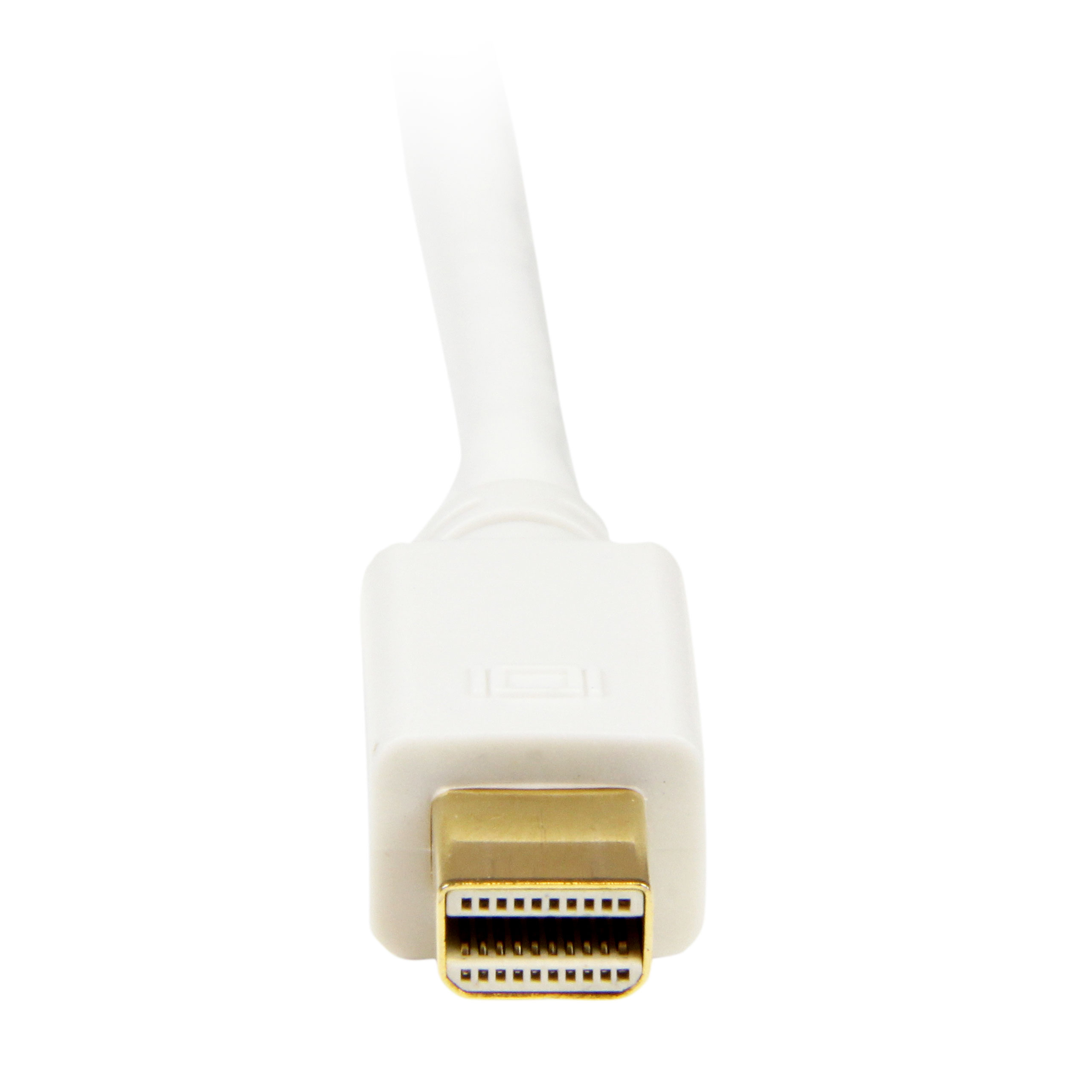

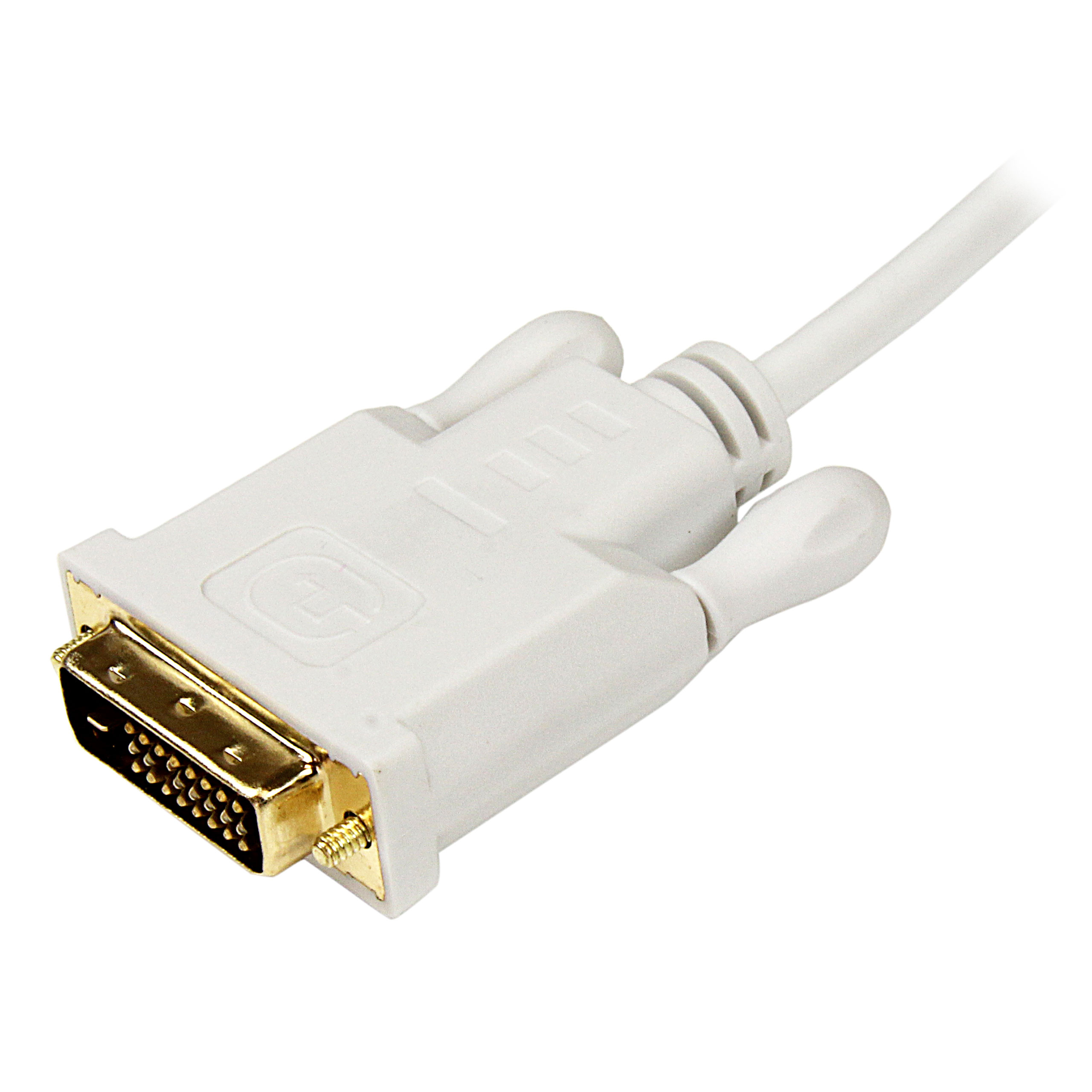

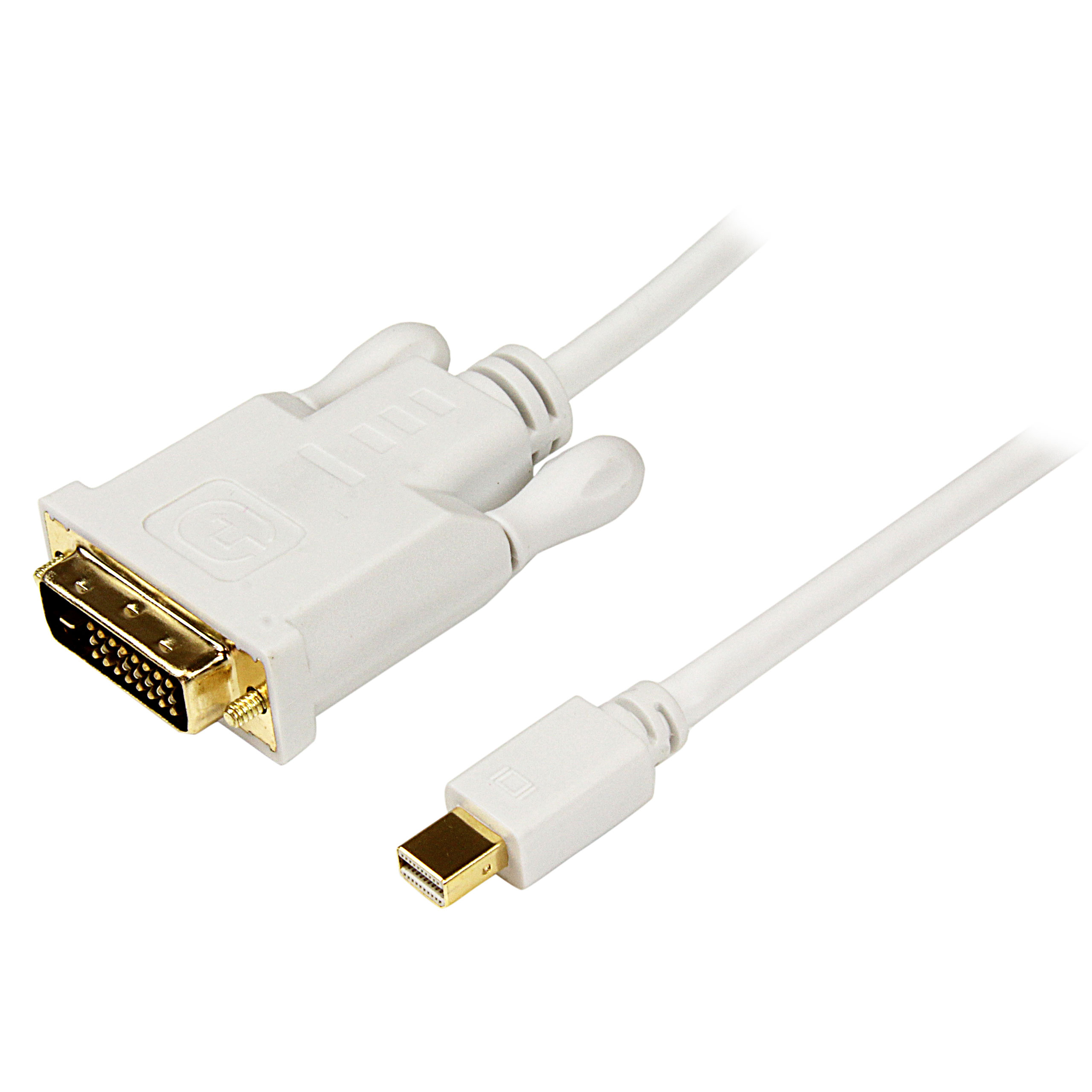

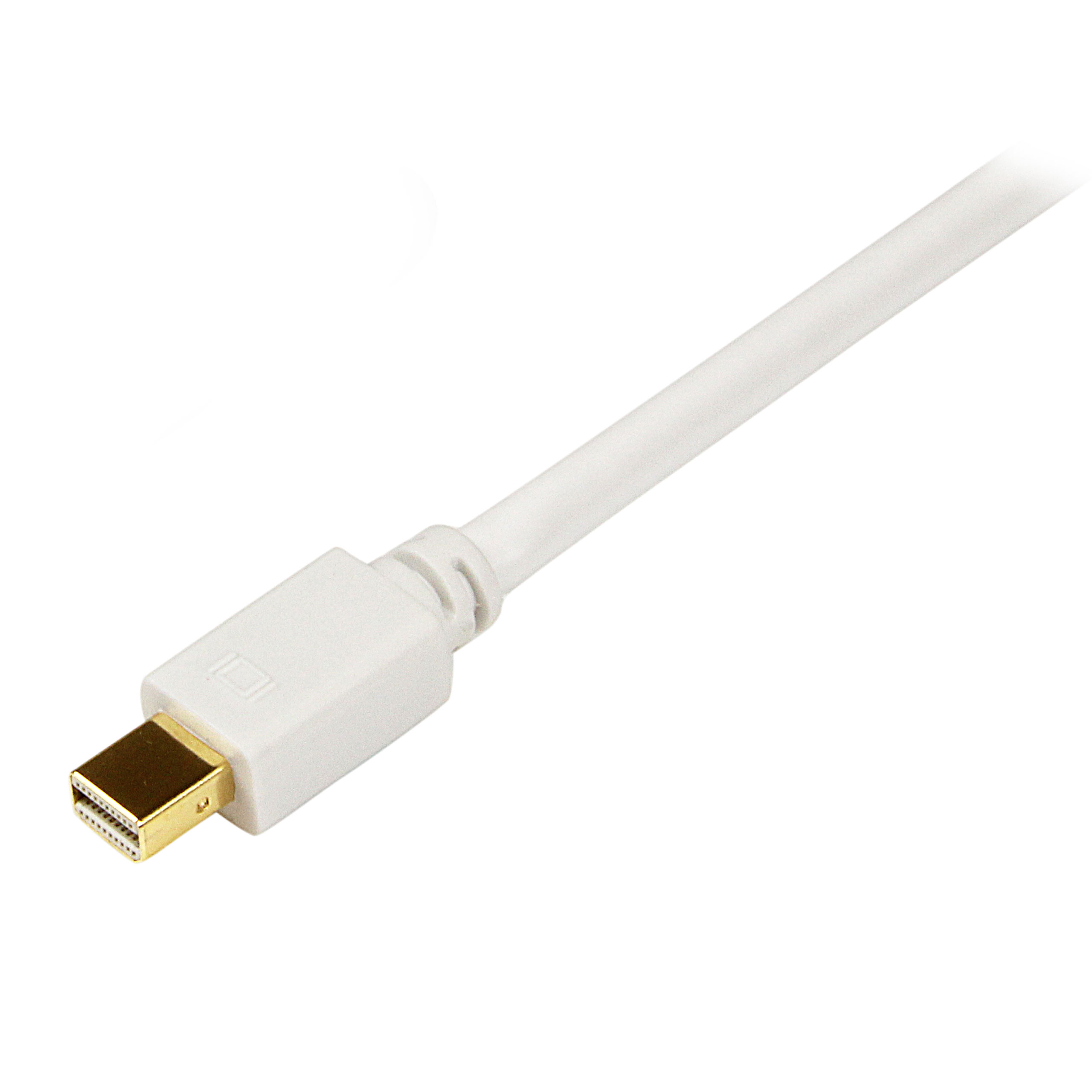

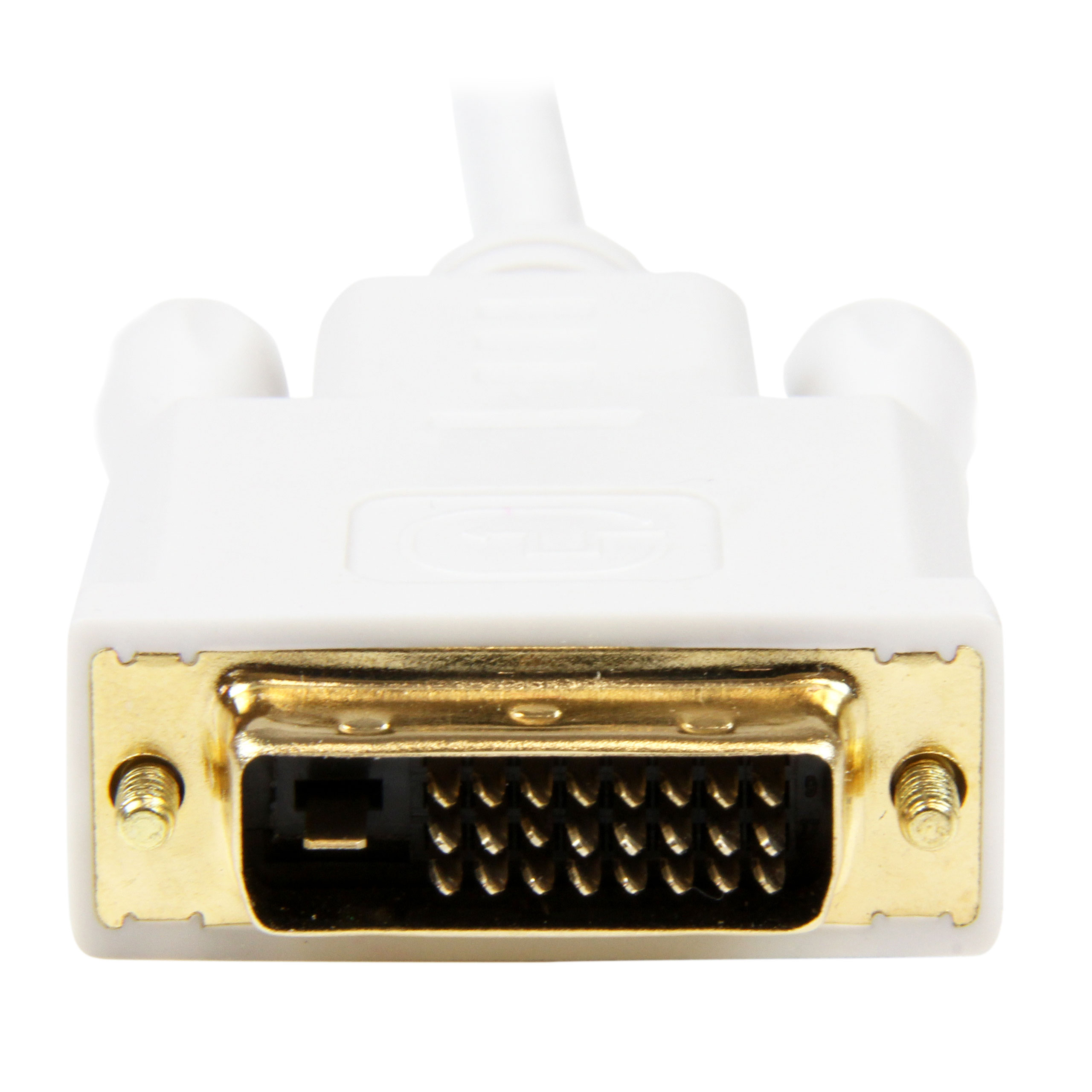

6 ft White Mini DisplayPort to DVI Cable
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – White
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 6 ft White Mini DisplayPort to DVI Cable Product Number MDP2DVIMM6W UPC 065030851497 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to DVI Family mDP to DVI Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) 6ft Mini DP to DVI Product Title (Short) Mini DisplayPort to DVI Cable 6ft White Product Title (Medium) x Product Title (Standard) 6 ft Mini DisplayPort to DVI Adapter Converter Cable – Mini DP to DVI 1920x1200 - White Product Title (Long) 6ft (1.8m) Mini DisplayPort to DVI Adapter Converter Cable – Mini DP to DVI 1920x1200 - White Product Title (AMZ) 6 ft Mini DisplayPort to DVI Adapter Cable - Mini DP to DVI Video Converter - MDP to DVI Cable for Mac / PC 1920x1200 - White (MDP2DVIMM6W) Title Ingram (Part 1) 6 ft Mini DisplayPort to DVI Title Ingram (Part 2) Adapter - Mini DP to DVI - White Website Product Headline Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – White Bullet 1 Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p Bullet 2 Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal Bullet 3 1x Male Mini DisplayPort connector, 1x Male DVI connector Bullets (Consolidated) Connect a DVI display to a Mini DisplayPort-equipped PC or Mac over a 6 foot distance - White - Compatible with any Surface Pro or MacBook devices that are equipped with mDP and DVI monitors and projectors - Supports resolutions up to 1920x1200 - Mini DisplayPort to DVI Adapter Cable/mDP to DVI Cable - Connect your PC directly to your display with a built-in adapter - Increase work space by adding an additional display to your computer using your mDP port - White cable looks great w/ your Mac Marketing Copy Marketing Copy (No HTML) Applications - Ideal for using your DVI monitor as a secondary display
- Connect your existing DVI display device (monitor, projector) to a Mini DisplayPort output device
Website Search Keyword - DisplayPort to DVI Adapter
- Mini DisplayPort to DVI
- Mini DisplayPort DVI Adapter
- DisplayPort to DVI
- Apple DisplayPort
- Apple Mini DisplayPort
- Mac Mini DisplayPort
- Macbook Mini DisplayPort
- mac
- apple
- Light Peak
- Light Peek
- Thunder Bolt
- P586-006-DVI-V2
- P586-006-DVI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through Related Products - DP2DVIMM10
- DP2DVIMM6
- DP2DVI2
- DP2VGA2
- DP2HDMI
- DP2HD3
- DP2DVI3
- MDP2DVIMM3B
- MDP2DVIMM3W
- MDP2DVIMM6B
- MDP2DVIMM10W
- MDP2DVIMM10B
Cable Length (mm) 1828.8 Color White Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 1830 Product Width (mm) 40 Product Height (mm) 15 Product Weight (g) 100 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Cable Length (mm) 1828.8 Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p MTBF (hours) 2,405,577 hours Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Passive Audio No AV Input Mini DisplayPort - 1.2 AV Output DVI-D - Single-Link Chipset ID NXP - 3361 Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 420 Carton Height (mm) 430 Carton Quantity 150 Carton Weight Gross (g) 19266 Included in Package 1 - Mini DisplayPort® to DVI Adapter Package Depth (mm) 160 Package Height (mm) 20 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 125 Packaging Description 6ft (1.8m) Mini DisplayPort® to DVI Adapter Packaging Description India 6ft (1.8m) Mini DisplayPort® to DVI Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-05-07 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None
