MDP2DVIS

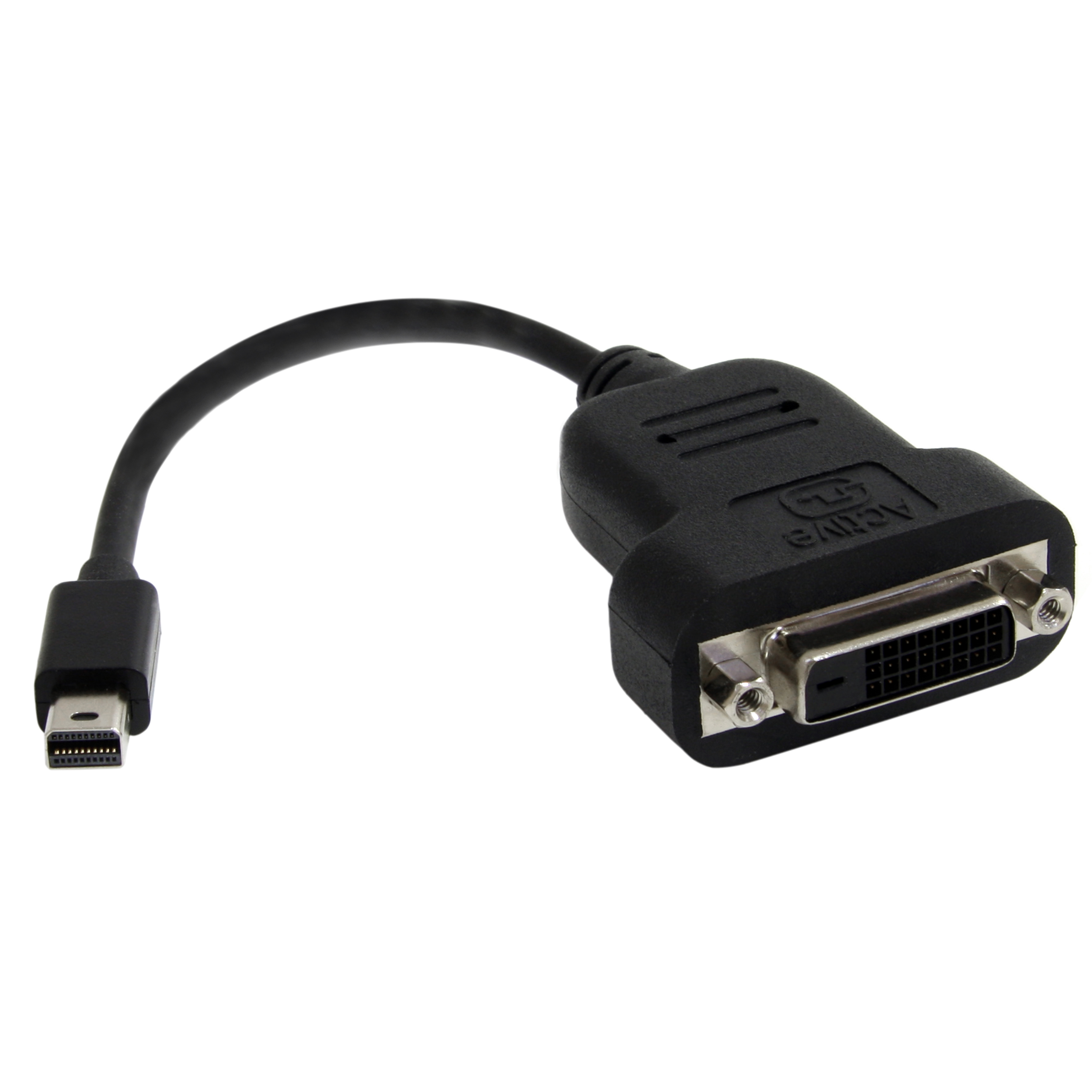

Mini DisplayPort to DVI Active Converter
Connect a DVI monitor to a single-mode DisplayPort output from your computer
Main Image
Product Images
Product Images
Quick-Start Guide
Product Name Mini DisplayPort to DVI Active Converter Product Number MDP2DVIS UPC 065030842334 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to DVI Family mDP to DVI Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX170X Product Title (Short) Active Mini DisplayPort to DVI Adapter Product Title (Medium) x Product Title (Standard) Mini DisplayPort to DVI Adapter, Active Mini DisplayPort to DVI-D Adapter Converter, 1080p Video, mDP to DVI Monitor/Display Product Title (Long) Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link Product Title (AMZ) Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link (MDP2DVIS) Title Ingram (Part 1) Mini DisplayPort to DVI Active A Title Ingram (Part 2) dapter Website Product Headline Connect a DVI monitor to a single-mode DisplayPort output from your computer Bullet 1 INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle | Compact design | 5.7" (15cm) attached cable | Supports Apple Cinema Display HD Bullet 2 ACTIVE MINI DISPLAYPORT TO DVI ADAPTER: Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display Bullet 3 SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors | Tested with DVI cables up to 25ft | mDP male to DVI female connector Bullet 4 EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort Bullet 5 HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullets (Compact) Mini DP to DVI-D single-link converter supports 1920x1200 or 1080p 60Hz video; mDP 1.2 - mDP/mDP++ source to DVI monitor/display adapter - Active Mini DisplayPort to DVI adapter dongle works w/ Thunderbolt 1/2 incl. MacBook Pro/Air - OS independent Bullets (Consolidated) Mini DP to DVI-D (digital) single-link adapter connects DVI display/projector/monitor supporting 1920x1200/1080p 60Hz video | EDID/DDC - Active Mini DP to DVI converter supports Mini Display Port 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Surface Pro 1-6 | Workstations | Desktops (AMD Eyefinity/Radeon Pro | Nvidia Quadro) | Laptops | Docks - Mini DisplayPort to DVI adapter supports DVI screw locking cable - Compact mDP to DVI display adapter dongle - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Ideal for using your DVI monitor as a secondary display
- Keep your existing DVI monitor to be used with your new Mini DisplayPort device
- Perfect for larger format screens that use high DVI resolutions
- Adapt from graphics cards that are not capable of outputting DP++ signals
Website Search Keyword - Active DisplayPort to DVI
- Adapter
- ATI Eyefinity
- Converter
- Mini Display Port
- Mini DisplayPort
- DVI
- Single-Link
- Video
- DP Adapter
- DP Converter
- Active
- DP
- Active Mini DisplayPort to DVI
- Adaptor
- Mini DisplayPort to DVI Active Adapter
- Light Peak
- Light Peek
- Thunder Bolt
- thunderbolt
- P137-06N-DVI-V2
- P137-06N-DVI
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- DVIDDMM25
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- HDDVIMM25
Related Products - MDP2DVIMM3BS
- MDP2DVIMM6BS
- MDP2DVI3
- MDP2DVIW
- MDP2DVI
- MDP2DVID
- MDP2DVIMM6
- MDP2DVIMM3B
- MDP2DVIMM6B
- MDP2DVIMM10B
- MDP2DVIMM10W
- MDP2DVIMM3WS
- MDP2DVIMM6WS
- MDP2DVIMM3W
- MDP2DVIMM6W
- MDPHDDVIKIT
- DP2DVID2
Cable Length (mm) 120 Color Black Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 200.000 Product Width (mm) 44.000 Product Height (mm) 13 Product Weight (g) 34 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Audio Specifications DVI - No Audio Support HDR Support No Maximum Digital Resolutions 1920x1200 Maximum Supported Resolution 1080p Supported Resolutions 1920x1200 / 60Hz Video Output Port DVI Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input Mini DisplayPort - 1.2 AV Output DVI-D - Single-Link Converter Type Adapters Fire Rating LSZH Rated (Low Smoke Zero Halogen) Host Connection Port Mini DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 505 Carton Height (mm) 227 Carton Quantity 90 Carton Weight Gross (g) 5478 Included in Package 1 - Mini-DisplayPort to DVI Adapter Included In Package for Label 1 - Mini-Displayport To DVI Converter Number of Sub-Cartons 9 Package Depth (mm) 54 Package Height (mm) 28 Package Width (mm) 201 Package Quantity 1 Package Weight (g) 48 Packaging Description Mini DisplayPort to DVI Active Adapter Packaging Description India Mini DisplayPort to DVI Active Converter Sub-Carton Depth (mm) 223 Sub-Carton Height (mm) 43 Sub-Carton Width (mm) 279 Sub-Carton Quantity 10 Sub-Carton Weight (g) 518 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Mainstream
