MDP2HD4KSW

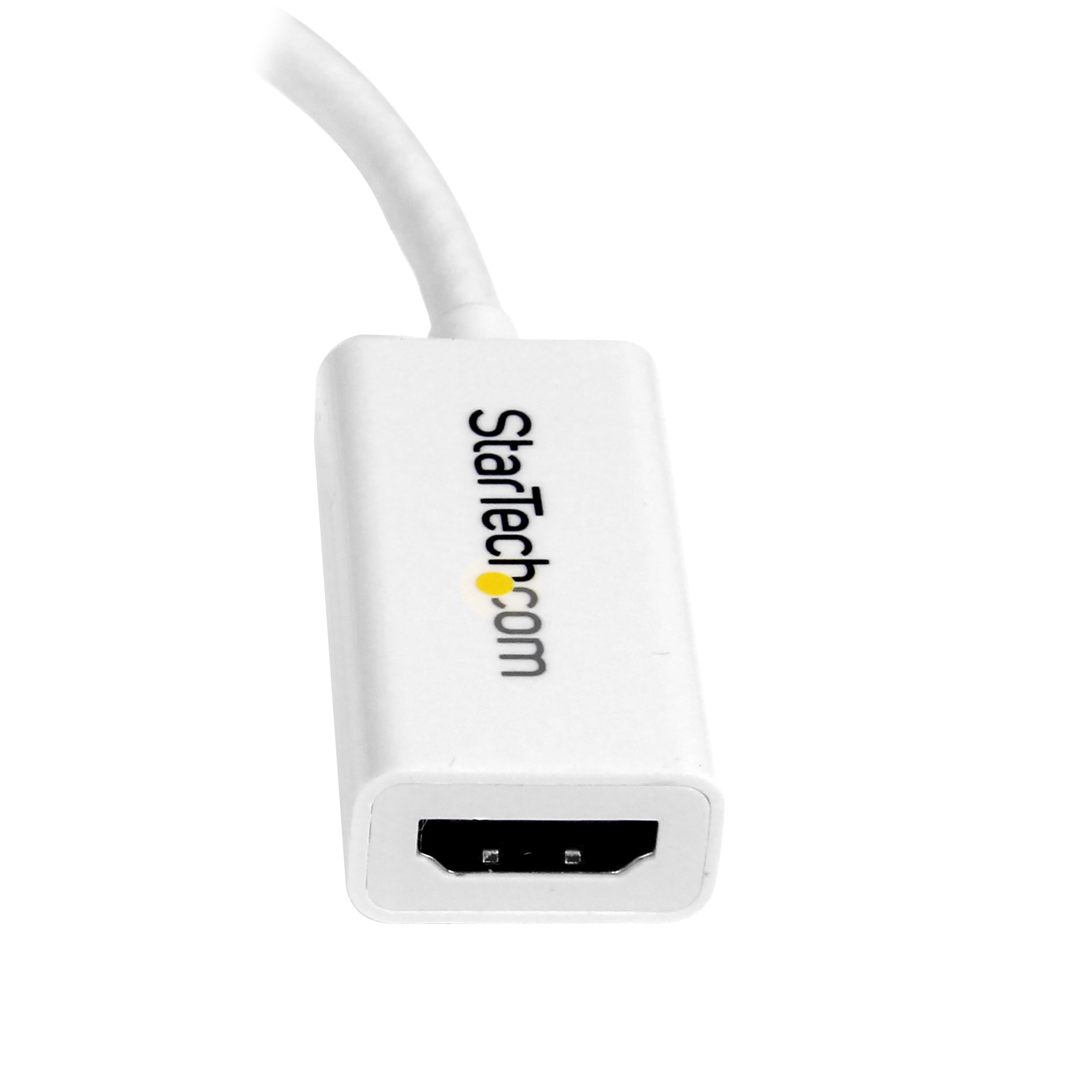

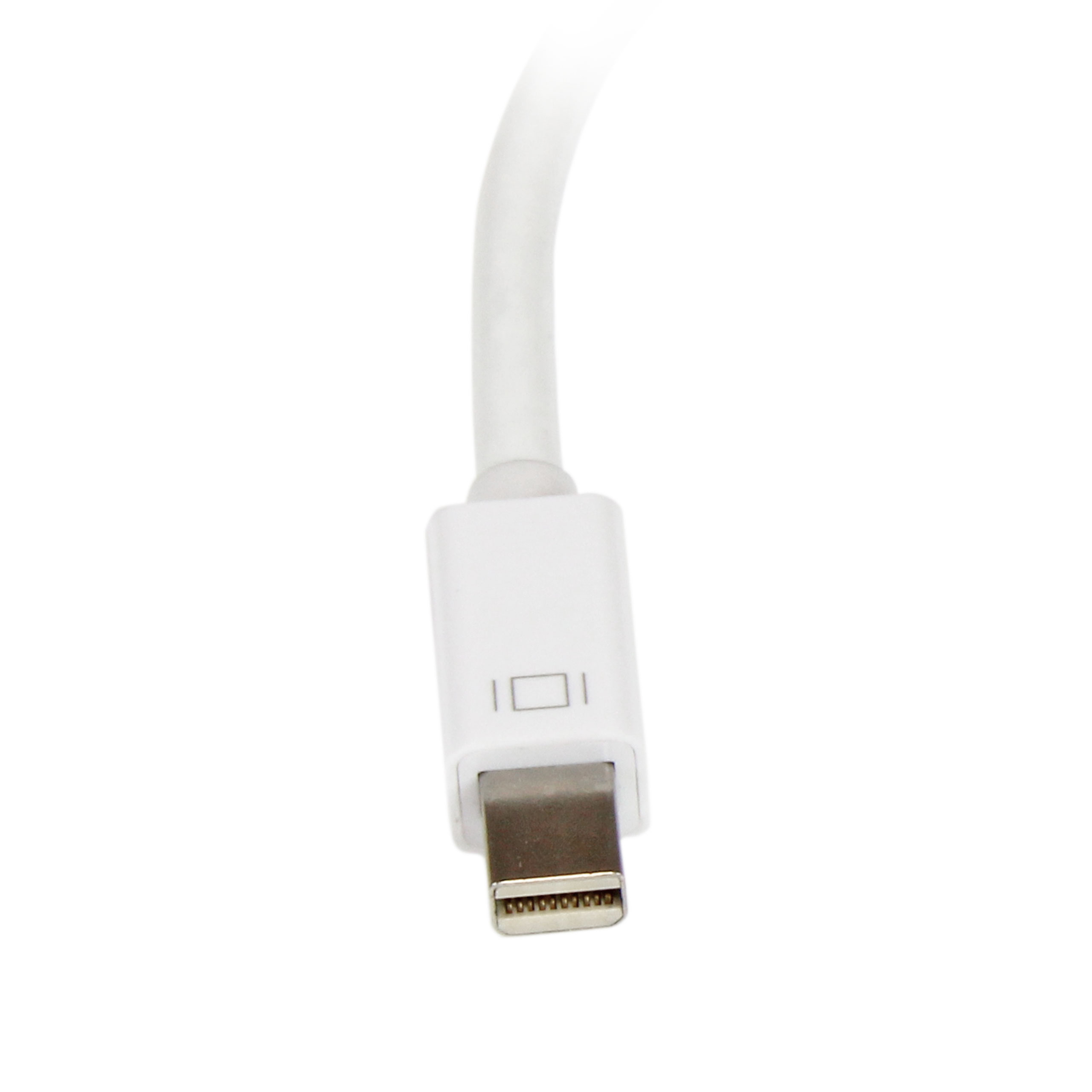

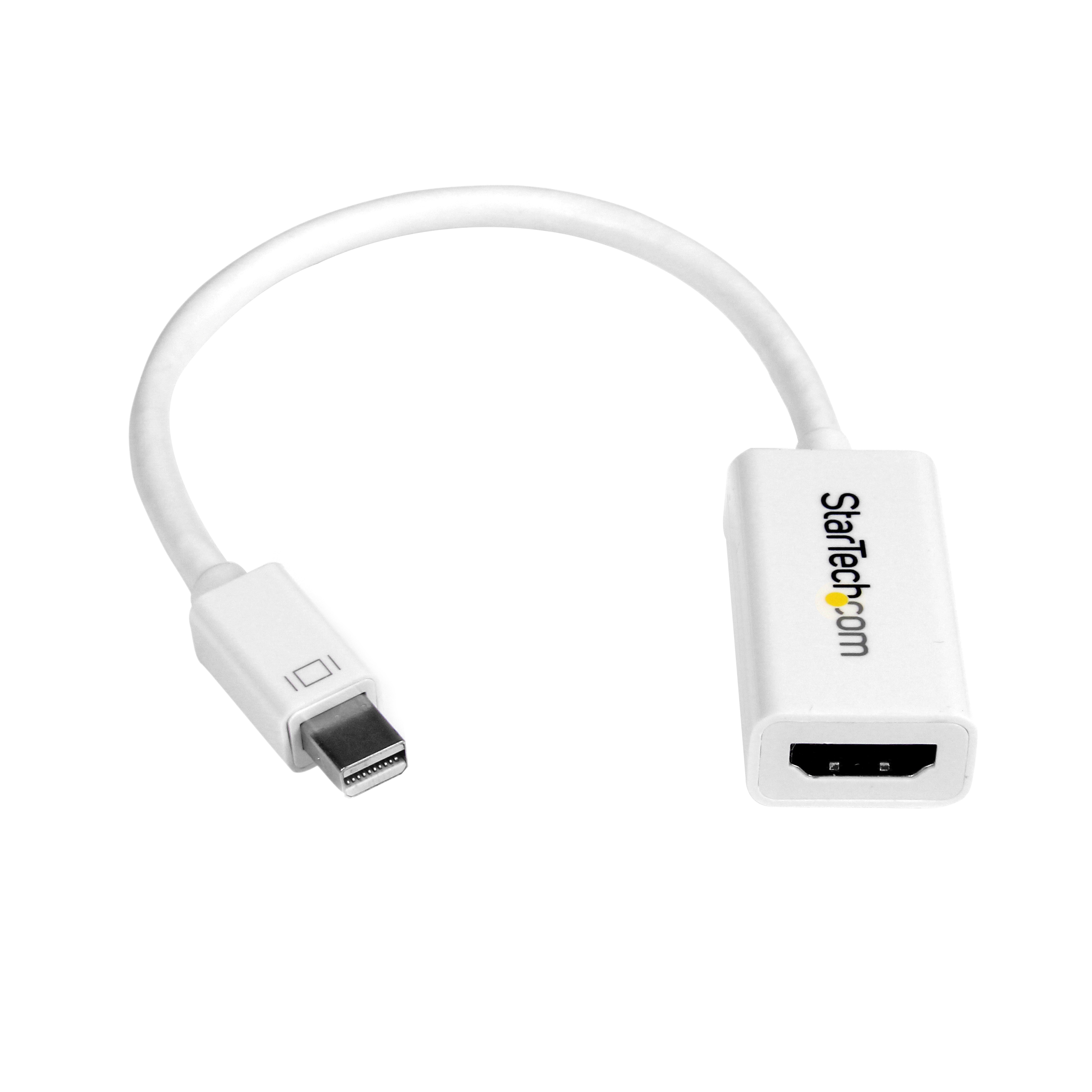

mDP 1 2 to HDMI 1 4 Active white
Connect an HDMI Display to a Single Mode Mini DisplayPort video source
Main Image
Product Images
Product Images
Product Name mDP 1 2 to HDMI 1 4 Active white Product Number MDP2HD4KSW UPC 065030857376 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to HDMI Family mDP to HDMI 1.4 Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) mDP to HDMI Adapter Product Title (Short) mDP to HDMI Adapter White - 4K Active Product Title (Medium) Mini DisplayPort to HDMI 4K Adapter Converter – mDP 1.2 to HDMI – 4K @ 30Hz Product Title (Standard) Mini DisplayPort to HDMI Adapter, Active Mini DP to HDMI Video Converter for Monitor/Display, 4K 30Hz, mDP to HDMI Adapter, White Product Title (Long) Mini DisplayPort to HDMI Adapter - Active mDP to HDMI Video Converter - 4K 30Hz - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/TV/Display - mDP 1.2 to HDMI Adapter Dongle - White Product Title (AMZ) Mini DisplayPort to HDMI Adapter - Active mDP to HDMI Video Converter - 4K 30Hz - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/TV/Display - mDP 1.2 to HDMI Adapter Dongle - White (MDP2HD4KSW) Title Ingram (Part 1) mDP 1.2 to HDMI Adapter - Mini Title Ingram (Part 2) DisplayPort to HDMI 4K Converter Website Product Headline Connect an HDMI Display to a Single Mode Mini DisplayPort video source Bullet 1 PRODUCT PERFORMANCE: Mini DisplayPort 1.2 to HDMI 1.4 adapter connects your mDP host to a HDMI display | Supports Ultra HD (UHD) 4K 30Hz (3840x2160) & 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4, DPCP | 5.9" (15cm) attached cable Bullet 2 HOST COMPATIBILITY: Active Mini DP to HDMI adapter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 3 INCREASE PRODUCTIVITY: Mini DisplayPort to HDMI display adapter connects an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry between home office and office Bullet 4 RELIABLE CONNECTION: MiniDisplayPort to HDMI video converter is designed with nickel-plated connectors to ensure enhanced signal quality | Tested with HDMI cables up to 50ft (15m) Bullet 5 EASY TO USE: With no software or drivers required, the mDP to HDMI adapter dongle works with any OS including macOS, Windows & Ubuntu; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks Bullets (Compact) White Active Mini DisplayPort to HDMI adapter dongle - 4K 30Hz/1080p/7.1 Audio/HDCP 1.4 - Mini DP 1.2 to HDMI 1.4 video converter to connect HDMI monitor/display - Supports mDP/mDP++ source incl Thunderbolt 1 and 2/MacBook/Surface - OS Independent Bullets (Consolidated) Active Mini DisplayPort to HDMI adapter supports 4K 30Hz video | mDP 1.2 to HDMI 1.4 | 1080p/7.1 Audio/HDCP 1.4 | White - Mini DP to HDMI adapter dongle supports Mini DisplayPort equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air | Microsoft Surface Pro 1-6 | Desktop computers/laptops/Intel NUC/docks - 4K mDP to HDMI display adapter | Connect to HDMI monitor/TV/projector | 5.9" cable - Mini DisplayPort to HDMI converter (male to female) tested with HDMI cables up to 50' - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Connect your 4K HDMI display to a Mini DisplayPort output port
- Carry with your laptop for BYOD office applications
- Use an HDMI display as a secondary monitor for your Mini DisplayPort computer
- Use your Thunderbolt port to connect your MacBook Pro / MacBook Air to an HDMI Display
Website Search Keyword - mdp 1.2
- Mini DisplayPort 1.2
- Mini DisplayPort to HDMI Adapter
- 4K
- Ultra HD
- 4k mini displayport to hdmi adapter
- mini displayport 1.2 to HDMI 1.4
- mini displayport to hdmi
- 4k resolution
- Mac to HDMI
- Mac to TV
- P137-06N-HD-UHD
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
Related Products DP2HD4KS Constrained SKU Alternatives (Limited Stock) MDP2HDEC Cable Length (mm) 150 Color White Humidity 10%-85% Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 150.000 Product Width (mm) 27.000 Product Height (mm) 13.000 Product Weight (g) 16.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 4K x 2K @ 30 Hz Maximum Supported Resolution 4K 30Hz (3840x2160) Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output HDMI - 1.4 Converter Type Adapters Host Connection Port Mini DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 340 Carton Height (mm) 217 Carton Quantity 320 Carton Weight Gross (g) 7526 Included in Package 1 - Mini-DisplayPort to HDMI Active Adapter Included In Package for Label 1 - Mini-Displayport To HDMI ACtive Converter Number of Sub-Cartons 32 Package Depth (mm) 122 Package Height (mm) 13 Package Width (mm) 132 Package Quantity 1 Package Weight (g) 24 Packaging Description Mini DisplayPort to HDMI Active Adapter - 4K - White Packaging Description India Mini DisplayPort to HDMI Active Converter - 4K - White Sub-Carton Depth (mm) 164 Sub-Carton Height (mm) 55 Sub-Carton Width (mm) 261 Sub-Carton Quantity 10 Sub-Carton Weight (g) 240 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-04-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
