MDP2HDMIUSBA

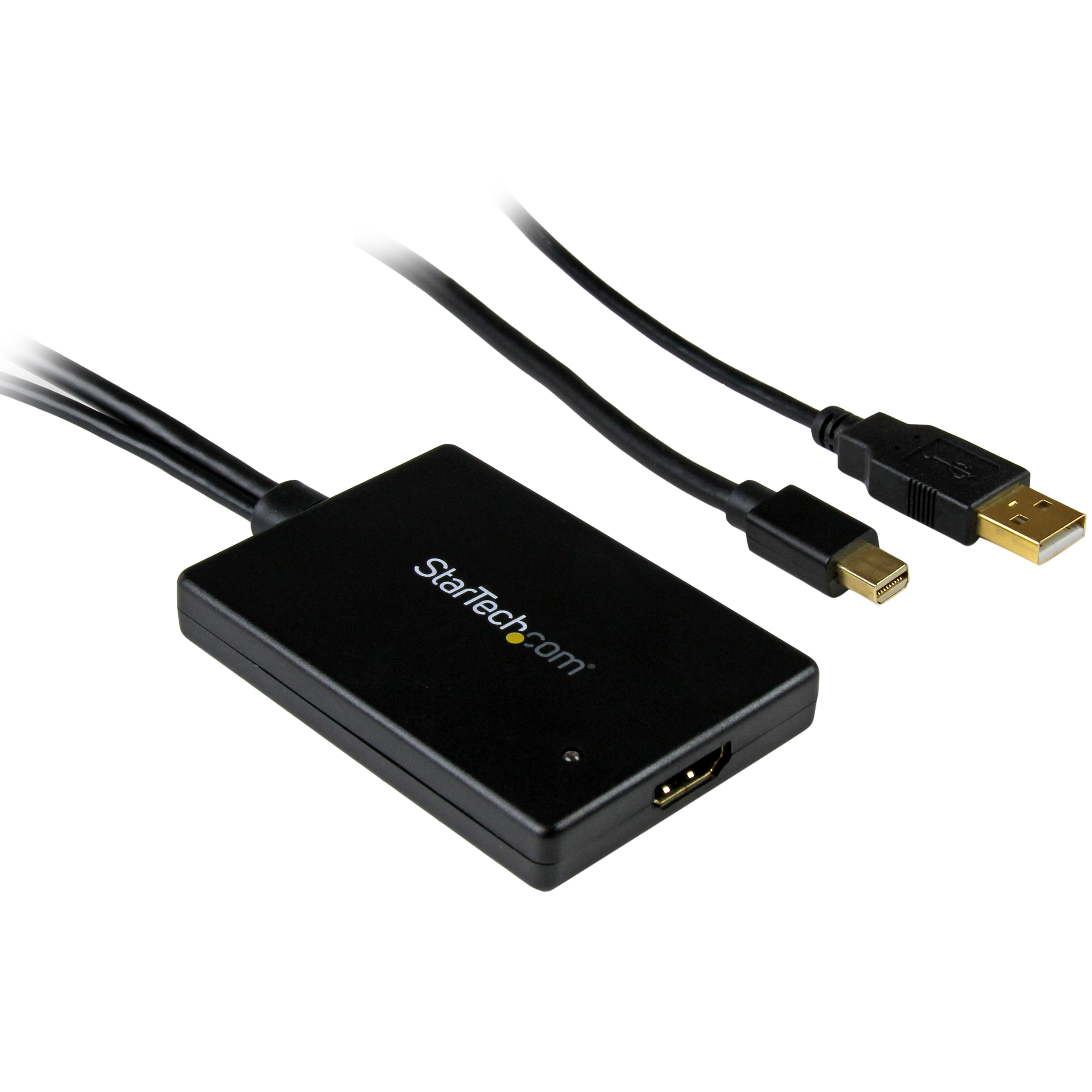

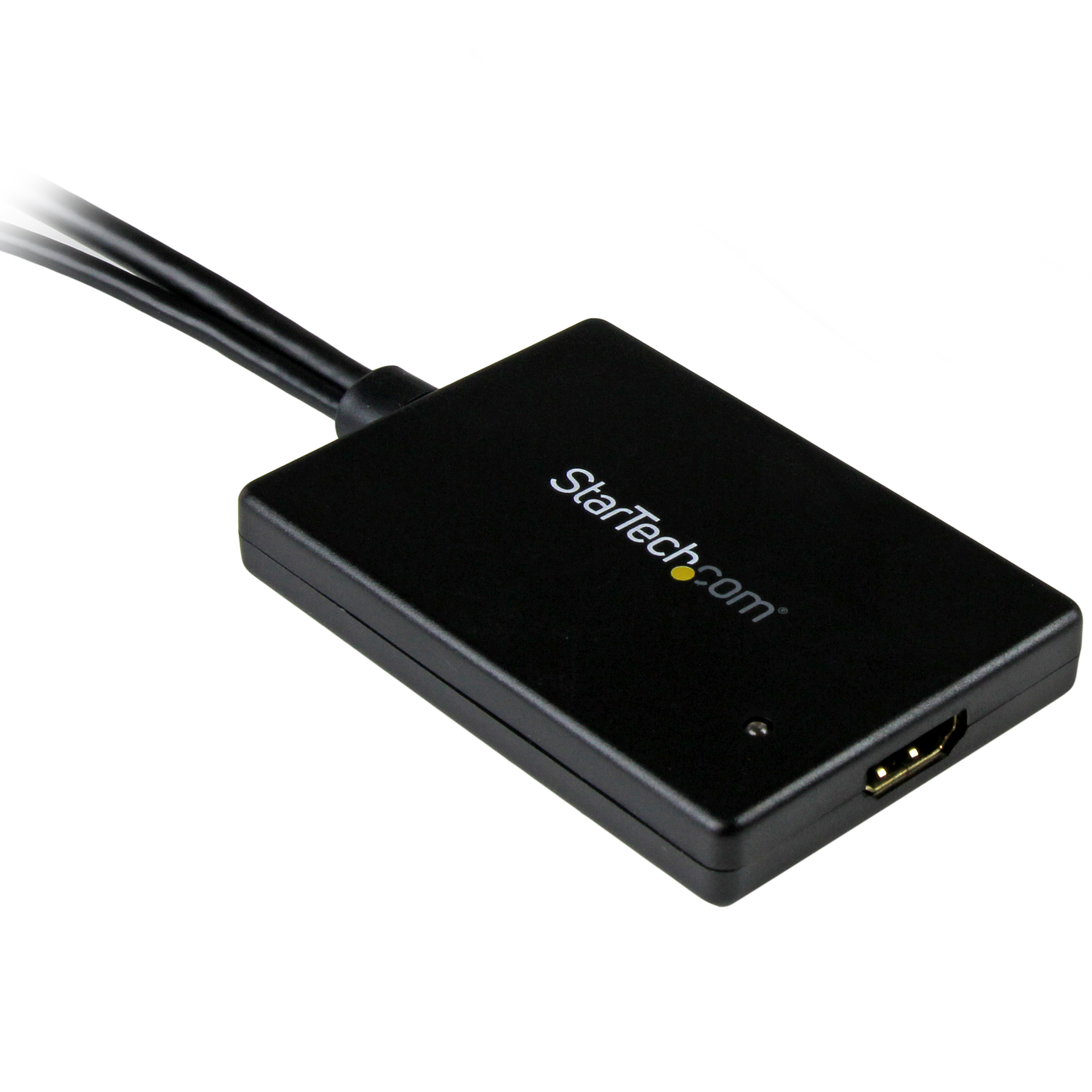

Mini DisplayPort with USB Audio to HDMI Adapter
Connect an HDMI® display to a Mini-DisplayPort® source with audio
Main Image
Product Images
Product Images
Product Images
Product Name Mini DisplayPort with USB Audio to HDMI Adapter Product Number MDP2HDMIUSBA UPC 065030840330 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to HDMI Family mDP to HDMI 1.3 Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Ultra-Short) mDP to HDMI Adapter Product Title (Short) mDP to HDMI Adapter - USB Audio Product Title (Standard) Mini DisplayPort to HDMI Adapter with USB Audio Product Title (Long) Mini DisplayPort to HDMI Adapter with USB Audio Product Title (AMZ) Mini DisplayPort to HDMI Adapter with USB Audio - Mini DP to HDMI (MDP2HDMIUSBA) Title Ingram (Part 1) Mini DisplayPort to HDMI Adapter Title Ingram (Part 2) with USB Audio Website Product Headline Connect an HDMI® display to a Mini-DisplayPort® source with audio Bullet 1 Easy to use cable, no software required Bullet 2 Supports HDTV resolutions up to 1080p Bullet 3 USB Audio pass-through to HDMI® cable Bullet 4 Compatible with Intel® Thunderbolt™ Bullets (Consolidated) Connect an HDMI display to a Mini-DisplayPort source with audio - USB Audio Pass-Through ideal for older MDP computers where audio was not supported through the Mini DisplaPort port such as 2009 Unibody MacBook Pro/2009 MacBook -Passive/DP++/Supports HDTV resolutions up to 1080p - Thunderbolt to HDMI Compatible - Connects to your Laptop Thunderbolt port - Compatible with any Surface Pro devices with mDP Marketing Copy Marketing Copy (No HTML) Applications - The Mini DisplayPort® to HDMI® adapter allows for an easy and hassle free connection to any HDMI HDTV or display from a PC or Mac.
- Use your DisplayPort and USB port for video and audio pass-through to one HDMI cable.
- Deliver audio/video content from your PC or Mac to your A/V devices (HDTV or receiver) for a larger and louder viewing.
Website Search Keyword - Adapter
- apple
- Converter
- DisplayPort
- HDMI
- mac
- Video
- Mini DisplayPort to HDMI with Audio
- Mini DisplayPort with audio
- Light Peak
- Light Peek
- Thunder Bolt
- thunderbolt
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) Accessory Products - HDMM6
- HDMM10
- HDMM15
Related Products - MDP2VGA
- MDP2DVI
- MDP2HDMI
- DP2VGA
- DP2DVI
- DP2HDMI
- DP2DVID
Constrained SKU Alternatives (Limited Stock) MDP2HDMI Cable Length (mm) 682 Color Black Humidity 0~80% RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 762.000 Product Width (mm) 56.000 Product Height (mm) 10.000 Product Weight (g) 90.000 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Passive Audio Yes AV Input Mini DisplayPort - 1.2 AV Output HDMI - 1.4 Converter Type Adapters Host Connection Port Mini DisplayPort Industry Standards LED Indicators 1 - Red - Power Number of Displays 1 Carton Depth (mm) 330 Carton Height (mm) 228 Carton Quantity 90 Carton Weight Gross (g) 7440 Included in Package 1 - Mini DisplayPort and USB Audio to HDMI Adapter Number of Sub-Cartons 9 Package Depth (mm) 162 Package Height (mm) 24 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 94 Packaging Description Mini DisplayPort® to HDMI® with USB Audio Packaging Description India Mini DisplayPort® to HDMI® with USB Audio Sub-Carton Depth (mm) 244 Sub-Carton Height (mm) 122 Sub-Carton Width (mm) 268 Sub-Carton Quantity 10 Sub-Carton Weight (g) 972 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None
