MDP2HDVGA
mini Displayport to VGA HDMI
Connect a Mini DisplayPort-equipped PC or Mac® to an HDMI or VGA display
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name mini Displayport to VGA HDMI Product Number MDP2HDVGA UPC 065030859660 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP and MDP Travel Adapters Family mDP to Multiport Display Adapters, 1080p Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) mDP to HDMI or VGA Product Title (Short) mDP to HDMI VGA Adapter Black Product Title (Medium) Travel A/V Adapter: 2-in-1 Mini DisplayPort to HDMI or VGA Converter Product Title (Standard) Travel A/V Adapter: 2-in-1 Mini DisplayPort to HDMI or VGA Converter Product Title (Long) Travel A/V Adapter: 2-in-1 Mini DisplayPort to HDMI or VGA Converter Product Title (AMZ) Mini DisplayPort to HDMI and VGA - 2 in 1 Travel Adapter - Mini DisplayPort to VGA Adapter - Mini DP to HDMI Dongle - Monitor Adapter (MDP2HDVGA) Title Ingram (Part 1) Travel A/V adapter: 2-in-1 Title Ingram (Part 2) mDP to HDMI or VGA converter Website Product Headline Connect a Mini DisplayPort-equipped PC or Mac® to an HDMI or VGA display Bullet 1 2-in-1 design lets you connect your mDP computer to any HDMI or VGA display using a single adapter Bullet 2 Maximize portability with a compact, lightweight adapter you can easily carry in your laptop bag Bullet 3 Supports video resolutions up to 1920x1200 or 1080p Bullet 4 Compatible with Intel Thunderbolt Bullet 5 Plug-and-play installation Bullets (Consolidated) Connect a Mini DisplayPort-equipped PC or Mac to an HDMI or VGA display - Works with any Surface Pro or Lenovo X1 Carbon laptops that are equipped with mDP - Mini DisplayPort to HDMI/Mini DisplayPort to VGA/Mini DP to HDMI/mDP to VGA/mDP to HDMI/video output to projector/Thunderbolt to HDMI or VGA/mDP to VGA and HDMI - Carry with your laptop and connect to any HDMI or VGA display - Make mDP compatibility with HDMI and VGA displays - Similar to MDP2VGDVHD Marketing Copy Marketing Copy (No HTML) Applications - Keep the adapter with you while traveling, to connect to virtually any display you come across
- Connect your BYOD laptop/Ultrabook to a provided HDMI, or VGA display at work

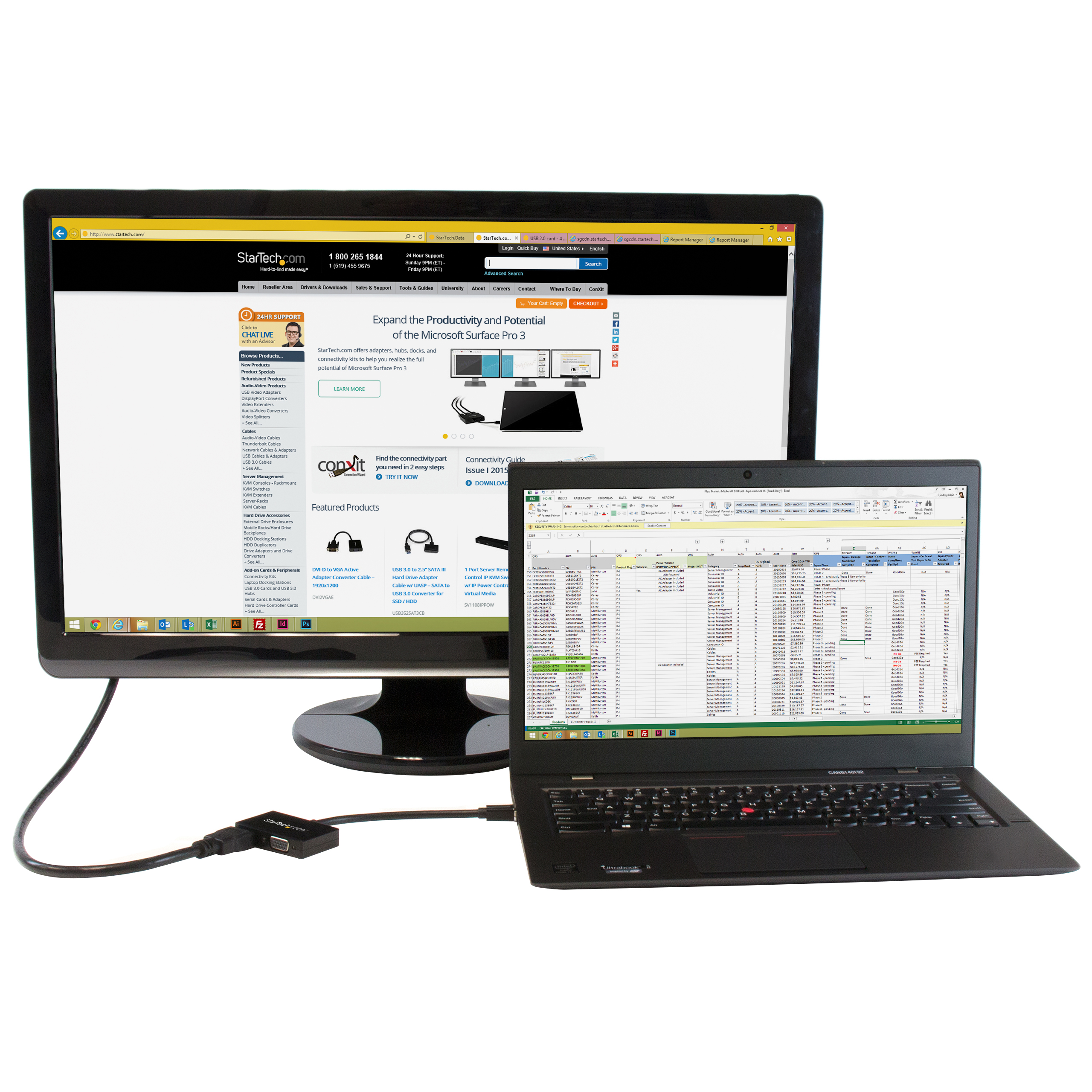

- Connect a VGA, or HDMI display to your Mini DisplayPort laptop, to use as a secondary monitor
Website Search Keyword - Mini Displayport to HDMI
- Mini Displayport to VGA
- Mini DP to HDMI
- Mini DP to VGA
- MacBook to projector
- P137-06N-HV-V2W
- P137-06N-HDV
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling
Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
Related Products - MDP2VGDVHD
- MDPVGDVHD4K
- MDP2HDVGAW
- MDP2DPDVHD
- MDP2VGDVHDW
- DP2VGDVHD
- DP2HDVGA
Cable Length (mm) 150 Color Black Humidity 10~85% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 190.000 Product Width (mm) 58.000 Product Height (mm) 13.000 Product Weight (g) 22.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Analog Resolutions 1920x1200/1080p Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 1920x1200/1080p Maximum Supported Resolution 1080p MTBF (hours) 1,097,978 hours OS Compatibility OS Independent Video Output Port - HDMI
- VGA
Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output - HDMI - 1.4
- VGA
Converter Type Travel A/V Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 362 Carton Height (mm) 274 Carton Quantity 120 Carton Weight Gross (g) 6934 Included in Package - 1 - Mini DisplayPort™ to HDMI® / VGA Adapter
- 1 - Instruction manual
Included In Package for Label - 1 - Instruction Manual
- 1 - Mini Displayport™ To HDMI® / VGA Converter
Number of Sub-Cartons 12 Package Depth (mm) 199 Package Height (mm) 17 Package Width (mm) 118 Package Quantity 1 Package Weight (g) 42 Packaging Description Mini DisplayPort™ to HDMI® / VGA Adapter Packaging Description India Mini DisplayPort™ to HDMI® / VGA Converter Sub-Carton Depth (mm) 248 Sub-Carton Height (mm) 89 Sub-Carton Width (mm) 226 Sub-Carton Quantity 10 Sub-Carton Weight (g) 434 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-11-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
