MDP2HDW

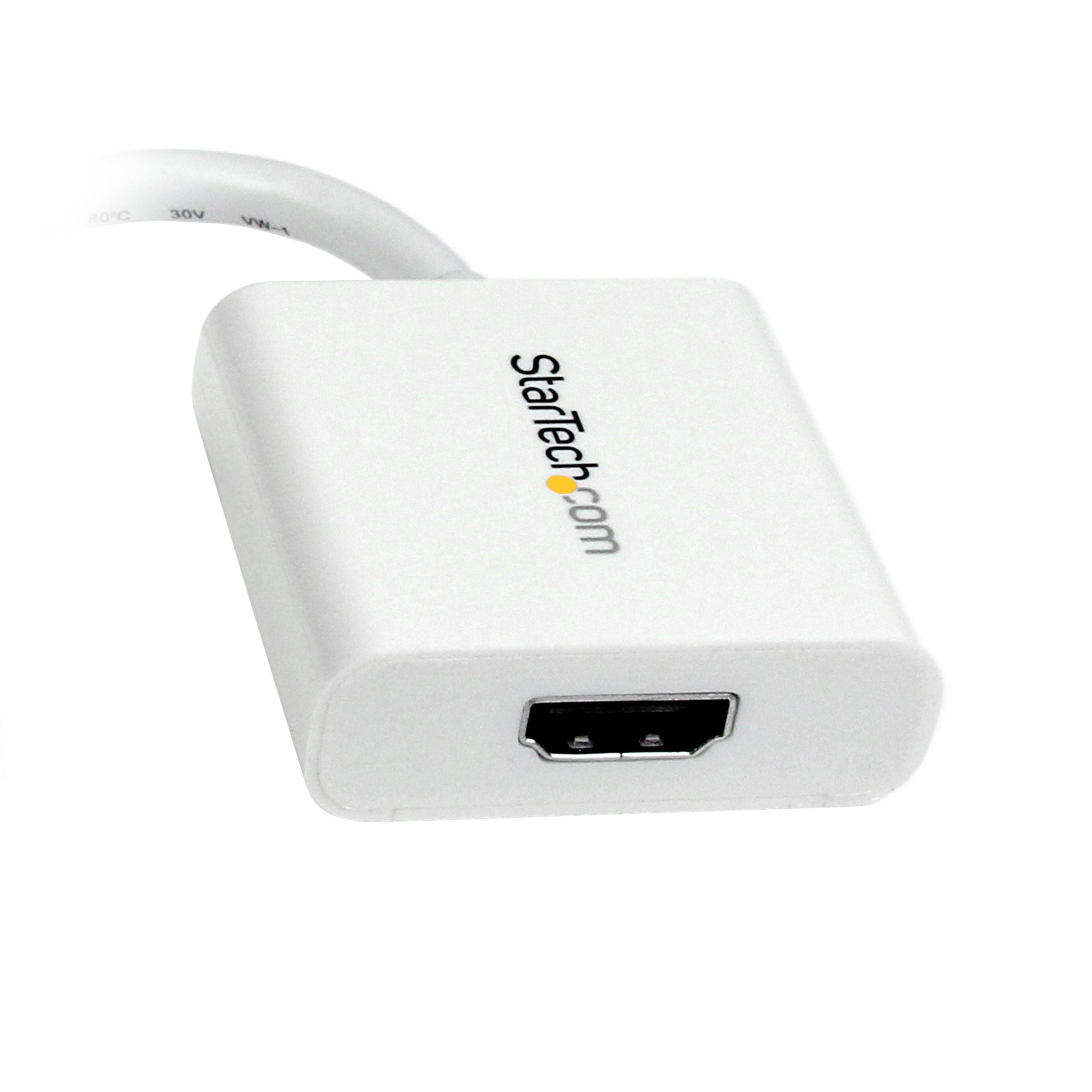

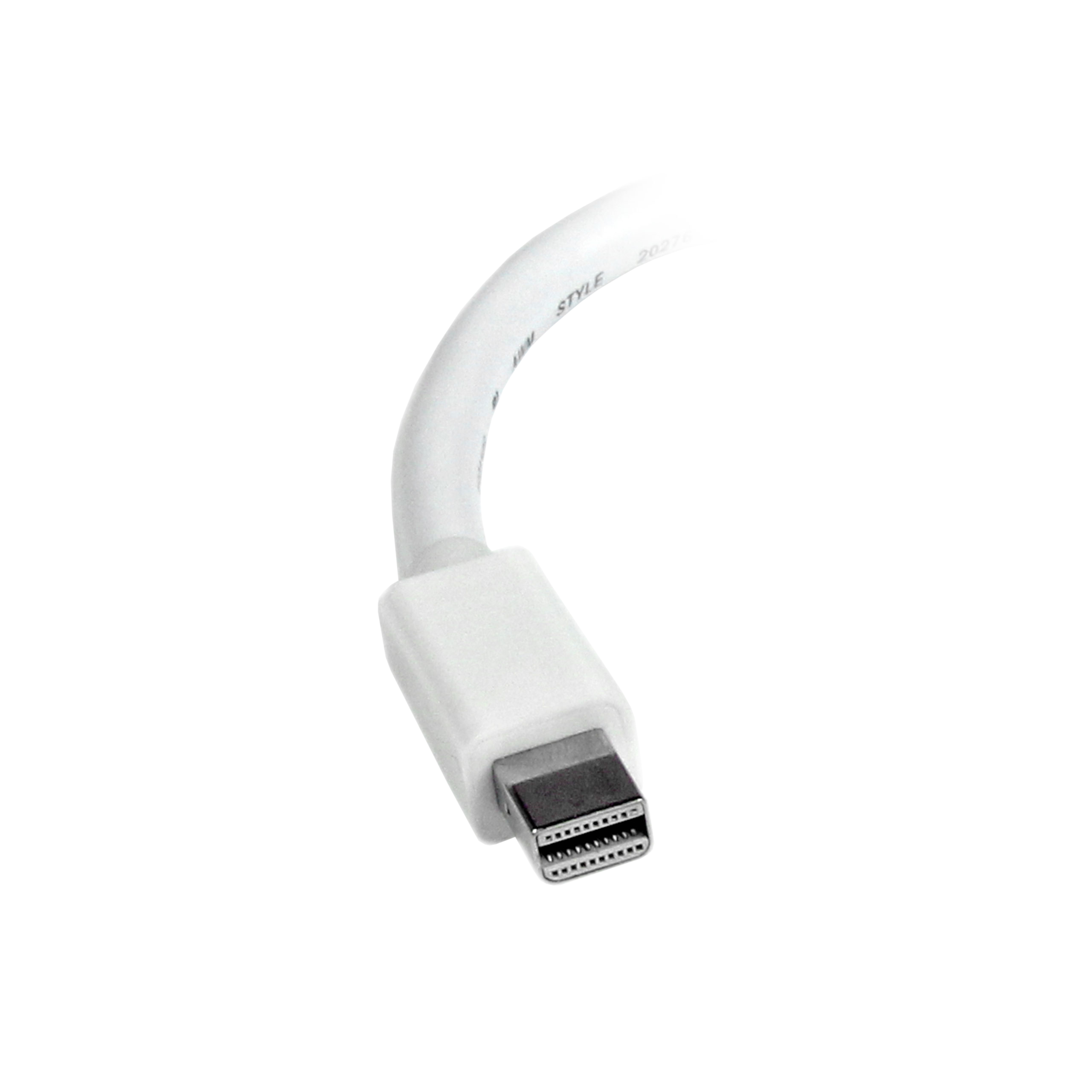

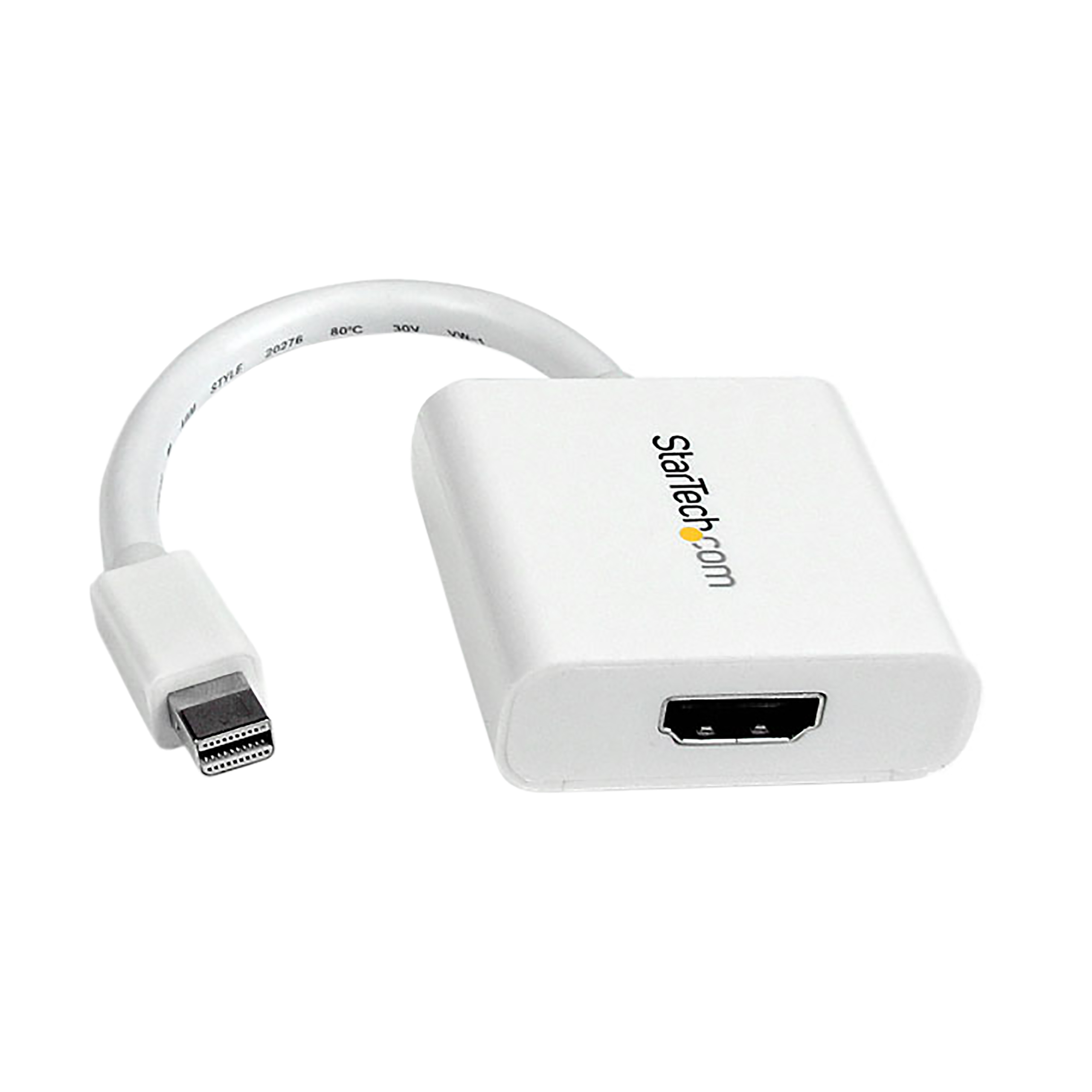

Mini-DisplayPort to HDMI Video Adapter - White
Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computer
Main Image
Product Images
Product Images
Product Name Mini-DisplayPort to HDMI Video Adapter - White Product Number MDP2HDW UPC 065030845960 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to HDMI Family mDP to HDMI 1.3 Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Short) Mini DisplayPort to HDMI Adapter - White Product Title (Medium) x Product Title (Standard) Mini DisplayPort to HDMI Adapter, Mini DP to HDMI Video Converter for Monitor/Display, 1080p, Passive mDP 1.2 to HDMI Adapter Product Title (Long) Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter - 1080p - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Dongle - White Product Title (AMZ) Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter - 1080p - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Dongle - White (MDP2HDW) Title Ingram (Part 1) Mini DisplayPort® to HDMI® Video Title Ingram (Part 2) Adapter Converter - White Website Product Headline Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computer Bullet 1 PRODUCT PERFORMANCE: Mini DisplayPort 1.2 to HDMI 1.4 adapter connects your mDP host to an HDMI display | Supports 1920x1200 or 1080p 60Hz video, 7.1ch Audio, HDCP 1.4, DPCP | 5" (13cm) attached cable | White Bullet 2 HOST COMPATIBILITY: Passive Mini DP to HDMI display adapter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 3 INCREASE PRODUCTIVITY: Mini DisplayPort to HDMI adapter connects an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry between home office and office Bullet 4 RELIABLE CONNECTION: MiniDisplayPort to HDMI video converter is designed with nickel-plated connectors to ensure enhanced signal quality | Tested with HDMI cables up to 50ft (15m) Bullet 5 EASY TO USE: With no software or drivers required, the mDP to HDMI adapter dongle works with any OS including macOS, Windows & Ubuntu; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks Bullets (Compact) Passive Mini DisplayPort to HDMI adapter dongle - 1920x1200/1080p 60Hz/7.1 Audio/HDCP 1.4/DPCP - White Mini DP 1.2 to HDMI 1.4 video converter for monitor/projector - Display adapter supports mDP++ source incl Thunderbolt 1/2 MacBook - Driverless Bullets (Consolidated) White Mini DisplayPort to HDMI adapter supports 1920x1200 or 1080p 60Hz | mDP 1.2 to HDMI | 7.1 Audio/HDCP 1.4/DPCP - Passive Mini DP to HDMI adapter dongle supports Mini DisplayPort equipped PC or Mac incl Thunderbolt 1/2 MacBook/Air/Mini | Microsoft Surface Pro 1-6 | Desktop computers/laptops/Intel NUC/docks - mDP to HDMI display adapter | Connect to HDMI monitor/TV/projector | 5" cable - Mini DisplayPort to HDMI converter (male to female) tested with HDMI cables up to 50' - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Keep your existing HDMI® monitor to be used with your new Mini-DisplayPort® device
- Ideal for using your HDMI monitor as a secondary display
Website Search Keyword - Adapter
- Converter
- DisplayPort
- HDMI
- Video
- apple
- mac
- Light Peak
- Light Peek
- Thunder Bolt
- thunderbolt
- MAC2HD
- P137-06N-HDMI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- HDDVIMM25
Related Products - MDP2VGDVHD
- MDPVGDVHD4K
- MDP2HDVGAW
- MDP2DPDVHD
- MDP2HDVGA
- DP2VGDVHD
- DP2HDVGA
Cable Length (mm) 120 Color White Humidity 40~85% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 170.000 Product Width (mm) 40.000 Product Height (mm) 15.000 Product Weight (g) 28.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 1920x1200 / 1080p Maximum Supported Resolution 1080p Video Output Port HDMI Active or Passive Adapter Passive Audio Yes AV Input Mini DisplayPort - 1.2 AV Output HDMI - 1.4 Chipset ID NXP - PTN3361 Converter Type Adapters Host Connection Port Mini DisplayPort Industry Standards Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 355 Carton Height (mm) 270 Carton Quantity 200 Carton Weight Gross (g) 9800 Included in Package 1 - Mini-DisplayPort® to HDMI® converter Included In Package for Label 1 - Mini-Displayport® To HDMI® Converter Number of Sub-Cartons 20 Package Depth (mm) 72 Package Height (mm) 32 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 170 Packaging Description Mini DisplayPort to HDMI Adapter - White Packaging Description India Mini DisplayPort to HDMI Converter - White Sub-Carton Depth (mm) 242 Sub-Carton Height (mm) 83 Sub-Carton Width (mm) 207 Sub-Carton Quantity 10 Sub-Carton Weight (g) 380 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
