MDP2VGAAMM3M

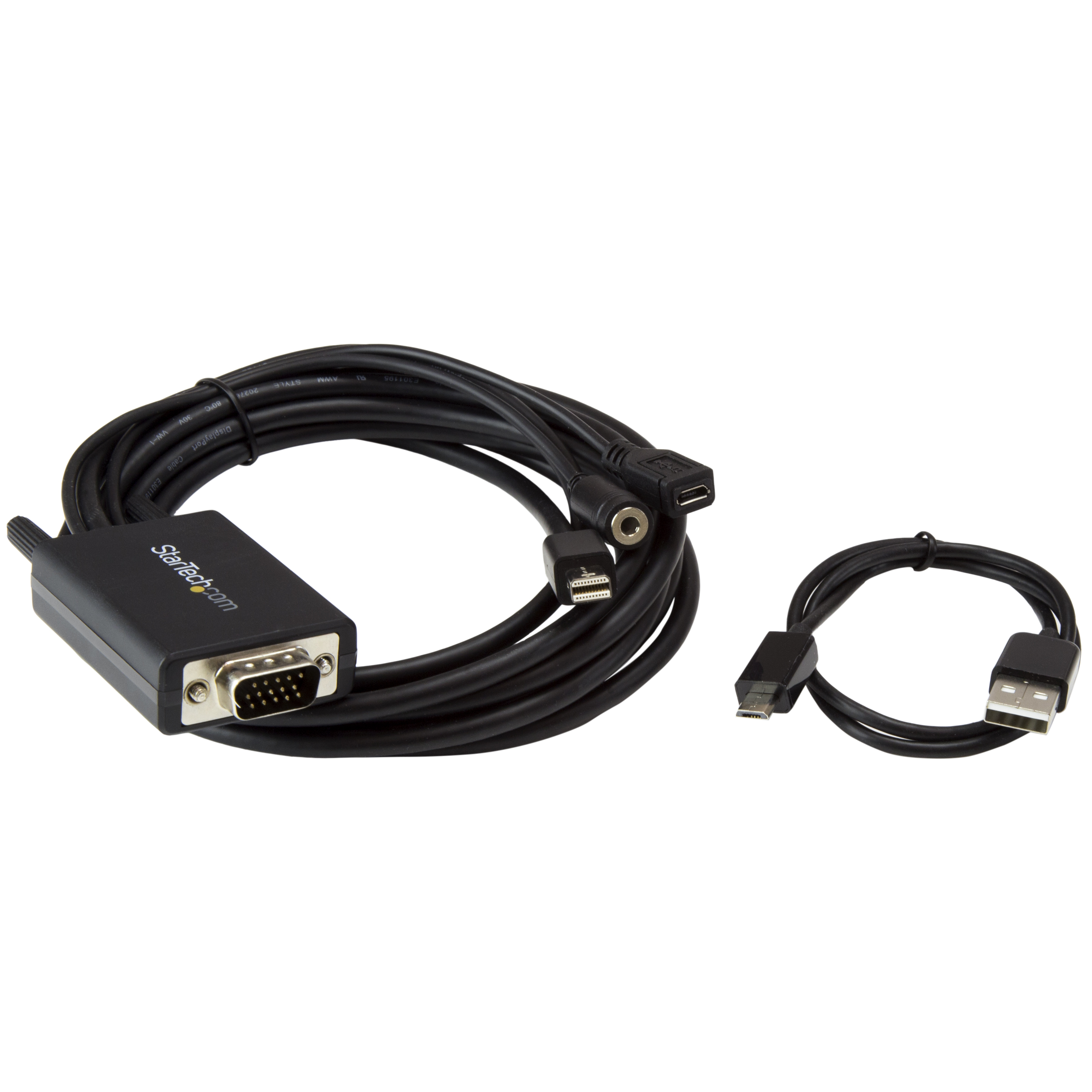

10ft mDP to VGA Video Adapter Cable with Audio
Connect audio & video from your Mac or PC directly to a monitor
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10ft mDP to VGA Video Adapter Cable with Audio Product Number MDP2VGAAMM3M UPC 065030861861 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to VGA Family mDP to VGA Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) 10' mDP VGA w/ Audio Product Title (Short) mDP to VGA Cable 10ft w/ Audio Product Title (Medium) Mini DisplayPort to VGA Adapter Cable with Audio - 10ft (3m) Product Title (Standard) 10 ft 3m Mini DisplayPort to VGA Adapter Cable with Audio - Mini DP to VGA Converter - 1920x1200 Product Title (Long) 10ft (3m) Mini DisplayPort to VGA Adapter Cable with Audio Product Title (AMZ) 10 ft 3m Mini DisplayPort to VGA Adapter Cable with Audio - Mini DP to VGA Converter - 1920x1200 (MDP2VGAAMM3M) Title Ingram (Part 1) 3m mDP to VGA Video Adapter Title Ingram (Part 2) Cable with Audio - 10ft Website Product Headline Connect audio & video from your Mac or PC directly to a monitor Bullet 1 Create a clutter-free work environment by placing your audio and video cables neatly behind your monitor Bullet 2 Substitute a damaged or blocked audio port by connecting your speakers to your computer directly through the adapter Bullet 3 Provide crystal-clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p Bullets (Compact) Connect audio & video from a Mini DP Mac or PC directly to a monitor - 10 ft DisplayPort to VGA Adapter Cable - 1920 x 1200 resolution - Connect mDP to VGA with Sound - Create a clutter-free work environment by placing cables behind your monitor Bullets (Consolidated) Connect audio and video from a Mini DP Mac or PC directly to a monitor - 1920x1200 or 1080p - Connect Mini DisplayPort to VGA with Sound - Create a clutter-free work environment by placing your audio and video cables neatly behind your monitor - Substitute a damaged audio port and connect your speakers to your computer directly through the adapter - Compatible with various tablets and laptops such as the Apple MacBook Air and any Microsoft Surface Pro equipped with mDP Marketing Copy Marketing Copy (No HTML) Applications - Connect your speakers and a VGA monitor to your Mini DisplayPort equipped computer with the cables hidden and out of the way
- Use in your boardroom or office workstations for installations requiring 10 feet of cable
Website Search Keyword - mDP to VGA
- mini displayport to vga
- Mini DisplayPort to VGA active adapter
- mini displayport to vga adapter cable
- mini displayport to vga cable
- mini displayport to vga converter
- mini displayport to vga video adapter
- mini DP to VGA adapter
- 3m mini displayport to vga cable
- 10ft mini displayport to vga cable
- mini displayport to vga adapter with audio
- mini displayport to vga converter with audio
- mini displayport to vga cable with audio
- mini displayport to vga with audio
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXTHQMM6A
- MXTHQMM15A
- MXT101MM
- MXT101MM15
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ3
Related Products - DP2VGAAMM2M
- DP2VGAAMM3M
- MDP2VGAA
- DP2VGAA
Power Source USB-Powered Cable Length (mm) 3000 Color Black Humidity 40%~50%RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 3000 Product Width (mm) 39.7 Product Height (mm) 16.5 Product Weight (g) 146 Storage Temperature -10°C to 55°C (14°F to 131°F) TAA Compliant No Audio Specifications VGA - No Audio Support HDR Support No Maximum Analog Resolutions 1920x1200 / 1080p (output) Maximum Digital Resolutions 1920x1200 / 1080p (input) Maximum Supported Resolution 1080p Video Output Port VGA Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output VGA Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 433 Carton Height (mm) 420 Carton Quantity 120 Carton Weight Gross (g) 21060 Included in Package - 1 - 3m Mini DiplayPort to VGA adapter cable with audio
- 1 - 0.5m Micro USB cable
Number of Sub-Cartons 2 Package Depth (mm) 200 Package Height (mm) 41 Package Width (mm) 220 Package Weight (g) 168 Packaging Description mDP to VGA cable with audio support - 10ft (3m) Packaging Description India mDP to VGA cable with audio support - 10ft (3m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 60 Sub-Carton Weight (g) 9940 Connector 1 USB Micro-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Mini DisplayPort Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-05-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-04-30 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None
