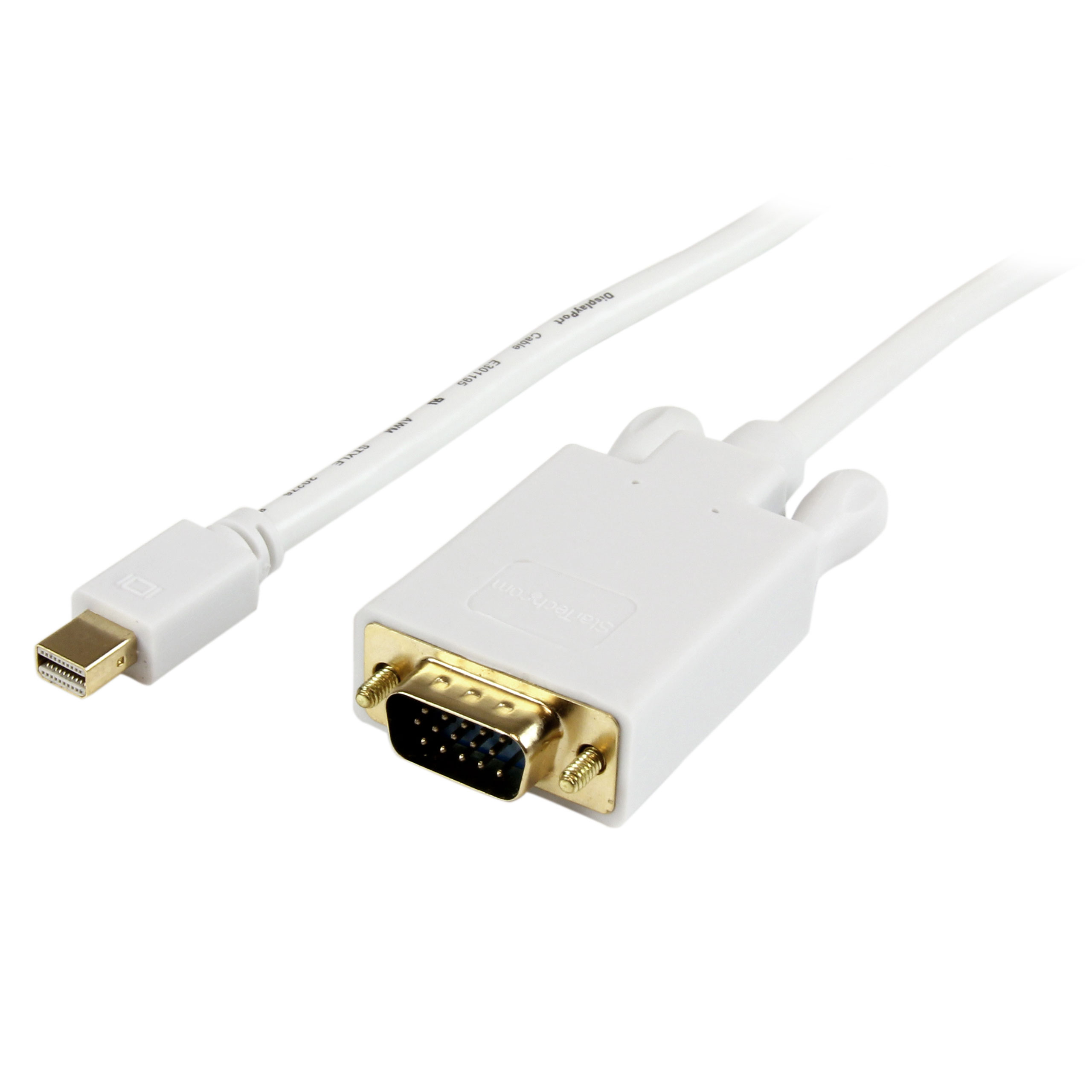

Mini DisplayPort to VGA - 3ft - Active - White
Connect a Mini DisplayPort-equipped PC or Mac® to a nearby VGA monitor/projector, with a short 3ft white cable
Main Image
Product Images
Product Images
Product Name Mini DisplayPort to VGA - 3ft - Active - White Product Number MDP2VGAMM3W UPC 065030852388 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to VGA Family mDP to VGA Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) 3ft Mini DP to VGA Product Title (Short) Mini DisplayPort to VGA Cable 3ft White Product Title (Medium) x Product Title (Standard) 3 ft Mini DisplayPort to VGAAdapter Converter Cable – mDP to VGA 1920x1200 - White Product Title (Long) 3ft (91cm) Mini DisplayPort to VGA Adapter Converter Cable – mDP to VGA 1920x1200 - White Product Title (AMZ) 3 ft Mini DisplayPort to VGA Active Adapter Cable - mDP to VGA Video Converter for Mac / PC 1920x1200 - White (MDP2VGAMM3W) Title Ingram (Part 1) 3 ft Mini DisplayPort to VGA Title Ingram (Part 2) Adapter - mDP to VGA - White Website Product Headline Connect a Mini DisplayPort-equipped PC or Mac® to a nearby VGA monitor/projector, with a short 3ft white cable Bullet 1 Active Mini DisplayPort to VGA conversion Bullet 2 Plug-and-Play Installation Bullet 3 Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p Bullet 4 Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal Bullets (Consolidated) Connect a Mini DisplayPort-equipped PC or Mac® to a nearby VGA monitor/projector with a short 3ft white cable - Compatible with devices such as the MacBook Air and any Surface Pro devices with mDP and VGA monitors and projectors - Supports resolutions up to 1920x1200 - Mini DisplayPort to VGA Adapter - Connect your computer directly to your display with a built-in adapter - Use a short 3ft cable for a tidy and precise workstation installation - White cable looks great with your Mac Marketing Copy Marketing Copy (No HTML) The MDP2VGAMM3W active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable. The converter features a stylish white design, that is well-suited for connecting Mac® computers. It is also the perfect accessory for any of your Microsoft® Surface™ Pro devices with mDP. The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality. The MDP2VGAMM3W is backed by a 3-year StarTech.com warranty and free lifetime technical support. Applications - Use your VGA monitor as a secondary display, connected to a Mini DisplayPort output
- Connect a Mini DisplayPort computer to a VGA projector for presentations or meetings in a boardroom or auditorium setting
- Connect your existing VGA display device (monitor, projector) to a DisplayPort output device (PC, laptop, Mac, Ultrabook)
Website Search Keyword - mini display port to VGA
- mdp to vga adapter
- mini displayport to VGA adapter cable
- mini dp to VGA converter adapter cable
- mdp to VGA converter adapter cable
- mdp to vga converter cable
- mdp to vga cable
- mini dp to vga
- mini dp to vga adapter
- mini dp to vga converter cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Related Products - MDP2VGAMM6W
- MDP2VGAMM15W
- MDP2VGAMM3B
- MDP2VGAMM6B
- MDP2VGAMM10B
- MDP2VGAMM15B
- DP2VGAMM3B
- DP2VGAMM6B
- DP2VGAMM10B
- MDP2VGAMM10W
- DP2VGAMM15B
Cable Length (mm) 915 Color White Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 930 Product Width (mm) 34 Product Height (mm) 15 Product Weight (g) 78 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications VGA - No Audio Support HDR Support No Maximum Analog Resolutions 1920x1200 / 1080p (Output) Maximum Cable Length (mm) 915 Maximum Digital Resolutions 1920x1200 / 1080p (Input) Maximum Supported Resolution 1080p Video Output Port VGA Active or Passive Adapter Active Audio No AV Input Mini DisplayPort - 1.2 AV Output VGA Chipset ID Analogix - 9832 Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 USB Pass-Through No Carton Depth (mm) 420 Carton Height (mm) 420 Carton Quantity 220 Carton Weight Gross (g) 24070 Included in Package 0 - Mini DisplayPort to VGA Adapter Cable Number of Sub-Cartons 1 Package Depth (mm) 200 Package Height (mm) 18 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 88 Packaging Description 3ft (0.9m) Mini DisplayPort™ to VGA Adapter Packaging Description India 3ft (0.9m) Mini DisplayPort™ to VGA Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 125 Sub-Carton Weight (g) 11490 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-07-09 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DK,ES,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
