MDP2VGAMM6B

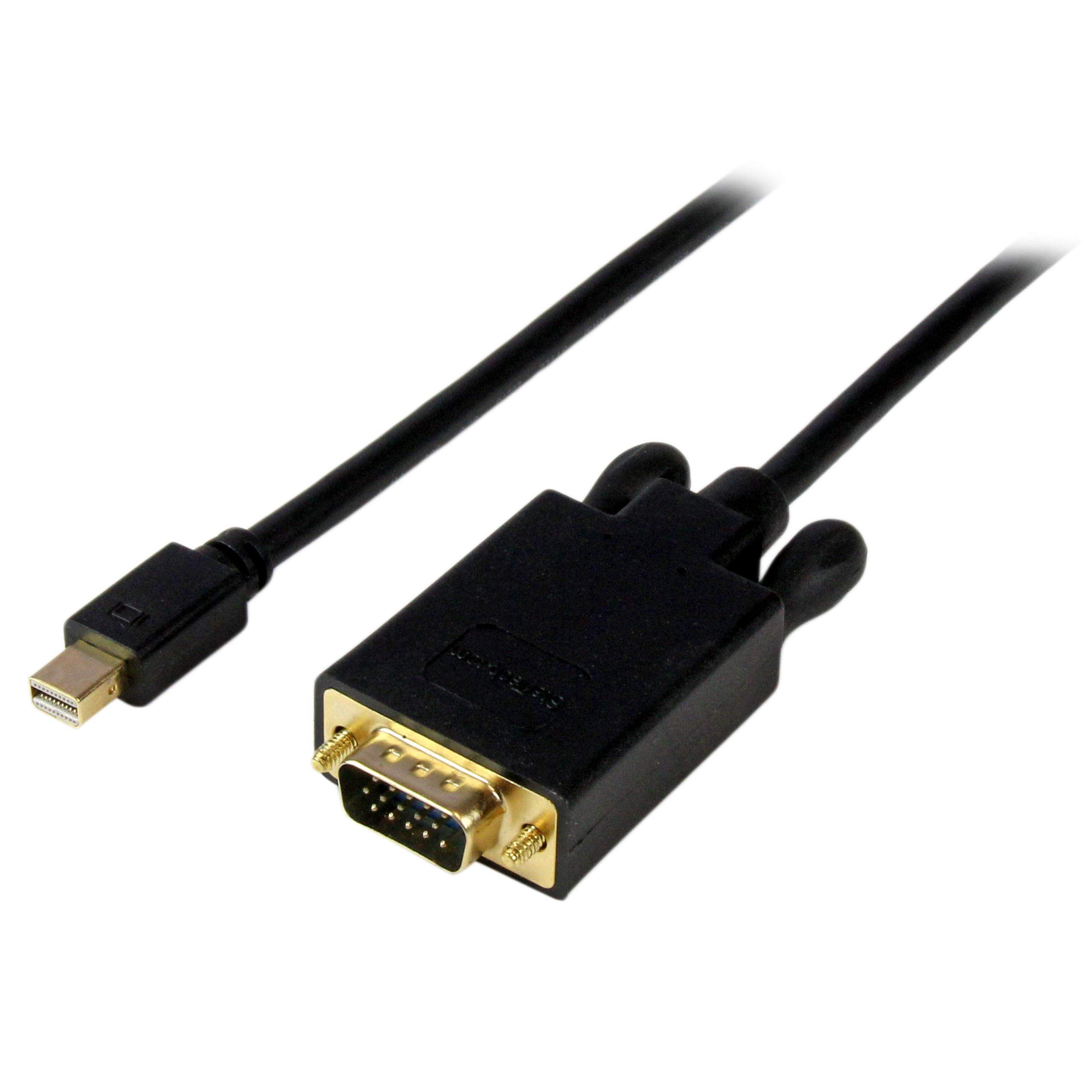

Mini DisplayPort to VGA - 6ft - Active - Black
Connect a Mini DisplayPort-equipped PC or Mac® to a VGA monitor/projector, with a 6ft black cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name Mini DisplayPort to VGA - 6ft - Active - Black Product Number MDP2VGAMM6B UPC 065030852395 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to VGA Family mDP to VGA Adapter Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 6ft Mini DP to VGA Product Title (Short) 6ft Mini DisplayPort to VGA Cable Active Product Title (Medium) x Product Title (Standard) 6ft Mini DisplayPort to VGA Cable, Active Mini DP to VGA Adapter Cable, 1080p, mDP 1.2 to VGA Monitor/Display Converter Cable Product Title (Long) 6ft (1.8m) Mini DisplayPort to VGA Cable - Active Mini DP to VGA Adapter Cable - 1080p Video - mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display - Converter Cord Product Title (AMZ) 6ft (2m) Mini DisplayPort to VGA Cable - Active Mini DP to VGA Adapter Cable - 1080p Video - mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display - Converter Cord (MDP2VGAMM6B) Title Ingram (Part 1) 6 ft Mini DisplayPort to VGA Title Ingram (Part 2) Adapter - mDP to VGA - Black Website Product Headline Connect a Mini DisplayPort-equipped PC or Mac® to a VGA monitor/projector, with a 6ft black cable Bullet 1 MINI DISPLAYPORT TO VGA CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to VGA cable connects a VGA display/monitor/projector supporting 1920x1200 & 1080p at 60Hz; DPCP & HDCP 1.4 | EDID & DDC pass-through ensure compatibility between source & display Bullet 2 HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 3 INTEGRATED DISPLAY CABLE: Mini DisplayPort to VGA adapter cable has slim & flexible design with video adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office Bullet 4 INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA display adapter cable | Supports VGA screw locking cable to prevent accidental disconnection | Gold-plated connectors Bullet 5 EASY TO USE: With no software or drivers required, the Mini DP to VGA converter cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks Bullets (Compact) 6ft Active Mini DisplayPort to VGA cable; 1080p 60Hz; mDP 1.2 HBR2; DPCP/HDCP 1.4 | EDID/DDC - mDP to VGA converter cable to connect Mini DP source to VGA display - Video adapter cable prevents signal loss - Works w/ Thunderbolt 1/2 - OS independent Bullets (Consolidated) 6' (1.8m) Mini DisplayPort to VGA adapter cable connects VGA display/projector/monitor supporting 1920x1200/1080p 60Hz | HBR2 | DPCP/HDCP 1.4 | EDID/DDC - Active mDP to VGA converter cable (digital to analog) supports mDP 1.2 equipped PC/Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Surface Pro 1-6 | Workstations/Desktop Computers (AMD/Nvidia video cards)/Laptops/Docks - Integrated video adapter prevents signal loss - Mini DP to VGA cable supports VGA screw locking cord - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Use your VGA monitor as a secondary display, connected to a Mini DisplayPort output
- Connect a Mini DisplayPort computer to a VGA projector for presentations or meetings in a boardroom or auditorium setting
- Connect your existing VGA display device (monitor, projector) to a DisplayPort output device (PC, laptop, Mac, Ultrabook)
Website Search Keyword - P586-006-VGA-V2
- P586-006-VGA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Cable Length (mm) 1828.8 Color Black Humidity 40%-85%RH Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 1830.000 Product Width (mm) 33.500 Product Height (mm) 15.000 Product Weight (g) 109.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications VGA - No Audio Support HDR Support No Maximum Analog Resolutions 1920x1200 / 1080p (Output) Maximum Cable Length (mm) 1828.8 Maximum Digital Resolutions 1920x1200 / 1080p (Input) Maximum Supported Resolution 1080p MTBF (hours) 1,449,804 hours Video Output Port VGA Active or Passive Adapter Active Audio No AV Input Mini DisplayPort - 1.2 AV Output VGA Chipset ID Analogix - 9832 Converter Type Cable Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Carton Depth (mm) 463 Carton Height (mm) 425 Carton Quantity 150 Carton Weight Gross (g) 19338 Included in Package 1 - Mini DisplayPort to VGA Adapter Cable Included In Package for Label 1 - Mini Displayport To VGA Converter Cable Number of Sub-Cartons 15 Package Depth (mm) 197 Package Height (mm) 20 Package Width (mm) 222 Package Quantity 1 Package Weight (g) 119 Packaging Description 6ft (1.8m) Mini DisplayPort to VGA Adapter Packaging Description India 6ft (1.8m) Mini DisplayPort to VGA Converter Sub-Carton Depth (mm) 404 Sub-Carton Height (mm) 112 Sub-Carton Width (mm) 253 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1182 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-07-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
