MDP2VGAW

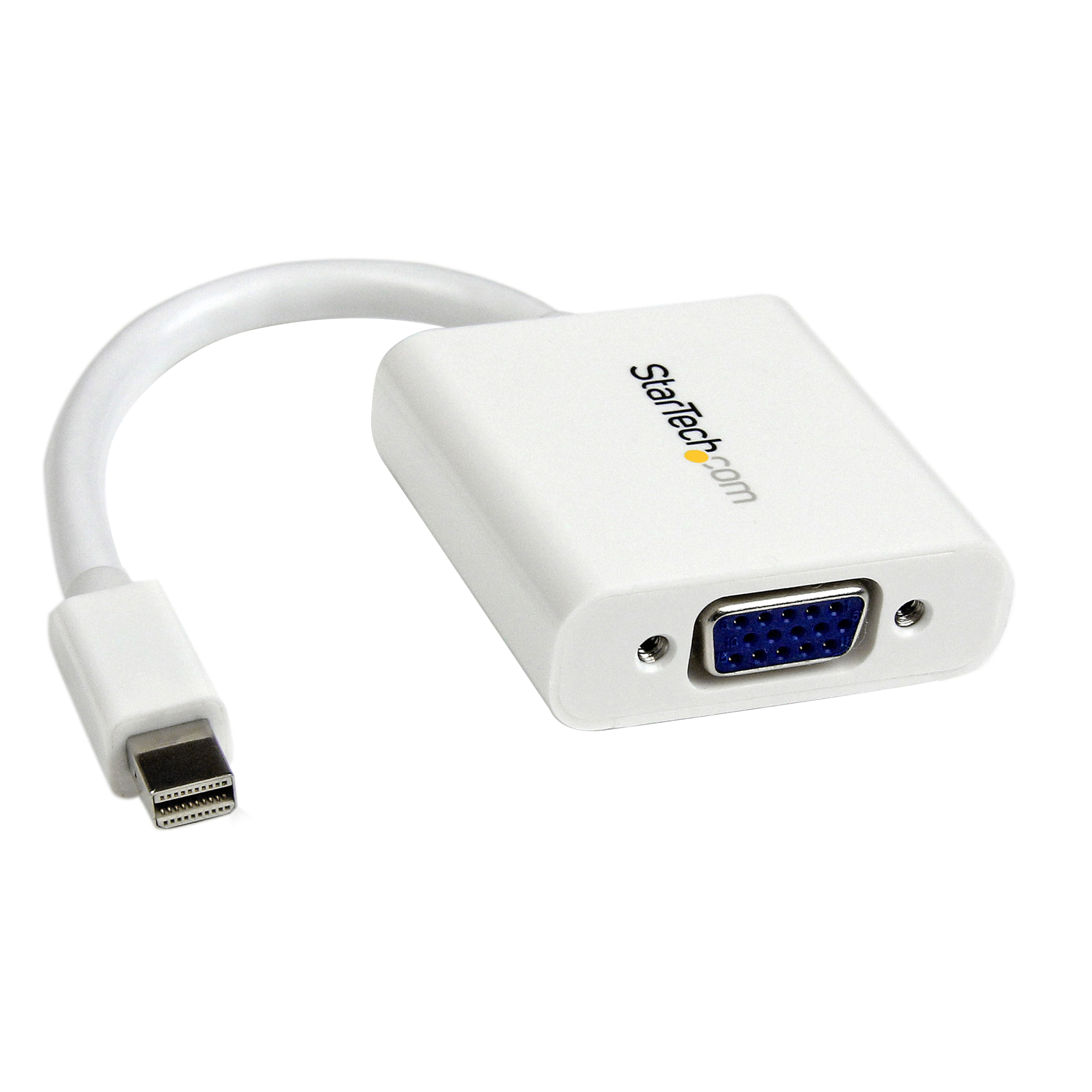

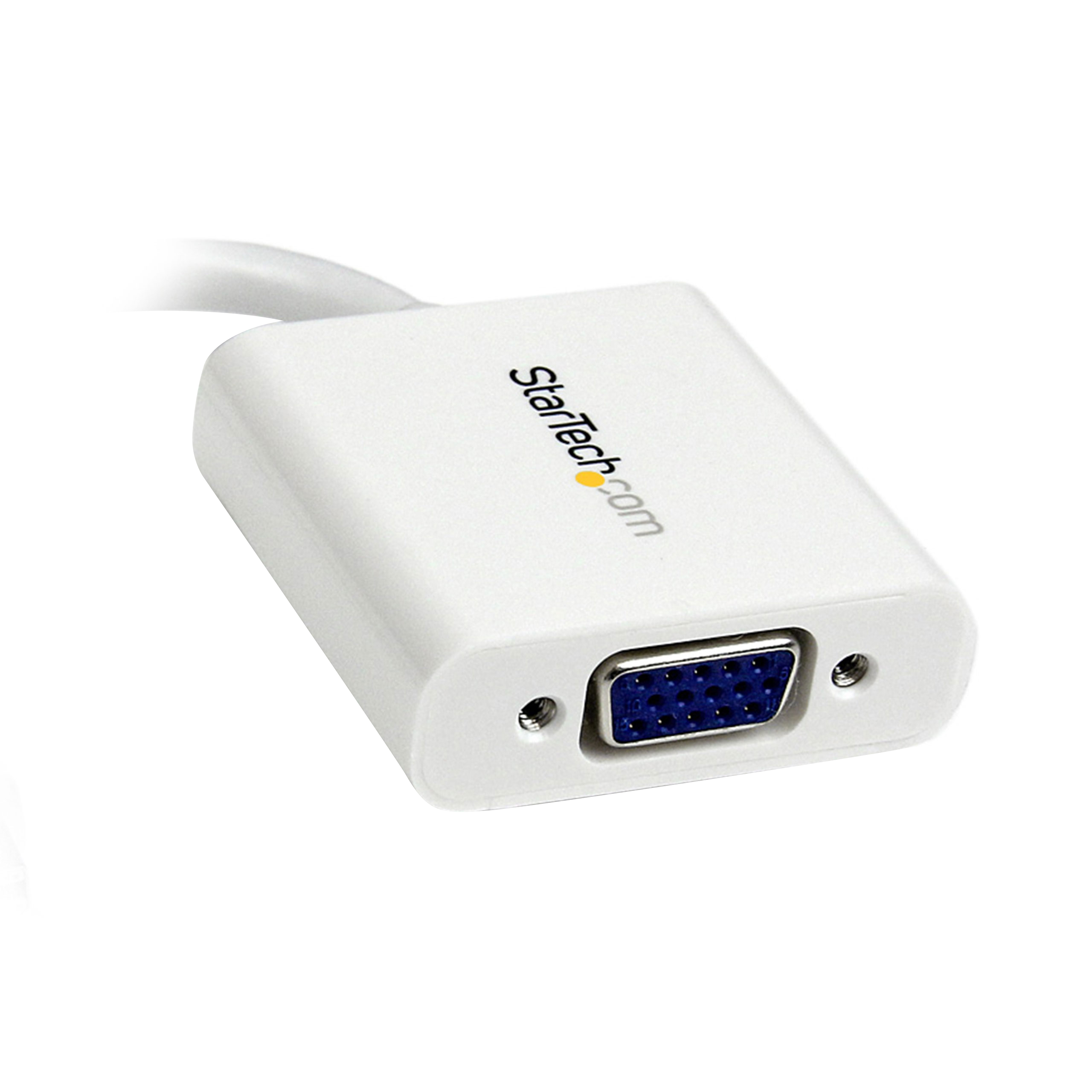

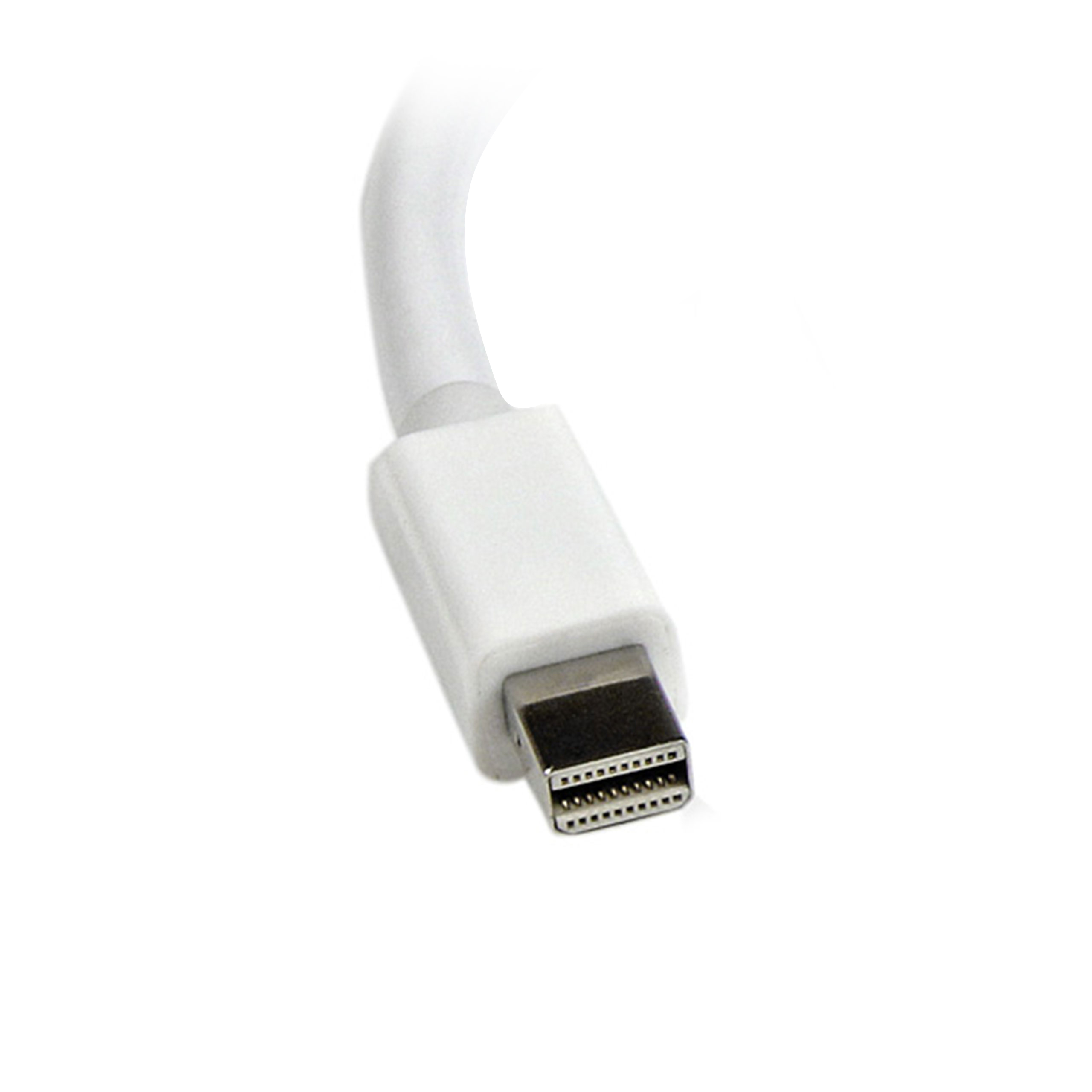

Mini DisplayPort to VGA Adapter - White
Connect a VGA display to a Mini-DisplayPort®-equipped PC or Mac® computer
Main Image
Product Images
Product Images
Product Name Mini DisplayPort to VGA Adapter - White Product Number MDP2VGAW UPC 065030845977 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MDP to VGA Family mDP to VGA Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) Mini DP to VGA White Product Title (Short) Mini DisplayPort to VGA Adapter - Active Product Title (Medium) Mini DisplayPort® to VGA Video Adapter Converter - White Product Title (Standard) Mini DisplayPort to VGA Adapter, Active Mini DP to VGA Converter, 1080p Video, mDP 1.2 to VGA Monitor/Display Adapter Dongle Product Title (Long) Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - White Product Title (AMZ) Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - White (MDP2VGAW) Title Ingram (Part 1) Mini DisplayPort to VGA Video Ad Title Ingram (Part 2) apter - White Website Product Headline Connect a VGA display to a Mini-DisplayPort®-equipped PC or Mac® computer Bullet 1 MINI DISPLAYPORT TO VGA ADAPTER: Mini DP 1.2 (HBR2) video adapter connects a VGA display or projector supporting 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensures compatibility between source & display | White Bullet 2 HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks Bullet 3 INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA adapter dongle; Compact design makes it ideal for travel to & from office/home | 5" (13cm) cable Bullet 4 SCREW LOCKING VGA: Mini DisplayPort to VGA display adapter supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection from VGA displays and projectors | Tested with VGA cables up to 25' Bullet 5 EASY TO USE: With no software or drivers required, the Mini DP to VGA converter (male to female) works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks Bullets (Compact) Active Mini DisplayPort to VGA adapter dongle supports 1080p 60Hz video; mDP 1.2 HBR2; EDID/DDC - mDP to VGA monitor/display/projector - For mDP/mDP++ source - Mini DP to VGA adapter converter works with Thunderbolt 1/2 - OS independent - White Bullets (Consolidated) White Mini DisplayPort to VGA adapter connects VGA display/projector/monitor/TV supporting 1080p 60Hz | HBR2 | EDID/DDC - Active Mini DisplayPort to VGA converter (digital to analog) supports mDP 1.2 equipped PC/Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Microsoft Surface Pro 1-6 | Workstations/Desktops (AMD/Nvidia video card)/Laptops/Docking Station - Compact Mini DP to VGA dongle | M/F - mDP to VGA display adapter supports VGA screw locking cable | 5in cable - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
- Keep your existing VGA monitor to be used with your new Mini-DisplayPort device
- Ideal for using your VGA monitor as a secondary display
Website Search Keyword - Mini DisplayPort to VGA
- Mini DisplayPort VGA Adapter
- DisplayPort to VGA
- Apple DisplayPort
- Apple Mini DisplayPort
- Mac Mini DisplayPort
- Macbook Mini DisplayPort
- apple
- mac
- Light Peak
- Light Peek
- Thunder Bolt
- thunderbolt
- MAC2VGA
- P137-06N-VGA
- P137-06N-VGA-BP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- MXT101MMHQ30
Related Products - MDP2VGA2
- MDP2VGA
- MDP2VGAA
- MDP2VGAMM6
- MDP2VGAMM3B
- MDP2VGAMM6B
- MDP2VGAMM10B
- MDP2VGAMM15B
- MDP2VGAAMM2M
- MDP2VGAAMM3M
- MDP2VGAMM3W
- MDP2VGAMM6W
- MDP2VGAMM10W
- MDP2VGAMM15W
Constrained SKU Alternatives (Limited Stock) MDP2VGA Cable Length (mm) 120 Color White Humidity 40~85% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 180 Product Width (mm) 45 Product Height (mm) 15 Product Weight (g) 28.5 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications VGA - No Audio Support HDR Support No Maximum Supported Resolution 1080p MTBF (hours) 1,340,629 Hours Video Output Port VGA Active or Passive Adapter Active Audio No AV Input Mini DisplayPort - 1.2 AV Output VGA Converter Type Adapters Host Connection Port Mini DisplayPort Industry Standards DisplayPort 1.1a Number of Displays 1 Carton Depth (mm) 360 Carton Height (mm) 280 Carton Quantity 160 Carton Weight Gross (g) 8144 Included in Package 1 - Mini DisplayPort® to VGA adapter Included In Package for Label 1 - Mini Displayport® To VGA Converter Number of Sub-Cartons 16 Package Depth (mm) 108 Package Height (mm) 19 Package Width (mm) 197 Package Quantity 1 Package Weight (g) 42 Packaging Description Mini DisplayPort® to VGA Adapter - White Packaging Description India Mini DisplayPort® to VGA Converter - White Sub-Carton Depth (mm) 236 Sub-Carton Height (mm) 62 Sub-Carton Width (mm) 219 Sub-Carton Quantity 10 Sub-Carton Weight (g) 420 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
