Main Image
MDP2VGDVHD

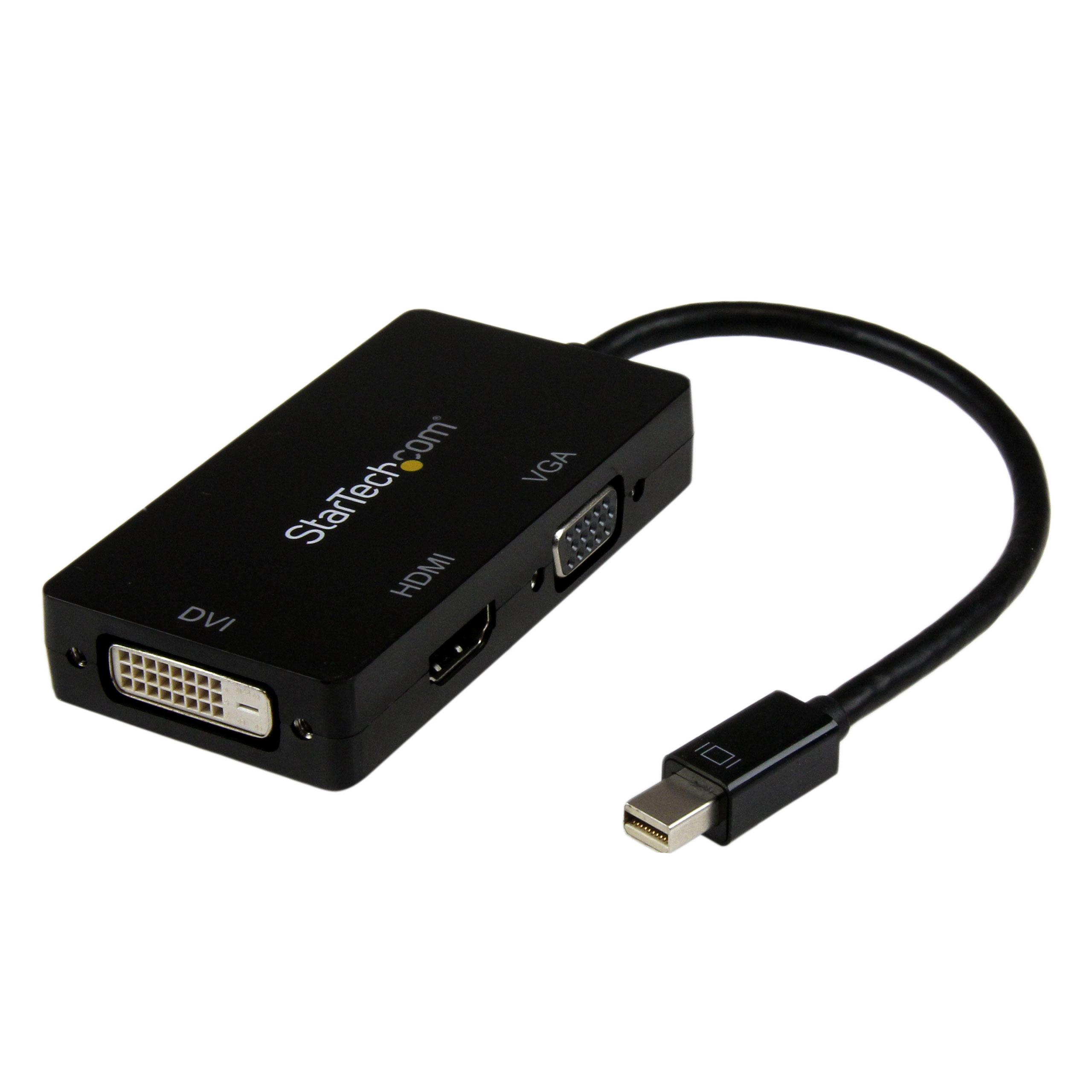

Mini DisplayPort mDP to VGA DVI HDMI Adapter
Connect a Mini DisplayPort-equipped PC or Mac® to an HDMI, VGA, or DVI Display
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Mini DisplayPort mDP to VGA DVI HDMI Adapter Product Number MDP2VGDVHD UPC 065030854290 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP and MDP Travel Adapters Family mDP to Multiport Display Adapters, 4K30 Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) mDP to VGA/DVI/HDMI Product Title (Short) Mini DisplayPort to VGA DVI HDMI Adapter Product Title (Medium) x Product Title (Standard) Mini DisplayPort Adapter – 3-in-1 – 1080p – Monitor Adapter – Mini DP to HDMI / VGA / DVI Adapter Hub Product Title (Long) Travel A/V Adapter: 3-in-1 Mini DisplayPort to VGA DVI or HDMI Converter Product Title (AMZ) 3 in 1 Mini DisplayPort Adapter - 1080p - Mini DP / Thunderbolt to HDMI / VGA / DVI Splitter for Your Monitor (MDP2VGDVHD) Title Ingram (Part 1) 3-in-1 Mini DisplayPort mDP to Title Ingram (Part 2) VGA DVI HDMI Adapter Website Product Headline Connect a Mini DisplayPort-equipped PC or Mac® to an HDMI, VGA, or DVI Display Bullet 1 3-IN-1 DISPLAY ADAPTER: Seamlessly connect a Mini-DisplayPort source to virtually any display with a single adapter; Supports mDP to HDMI, DVI, or VGA (only one output active at a time); 7.1 channel surround sound over HDMI for high-fidelity AV setups Bullet 2 PLUG-AND-PLAY: OS-independent adapter requires no drivers or software, ideal for quick deployments across Windows, macOS, and Linux systems without IT overhead Bullet 3 VIDEO RESOLUTIONS: This travel video adapter supports up to 4K at 30Hz via HDMI output and up to 1920x1200/1080p via DVI and VGA outputs; Designed for versatile deployments across modern and legacy display environments Bullet 4 TRAVEL-READY DESIGN: This A/V adapter features a lightweight, compact design that fits effortlessly into laptop bags or technician field kits; Ideal for both mobile setups, permanent desktop workstations and IT professionals on the go Bullet 5 TECHNICAL SPECIFICATIONS: Unidirectional design (only converts from a Mini-DisplayPort source to an HDMI/DVI/VGA monitor); HDMI/DVI passive ports; VGA active port; Cable Length 5.9in (15cm); Color: Black Bullets (Consolidated) Connect a Mini DisplayPort-equipped PC or Mac to an HDMI VGA or DVI (3in1 adapter) monitor or projector - Works with any of the Microsoft Surface Pro devices equipped with mDP and Surface docking station - Resolutions up to 1920x1200 - Mini DisplayPort to VGA/mDP to DVI/mDP to HDMI/Mini Display Port to VGA/Mini DisplayPort to DVI/Mini DisplayPort to HDMI - All-in-one video adapter supports virtually any display - Make your BYOD Microsoft Surface compatible with DVI VGA or HDMI displays Marketing Copy Marketing Copy (No HTML) Applications - Keep the adapter with you while traveling, to connect to virtually any display you come across
- Connect your BYOD laptop/Ultrabook to a provided HDMI, DVI, or VGA display at work

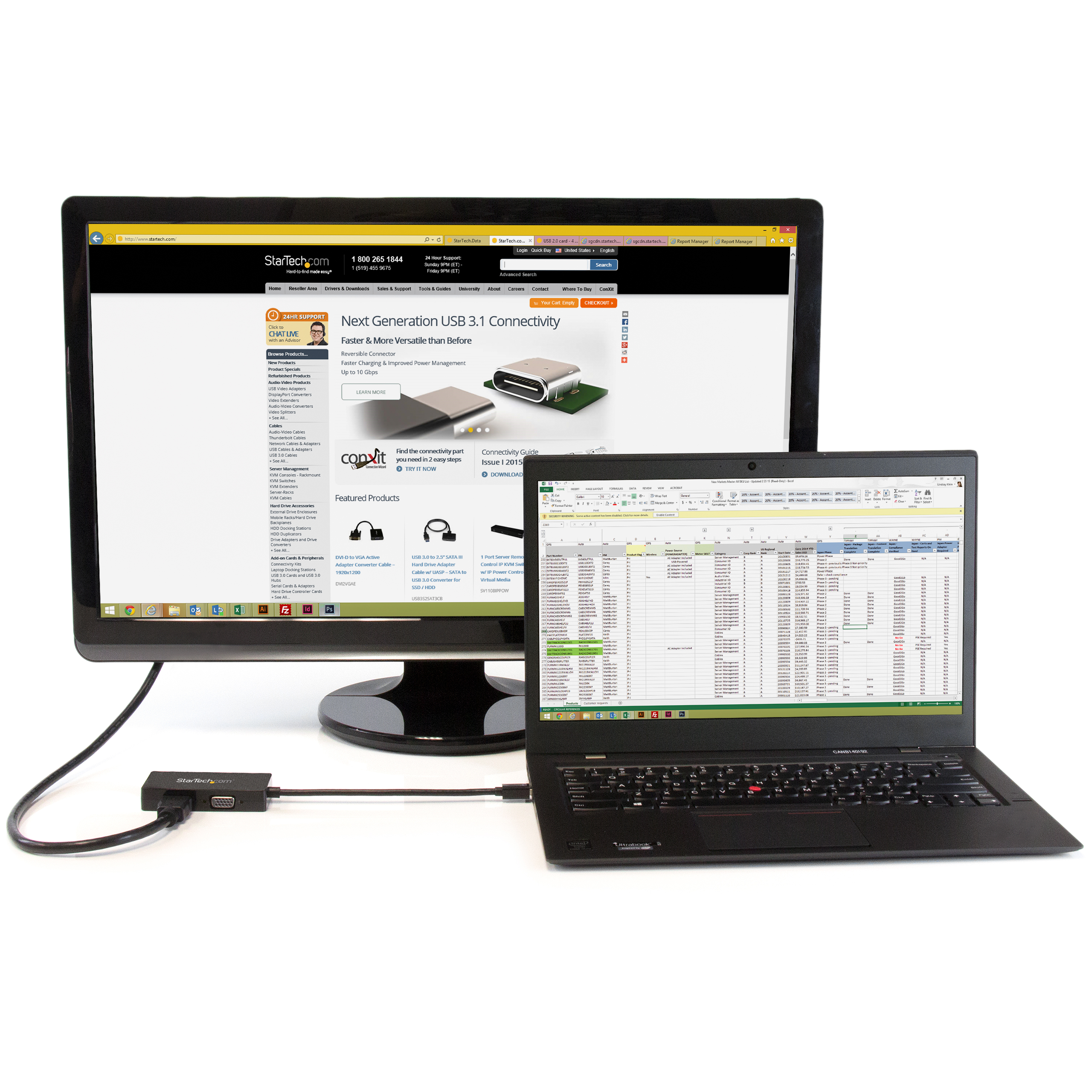

- Connect a DVI, VGA, or HDMI display to your Mini DisplayPort laptop, to use as a secondary monitor
Website Search Keyword P137-06N-HDV Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
- Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMM6
- HDMM10
- HDMM15
Related Products - MDPVGDVHD4K
- MDP2HDVGA
- MDP2HDVGAW
- MDP2DPDVHD
- MDP2VGDVHDW
- DP2VGDVHD
- DP2HDVGA
- MDP2HDMIUSBA
- MDP2HDS
- MDP2HDSW
- MDP2HDW
- MDP2VGA
- MDP2VGAW
Cable Length (mm) 150 Color Black Humidity 10~85% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 270.000 Product Width (mm) 45.000 Product Height (mm) 15.000 Product Weight (g) 57.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications - DVI - No Audio Support
- HDMI - 7.1 Channel Audio
- VGA - No Audio Support
HDR Support No Maximum Analog Resolutions 1920x1200/1080p Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 1920x1200/1080p Maximum Supported Resolution 1080p Video Output Port - DVI
- HDMI
- VGA
Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output - DVI-D - Single-Link
- HDMI - 1.4
- VGA

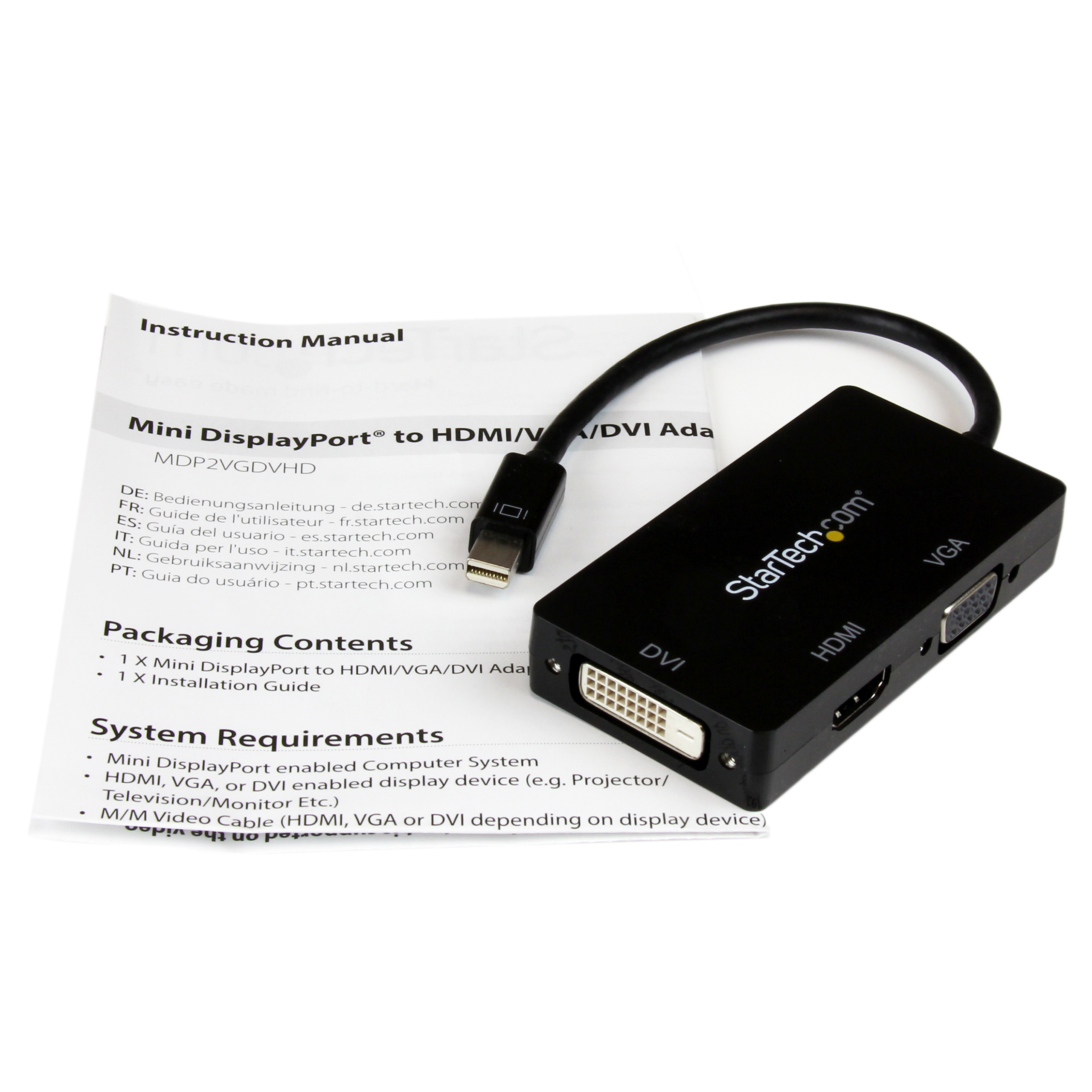

Converter Type Travel A/V Adapters Host Connection Port Mini DisplayPort Number of Displays 1 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 528 Carton Height (mm) 226 Carton Quantity 100 Carton Weight Gross (g) 7926 Included in Package - 1 - Mini DisplayPort to HDMI/VGA/DVI Adapter
- 1 - Installation Guide
Included In Package for Label - 1 - Mini Displayport To HDMI/VGA/DVI Converter
- 1 - Installation Guide
Number of Sub-Cartons 10 Package Depth (mm) 198 Package Height (mm) 24 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 74 Packaging Description Mini DisplayPort® to HDMI/VGA/DVI Adapter Packaging Description India Mini DisplayPort® to HDMI/VGA/DVI Converter Sub-Carton Depth (mm) 293 Sub-Carton Height (mm) 111 Sub-Carton Width (mm) 256 Sub-Carton Quantity 10 Sub-Carton Weight (g) 684 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-10-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream
