Main Image
MHD2HDF11

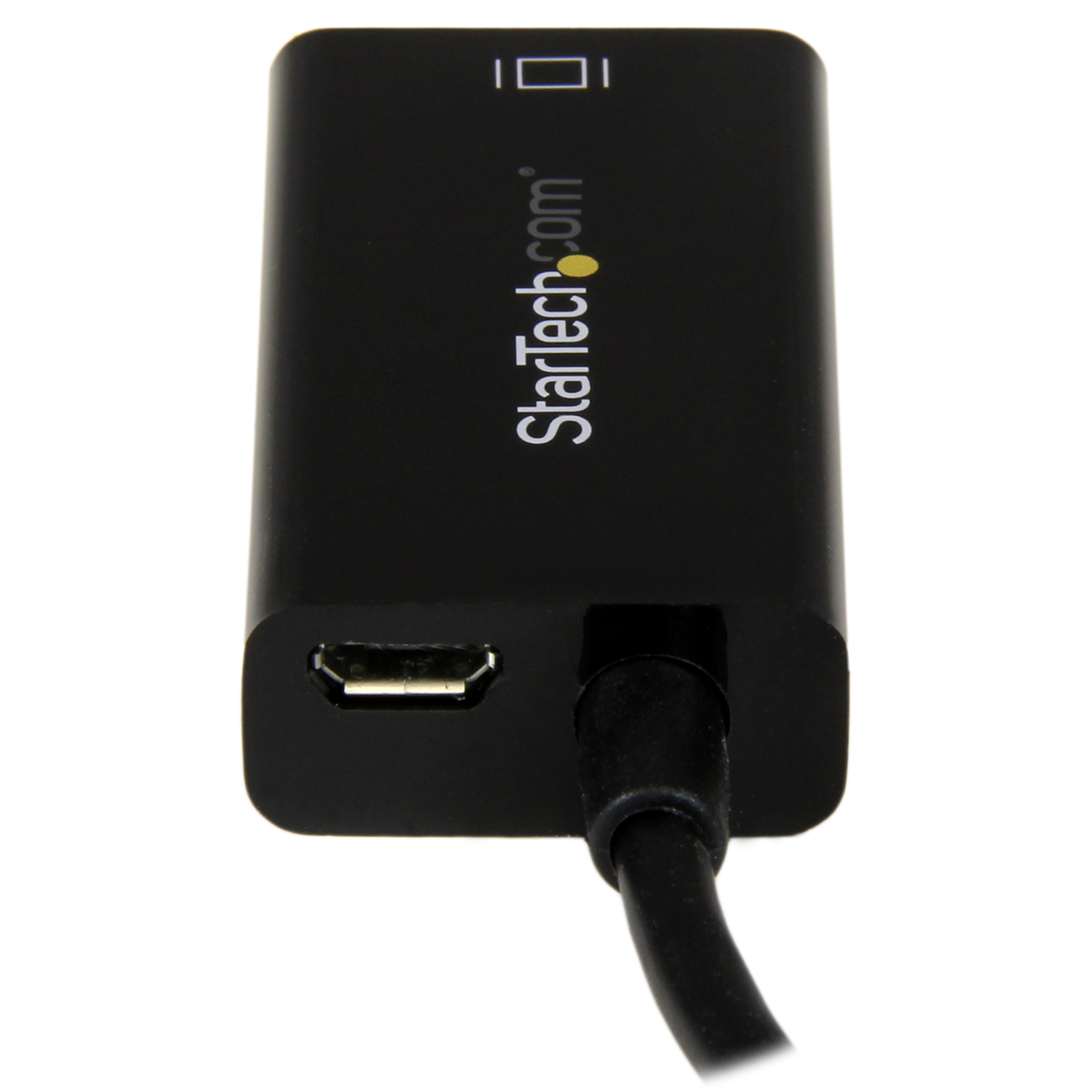

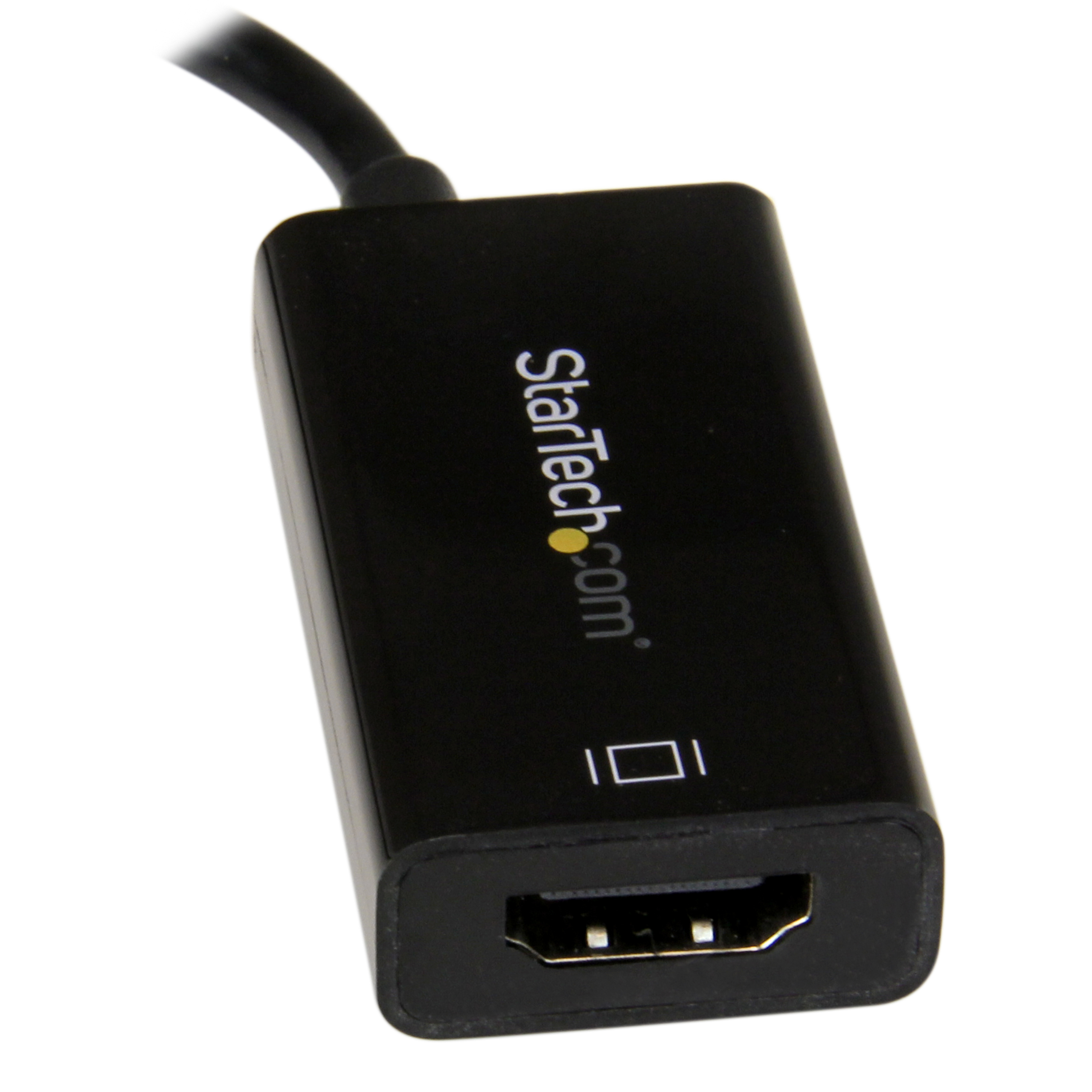

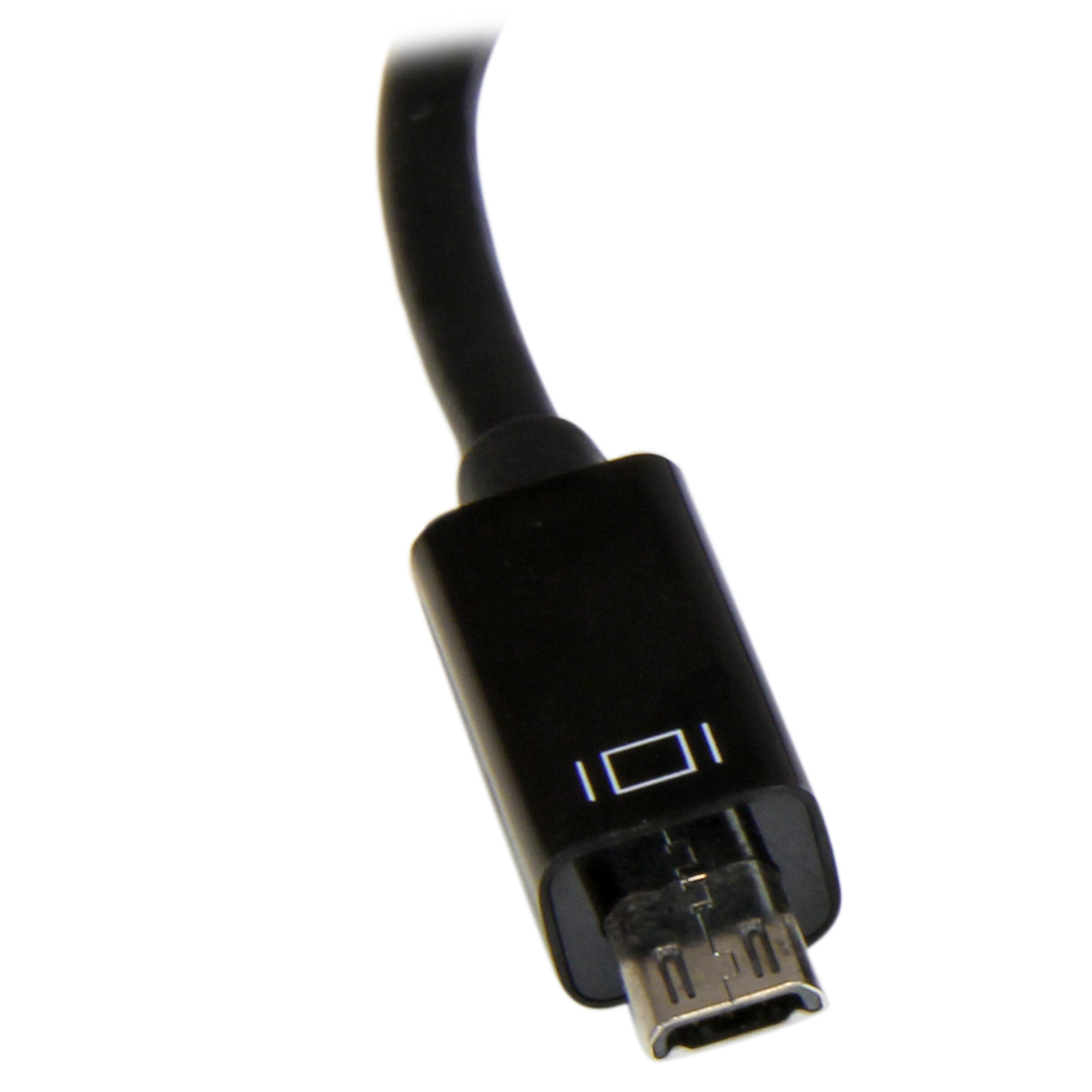

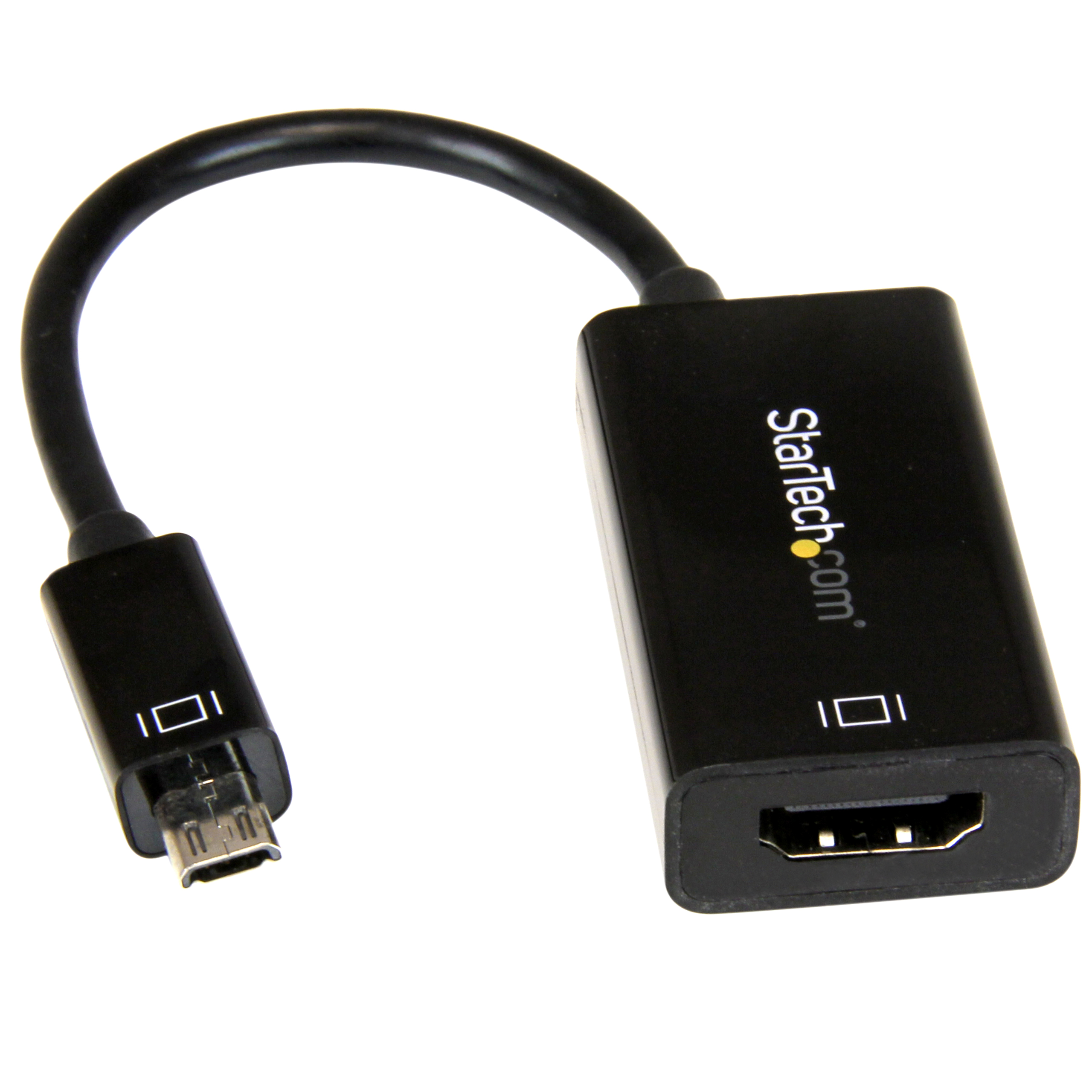

Samsung Galaxy MHL Adapter - Micro USB to HDMI
Connect your MHL enabled Samsung Galaxy mobile device to an HDTV, monitor or projector using HDMI®
Main Image
Product Images
Product Images
Product Images
Product Name Samsung Galaxy MHL Adapter - Micro USB to HDMI Product Number MHD2HDF11 UPC 065030851442 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Ultra-Short) MHL to HDMI Adapter Product Title (Short) Samsung Galaxy MHL to HDMI Adapter Cable Product Title (Medium) x Product Title (Standard) Samsung Galaxy MHL Adapter Converter - 11 Pin Micro USB to HDMI Product Title (Long) Samsung Galaxy MHL Adapter Converter - 11 Pin Micro USB to HDMI Product Title (AMZ) Samsung Galaxy MHL Smartphone Adapter Converter - 11 Pin Micro USB Mobile High-Definition to HDMI - RCP CEC Anynet+ Support (MHD2HDF11) Title Ingram (Part 1) Samsung Galaxy MHL Adapter Title Ingram (Part 2) – 11 Pin Micro USB to HDMI Website Product Headline Connect your MHL enabled Samsung Galaxy mobile device to an HDTV, monitor or projector using HDMI® Bullet 1 1080p video output Bullet 2 Digital audio supported Bullet 3 Simultaneous charging to the mobile device when Micro USB charge cable (not included) is attached Bullet 4 RCP (Remote Control Protocol) for TV control of your mobile device with CEC or Anynet TV supporting HDTVs Bullet 5 Compact and easy to transport Bullets (Consolidated) Connect your MHL enabled Samsung Galaxy mobile device to an HDTV - Compatible with MHL enabled Samsung devices such as Galaxy tablets and smartphones and HDMI monitors televisions and projectors - Supports resolutions up to 1080p - MHL Adapter/Comparable to MHD2HDF11/MHL to HDMI Adapter/Micro USB to HDMI/MHL adapter/11 pin Micro USB to HDMI - Display HD content on a television or projector from your Samsung Mobile Device, with MHL to HDMI conversion Marketing Copy Applications - Connect your Mobile High-Definition Link (MHL™) enabled device to a television, monitor or projector through HDMI.
- Display video with supporting audio, or share pictures on a full-sized HDMI-capable display
Website Search Keyword - mhl
- mhl port
- mhl interface
- mhl connector
- mobile HD link
- mobile high-definition link
- mhl to hdmi
- mobile hd link to hdmi
- mobile high-definition link to hdmi
- MHL Cable
- MHL Adapter
- Samsung 11 pin
- samsung mhl
- S4MHDHD
- S5MHDHD
- STPMHDHD
- SNPMHDHD
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMIMM3
- HDMIMM6
- HDMIMM10
- HDMIMM1
- HDMIDVIMM6
- HDMIDVIMM10
Color Black Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 180.000 Product Width (mm) 25.000 Product Height (mm) 11.000 Product Weight (g) 17.000 Storage Temperature -20°C to 70°C (4°F to 158°F) TAA Compliant No Maximum Cable Length (mm) 5000 Maximum Digital Resolutions 1080p Active or Passive Adapter Active Audio Yes AV Input Micro USB (MHL) AV Output HDMI Chipset ID Silicon Image - SiI9292CNUC Converter Type Mobile Converters Industry Standards MHL 2.0 enabled Carton Depth (mm) 310 Carton Height (mm) 180 Carton Quantity 400 Carton Weight Gross (g) 3598 Included in Package 1 - MHL™ to HDMI® Adapter Package Depth (mm) 81 Package Height (mm) 22 Package Width (mm) 179 Package Quantity 1 Package Weight (g) 32 Packaging Description MHL™ Samsung Galaxy™ 11-pin Adapter – Micro USB to HDMI® Packaging Description India MHL™ Samsung Galaxy™ 11-pin Adapter – Micro USB to HDMI® Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 MHL (11-Pin) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB Micro-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-05-01 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Carey Cline Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
