MICATXPOW255

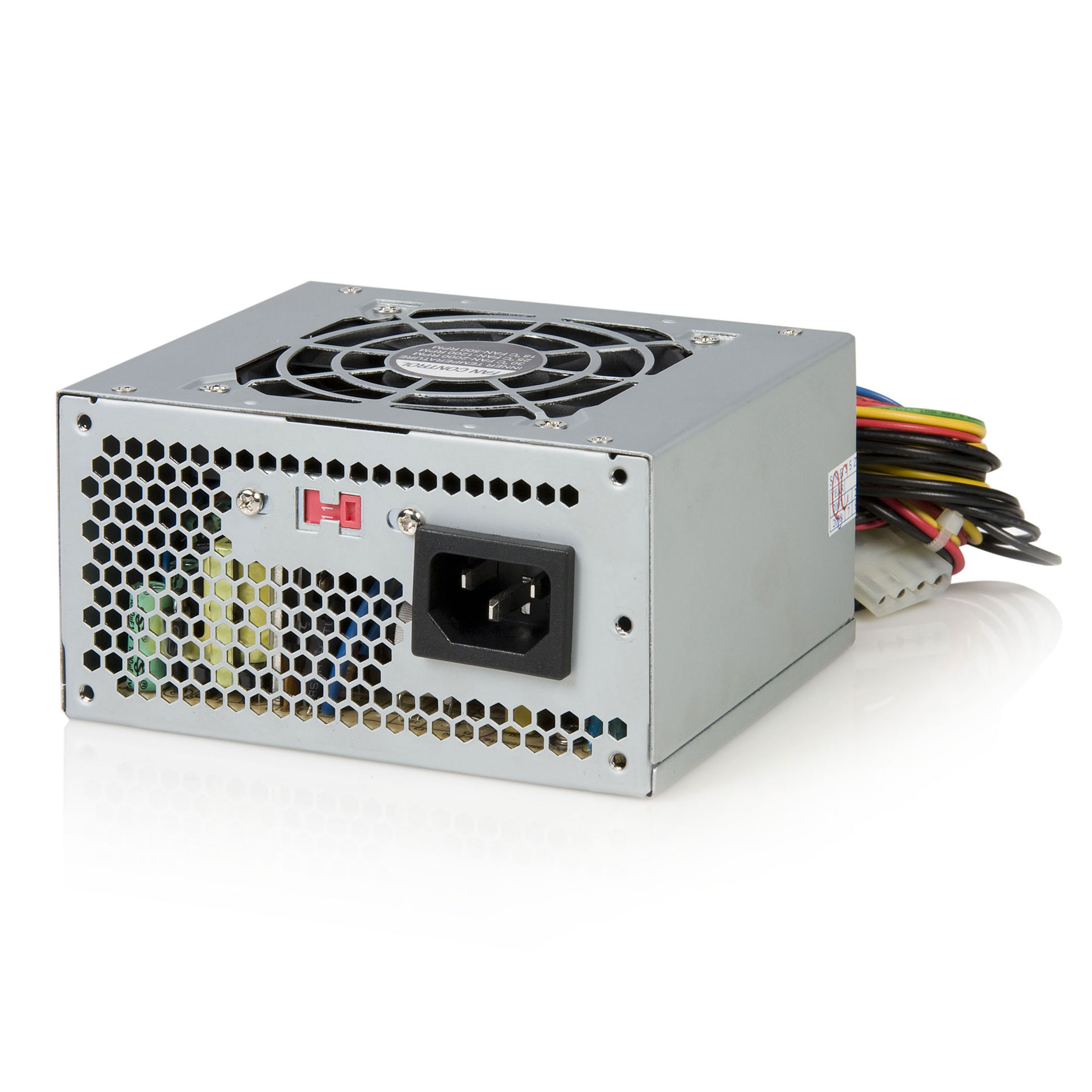

255 Watt MicroATX P4 Power Supply
Replace or upgrade to a 255W power supply for a micro ATX computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 255 Watt MicroATX P4 Power Supply Product Number MICATXPOW255 UPC 065030802390 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 255W Micro ATX Computer PC Power Supply Product Title (Standard) StarTech.com Computer Power supply ( internal ) - MicroATX - AC 115/230 V - 255 Watt - 7 output connector(s) Product Title (Long) 255 Watt Micro ATX Computer PC Power Supply Title Ingram (Part 1) 255 Watt MicroATX Computer PC Po Title Ingram (Part 2) wer Supply Website Product Headline Replace or upgrade to a 255W power supply for a micro ATX computer Bullet 1 Provides a maximum output power of 255 watts Bullet 2 High airflow fan delivers efficient cooling for the entire system Bullet 3 Industry’s leading safety approval ratings Bullet 4 High quality connectors provide minimal resistance and enhanced electrical conductivity Bullet 5 ATX version 2.03 and ATX12V complaint Marketing Copy Applications - Ideal for Micro ATX cases
- Perfect solution for replacing or upgrading an older or non-functional power supply
- Provides additional current and power capacity for overburdened CPUs
Accessory Products - ATX2024FM
- LP4PCIEXADAP

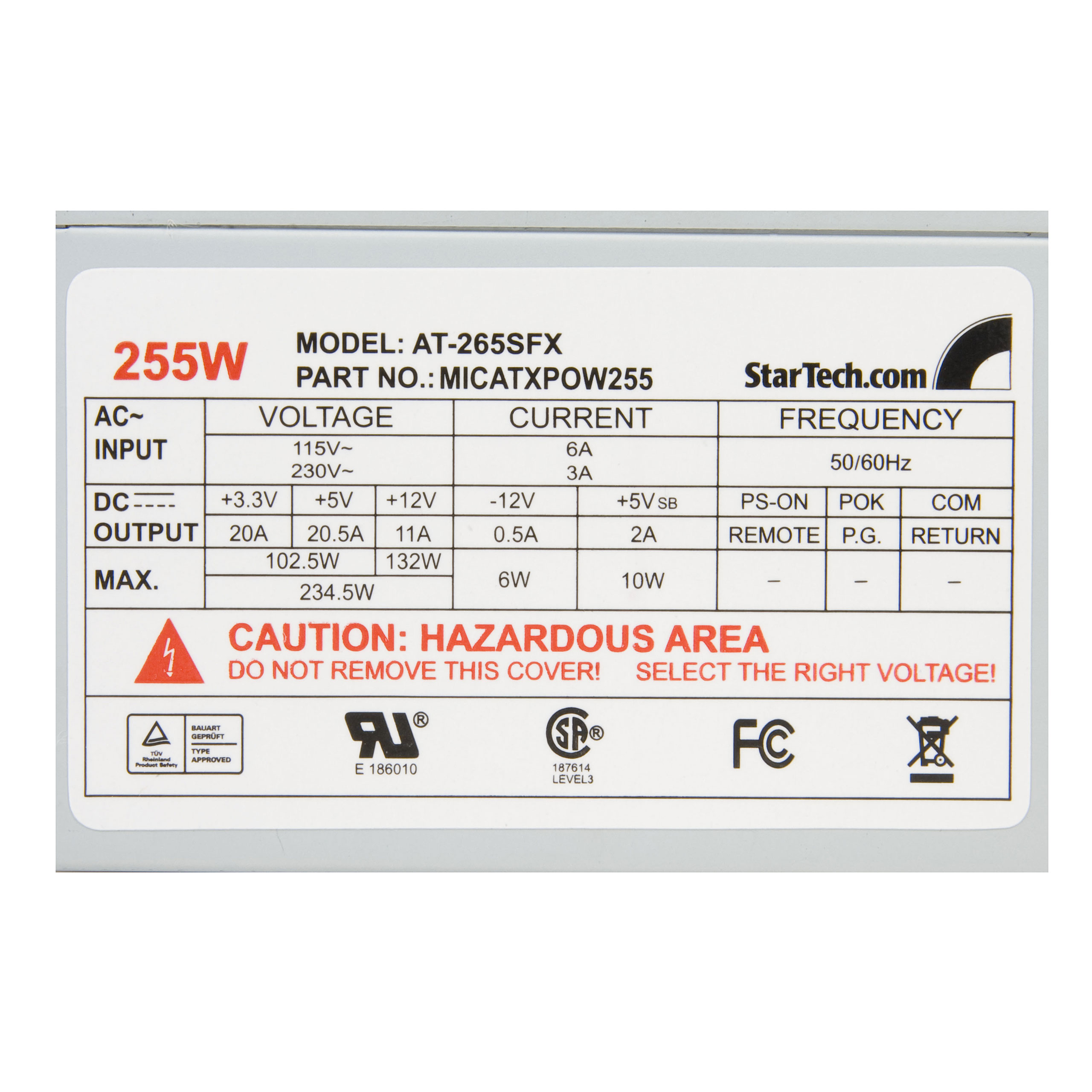

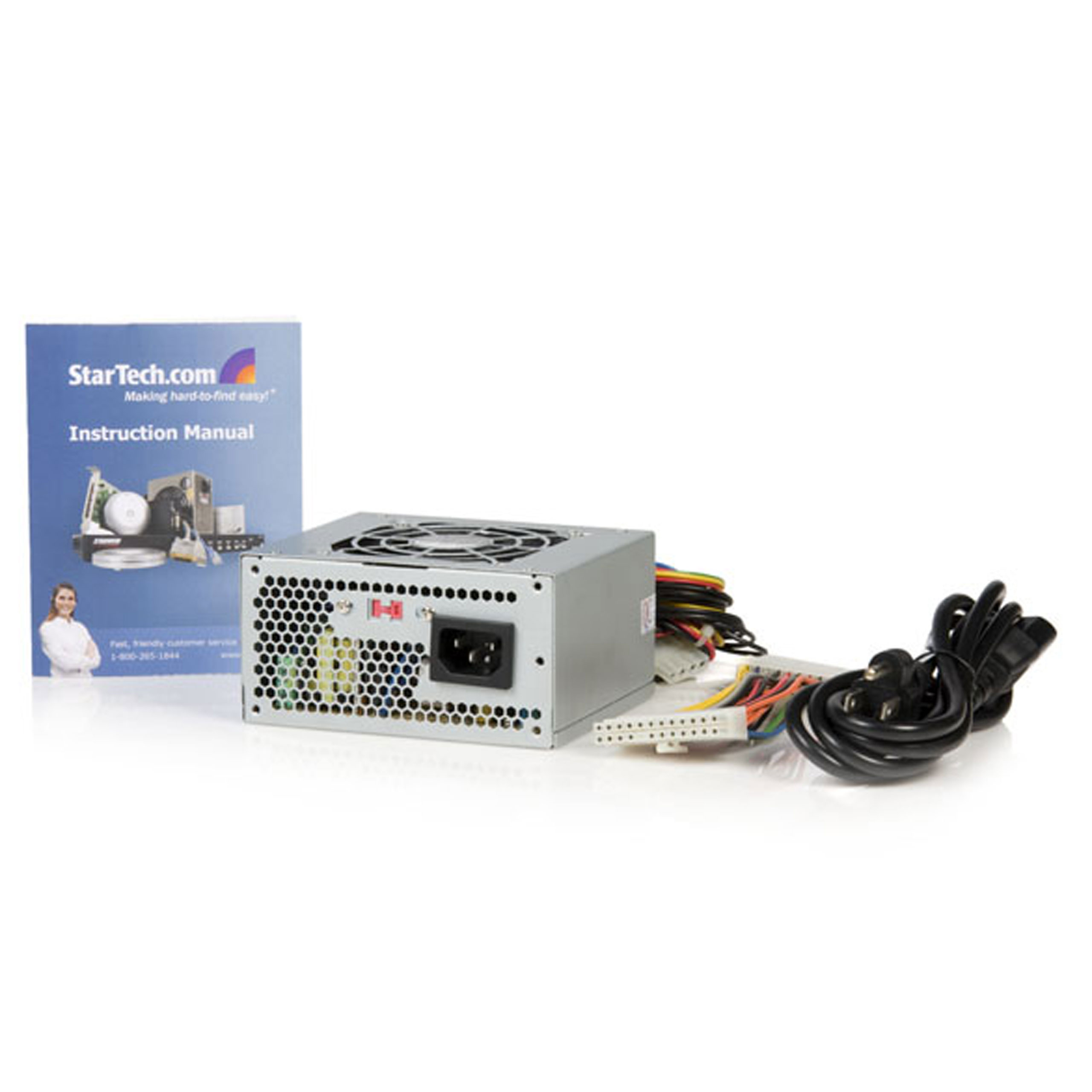

Input Current 6A ~ 3A Input Voltage 115V-230V AC Product Length (mm) 100 Product Width (mm) 125 Product Height (mm) 65 Product Weight (g) 990 TAA Compliant No MTBF (hours) 100,000 Hours Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 260 Carton Height (mm) 348 Carton Quantity 10 Carton Weight Gross (g) 14800 Included in Package - 1 - 255W Micro ATX Power Supply
- 1 - Power Cord (NA)
- 1 - Instruction Manual
- 1 - ATX 20-pin to 24-pin Adapter
Package Depth (mm) 94 Package Height (mm) 163 Package Width (mm) 238 Package Weight (g) 1360 Packaging Description 255 Watt Micro ATX Computer Power Supply Packaging Description India 255 Watt Micro ATX Computer Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 3 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 ATX Power (20-Pin, 3.3V / 5V / 12V) Connector 3 (Quantity) 1 Connector 4 ATX Power (4-Pin, 12V, 192W) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
