MMC110MMST
Managed 10/100 Fiber Ethernet Media Converter ST
Convert and extend 10/100 Mbps Ethernet up to 2 km over Multi Mode ST fiber – Managed
Main Image
Product Images
Product Images
BOM Image
Product Name Managed 10/100 Fiber Ethernet Media Converter ST Product Number MMC110MMST UPC 065030832687 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) 10/100 Fiber Managed Media Converter ST Product Title (Standard) 10/100 Fiber Ethernet Managed Media Converter ST Product Title (Long) 10/100 Mbps Multi Mode Fiber Ethernet Managed Media Converter - ST Title Ingram (Part 1) 10/100 Mbps MM Fiber Ethernet Ma Title Ingram (Part 2) naged Media Converter ST Website Product Headline Convert and extend 10/100 Mbps Ethernet up to 2 km over Multi Mode ST fiber – Managed Bullet 1 Compact design and weight makes it portable and unobtrusive to carry Bullet 2 Led Indicators that detect Power, Link, Activity, Duplex mode, and Collision status Bullet 3 1024 MAC addresses Bullet 4 256Kbps of buffer memory Bullet 5 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX Marketing Copy Applications Designed for large, higher speed bandwidth for demanding workgroups that require expansion of fast Ethernet Network over longer distances Website Search Keyword - managed software
- Fiber media
- fiber converter
- multi mode st
- managed 10/100
- st fiber
Accessory Products - FIBSTST5
- FIBSTST10
- FIBSTST15
- M45PATCH6BL
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
Related Products - MCM110ST
- ET90110ST
Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 145 Product Width (mm) 80 Product Height (mm) 20 Product Weight (g) 150 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) Supported Protocols SNMP V1/V2, TFTP RFC 783, IP RFC 791, ICMP RFC 792, TCP RFC 793, SMTP RFC 821, Telnet RFC 854, HTTP Switching Architecture Store and Forward Wavelength 850nm Fiber Connector ST Industry Standards - IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-FX
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x

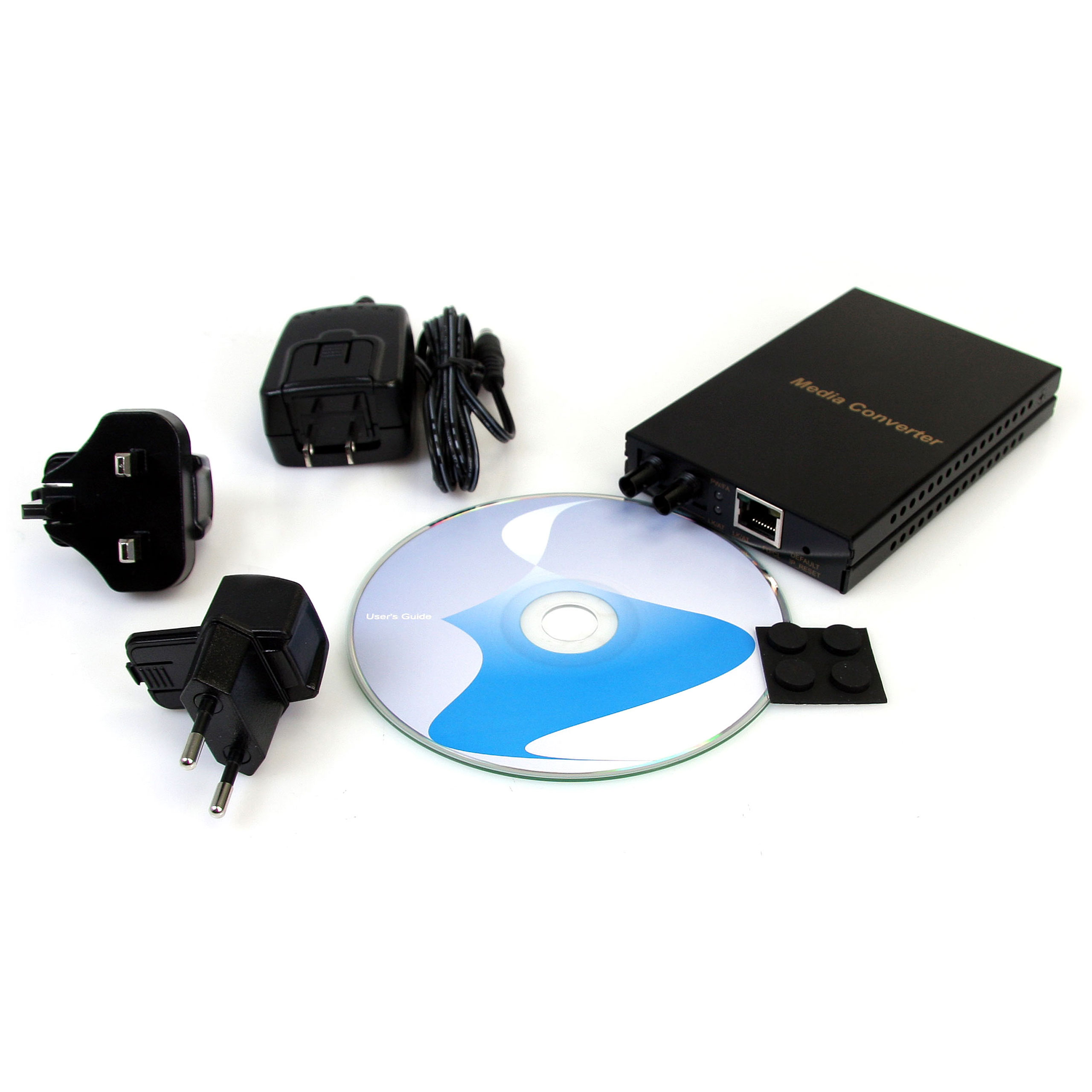

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 501 Carton Height (mm) 376 Carton Quantity 20 Carton Weight Gross (g) 10600 Included in Package - 1 - Media Converter
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU)
Package Depth (mm) 65 Package Height (mm) 184 Package Width (mm) 235 Package Weight (g) 470 Packaging Description 10/100 Managed ST Fiber Media Converter 2 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ST Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
