MNHD2VGAE2

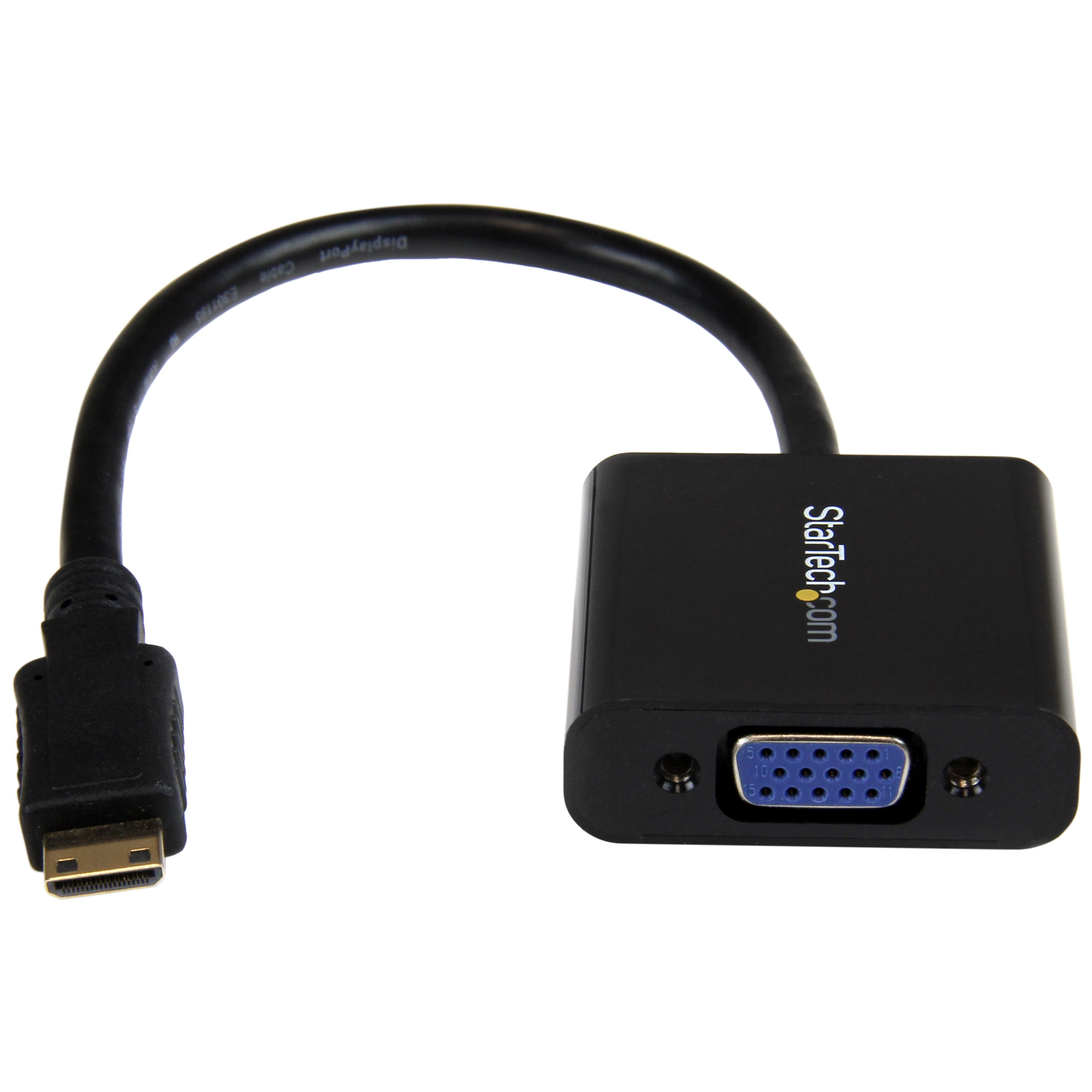

Mini HDMI to VGA Adapter Cable

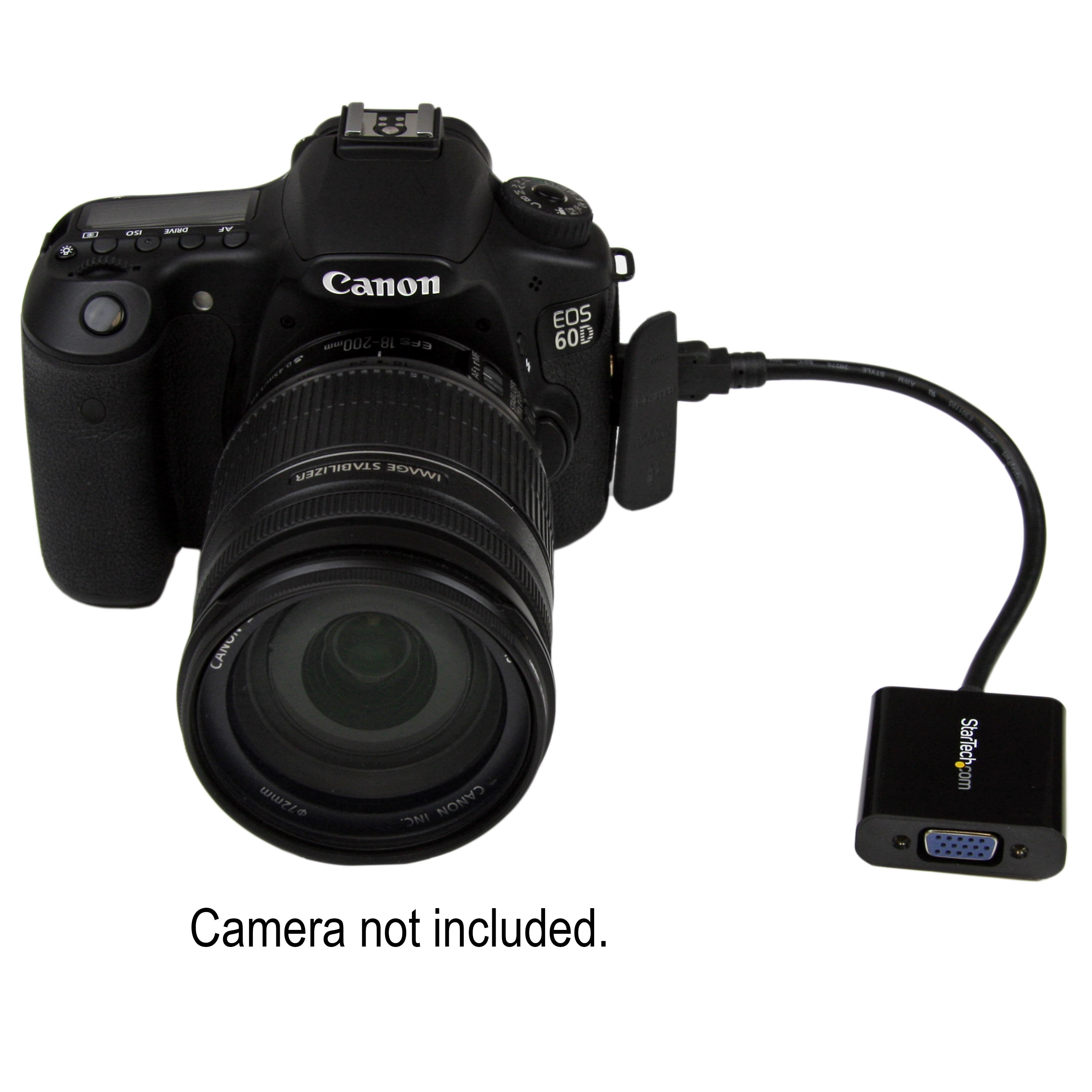

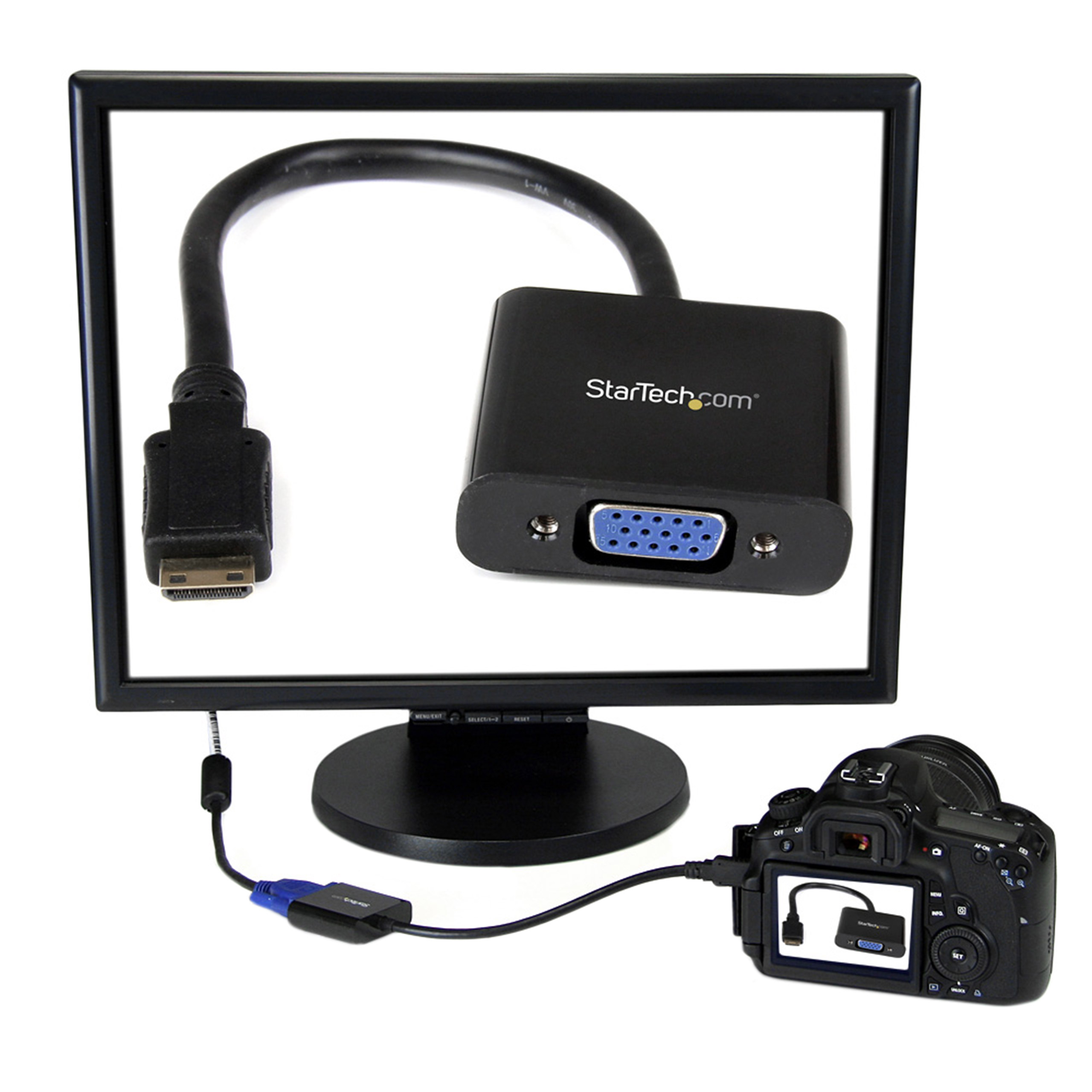

Connect a Mini HDMI® equipped Digital Camera or Tablet to your VGA Display, or Projector
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name Mini HDMI to VGA Adapter Cable Product Number MNHD2VGAE2 UPC 065030850988 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display and Video Adapters Category Level 2 HDMI and DVI Display Adapters Category Level 3 HDMI to VGA Family HDMI/Mirco HDMI / Mini HDMI to VGA Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) Mini HDMI to VGA Product Title (Short) Mini HDMI to VGA Adapter Product Title (Medium) x Product Title (Standard) Mini HDMI® to VGA Adapter Converter for Digital Still Camera / Video Camera - 1920x1080 Product Title (Long) Mini HDMI to VGA Adapter Converter for Digital Still Camera / Video Camera - 1920x1080 Product Title (AMZ) Mini HDMI® to VGA Adapter Converter for Digital Still Camera / Video Camera - 1920x1080 - Mini HDMI Male to VGA HD15 Female (MNHD2VGAE2) Title Ingram (Part 1) Mini HDMI Male to VGA Female Ada Title Ingram (Part 2) pter Converter - 1920x1080 Website Product Headline Connect a Mini HDMI® equipped Digital Camera or Tablet to your VGA Display, or Projector Bullet 1 Supports a maximum resolution of 1920x1080 (1080p) Bullet 2 No external power adapter required Bullets (Compact) Connect a Mini HDMI equipped Digital Camera or Tablet to your VGA Display or Projector - Comparable to 4X90F33442 - Supports Mini HDMI output resolutions up to 1920x1080 (1080p) - Output video from your mHDMI camera to your monitor - Mini HDMI to VGA Bullets (Consolidated) Connect a Mini HDMI equipped Digital Camera or Tablet to your VGA Display or Projector - Supports a maximum resolution of 1920x1080 (1080p) - Mini HDMI to VGA Adapter/Mini HDMI to VGA Converter/Mini HDMI to VGA Adaptor - No power adapter required, ensuring a compact and portable solution - Simple plug-and-play installation for a quick and hassle-free setup - High quality, compact design for long term durability and a minimal footprint Marketing Copy Applications Connecting HDMI Mini-enabled devices such as your digital camera or tablet PC to a VGA projector or display Website Search Keyword - mini hdmi® to vga adapter
- mini hdmi® to vga converter
- mini hdmi® to vga adaptor
- P131-06N-MINI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- MXT101MMHQ30
Related Products - MCHD2VGAA2
- MCHD2VGAE2
- HD2VGAE2
- HD2VGAMICRO
- HD2VGAA2
- HD2VGAMICRA
- HDMI2VGA
- HD2DPVGADVI
- MCHD2VGA
- HD2VGAMM3
- HD2VGAMM6
- HD2VGAMM10
Cable Length (mm) 200 Color Black Humidity 40% to 85% RH Non-Condensing Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 203.000 Product Width (mm) 40.000 Product Height (mm) 15.000 Product Weight (g) 32.670 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Maximum Analog Resolutions 1920x1080 Maximum Digital Resolutions 1920x1080 Maximum Supported Resolution 1080p MTBF (hours) 1,754,784 hours Supported Resolutions 1920x1080 (1080p) @ 60Hz Video Output Port VGA Wide Screen Supported Yes Active or Passive Adapter Active Audio No AV Input Mini HDMI AV Output VGA Converter Type Format Converter Host Connection Port HDMI Industry Standards High Speed HDMI® Carton Depth (mm) 422 Carton Height (mm) 426 Carton Quantity 300 Carton Weight Gross (g) 15458 Included in Package 1 - Mini HDMI® to VGA Converter Adapter Number of Sub-Cartons 30 Package Depth (mm) 195 Package Height (mm) 30 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 33 Packaging Description Mini HD to VGA Adapter Converter Packaging Description India Mini HD to VGA Adapter Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 Mini HDMI Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
