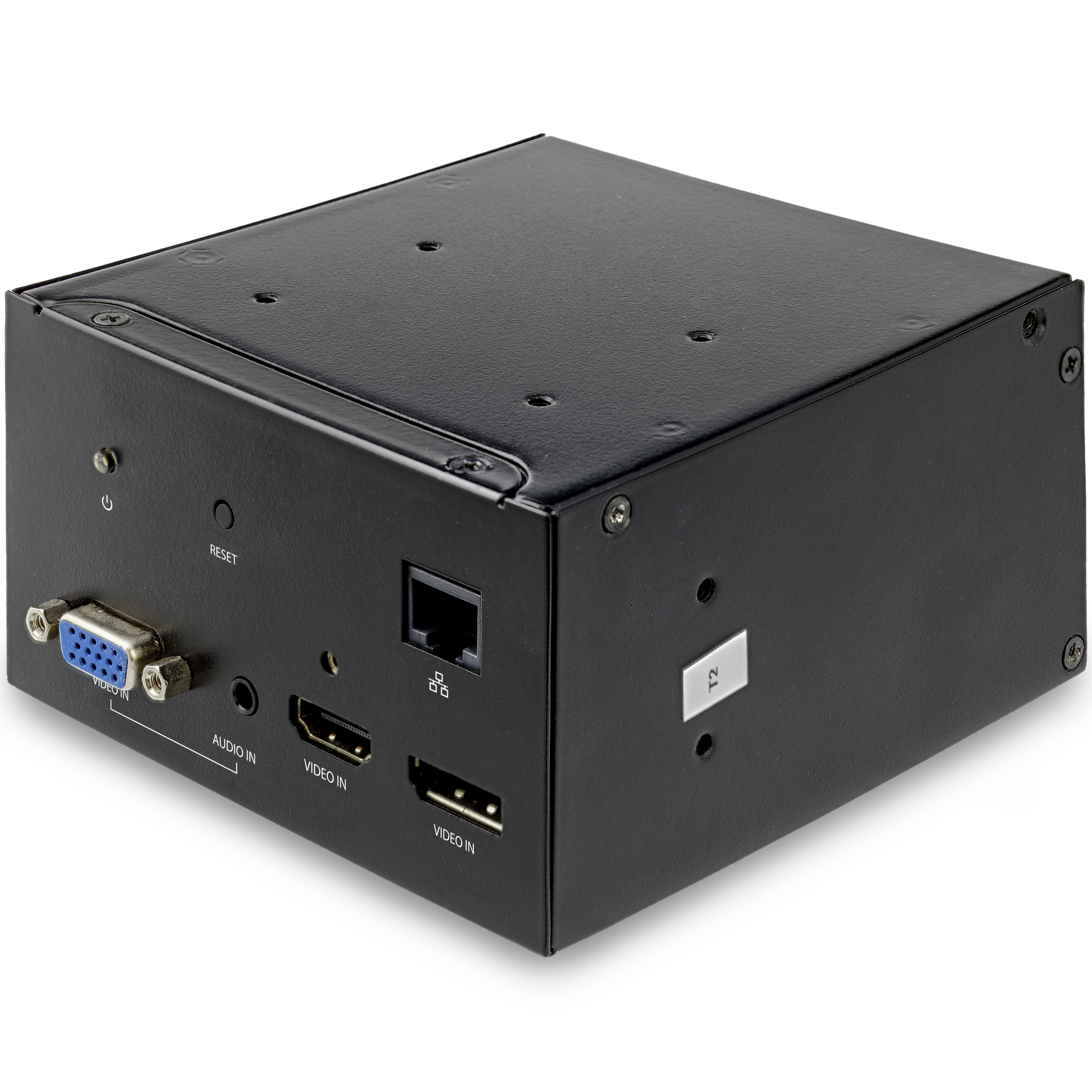

MOD4AVHD
Video Connectivity Module for BOX4MODULE - 4K30
Boardroom and Huddle Space Connectivity | 4K | HDMI, DP, VGA | Table-Mounting Bracket Included
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Video Connectivity Module for BOX4MODULE - 4K30 Product Number MOD4AVHD UPC 065030871228 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Table Panel Boxes Category Level 3 Conversion Cables Family Modular Table Box Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX069X Product Title (Ultra-Short) A/V Module Product Title (Short) Module - A/V - For Connectivity Box Product Title (Medium) Audio / Video Module for Conference Table Connectivity Box - 4K - HDMI, DP, VGA Product Title (Standard) Audio / Video Module for Conference Table Connectivity Box - Connect an HDMI / DP / VGA laptop to an HDMI display - Automatically switches to the most recently connected or powered on laptop - Converts a laptop's video output to HDMI - 4K 30Hz - Table-mounting bracket included Product Title (Long) Audio / Video Module for Conference Table Connectivity Box Product Title (AMZ) Audio / Video Module for Conference Table Connectivity Box - 4K - HDMI, DP, VGA - Table-Mounting Bracket Included (MOD4AVHD) Title Ingram (Part 1) A/V Module for Conference Table Title Ingram (Part 2) Connectivity Box - HDMI DP VGA Website Product Headline Boardroom and Huddle Space Connectivity | 4K | HDMI, DP, VGA | Table-Mounting Bracket Included Bullet 1 Simplify audio/video connectivity in your boardroom, classroom or huddle space Bullet 2 Add support for HDMI®, DisplayPort™ and VGA laptops and resolutions up to 4K 30Hz Bullet 3 A/V module automatically outputs the most recently connected or powered-on laptop Bullet 4 Avoid the hassle of menu and input selections, the module converts your laptops video output to HDMI for simple video connectivity Bullet 5 Use as a standalone solution or combine with a single-module or dual-module StarTech.com Connectivity Box Bullets (Compact) AV Module for Conference Table Connectivity Box - Architectural connectivity A/V module connects HDMI / DP / VGA laptops to an HDMI display - Automatically switches to the most recently connected or powered on laptop - Table-mounting bracket included Bullets (Consolidated) Audio Video module for Conference Table Connectivity Box lets you add A/V connectivity and network access to a: boardroom/classroom/huddle space - Architectural connectivity AV module makes it easy to connect an HDMI/DP/VGA laptop to an HDMI display - Automatically switches to the most recently connected or powered on laptop - Converts a laptop's video output to HDMI - Customizable: Use as a standalone solution or with the BOX4MODULE or BEZ4MOD connectivity box (each sold separately) Marketing Copy Marketing Copy (No HTML) Applications - Add versatile A/V connectivity to the BOX4MODULE or BEZ4MOD
- Simplify connectivity between your laptop and a display
- Ideal for meeting rooms, classrooms, and huddle spaces

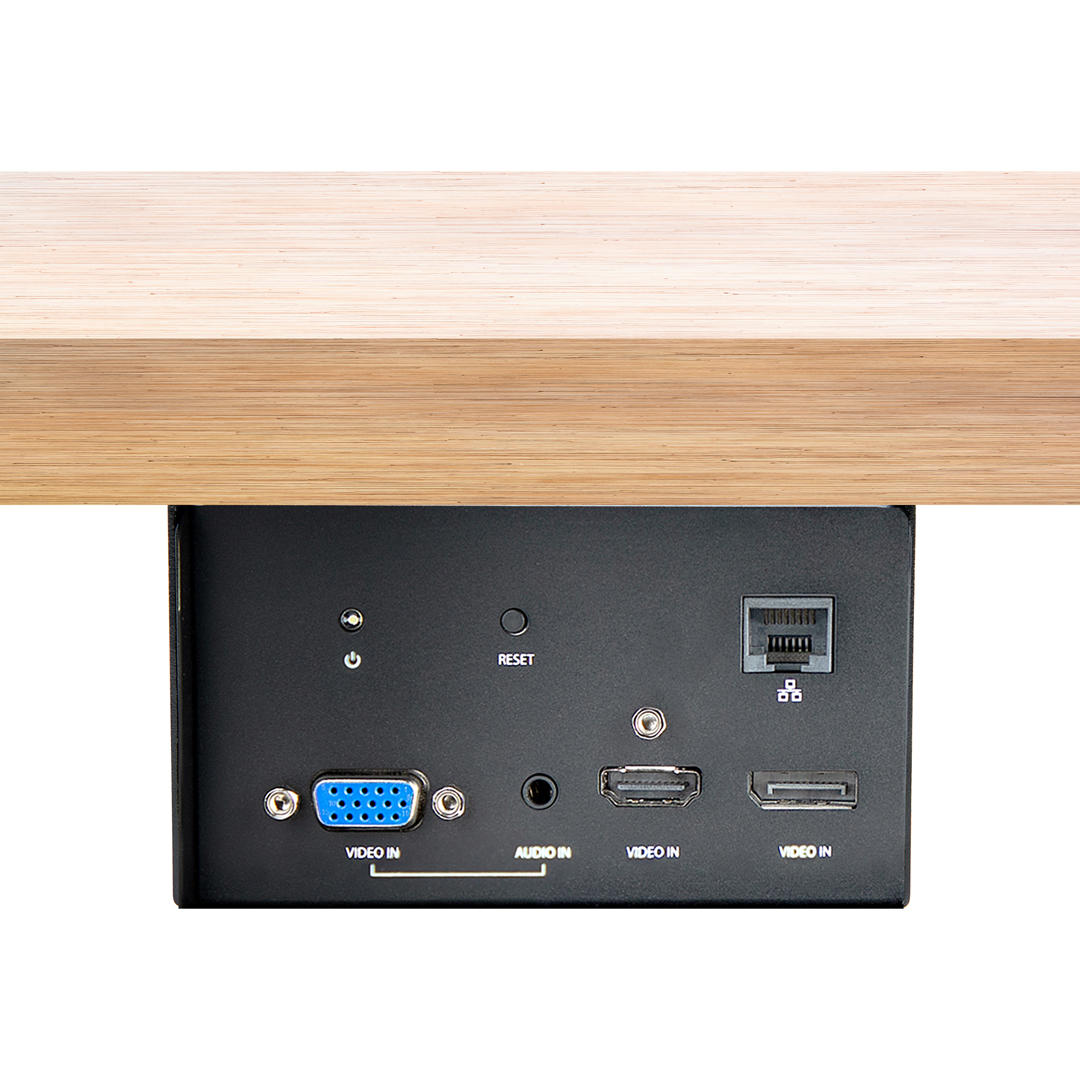

- Install as a standalone solution in a workbench or lectern
- Connect an IP conference calling system via LAN
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- MU6MMS
- MU10MMS
- MU15MMS
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USBLT1MW
- USBLT2MW
- USBLT3MW
- RJ45PATCH10
- RJ45PATCH25
Related Products - BOX4MODULE
- BEZ4MOD
- MOD4CABLEH
- MOD4DOCKACPD
- BNDBXAVHDPNA
- BNDBXAVHDPUK
- BNDBXAVHDPEU
Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10% to 85% (non-condensing) Material Aluminum and Plastic Operating Temperature 0°C ~ 60°C (32° ~ 140°F) Primary Material Aluminum Product Length (mm) 120.000 Product Width (mm) 107.000 Product Height (mm) 61.000 Product Weight (g) 1013.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Analog Resolutions 1920 x 1200 60Hz Maximum Digital Resolutions OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter - Active
- Passive
Aspect Ratio 16:9 Audio Yes AV Input - VGA
- 3.5 mm Audio
- HDMI
- DisplayPort

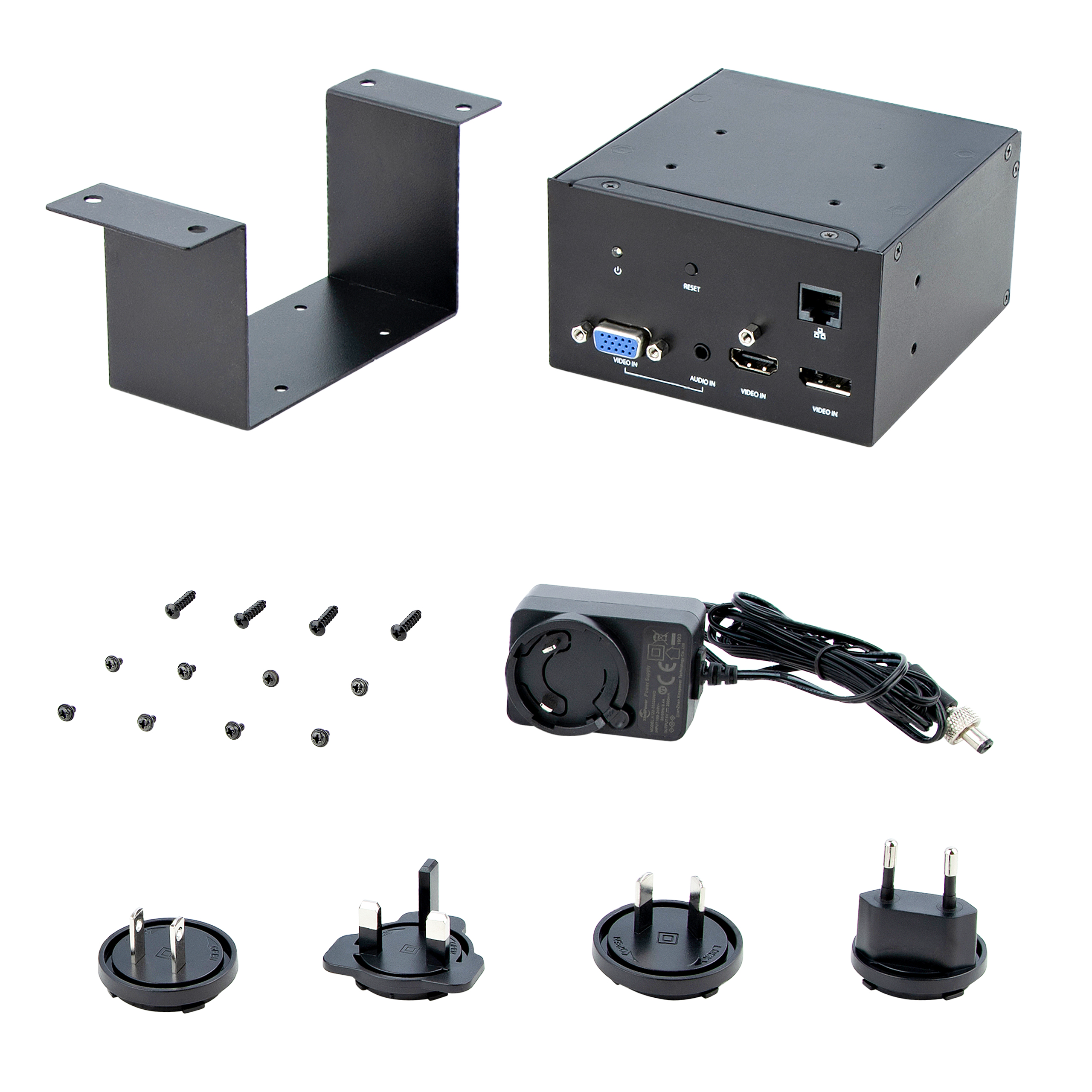

AV Output HDMI Chipset ID Converter Type Presentation Adapters LED Indicators 1 - Power Matrix Video Switch (Filter) No USB Pass-Through No Carton Depth (mm) 272 Carton Height (mm) 244 Carton Quantity 5 Carton Weight Gross (g) 5484 Included in Package - 1 - A/V module
- 1 - universal power adapter
- 3 - power clips (NA, EU, UK)
- 1 - mounting bracket
- 4 - mounting bracket screws (M5 x 20 mm)
- 8 - module screws (#6-32 x 3/16")
- 1 - quick-start guide
Package Depth (mm) 102 Package Height (mm) 208 Package Width (mm) 254 Package Quantity 1 Package Weight (g) 974 Packaging Description A/V Connectivity Module Packaging Description India A/V Connectivity Module Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 DisplayPort Connector 5 (Quantity) 2 Connector 6 HDMI Connector 6 (Quantity) 1 Connector 7 RJ-45 Connector 7 (Quantity) 1 Connector 8 3.5mm (3 Conductors, TRS) Connector 8 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-03-06 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-02-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-09-14 Target Production Release 2019-03-08 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
