Product Name Wireless Stereo Audio Extender Product Number MP3AUDIOEXT UPC 065030815680 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX063X Product Title (Long) MP3 AirLink Wireless Audio Transmitter and Receiver Bullet 1 Software independent Bullet 2 Auto-scan feature locates the best audio channel Bullet 3 Works with virtually and device/speaker combination Bullet 4 Small footprint for easy installation Marketing Copy Applications - Connects your computer, iPod/MP3 player, or other audio source to a stereo or speakers
- Perfect for safely connecting your electronic audio sources to outdoor speakers or portable stereos
- An easy way to enjoy Webcast programming on your existing stereo
Website Search Keyword - mp3
- audio
- ipod
- stereo
Accessory Products - MUMFRCA
- MU6MM
- AUDIOEXTRX
Color Silver Product Length (mm) 80 Product Width (mm) 80 Product Height (mm) 23 Product Weight (g) 159 TAA Compliant No General Specifications - Operating Frequency: 2.4 GHz
- Channels Supported: 8

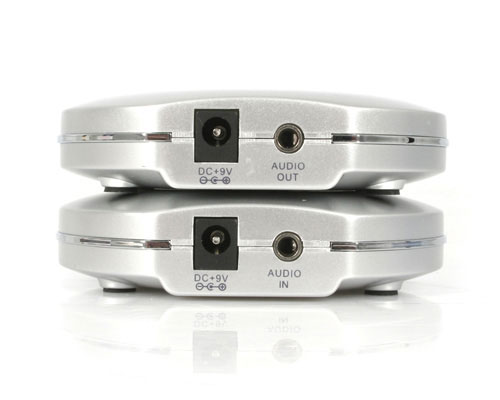

- Input/Output Connector (per unit): 1 x 3.5mm headphone (female)
- Power Adapter: DC 9V, 200 mA (center positive), per unit
- Power Consumption (typical): 100 mA (transmitter), 130 mA (receiver)
- Operating Temperature: 14~140 deg. F. (-10~60 deg. C.)
- Modulation (transmitter): FSK (Modulation Index 0.5)
- Channel Spacing: 9 MHz
- Channel Frequency: 2410~2473 MHz
- Frequency Stability: +/- 100 KHz
- Input Impedance (transmitter): >10K Ohm
- Input Level (transmitter): 4Vp-p (max)
- Receiver Sensitivty: -85 ddBm (min.)
- Adjacent Channel Rejection: >45dB @ +/- 5 MHz offset chan. frequency
- Image Rejection: >25dB @ the image frequency
- Output Impedance: < 1 KOhm (receiver)
- Output Level (receiver): 3.4Vp-p (max.)
- Response: 20 KHz, -2dB (max.)
- Dynamic Range: 45 dB (min.)
- Separation: 45 dB (min.)
- S to N Ratio: 45 dB (min.)
- THD: 0.6% (min.)
- Range: 100 ft. (30m) open air, 30 ft. (10m) between walls
Max Distance 30m [98.4ft] Cabling Wireless Ethernet Carton Depth (mm) 420 Carton Height (mm) 235 Carton Quantity 10 Carton Weight Gross (g) 8400 Package Depth (mm) 62 Package Height (mm) 186 Package Width (mm) 214 Package Weight (g) 720 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Eric Roth
