MPEX1394B3
Mini PCIe FireWire Card 2x 800 1x 400 FireWire
Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Mini PCIe FireWire Card 2x 800 1x 400 FireWire Product Number MPEX1394B3 UPC 065030842914 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Family Firewire Cards - Mini PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 3 Port 2b 1a Mini PCIe FireWire Card Product Title (Medium) x Product Title (Standard) 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter, TAA Product Title (Long) 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - TAA Product Title (AMZ) 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire , TAA (MPEX1394B3) Title Ingram (Part 1) 3 Port 2b 1a 1394 Mini PCI Expre Title Ingram (Part 2) ss FireWire Card Adapter Website Product Headline Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot Bullet 1 Compliant with PCI Express Mini Card specification 1.2 Bullet 2 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps Bullet 3 Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards Bullet 4 Optional external power support for high-powered FireWire devices Bullet 5 Plug-and-Play and hot-swap compatible Bullets (Consolidated) FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire Marketing Copy Applications - System builders creating a small form factor HTPC with external FireWire storage or A/V equipment
- Custom embedded systems with no room for full or even low profile PCI Express cards
Website Search Keyword - mini pci-e firewire adapter
- pcie mini card
- fw400 adapter card
- fw800 controller
- 1394 card
- IEEE 1394
- 1394a
- 1394b
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Ensure computer case has an available expansion card slot System and Cable Requirements Available Mini PCI Express expansion slot (full length) Accessory Products - 1394_99_6
- 1394_99_10
- 1394_96_6
- 1394_96_10
- 1394_94_6
- 1394_94_10
- 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 139466EXT6
- FIRE94FM
- FIRE46FM
- FIRE46MF
Related Products - EC1394B2
- EC13941A1B
- EC13942A2
- EC13942
- PEX1394B3
- PEX1394B3LP
- PEX1394A2DV
- PEX1394A2
- PCI1394B_3
- PCI1394MP
- PCI1394_4
- CB1394
- CB1394_2
- MPEXSATA22I
- MPEX2S952
Color Green Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 50.000 Product Width (mm) 30.000 Product Height (mm) 4.000 Product Weight (g) 91.000 Storage Temperature -54°C to 150°C (-65°F to 302°F) TAA Compliant Yes MTBF (hours) 172,480 hours OS Compatibility - Windows 7
- Linux
- Windows Server 2012
- Windows 8
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
USB Type and Rate - FireWire 800 IEEE-1394b (800Mbits)
- FireWire 400 IEEE-1394a (400Mbits)
Bus Type Mini PCI Express Card Type Low Profile Chipset ID Texas Instruments - XIO2213B Industry Standards Interface/Bridge - FireWire 400 (1394a)
- FireWire 800 (1394b)

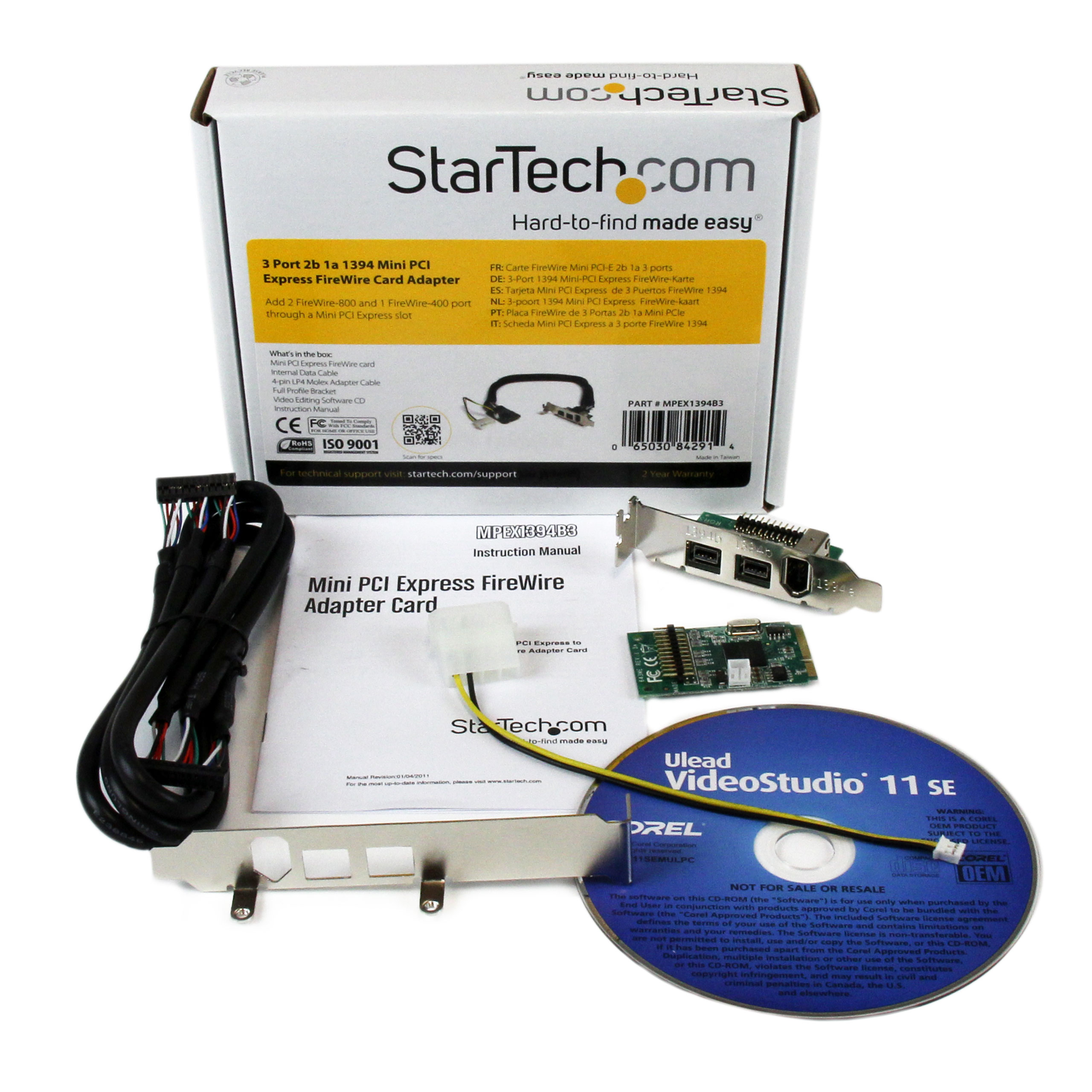

Carton Depth (mm) 363 Carton Height (mm) 313 Carton Quantity 75 Carton Weight Gross (g) 14895 Included in Package - 1 - Mini PCI Express FireWire card
- 1 - Video Editing Software CD
- 1 - Instruction Manual
- 1 - Internal Data Cable
- 1 - 4-pin LP4 Molex Adapter Cable
- 1 - Full Profile Bracket
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 187 Packaging Description 3 Port 2b 1a Mini PCIe FireWire Card Packaging Description India 3 Port 2b 1a Mini PCIe FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 FireWire 800 (9-Pin, 800Mbps, Bus Power) Connector 2 (Quantity) 2 Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
